Plan 48384FM
Roomy Master Sitting Area
Heated S.F.
3,528
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • The master suite in this elegant European home plan enjoys a separate sitting area with a double window to bring in light.
  • As you step through the front door, the foyer affords you with views of the dining room and spacious great room with fireplace.
  • Double doors open to the quiet study with built-in bookshelves.
  • Split bedrooms give privacy to the master suite and place the two family bedrooms off the large kitchen with an island.
  • Upstairs a huge game room awaits with an extra bedroom and bath close by.
What's Included
Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

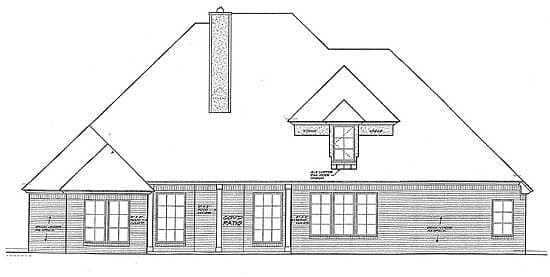

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Roomy Master Sitting Area

  • 3,528

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

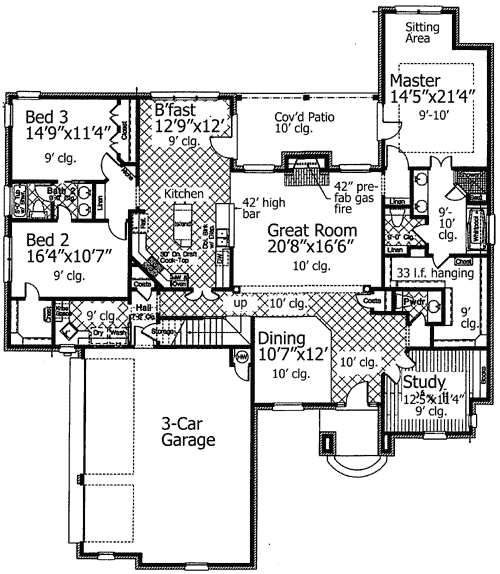

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,528 sq. ft.
  • 1st Floor: 2,714 sq. ft.
  • 2nd Floor: 814 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 78' 8"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Roomy Master Sitting Area

  • 3,528

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Roomy Master Sitting Area

  • 3,528

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,528 sq. ft.
  • 1st Floor: 2,714 sq. ft.
  • 2nd Floor: 814 sq. ft.

Dimensions

  • Width: 68' 0"
  • Depth: 78' 8"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
