Roomy RV Carport

Plan 68617VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • All you need with this carport plan is an RV to put under it.
  • The carport is 19' wide and has 12' clearance giving you plenty of room for your oversized vehicle.
  • Related Plan: Get a narrower carport with plan 68603VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

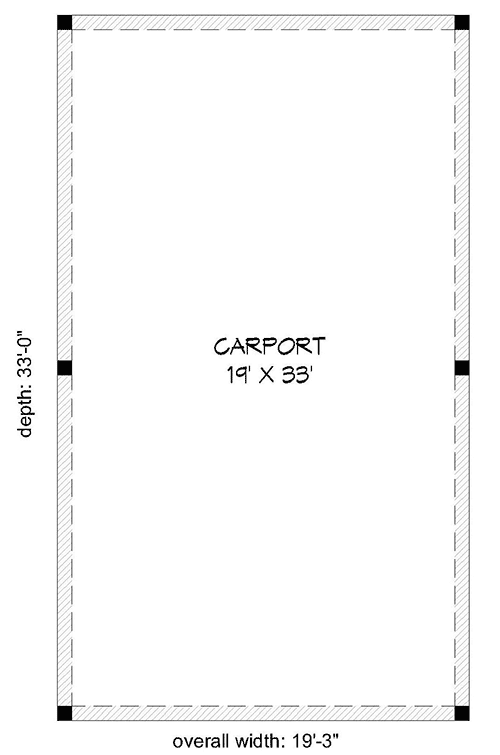

Roomy RV Carport - 68617VR floor plan - Main Level

Architectural Style

Roomy RV Carport

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 19' 3"
  • Depth: 33' 0"
  • Max ridge height: 22' 10"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached, Carport
  • Count: 2 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 6"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
