Rugged 3 Bedroom Craftsman with Vaulted Interior
Heated S.F.
2,090
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • A beautiful vaulted ceiling unites the great room, dining area and kitchen in this rugged Craftsman house plan.
  • All three rooms get the benefit of the big fireplace in the living area.
  • Beams top the outdoor living area, where a summer kitchen lets you grill up your meals.
  • The master suite lies in back away from street noise and bedroom 2 gets a private bathroom.
  • Separate from the main house, bedroom 3 also has a bathroom of its own and lots of privacy.
  • The two car garage has built-in shelving and a separate utility room with a freezer.
What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rugged 3 Bedroom Craftsman with Vaulted Interior

  • 2,090

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

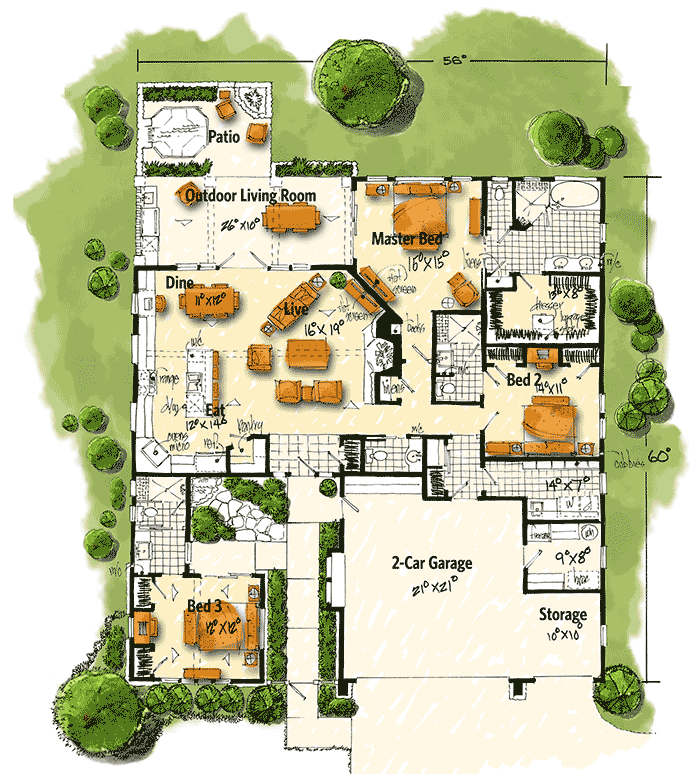

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,090 sq. ft.
  • 1st Floor: 2,090 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 56' 0"
  • Max ridge height: 22' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 673 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6
