Rugged Craftsman Home for a Sloping Lot - 2764 Sq Ft - Architectural Designs

Plan 17650LV

  • 2,764

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

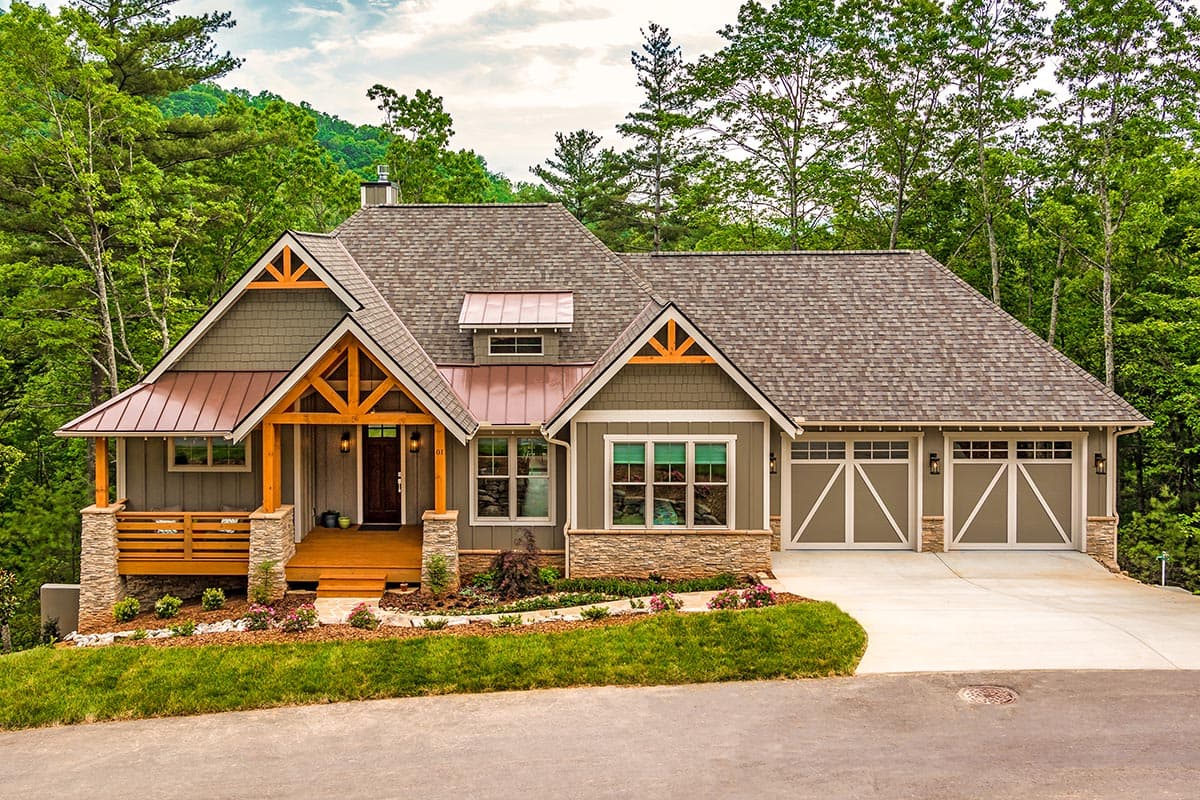

  • This attractive Craftsman home plan features exposed beams, shingles, stone and siding on the exterior as well as a covered front porch. A small eyebrow dormer adds a touch of class and is there for curb appeal only.
  • From the foyer you'll enjoy views across the vaulted family room to the back terrace. A fireplace is flanked by built-ins.
  • The kitchen is open to the family room and the dining room and has an island with casual seating a work space. Entertain outdoors on the expansive covered terrace.
  • A vaulted study makes a quiet retreat and a bath lets it double as a guest suite. With a full bath outside the study, this can be turned into a guest bedroom.
  • Laundry and storage are located off the two-car garage.
  • The master suite has terrace access and a large walk-in closet. The ceiling in the Master Bedroom is 10' with a 12" clip on the left & back sides of the room.
  • The lower level is feature packed and includes a large rec room which accesses the covered lanai. Two bedrooms and two baths are also below as is storage and mechanicals.
  • Related Plan: Get an alternate exterior with house plan 17651LV.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

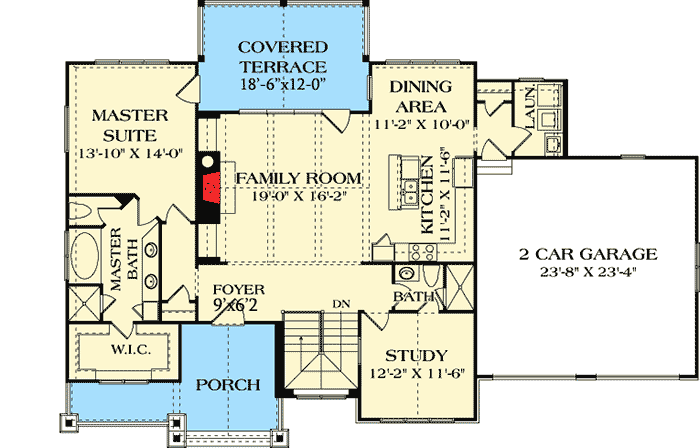

Rugged Craftsman Home for a Sloping Lot - 2764 Sq Ft - Architectural Designs - 17650LV floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

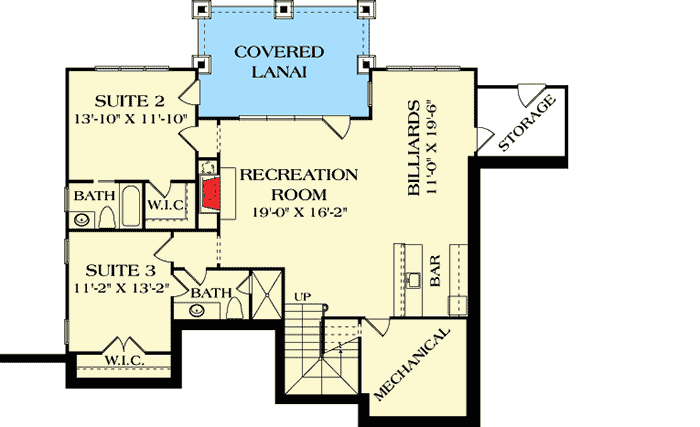

Rugged Craftsman Home for a Sloping Lot - 2764 Sq Ft - Architectural Designs - 17650LV floor plan - Lower Level
