Plan 60715ND Rugged Craftsman Home Plan with 2-Story Great Room and Angled Hearth Room

2,883 4 3 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Rugged Craftsman Home Plan with 2-Story Great Room and Angled Hearth Room

Plan 60715ND

  • 2,883

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This beautiful rustic, split-bedroom home plan offers a very family oriented layout. A great room with a fireplace and built-ins is open to the kitchen and hearth room and has access to the grilling porch. The kitchen features a prep island and a corner walk-in pantry.
  • The hearth room/breakfast room is on a 45 degree angle and has a fireplace and access to the grilling porch.
  • The master suite has a 10' boxed ceiling and private access to the grilling porch with the master bathroom offering a large corner whirlpool tub , a glass shower with a seat, and a huge walk-in closet with a fold down ironing board.
  • Upstairs the theater balcony overlooks the great room and there's a bedroom, an optional bedroom, a full bath and a huge media/bonus room.
  • Related Plan: Get a finished walkout basement with house plan 59985ND

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

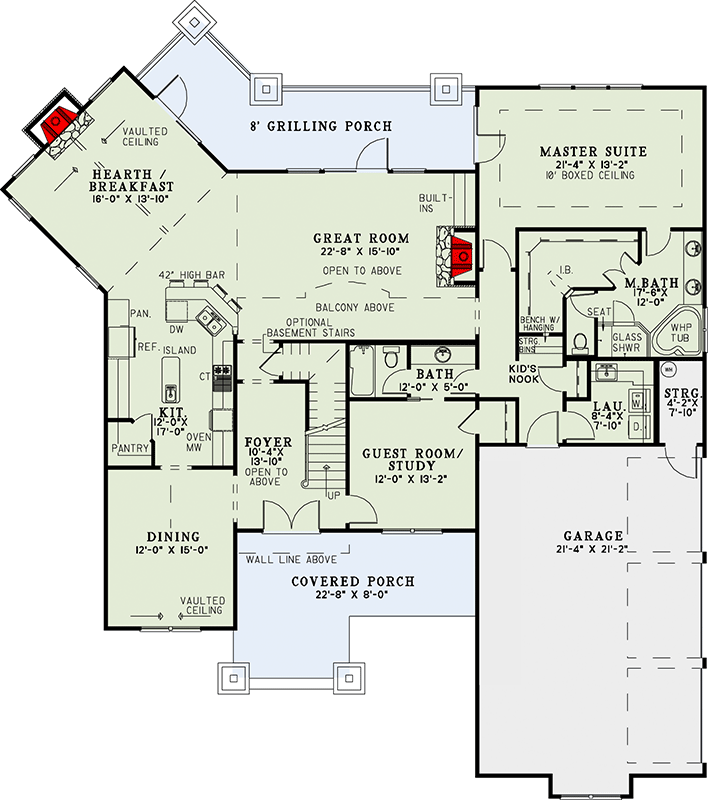

Rugged Craftsman Home Plan with 2-Story Great Room and Angled Hearth Room - 60715ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rugged Craftsman Home Plan with 2-Story Great Room and Angled Hearth Room - 60715ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,883 sq. ft.
  • 1st Floor: 2,222 sq. ft.
  • 2nd Floor: 661 sq. ft.
  • Porch, Combined: 507 sq. ft.
  • Bonus: 460 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 3"
  • Depth: 75' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 743 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Rugged Craftsman Home Plan with 2-Story Great Room and Angled Hearth Room

  • 2,883

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,050
  • 5 Sets $2,150
  • 5 Sets + PDF $2,400
  • PDF - Unlimited Build $2,750
  • CAD Unlimited + PDF $4,100
  • View all purchase option online

About This Plan

  • This beautiful rustic, split-bedroom home plan offers a very family oriented layout. A great room with a fireplace and built-ins is open to the kitchen and hearth room and has access to the grilling porch. The kitchen features a prep island and a corner walk-in pantry.
  • The hearth room/breakfast room is on a 45 degree angle and has a fireplace and access to the grilling porch.
  • The master suite has a 10' boxed ceiling and private access to the grilling porch with the master bathroom offering a large corner whirlpool tub , a glass shower with a seat, and a huge walk-in closet with a fold down ironing board.
  • Upstairs the theater balcony overlooks the great room and there's a bedroom, an optional bedroom, a full bath and a huge media/bonus room.
  • Related Plan: Get a finished walkout basement with house plan 59985ND

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,883 sq. ft.
  • 1st Floor: 2,222 sq. ft.
  • 2nd Floor: 661 sq. ft.
  • Porch, Combined: 507 sq. ft.
  • Bonus: 460 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 3"
  • Depth: 75' 5"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 743 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick
Plan 60715ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/60715ND
|
Need Help? 800-854-7852
|
