Plan 95053RW
Rugged Craftsman Home Plan with Optional Finished Lower Level
Heated S.F.
2,648
Beds
3-5
Baths
3.5 - 5.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

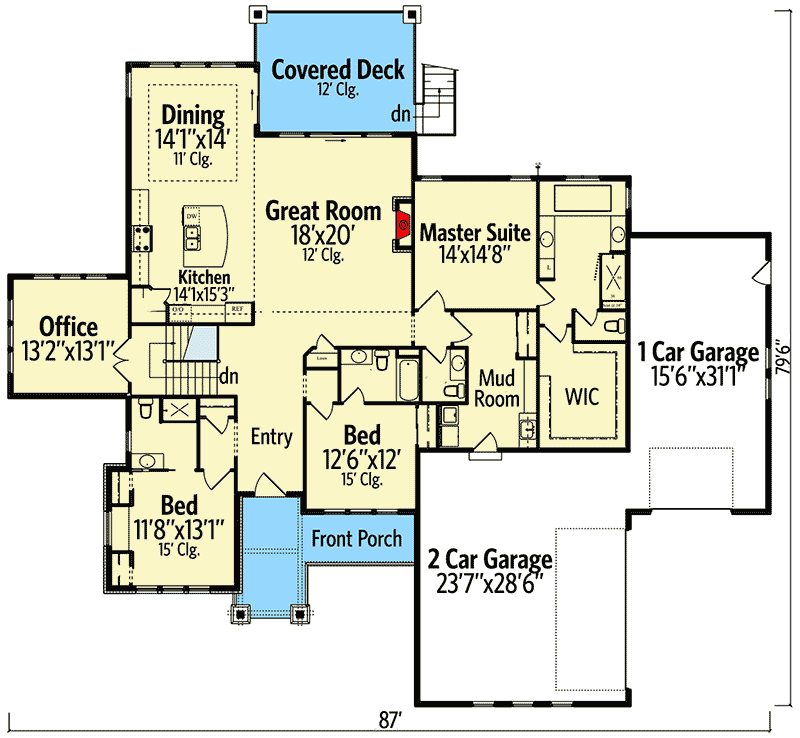

Main Level
Reverse Floor Plan
Rugged Craftsman Home Plan with Optional Finished Lower Level - 95053RW floor plan - Main Level

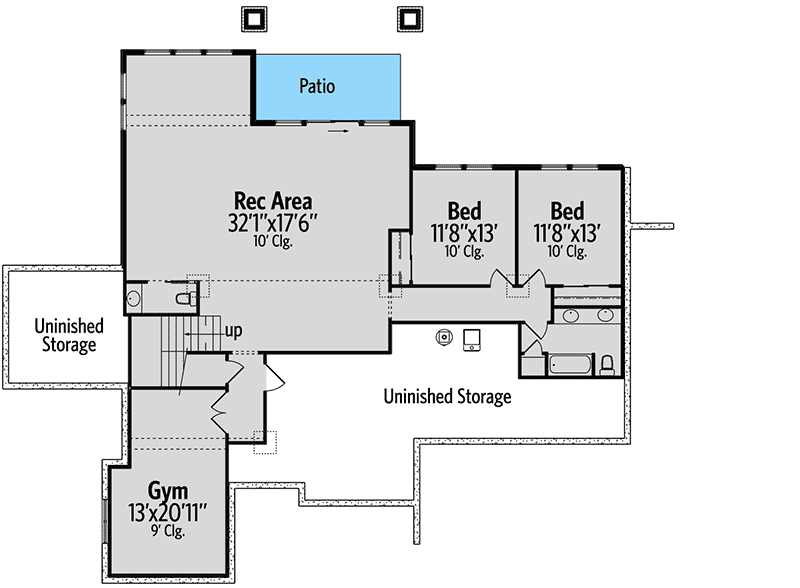

Optional Lower Level
Reverse Floor Plan
Rugged Craftsman Home Plan with Optional Finished Lower Level - 95053RW floor plan - Optional Lower Level
Plan Details

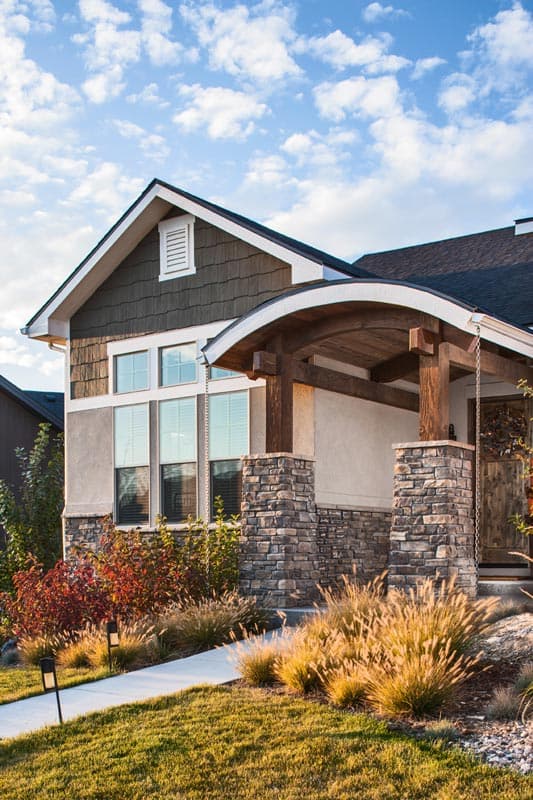

  • This rugged Craftsman home plan has a mixed material exterior with a shed dormer and beautiful covered entry. The main floor gives you 3 beds. Finish the lower level and you'll gain two more.

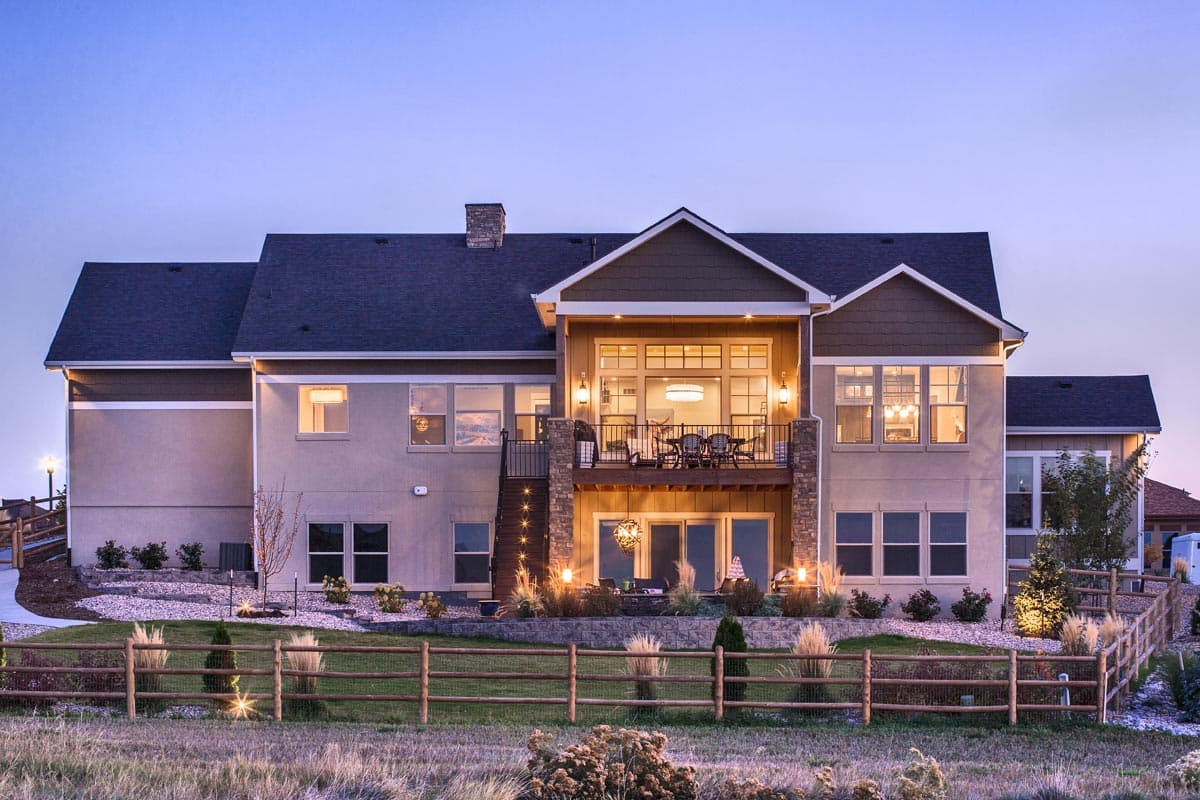

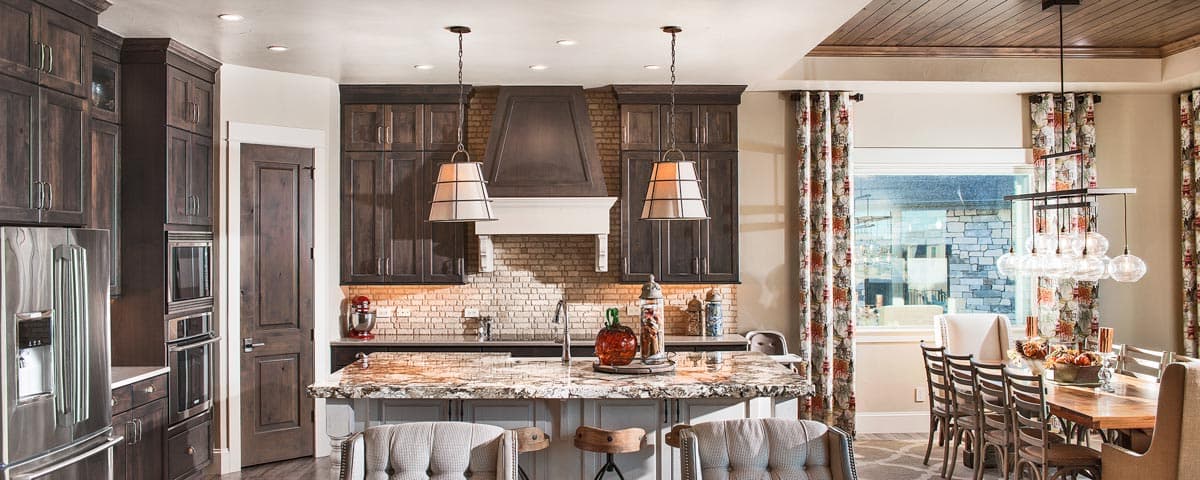

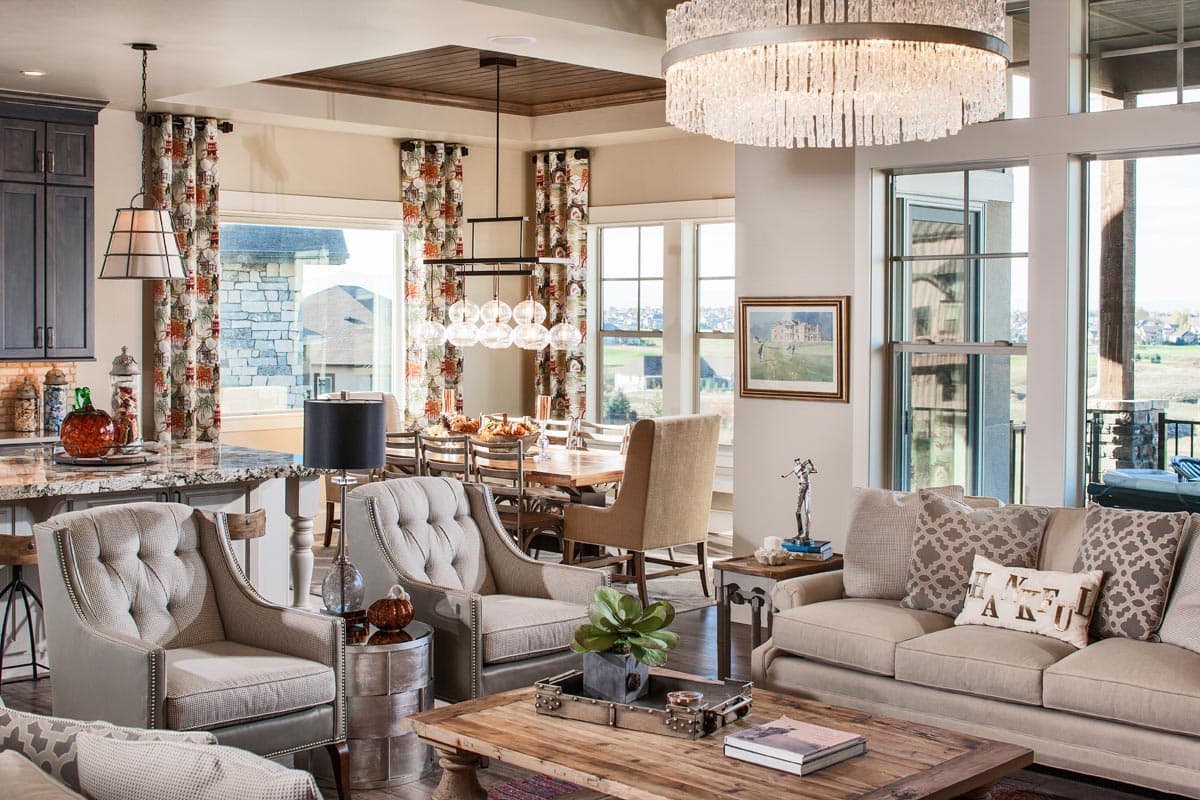

  • The great room has 12' ceilings and is open to the kitchen. Sliding doors on the back wall open to your covered deck.

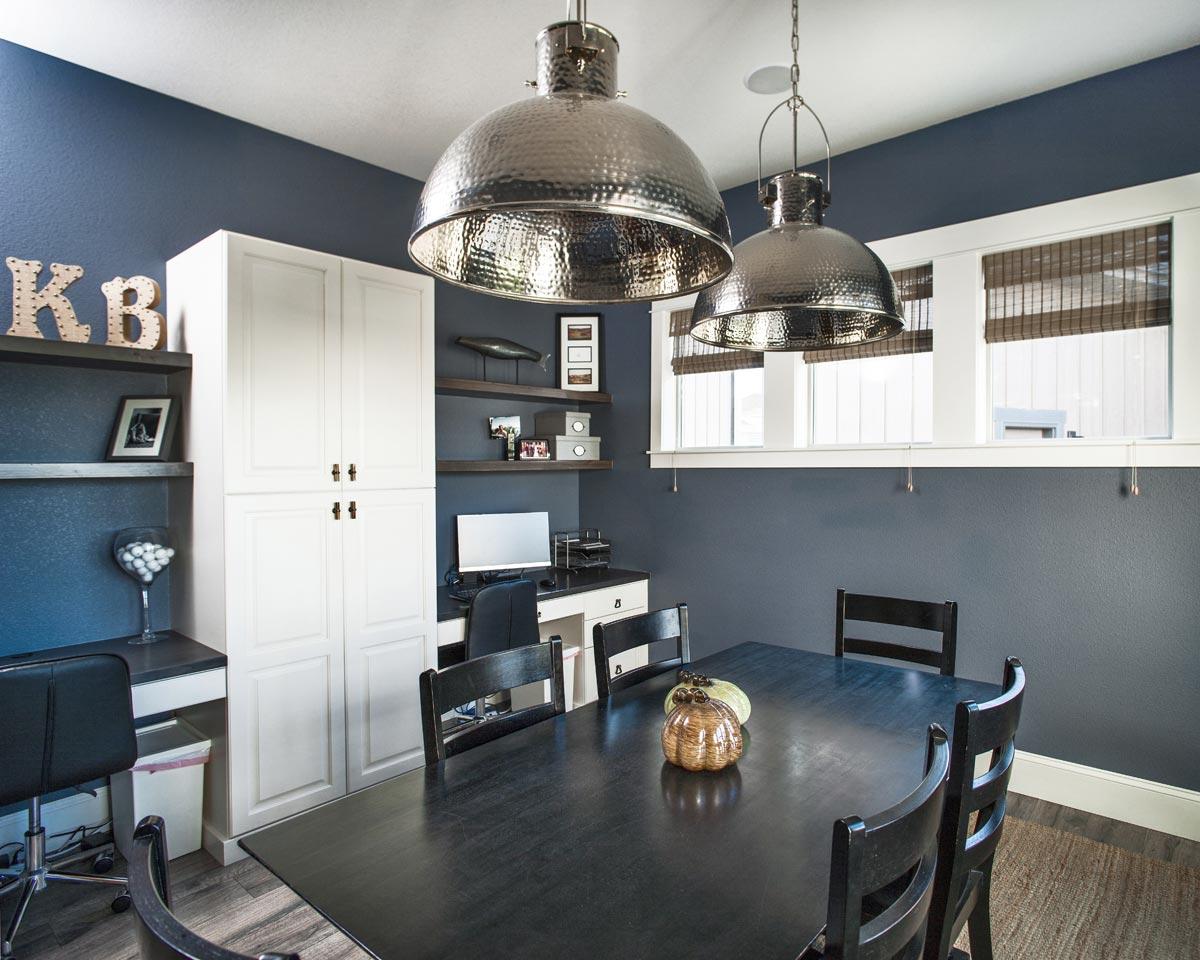

  • A private home office is set behind French doors by the stairs.
  • The master suite is split from the other two bedrooms and has a large walk-in closet, a spa tub and a walk-in shower. The two other bedrooms on this floor each have their own bath.
  • Expand downstairs and gain space for recreation, storage, two bedrooms and access to the outdoors if your lot slopes to the back.
What's Included
This plan set has 8 pages as follows:
  1. Cover sheet with general notes

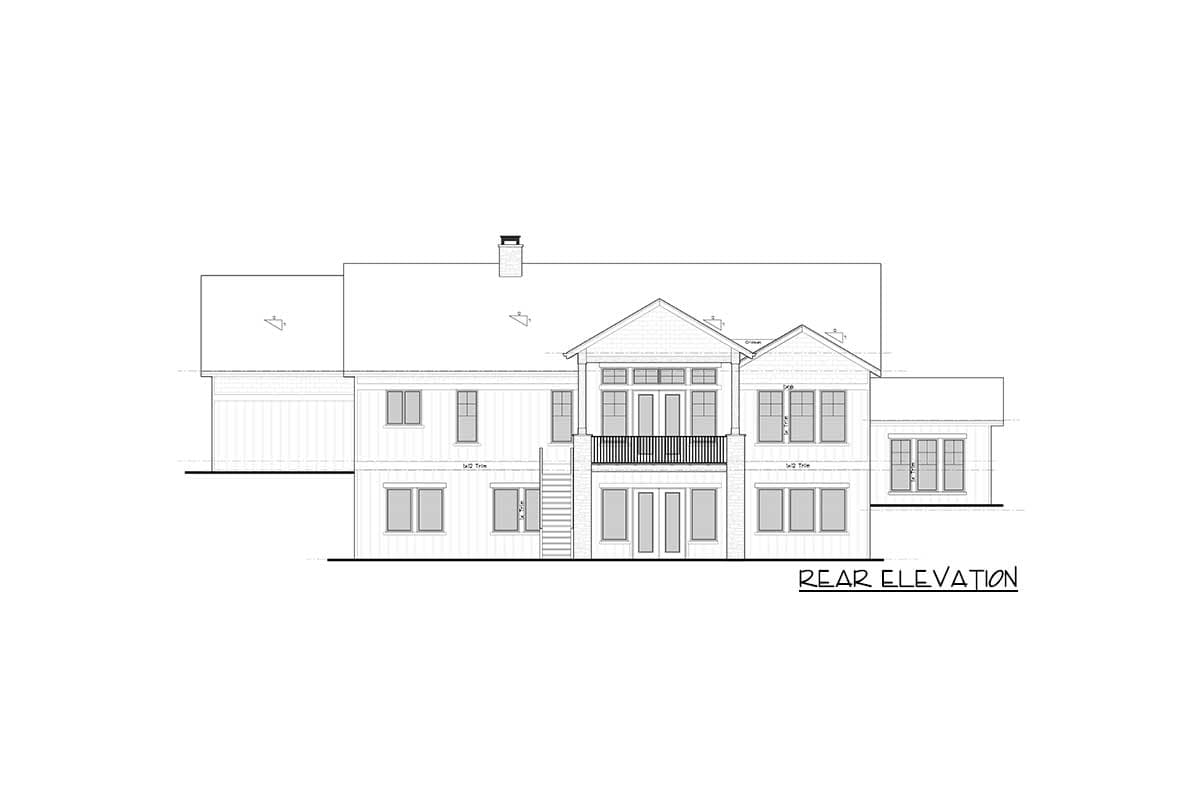

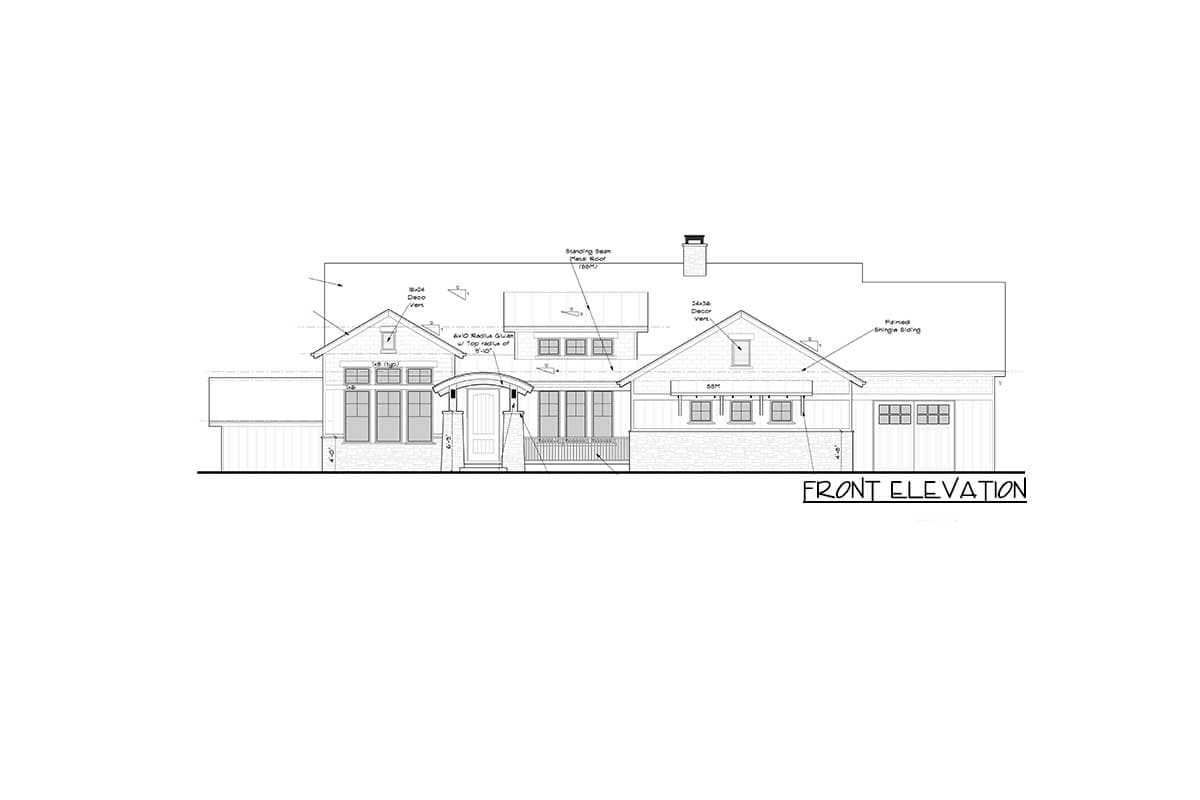

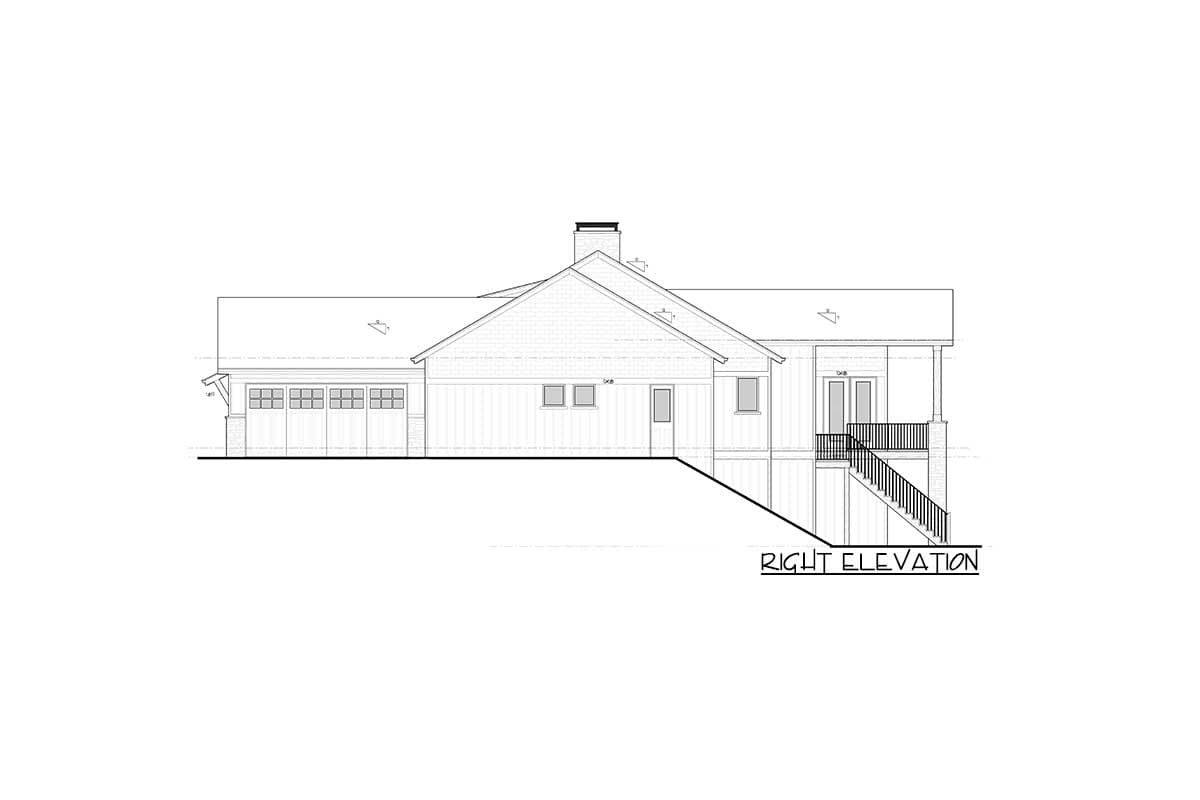

  2. Front and rear elevations

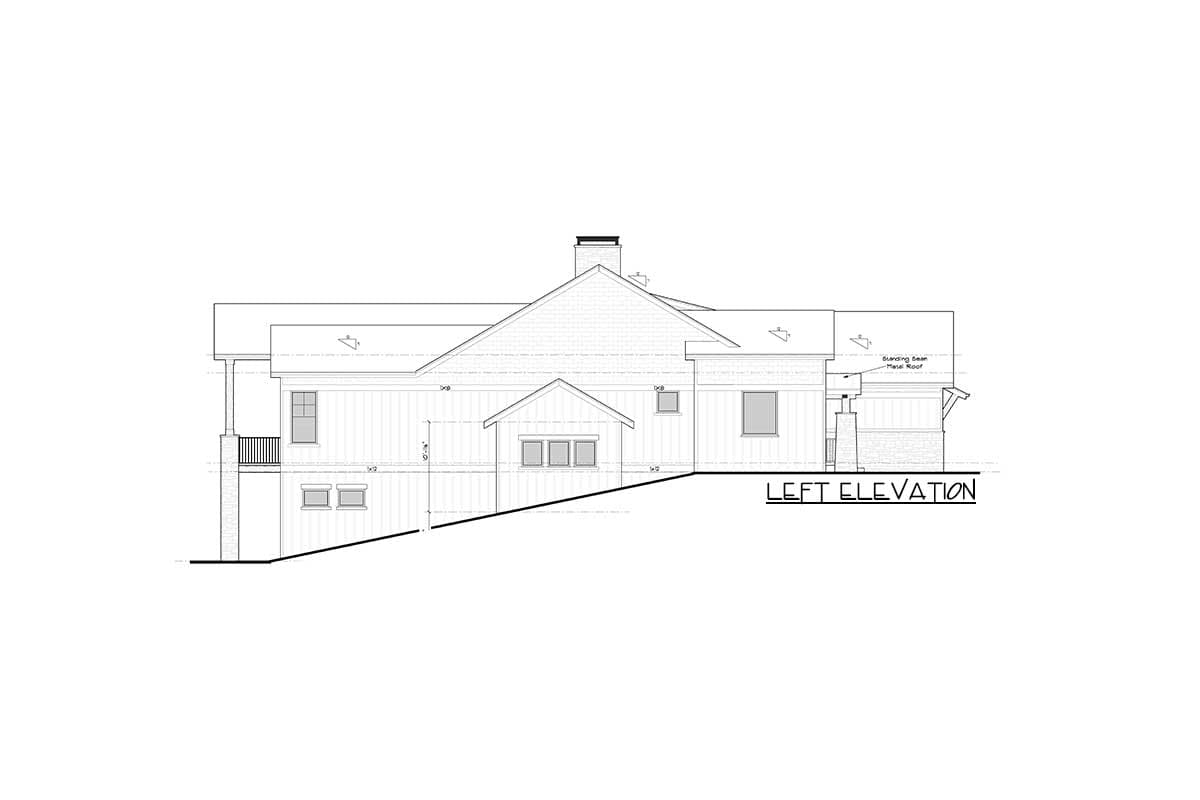

  3. Side elevations
  4. Lower level floor plan
  5. Main level floor plan
  6. Foundation plan
  7. Roof plan
  8. Electrical schematics
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rugged Craftsman Home Plan with Optional Finished Lower Level

  • 2,648

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,648 sq. ft.
  • 1st Floor: 2,648 sq. ft.

Dimensions

  • Width: 87' 0"
  • Depth: 79' 6"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1214 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
