Plan 70578MK

Rugged Craftsman House Plan with Lower Level Bunk Room - 2310 Sq Ft

Heated S.F.
2,310
Beds
3 - 4
Baths
3.5
Stories
1

Floor Plan

Plan 70578MK

Main Level
Main Level
Lower Level
Lower Level

Plan 70578MK

M-F 9am-5pm EST |

1-203-761-8500

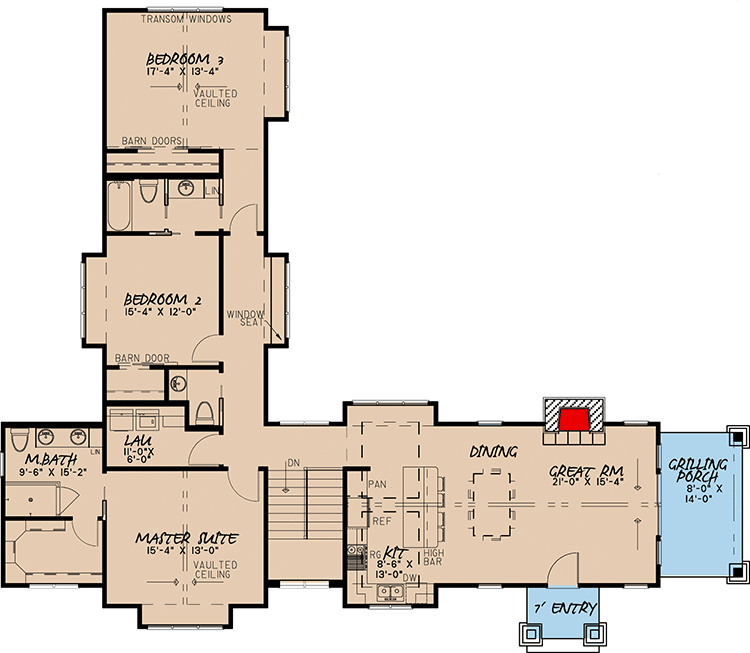

Main Level

Plan 70578MK: Rugged Craftsman House Plan with Lower Level Bunk Room - 2310 Sq Ft - Floor Plan - Main Level - Country, Craftsman, European, Mountain, Rustic, Vacation

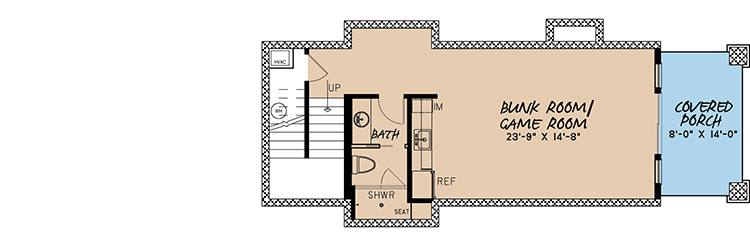

Lower Level

Plan 70578MK: Rugged Craftsman House Plan with Lower Level Bunk Room - 2310 Sq Ft - Floor Plan - Lower Level - Country, Craftsman, European, Mountain, Rustic, Vacation

Plan Details

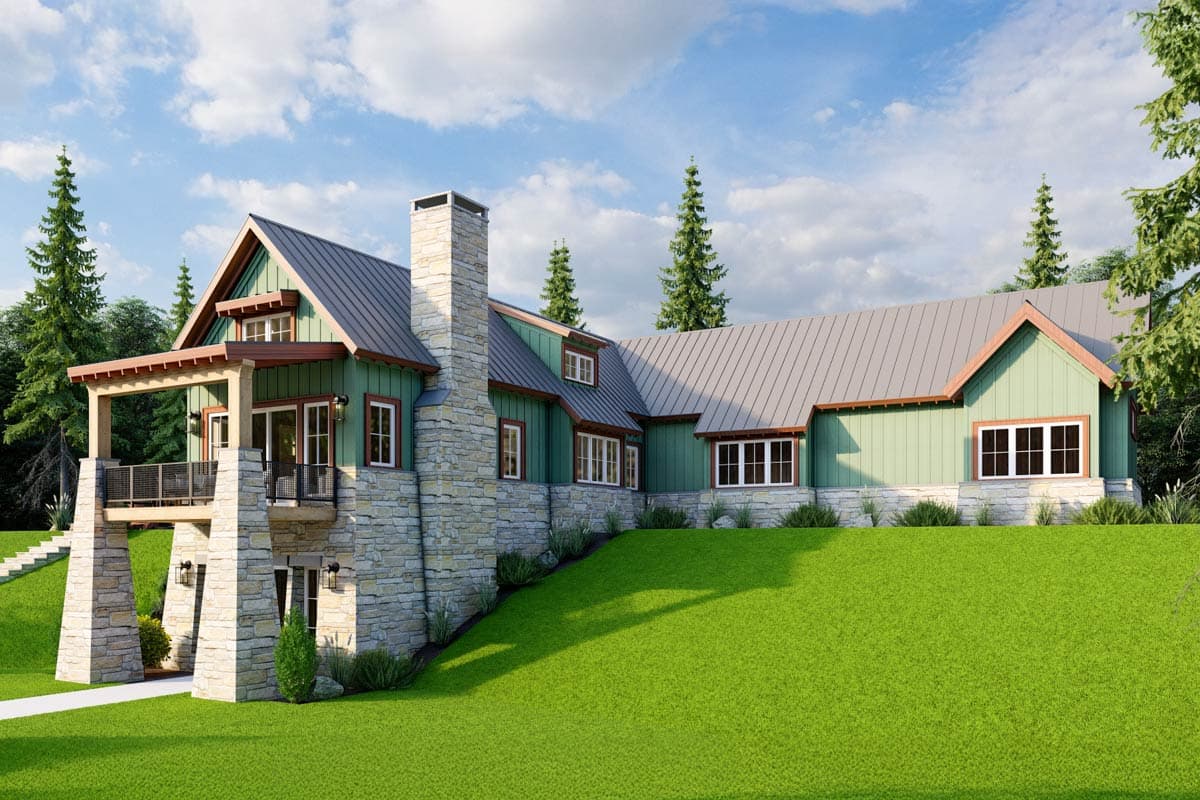

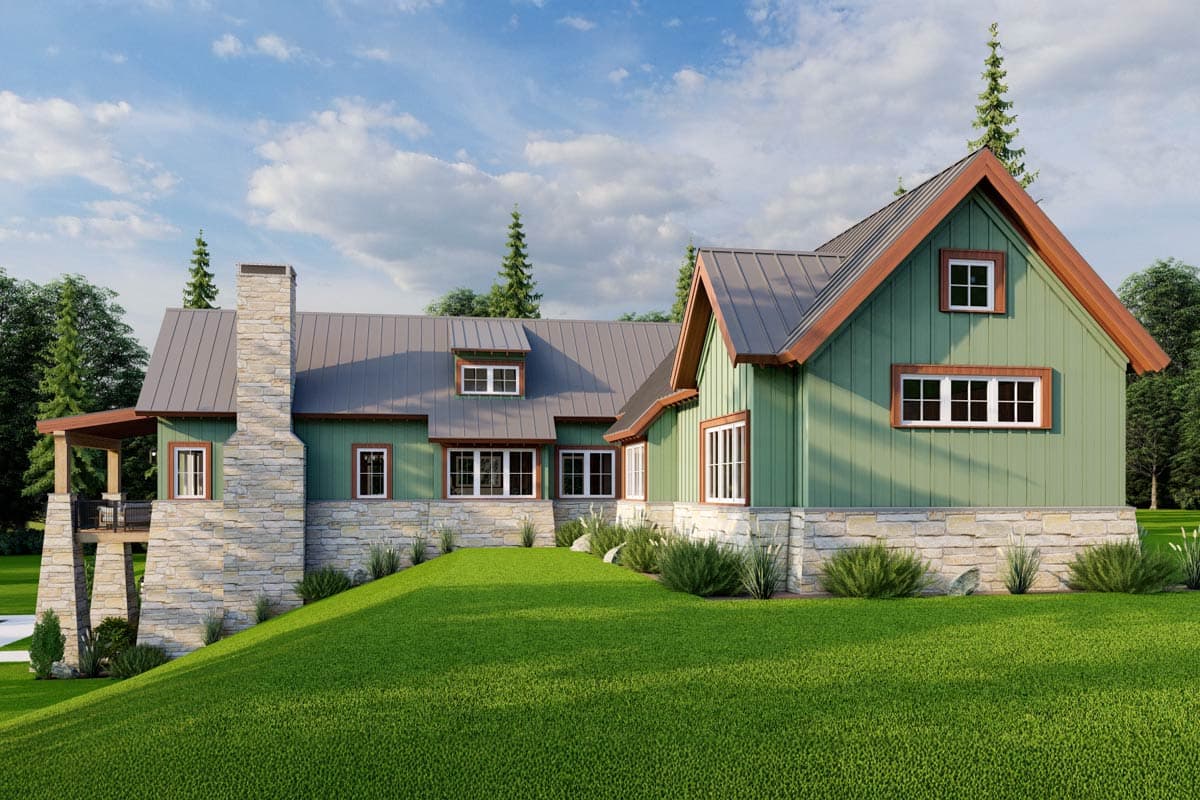

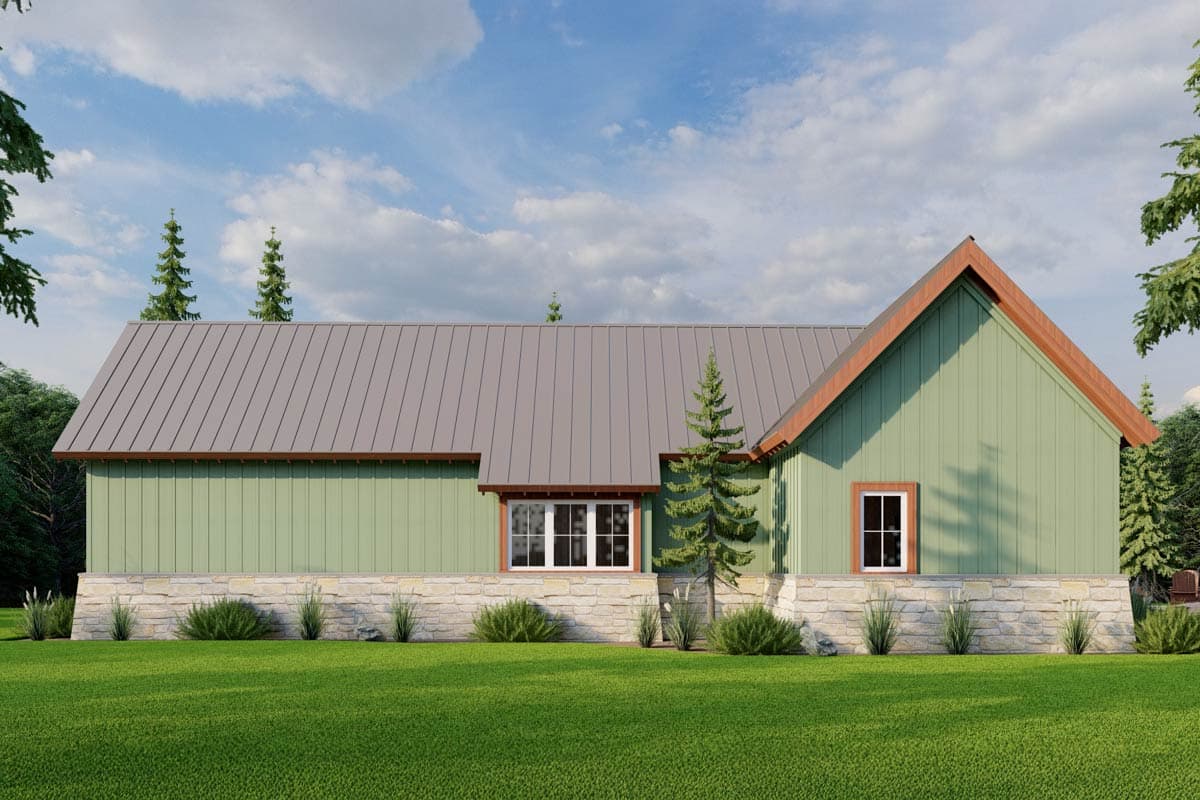

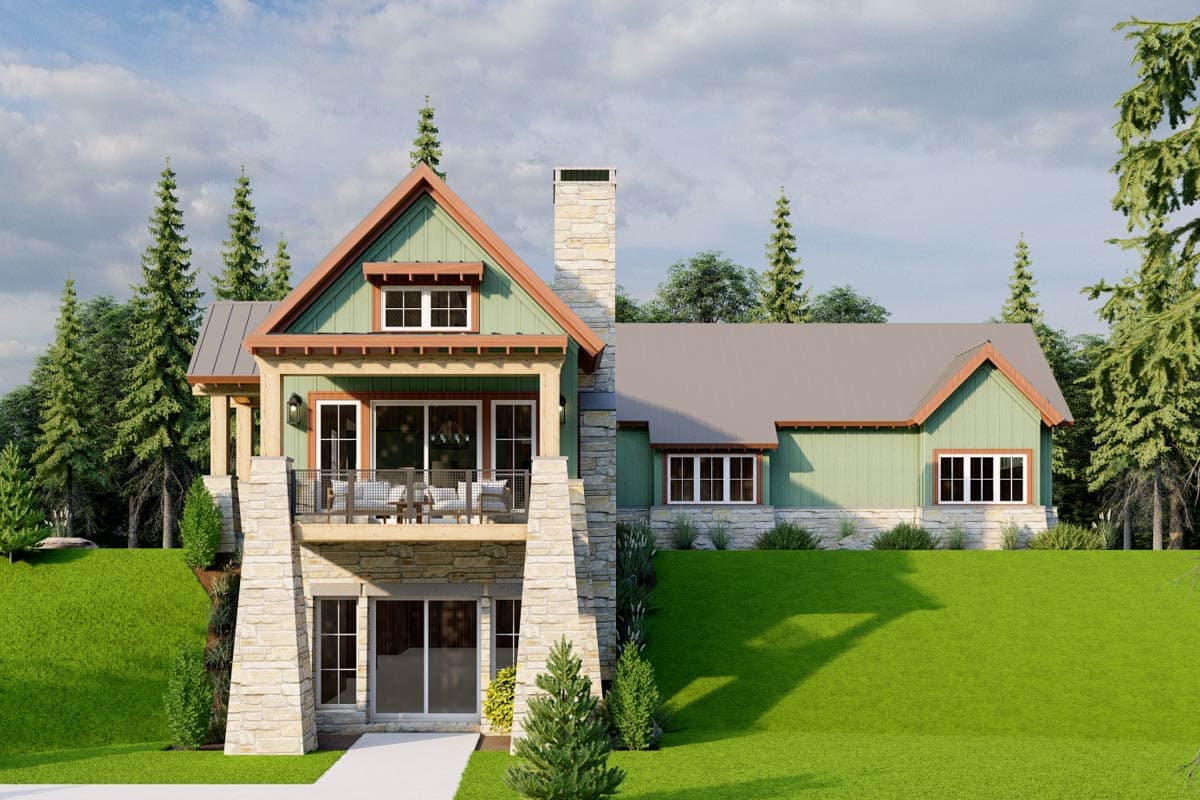

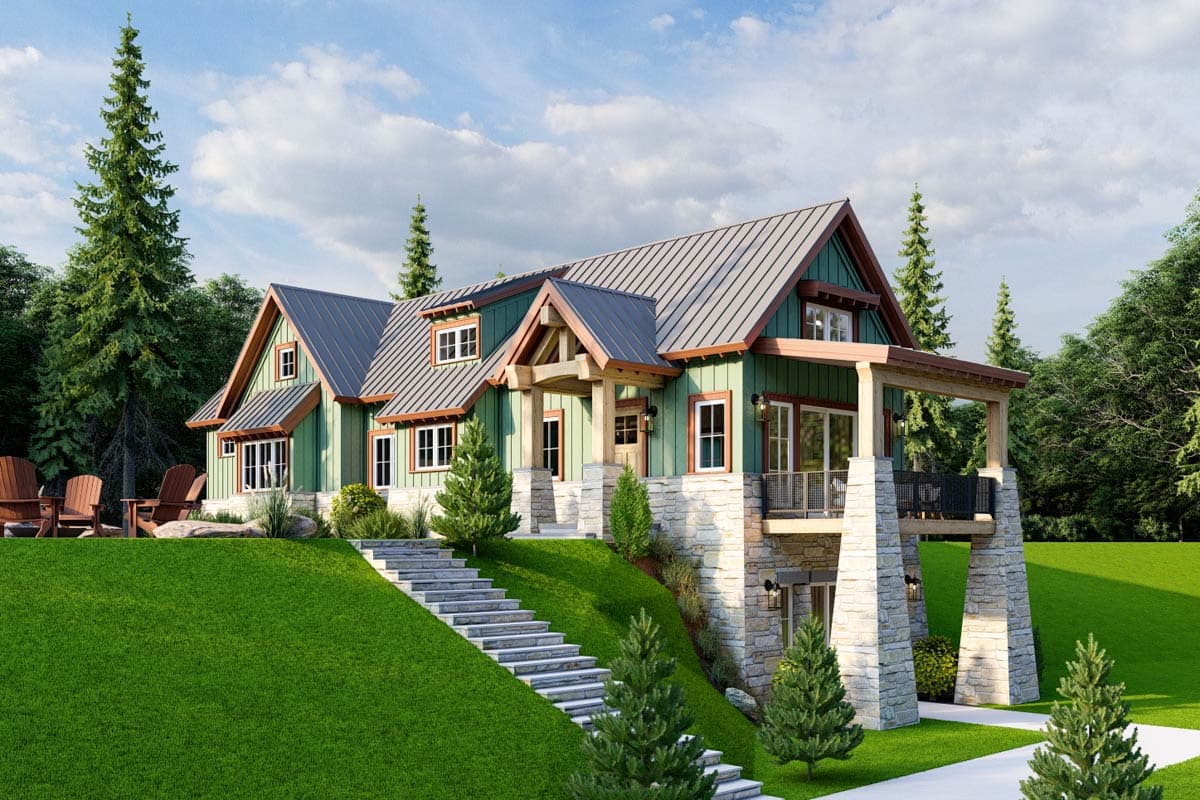

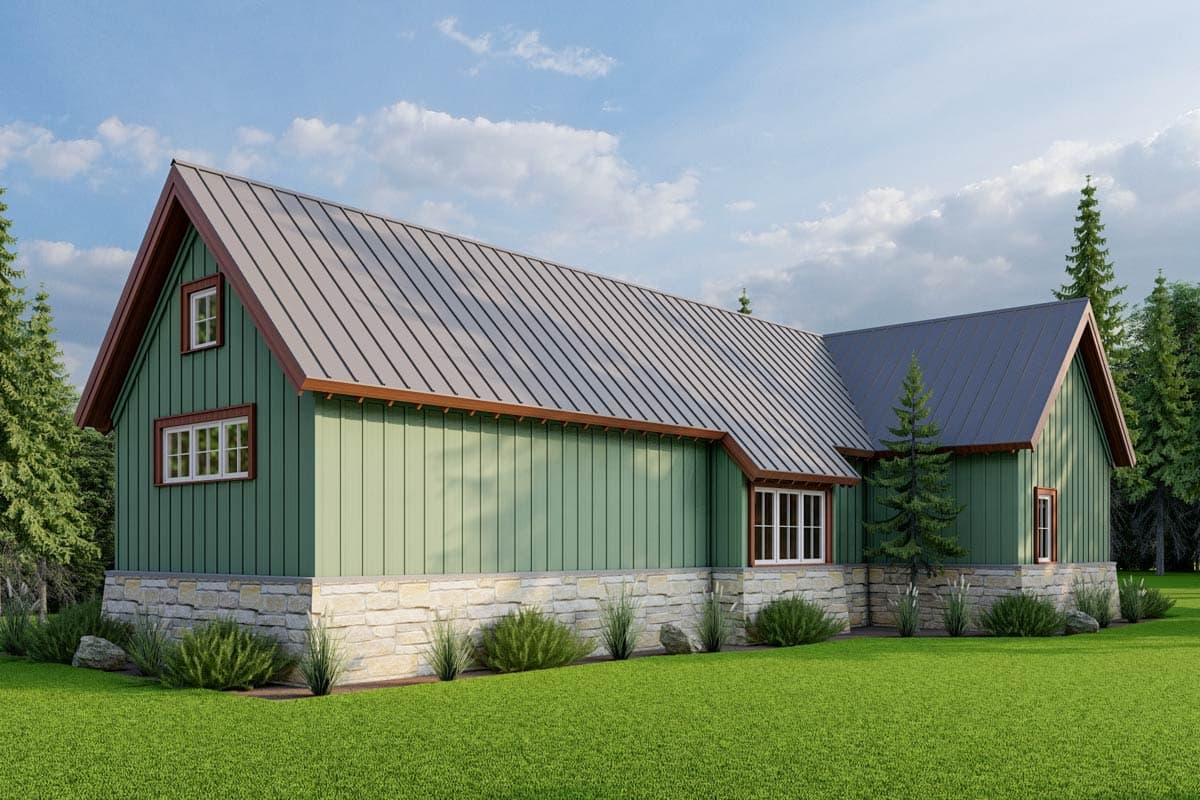

  • With beautiful timber truss designs, metal roofing and the charming stone skirt this house plan will perfectly compliment your rustic setting.
  • Enter into the open floor plan living space where you'll love to entertain family and friends.

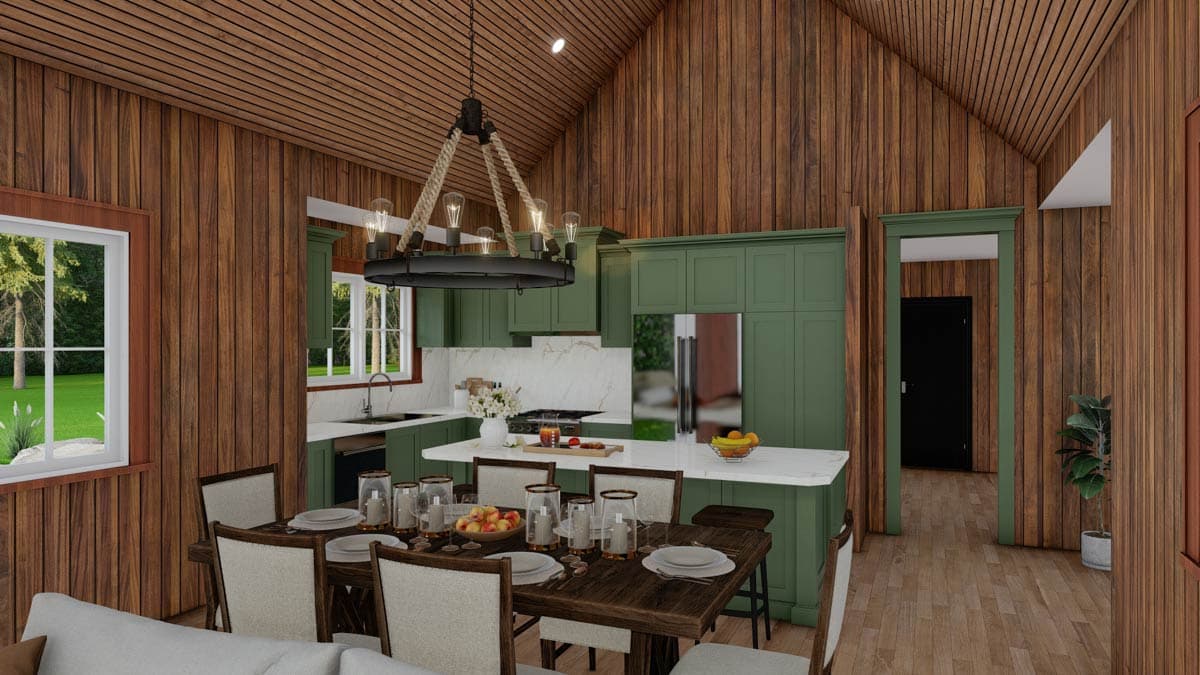

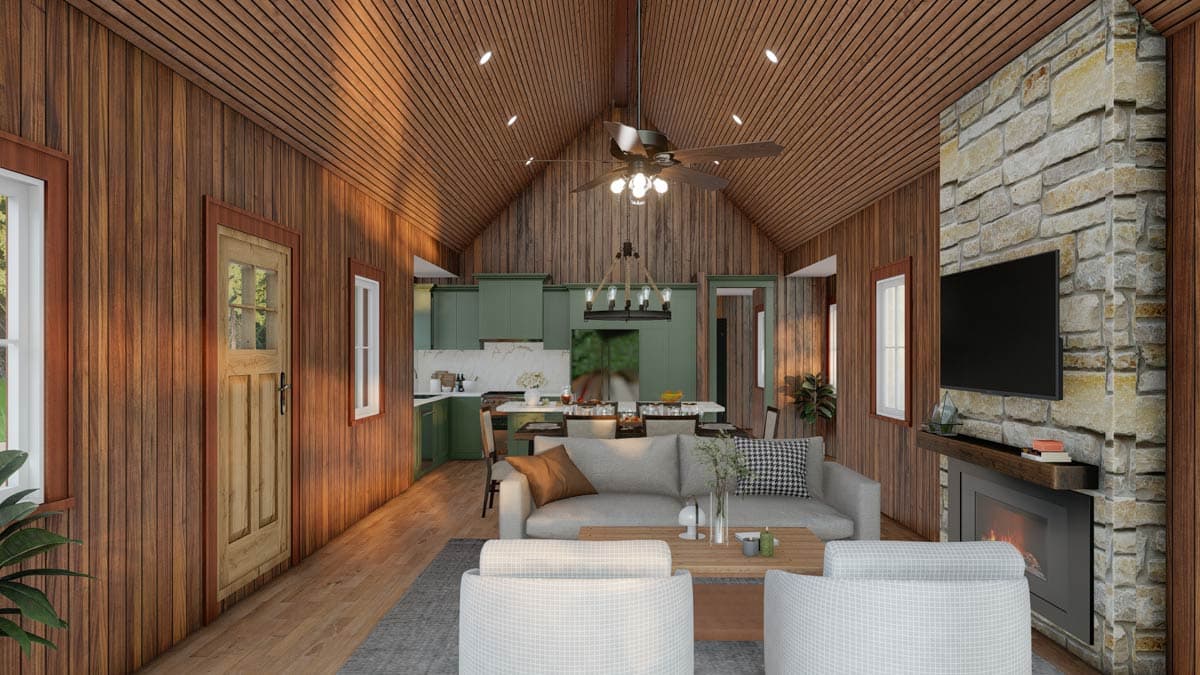

  • Here you can enjoy the flow of conversation through the great room, dining area and kitchen, and with plenty of windows you won't miss any of you beautiful view.
  • Down the hall you can relax in the master suite which displays a grand vaulted ceiling.
  • Down another hall in this unique L shaped home you'll find bedrooms 2 and 3 each with large windows to enjoy the view.
  • Need more living space or maybe more sleeping space? Down stairs is a large bunk room/game room which features a mini kitchen and a full bath.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,310 sq. ft.

Lower Level

591 sq. ft.

1st Floor

1,719 sq. ft.

Porch, Combined

257 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 0"

Depth

60' 2"

Max Ridge Height

19' 0"

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

European

Mountain

Rustic

Vacation

Special Features

Bedrooms - Clustered

Bunk Room

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Sloping Lot
