Plan 770004CED Rugged Craftsman with Indoor and Outdoor Entertaining Spaces

Rugged Craftsman with Indoor and Outdoor Entertaining Spaces

Plan 770004CED

  • 3,085

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

This designer's house plans consist of the following elements:

  • Cover sheet with general notes
  • Elevations
  • Foundation plan
  • Floor plan(s)
  • Roof framing plan
  • Sections
What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations



Floor Plan

Plan details



Rugged Craftsman with Indoor and Outdoor Entertaining Spaces

  • 3,085

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,200
  • PDF - Unlimited Build $1,795
  • CAD - Single-Build $2,200
  • View all purchase option online

About This Plan

Floor Plans

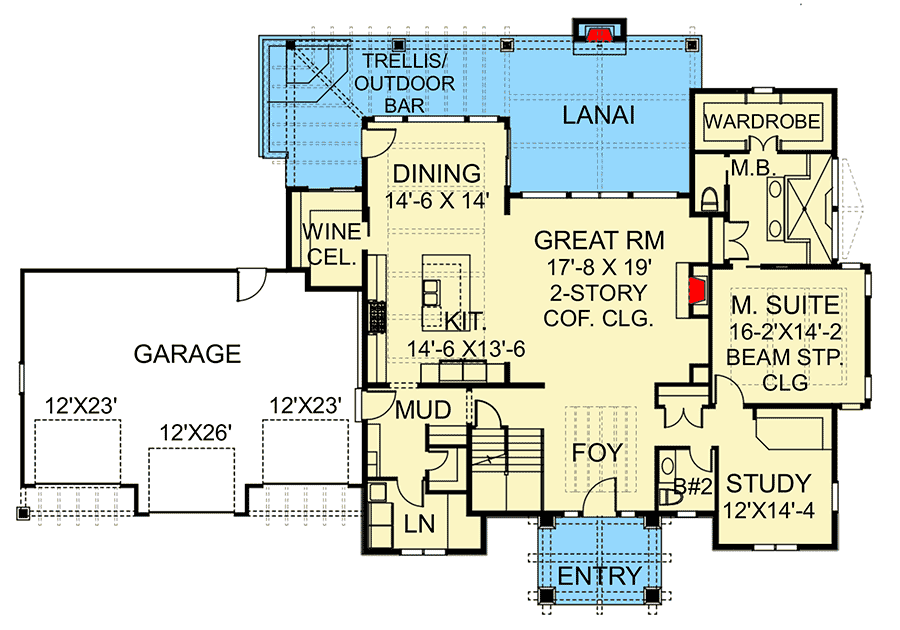

  • Main Level

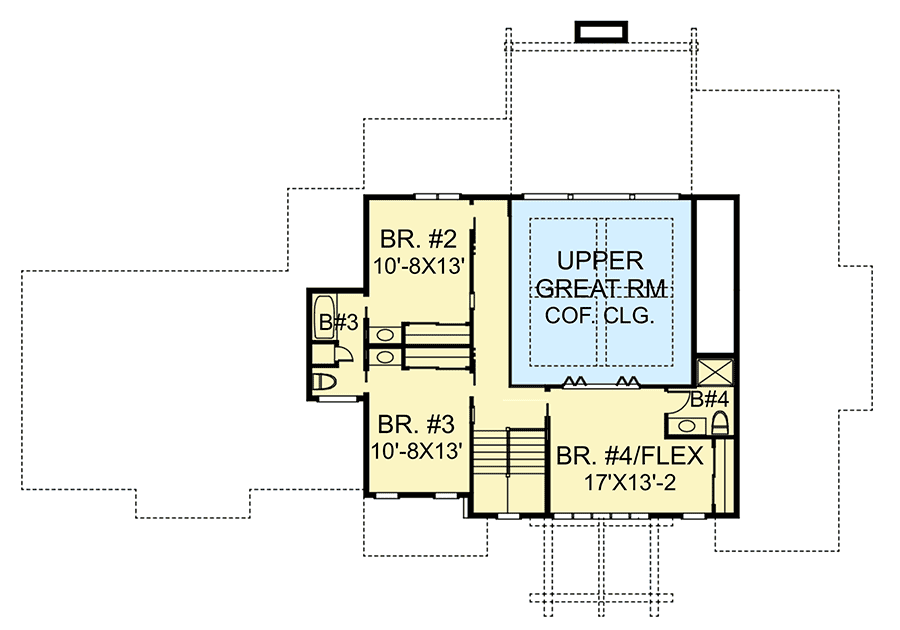

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,085 sq. ft.
  • 1st Floor: 2,229 sq. ft.
  • 2nd Floor: 856 sq. ft.
  • Basement Unfinished: 2,229 sq. ft.
  • Porch, Front: 121 sq. ft.
  • Porch, Rear: 592 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 6"
  • Depth: 58' 10"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 849 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
