Plan 14630RK

Rugged Garage with Bonus Room Above

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 14630RK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 14630RK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 14630RK: Rugged Garage with Bonus Room Above - Floor Plan - Main Level - Carriage, Rustic

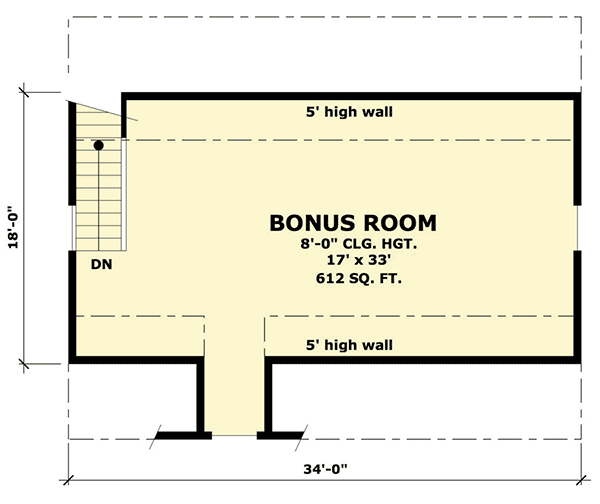

2nd Floor

Plan 14630RK: Rugged Garage with Bonus Room Above - Floor Plan - 2nd Floor - Carriage, Rustic

Plan Details

  • This rugged garage plan gives you room for two cars and extra storage on the main level. The ceiling is 10'4" giving you room for large objects.
  • Stairs go to the second floor bonus level where there are 5' knee walls with the ceiling maxing out at 8' high flat.
  • The roof has a 12:12 pitch.
  • NOTE: Please allow 10 to 20 business days for delivery.

What's Included

  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

612 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

28' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 4"

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Carriage

Rustic

Special Features

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

612 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

28' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached

Area

928 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 4"

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Carriage

Rustic

Special Features

Optionally Finished Bonus Room
