Plan 12963KN Rugged Mountain House Plan with 2-Car-Front-Facing Garage

Rugged Mountain House Plan with 2-Car-Front-Facing Garage

Plan 12963KN

  • 1,689

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Everyone in the family will love the huge screened porch at the back of this rugged Mountain house plan.
  • There's uncovered porch space too so you can enjoy the sun.
  • A big vaulted ceiling extends from the foyer all the way to the back of the living room.
  • The kitchen and dining areas are open to the living room so everyone can enjoy the fireplace.
  • The master suite is also vaulted and has two walk-in closets.
  • Bedroom 2 is on the main floor and bedroom 3 has the whole second floor all to itself.
  • Related Plan: Get an attached garage with house plan 12955KN.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

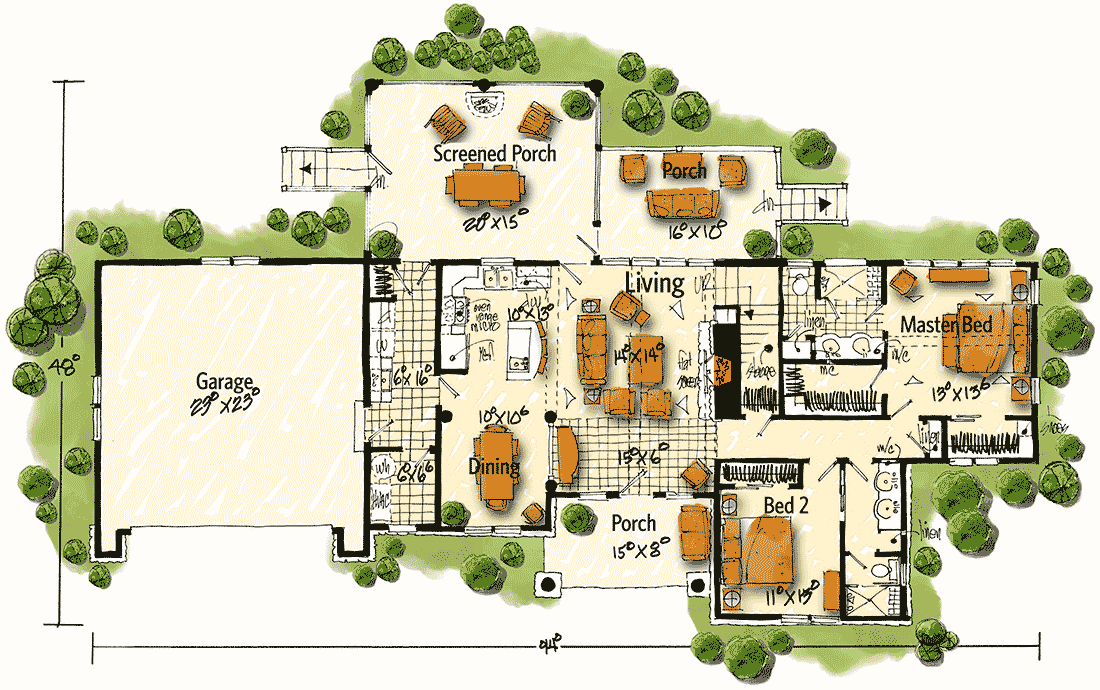

Rugged Mountain House Plan with 2-Car-Front-Facing Garage - 12963KN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

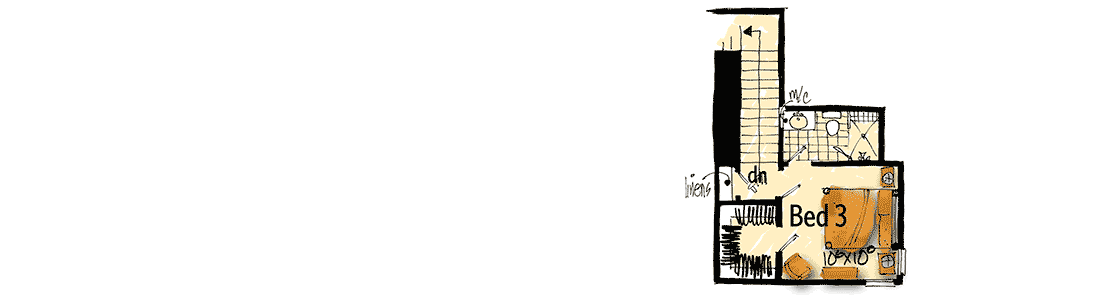

Rugged Mountain House Plan with 2-Car-Front-Facing Garage - 12963KN floor plan - 2nd Floor

Plan details

Special features

Rugged Mountain House Plan with 2-Car-Front-Facing Garage

  • 1,689

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • CAD - Single-Build $2,075
  • View all purchase option online

About This Plan

  • Everyone in the family will love the huge screened porch at the back of this rugged Mountain house plan.
  • There's uncovered porch space too so you can enjoy the sun.
  • A big vaulted ceiling extends from the foyer all the way to the back of the living room.
  • The kitchen and dining areas are open to the living room so everyone can enjoy the fireplace.
  • The master suite is also vaulted and has two walk-in closets.
  • Bedroom 2 is on the main floor and bedroom 3 has the whole second floor all to itself.
  • Related Plan: Get an attached garage with house plan 12955KN.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,689 sq. ft.
  • 1st Floor: 1,459 sq. ft.
  • 2nd Floor: 230 sq. ft.
  • Screened Porch: 300 sq. ft.
  • Porch, Combined: 496 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 3"

Garage

  • Type: Attached
  • Area: 667 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
