Rustic 2-Car 768 Sq Ft Detached Log-style Garage Plan

Plan 72351DA

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • This log style garage plan gives you 768 square feet of parking space with a vaulted ceiling.
  • The garage door is 12' wide and 9' tall.
  • A covered porch protects the person door on the back-right corner.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

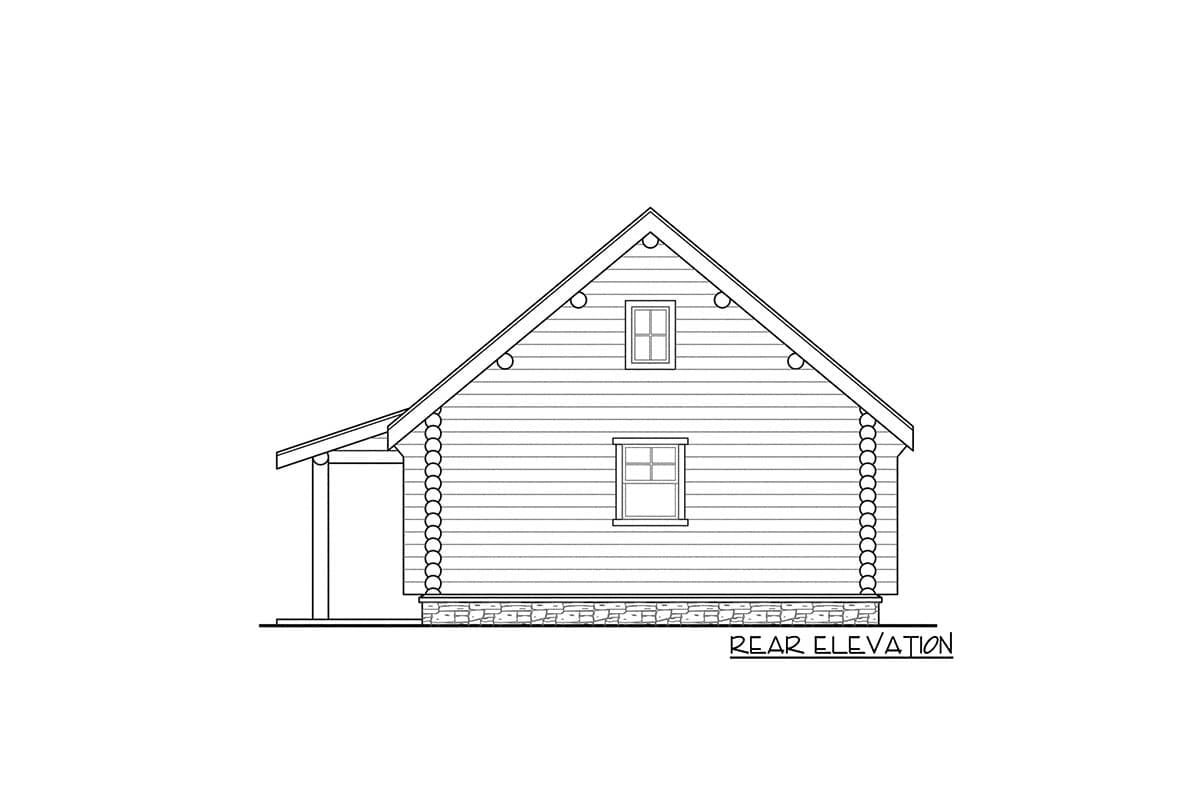

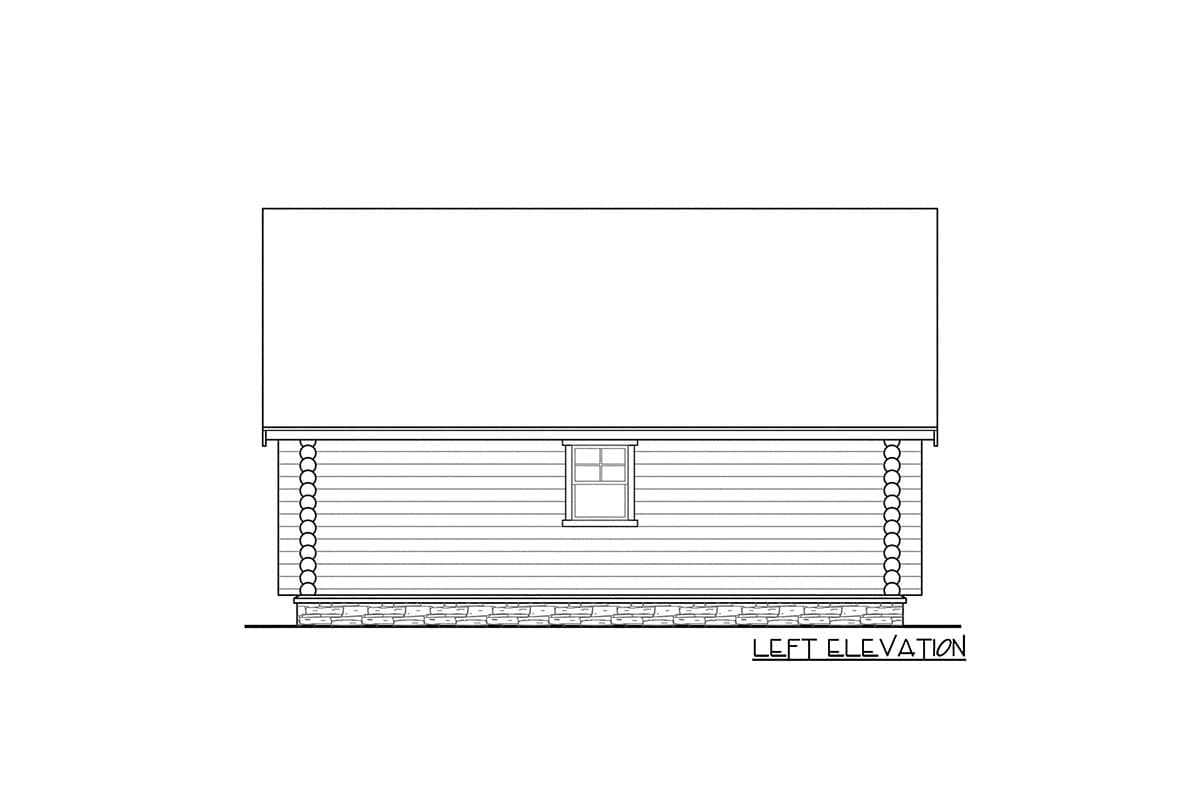

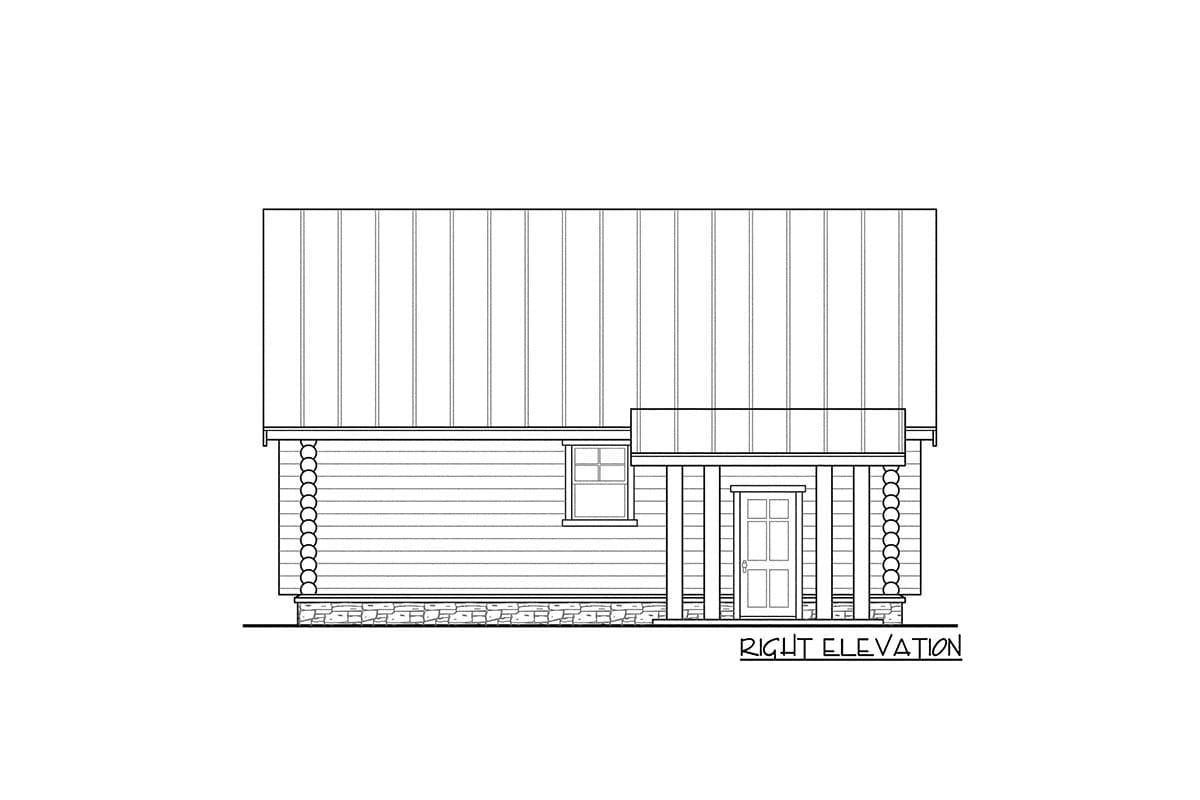

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

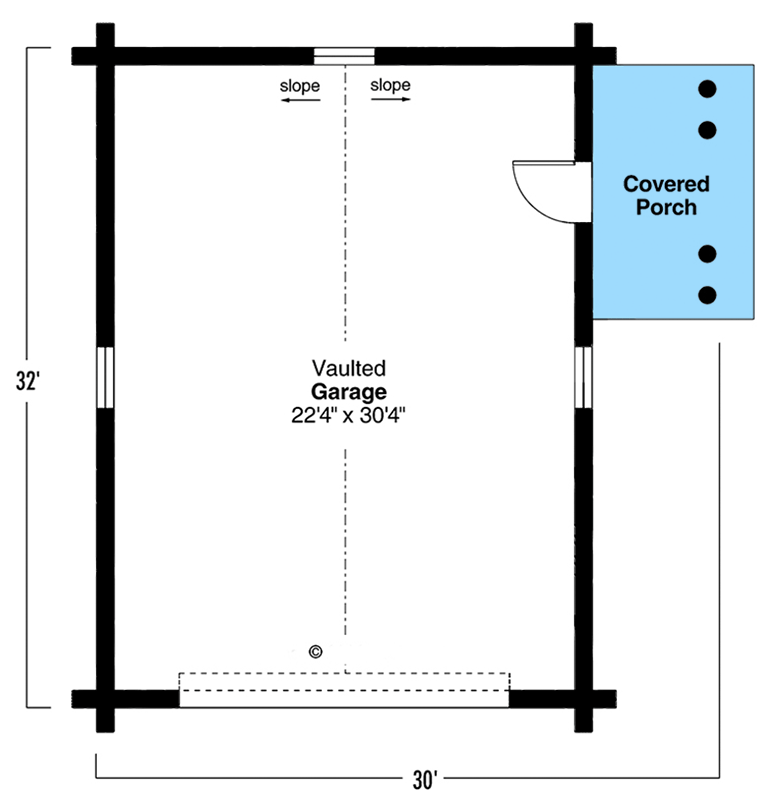

Rustic 2-Car 768 Sq Ft Detached Log-style Garage Plan - 72351DA floor plan - Main Level

Architectural Style

Rustic 2-Car 768 Sq Ft Detached Log-style Garage Plan

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 32' 0"
  • Max ridge height: 22' 3"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 768 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Log

Ceiling Heights

  • Floor / Height: First Floor / 9' 4"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
