Rustic 2 Car Garage Plan

Plan 60663ND

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • This rustic style garage plan features 2 single car doors and 3 tapered wooden columns on stone bases.
  • It has a shake siding exterior with a window and 2 storage rooms on the right side and a door on the left side.
  • The stick framed roof has an 8:12 pitch.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

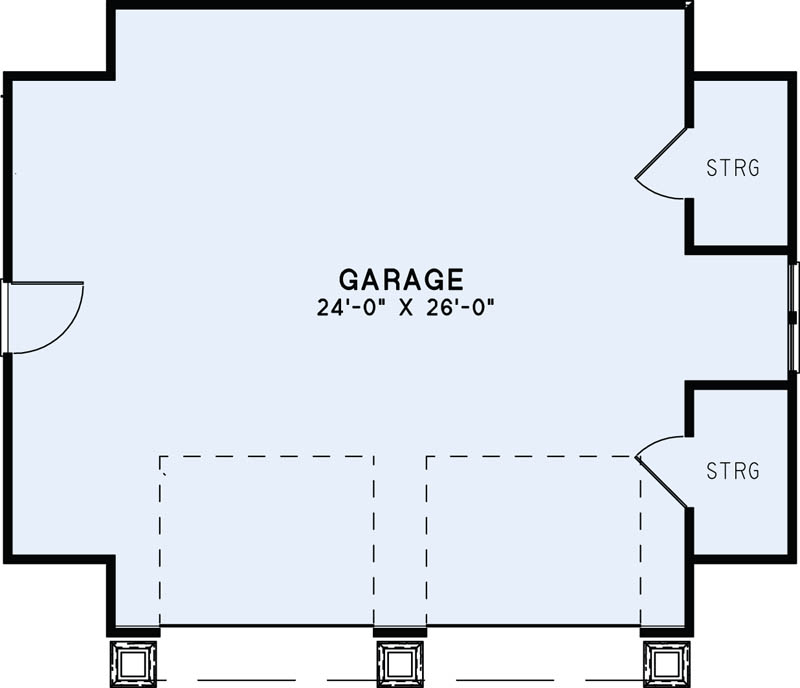

Rustic 2 Car Garage Plan - 60663ND floor plan - Main Level

Plan details

Rustic 2 Car Garage Plan

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $455
  • 5 Sets $555
  • 5 Sets + PDF $805
  • CAD - Single-Build $910
  • View all purchase option online

About This Plan

  • This rustic style garage plan features 2 single car doors and 3 tapered wooden columns on stone bases.
  • It has a shake siding exterior with a window and 2 storage rooms on the right side and a door on the left side.
  • The stick framed roof has an 8:12 pitch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 33' 4"
  • Depth: 28' 7"
  • Max ridge height: 20' 4"

Garage

  • Type: Detached
  • Area: 839 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
