Plan 51903HZ

Rustic 3-Bed Country Home Plan with Vaulted Living Room - 1299 Sq Ft

Heated S.F.
1,299
Beds
3
Baths
2
Stories
1

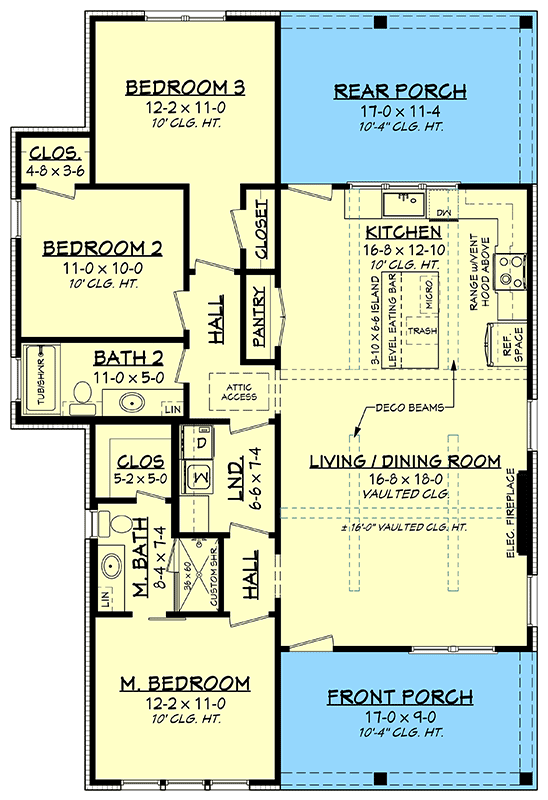

Floor Plan

Plan 51903HZ

Main Level
Main Level

Plan 51903HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51903HZ: Rustic 3-Bed Country Home Plan with Vaulted Living Room - 1299 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Country, Farmhouse, Mountain, Rustic, Southern

Plan Details

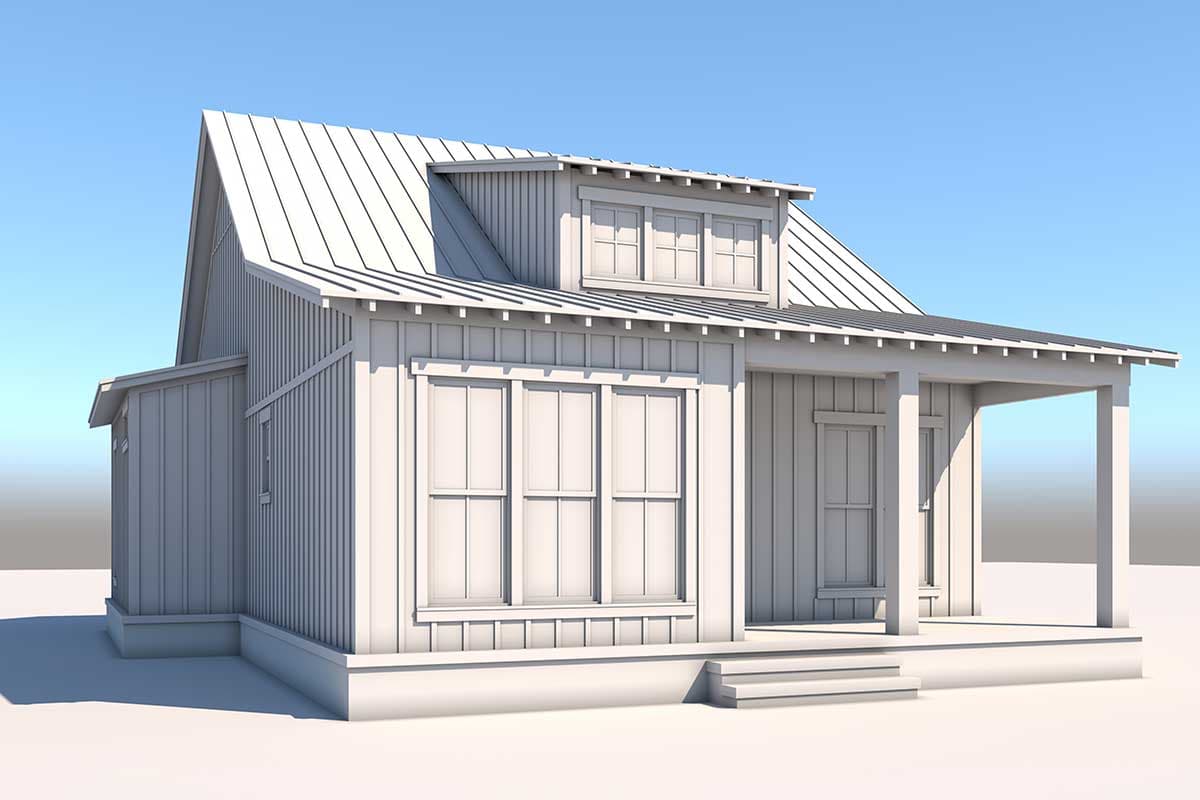

  • This rustic 3-bed country home plan has a charming board and batten exterior with a metal roof and a front porch with exposed rafter tails and timber supports.
  • Inside, you'll find 10' ceilings in all the bedrooms which are located on the left side of the home. The full-sized laundry is conveniently located to all three.
  • The right side of the home gives you a vaulted living/dining room (16' peak height) that is open to the kitchen for easy entertaining. The plentiful windows let in great natural light and give you great views.
  • Related Plans: Get alternate versions with house plans 51903HZ (1,299 sq. ft.), 51835HZ (1,257 sq. ft.), 51847HZ (1,070 sq. ft.), 51891HZ (1,064 sq. ft.) and 51886HZ (960 square feet).

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,299 sq. ft.

1st Floor

1,299 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

193 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 10"

Depth

54' 10"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Mountain

Rustic

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,299 sq. ft.

1st Floor

1,299 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

193 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 10"

Depth

54' 10"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Mountain

Rustic

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
