Rustic 4 Bed Craftsman Home Plan

Plan 12926KN

  • 1,877

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • Rugged detailing on the outside give this Craftsman home plan lots of charm. Inside, wide, open spaces give you wonderful views from room to room.
  • A pass-through window in the kitchen lets you hand snacks out to the vaulted outdoor porch.
  • Three of the bedrooms are on the main floor including the vaulted master suite.
  • The second floor holds a spacious guest suite with walk-in closet and private bathroom.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

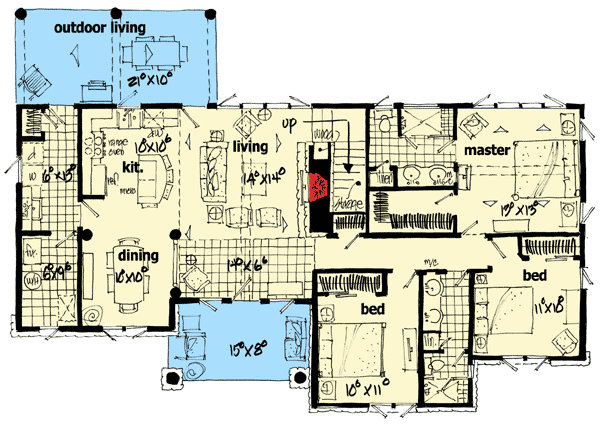

Rustic 4 Bed Craftsman Home Plan - 12926KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

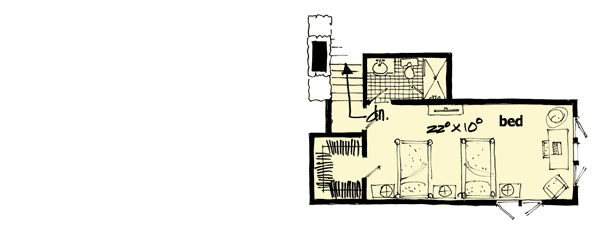

Rustic 4 Bed Craftsman Home Plan - 12926KN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,877 sq. ft.
  • 1st Floor: 1,564 sq. ft.
  • 2nd Floor: 313 sq. ft.
  • Porch, Rear: 210 sq. ft.
  • Porch, Front: 120 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 10"
  • Depth: 29' 0"
  • Max ridge height: 26' 3"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Rustic 4 Bed Craftsman Home Plan

  • 1,877

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD - Single-Build $2,450
  • View all purchase option online

About This Plan

  • Rugged detailing on the outside give this Craftsman home plan lots of charm. Inside, wide, open spaces give you wonderful views from room to room.
  • A pass-through window in the kitchen lets you hand snacks out to the vaulted outdoor porch.
  • Three of the bedrooms are on the main floor including the vaulted master suite.
  • The second floor holds a spacious guest suite with walk-in closet and private bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,877 sq. ft.
  • 1st Floor: 1,564 sq. ft.
  • 2nd Floor: 313 sq. ft.
  • Porch, Rear: 210 sq. ft.
  • Porch, Front: 120 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 10"
  • Depth: 29' 0"
  • Max ridge height: 26' 3"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
