Plan 6969AM
Rustic 4700 Square Foot Mountain Craftsman Home Plan with 3-Car Angled Garage
Heated S.F.
4,732
Beds
4
Baths
3.5+
Stories
1
Cars
4
Plan Details

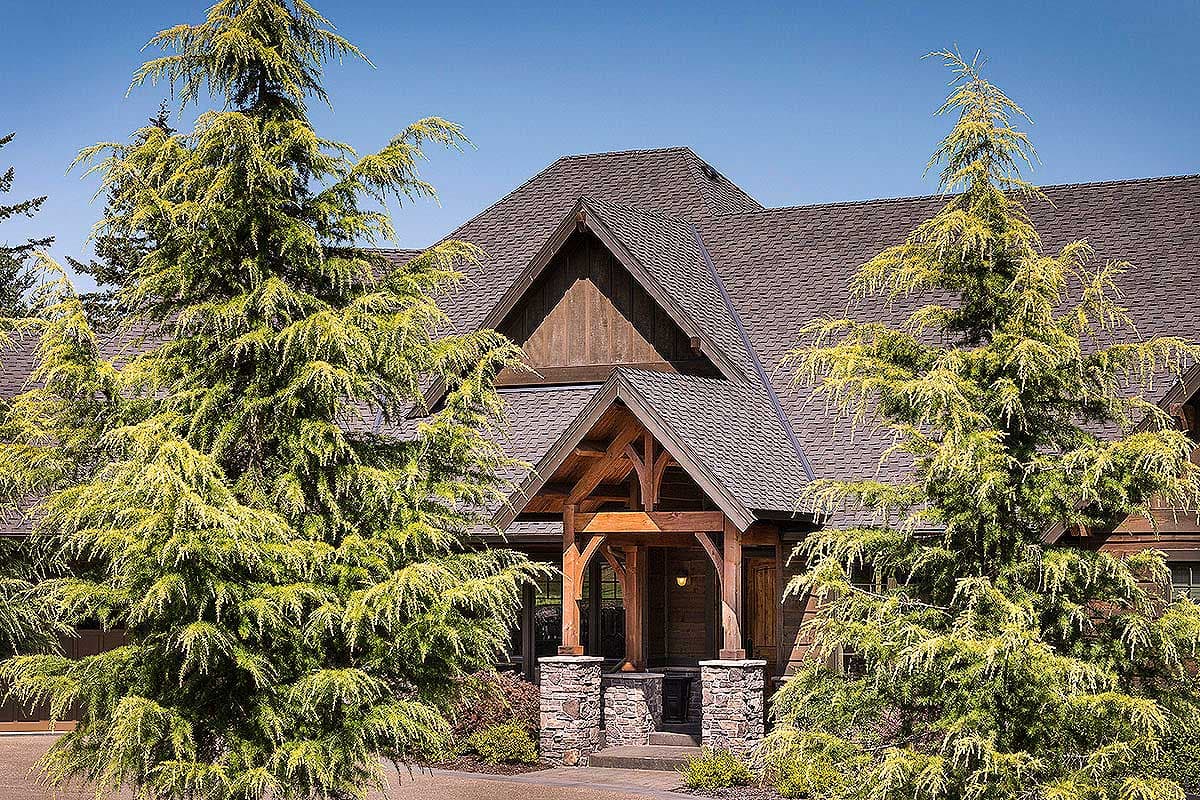

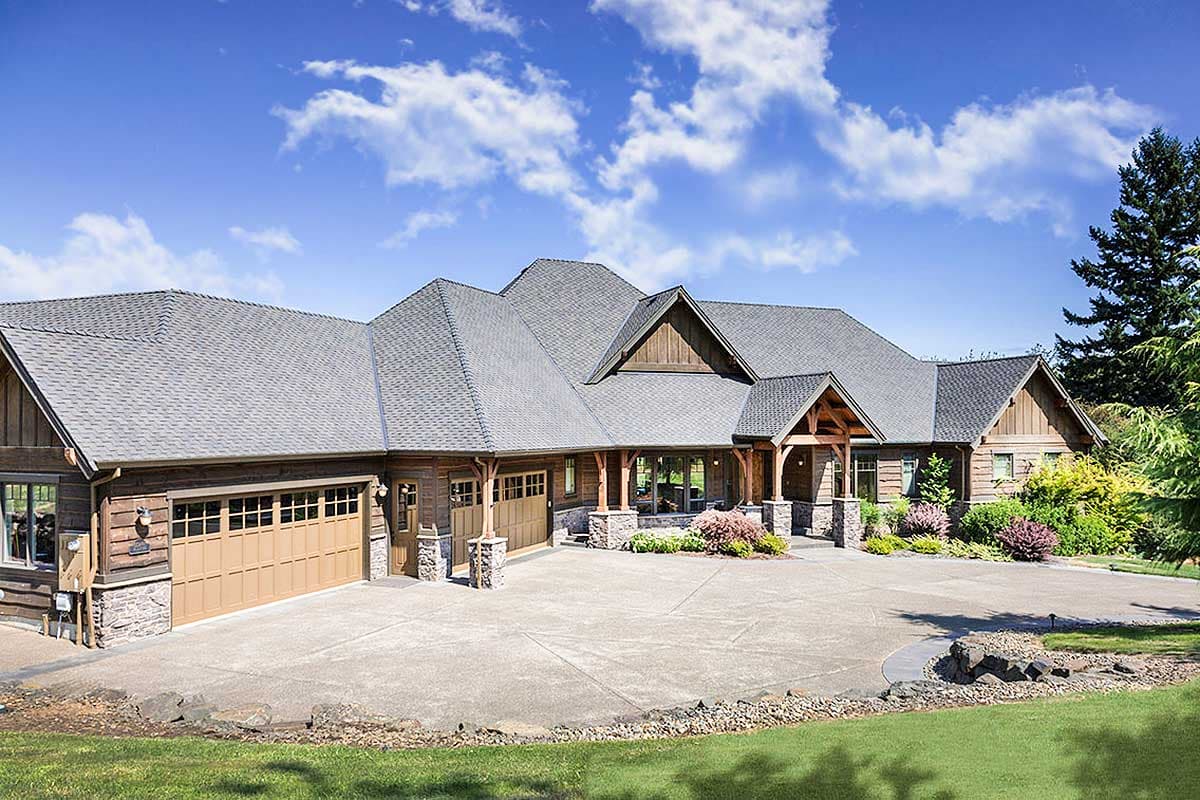

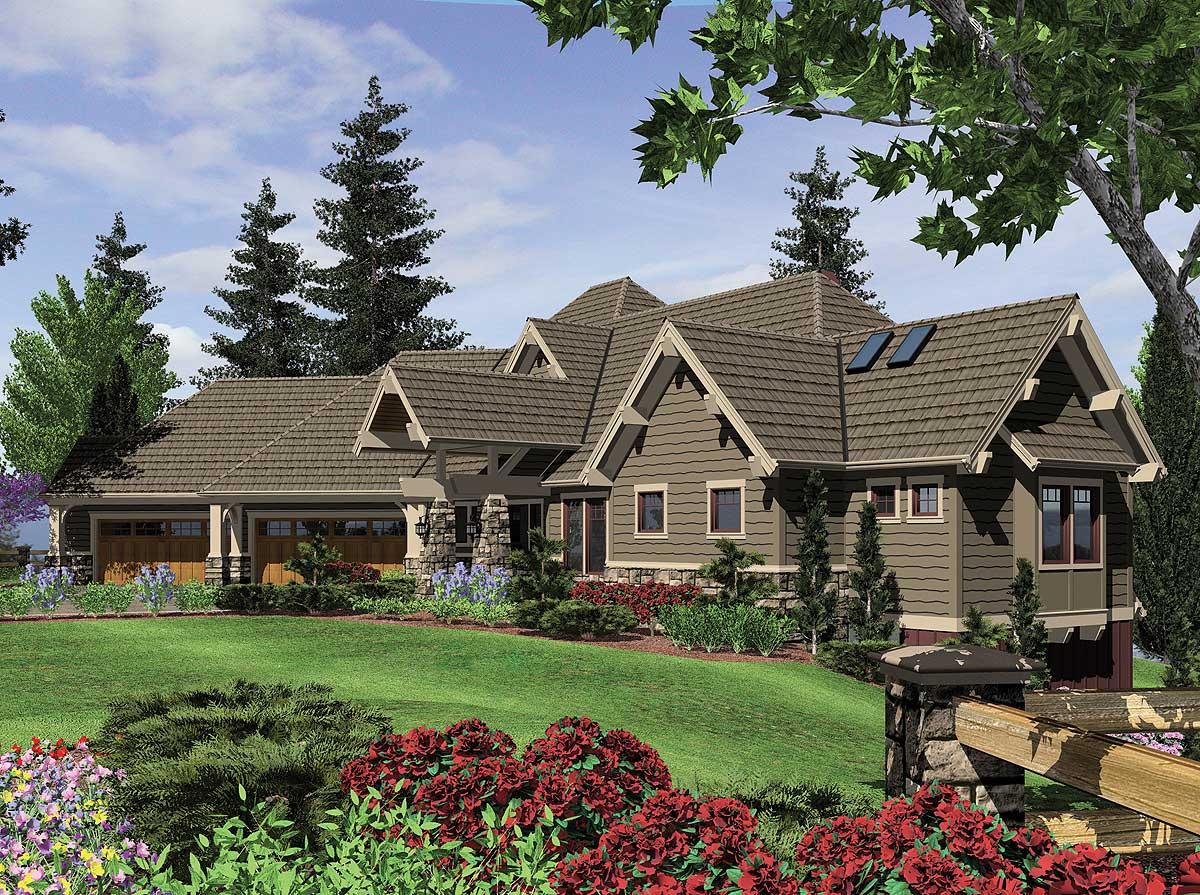

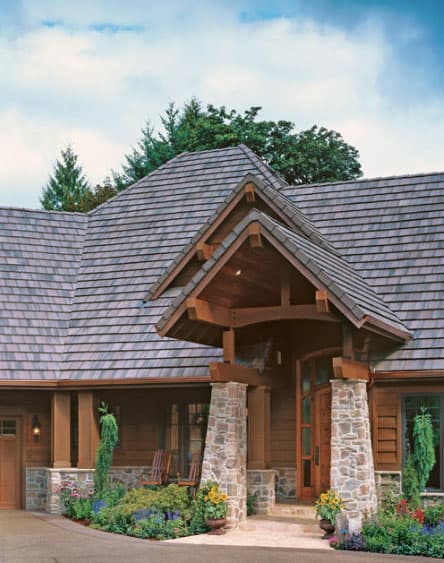

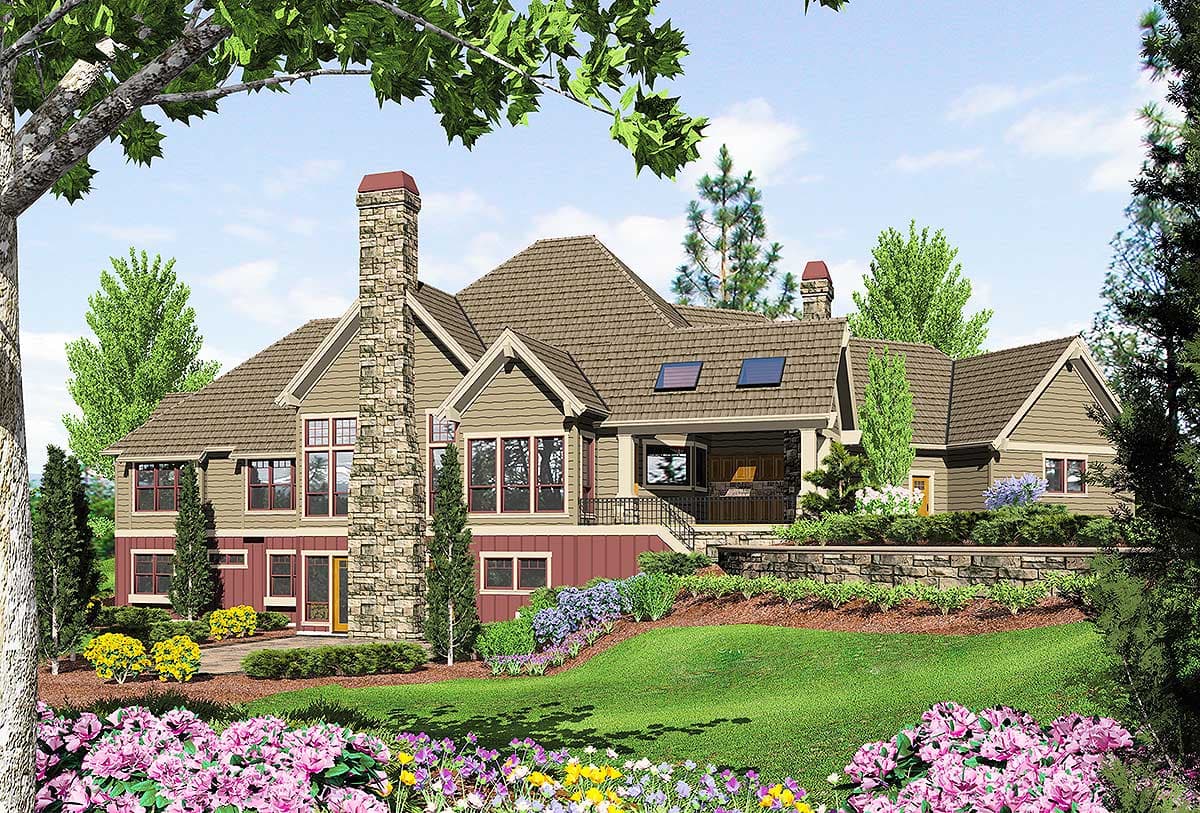

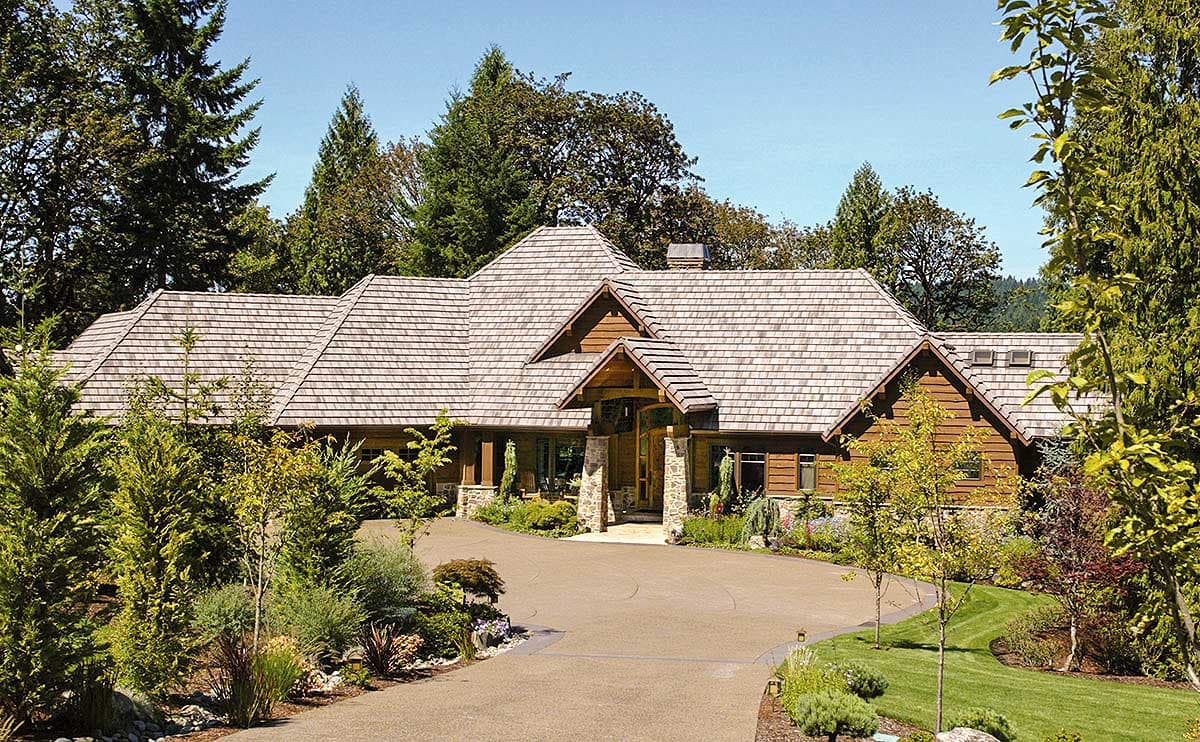

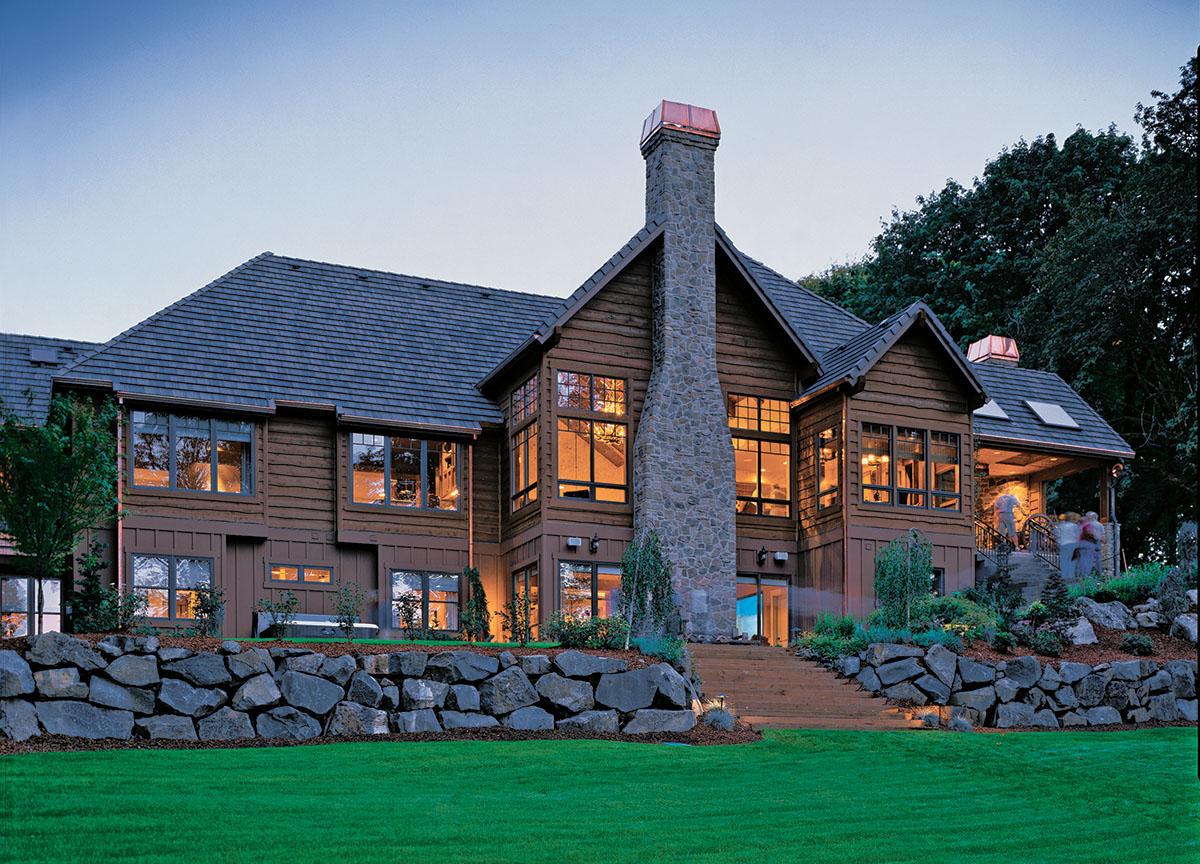

  • An artful use of stone was employed on the exterior of this rustic hillside home to complement other architectural elements such as the angled, oversize four-car garage and the substantial roof line.

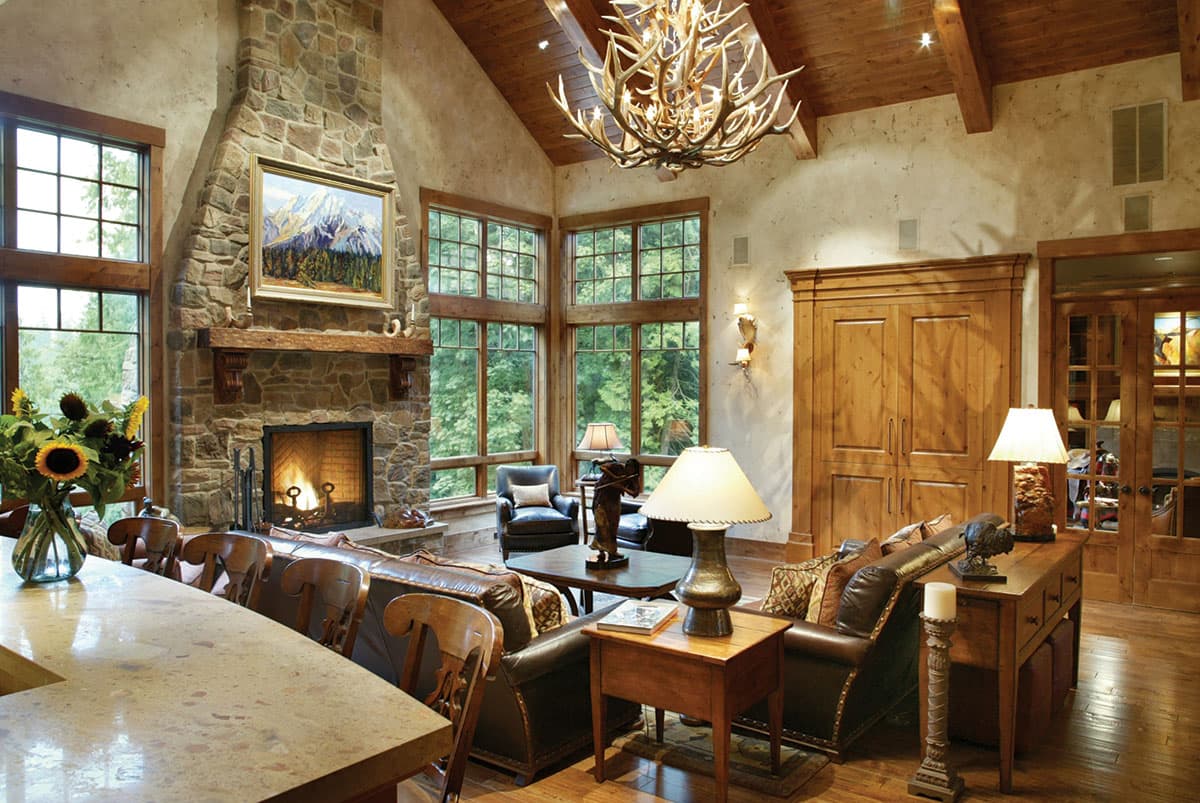

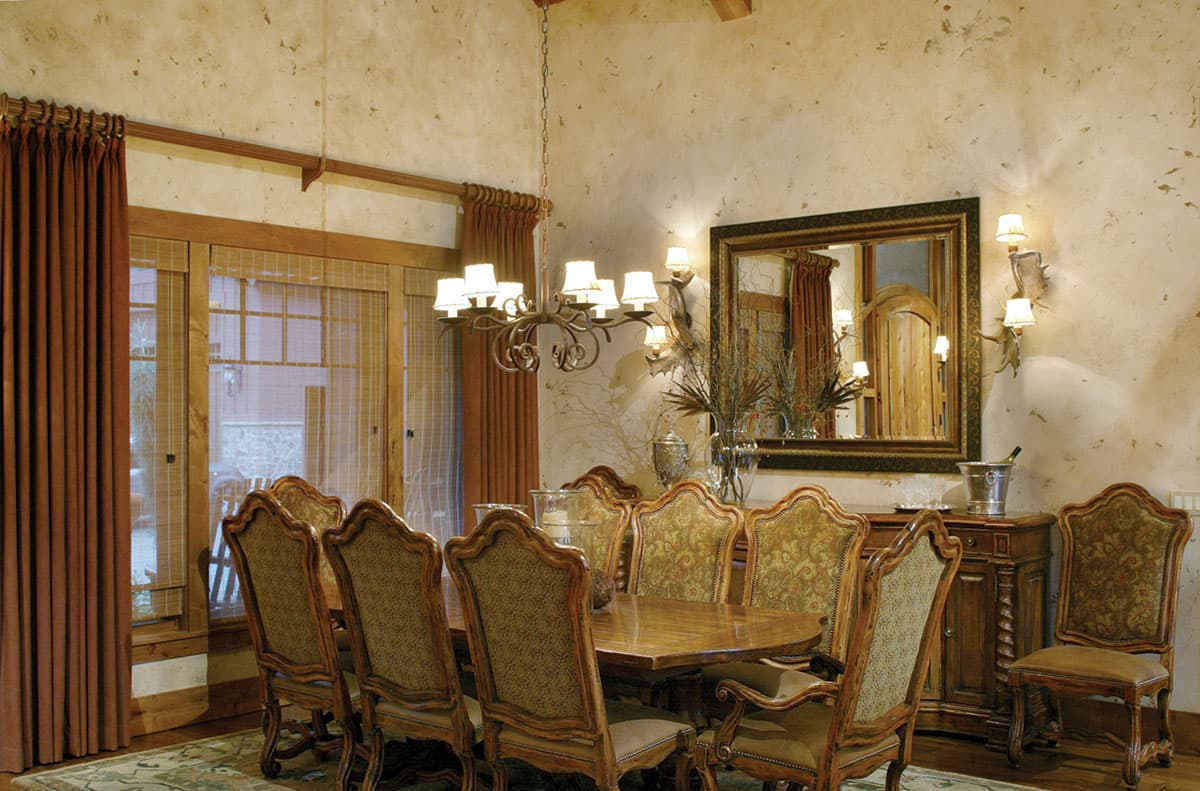

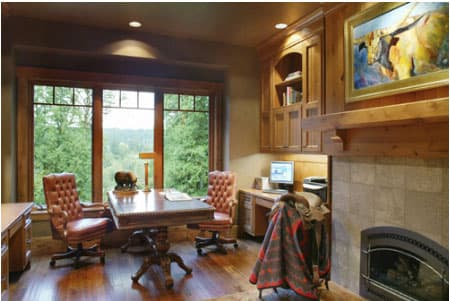

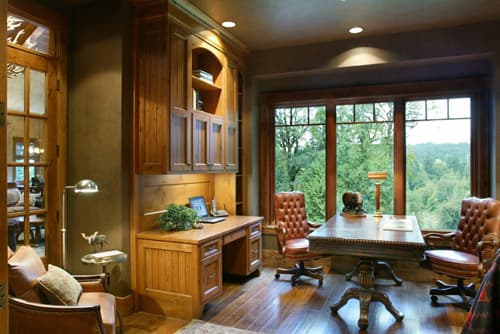

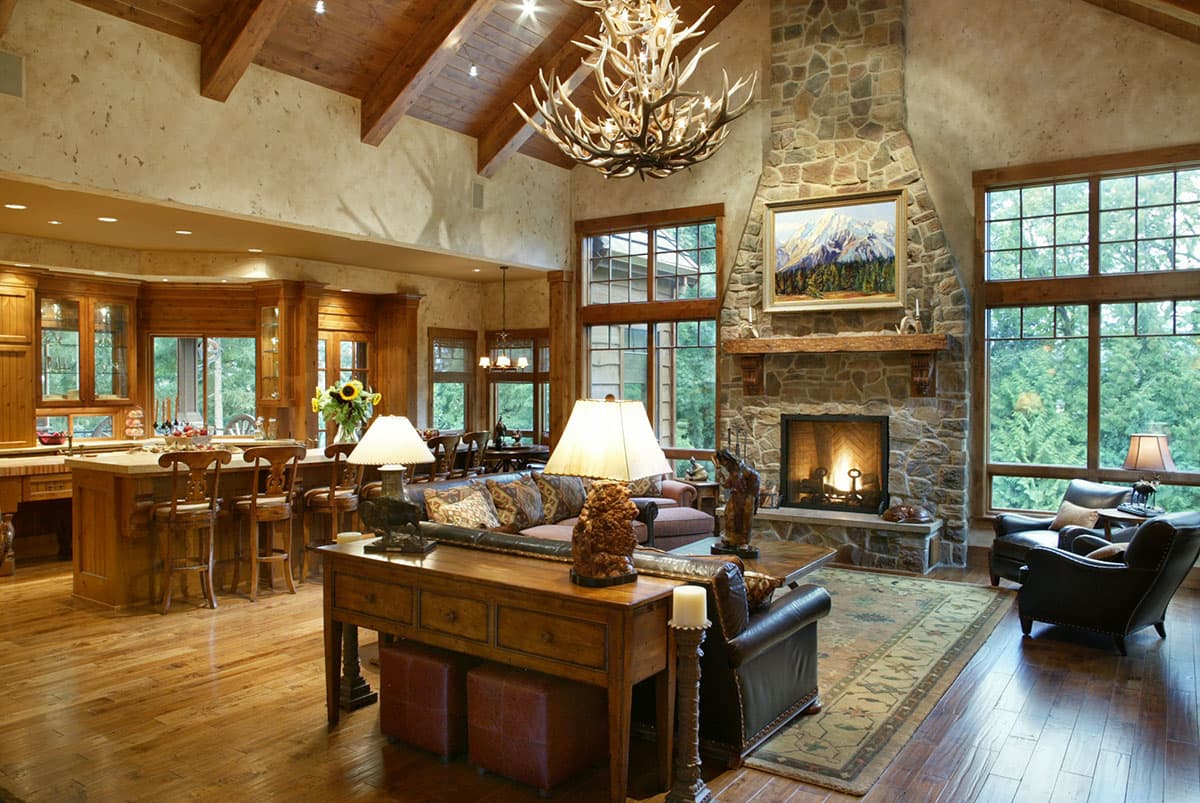

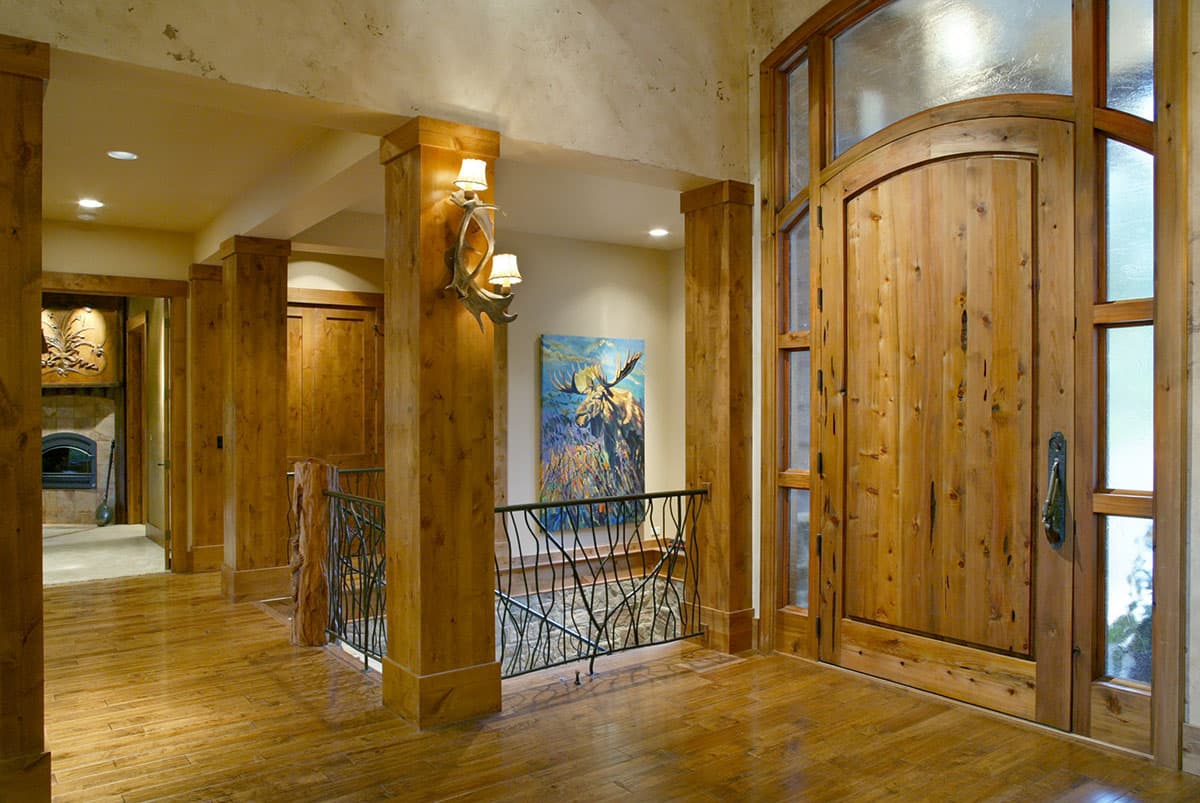

  • The floor plan features a massive vaulted great room as its hub, anchored with a large stone fireplace at one end and a formal dining area at the other. A built-in media center and double doors separate the great room from a home office, which has its own hearth and built-ins.

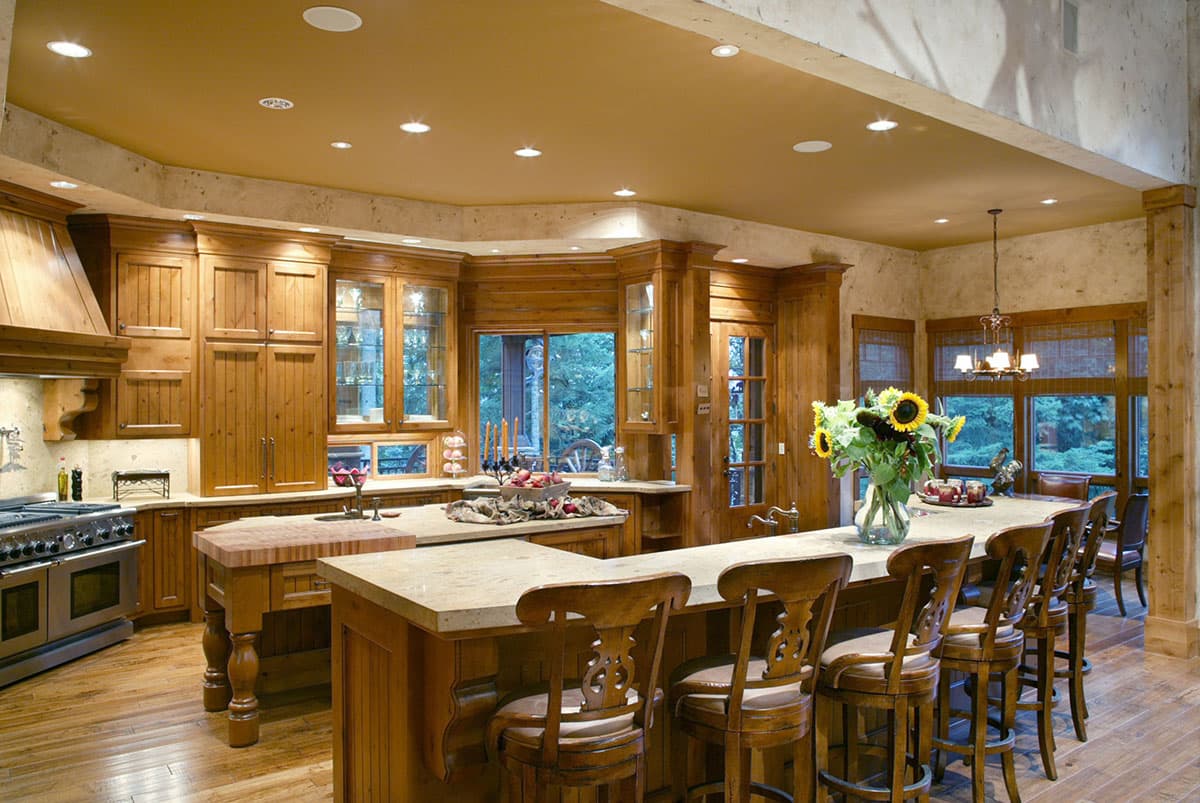

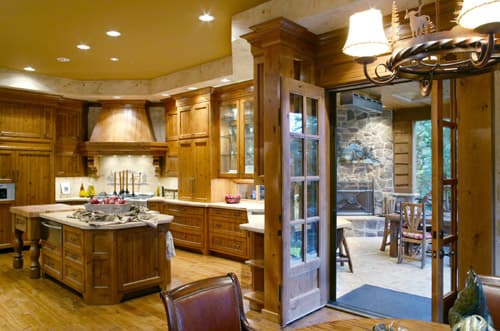

  • The kitchen (with walk-in pantry and snack-bar counter) opens to a sky lit outdoor kitchen. Its appointments include a cook top and a corner fireplace. Don't miss the dog shower and grooming station just off the garage.

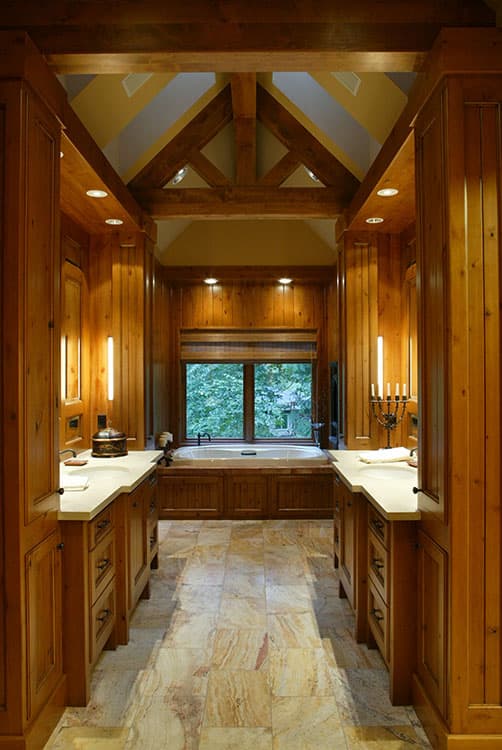

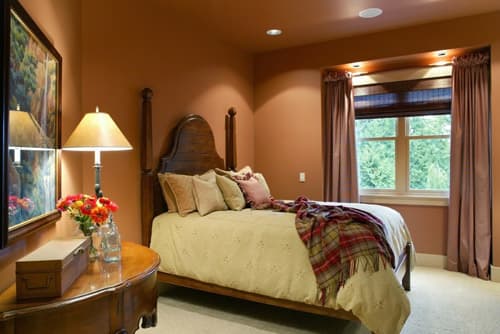

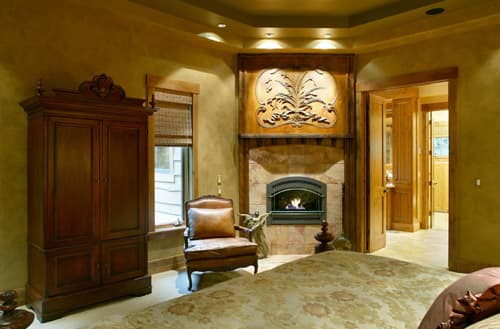

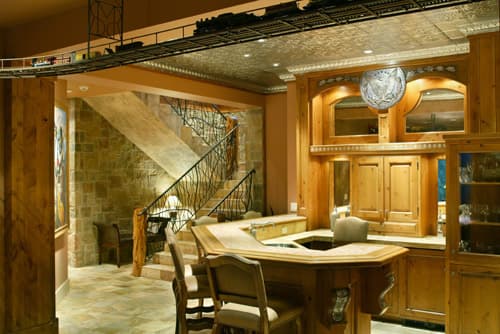

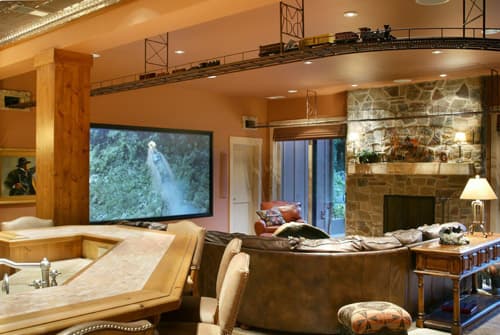

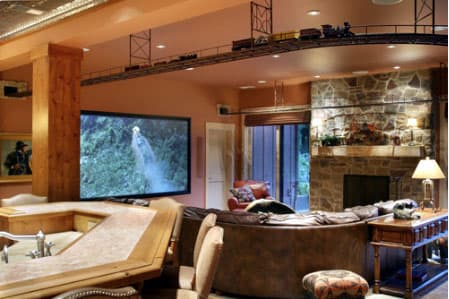

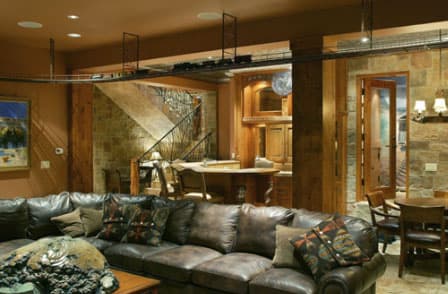

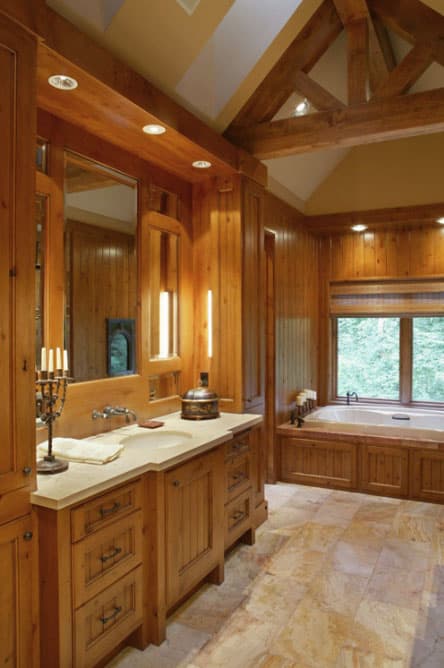

  • The master suite is found at the other side of the home. Look closely for expansive his and hers walk-in closets, a spa tub, a sky lit double vanity area and a corner fireplace in the salon. Three family bedrooms are on the lower level, along with an impressive home theater, a wine cellar and a wet bar. The home theater has a built-in viewing screen, a fireplace and double terrace access. Bedroom 4 has a private bath and walk-in closet.
  • Related Plan: Get an alternate version with house plan 69407AM (5,155 sq. ft.).
What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic 4700 Square Foot Mountain Craftsman Home Plan with 3-Car Angled Garage

  • 4,732

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

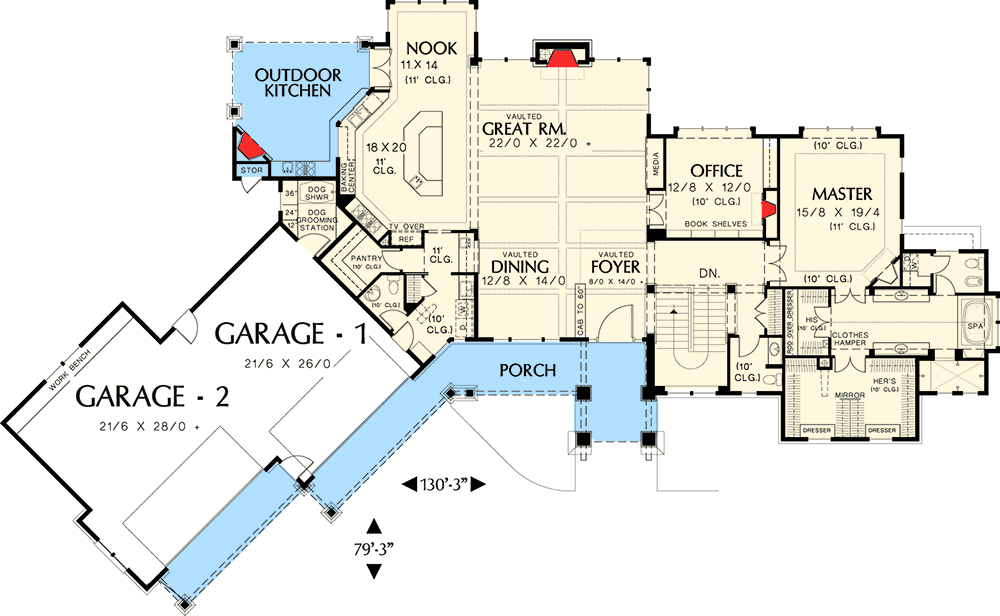

  • Main Level

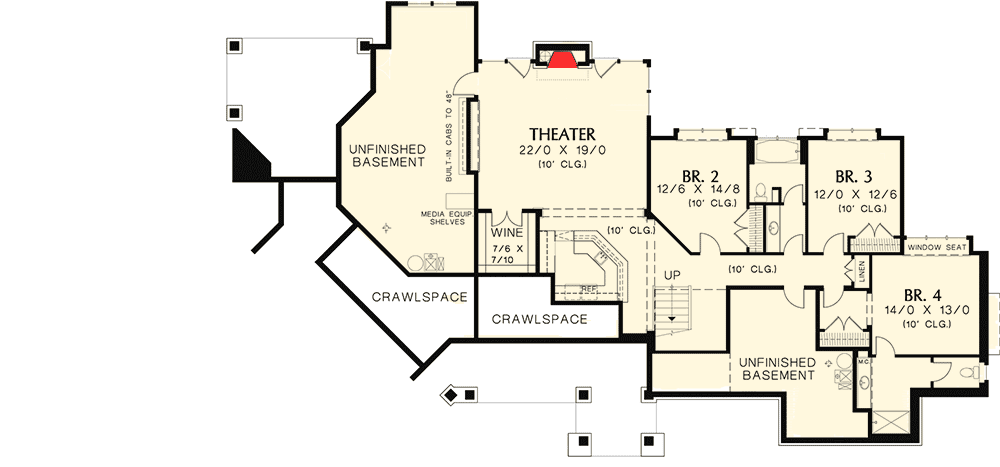

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,732 sq. ft.
  • Lower Level: 1,830 sq. ft.
  • 1st Floor: 2,902 sq. ft.

Dimensions

  • Width: 130' 0"
  • Depth: 79' 0"
  • Max ridge height: 33' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1333 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
