Rustic Carriage House with Garden Shed

Plan 280170JWD

  • 540

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This rustic, Carriage house plan presents 540 square feet of living space, along with an oversized, 2-car garage with plenty of space for a workshop.
  • The garden shed is accessible from the garage or home, and features a 6' by 7' overhead door and a utility sink.
  • The living space attaches to the left side of the garage and provides an open kitchen, dining, and living space.
  • The bedroom can be found just off the entryway with frontal views.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

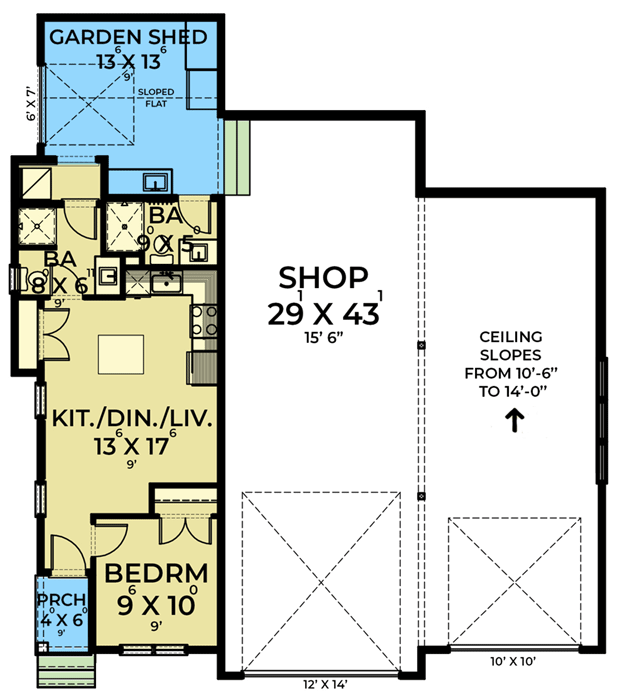

Rustic Carriage House with Garden Shed - 280170JWD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 540 sq. ft.
  • 1st Floor: 540 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 51' 6"
  • Max ridge height: 19' 3"

Garage

  • Type: RV Garage, Attached
  • Area: 1375 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Rustic Carriage House with Garden Shed

  • 540

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $625
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,700
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • This rustic, Carriage house plan presents 540 square feet of living space, along with an oversized, 2-car garage with plenty of space for a workshop.
  • The garden shed is accessible from the garage or home, and features a 6' by 7' overhead door and a utility sink.
  • The living space attaches to the left side of the garage and provides an open kitchen, dining, and living space.
  • The bedroom can be found just off the entryway with frontal views.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 540 sq. ft.
  • 1st Floor: 540 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Combo Slab-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 51' 6"
  • Max ridge height: 19' 3"

Garage

  • Type: RV Garage, Attached
  • Area: 1375 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 280170JWD
