Plan 55146BR
Rustic Cottage With Breezewy and Bonus
Heated S.F.
1,292
Beds
3
Baths
2
Stories
1-2
Cars
2
What's Included
Plan Details
  • This rustic cottage house plan has a stone and shingle exterior and stout timbers supporting the covered porch and entry. A shed dormer adds to the curb appeal.
  • Inside, the living room has a stone-faced fireplace, 10' high tray ceiling and there is even a wood storage box and lots of built-ins. The dining and kitchen are open and airy with an eating bar in the kitchen.
  • The master suite has a beamed cathedral ceiling, sitting area, large walk-in closet and a plush bath with his and her vanities and a separate shower. The two secondary bed rooms have liberal sized closets and ceilings that slope from 8' to 11'.
  • A huge screen porch acts as a breezeway to bring in those cooling summer breezes and it makes an excellent place to entertain. The patio nearby extends your entertaining space.

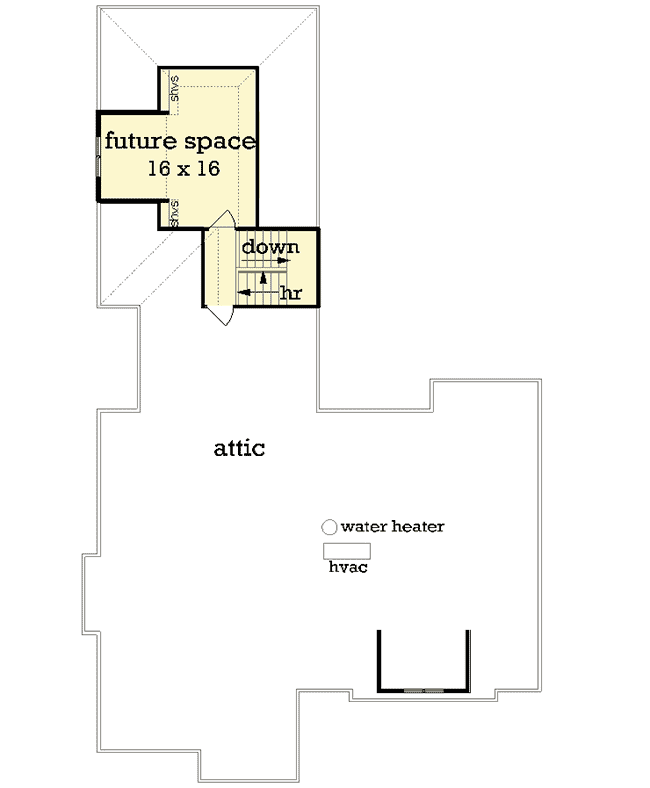

  • The attached garage has a nice storage room and a stairwell that leads to a future space and attic.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details

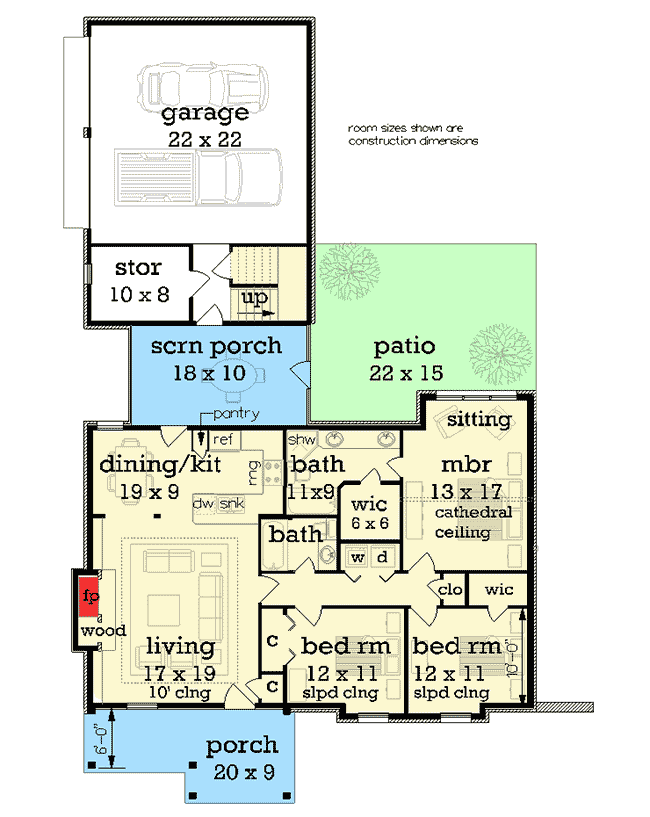

  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

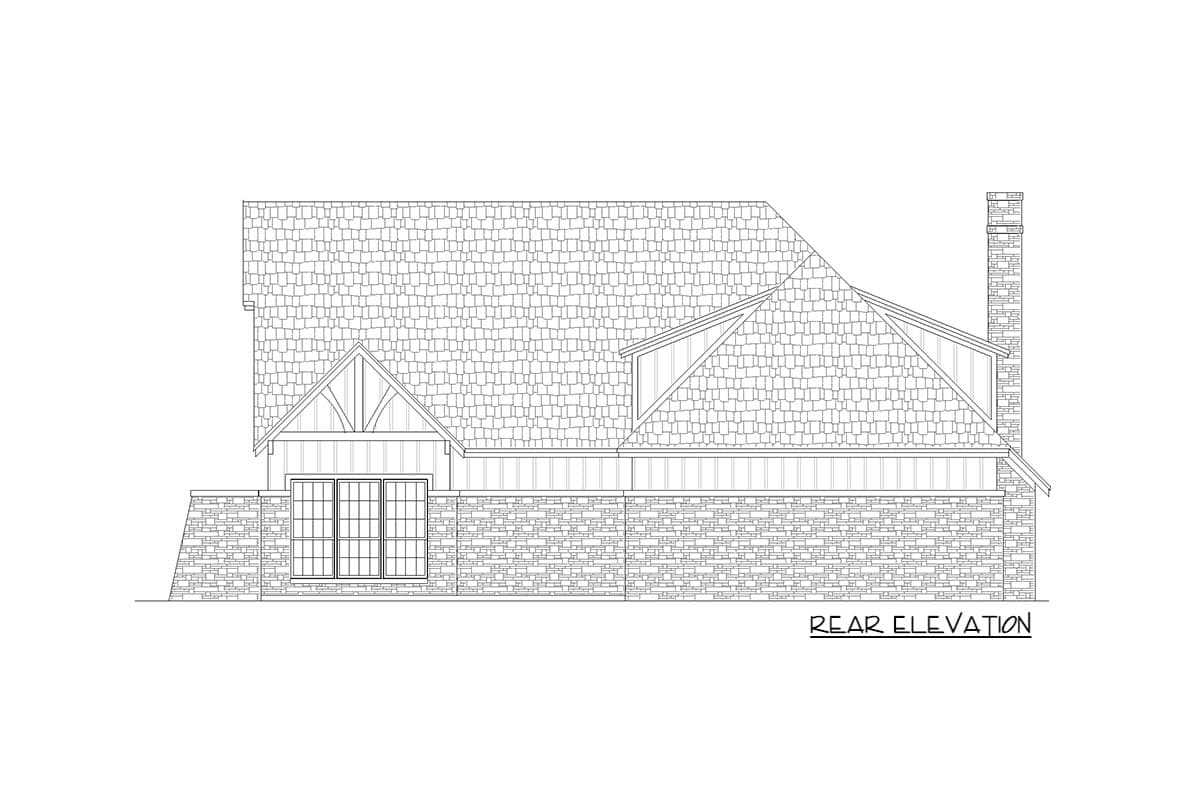

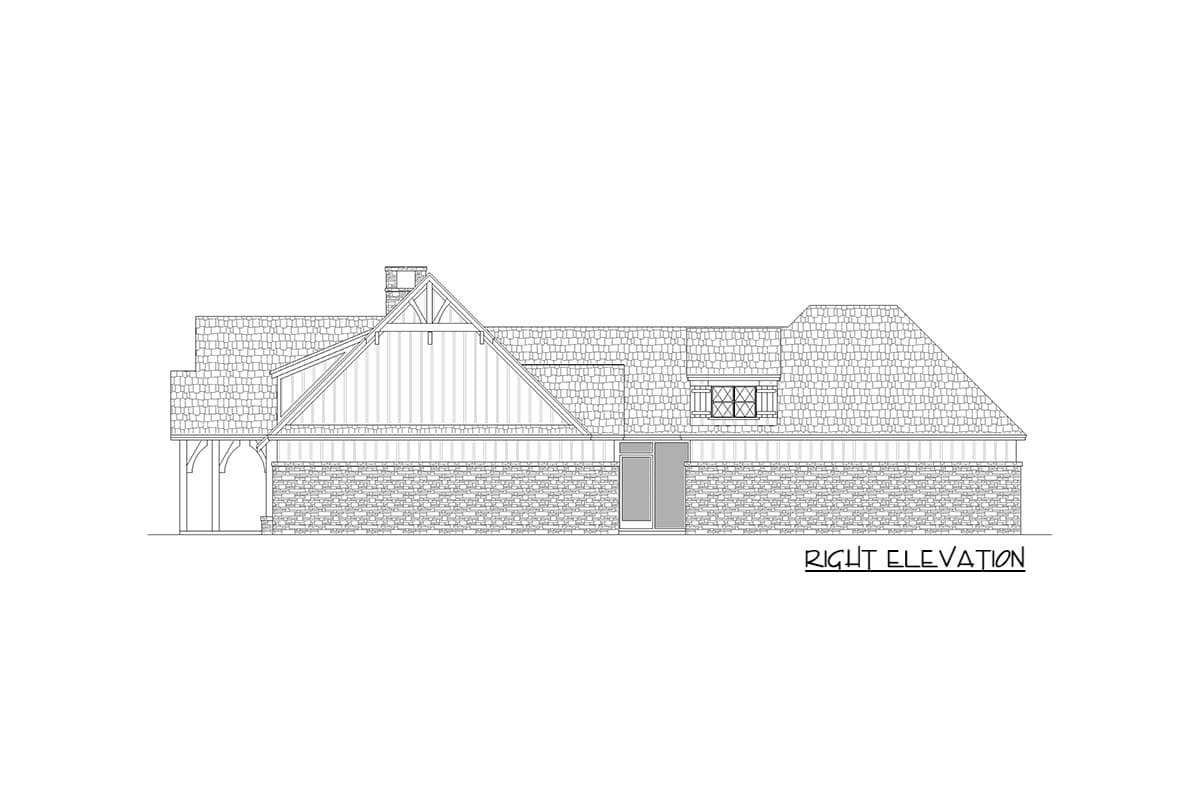

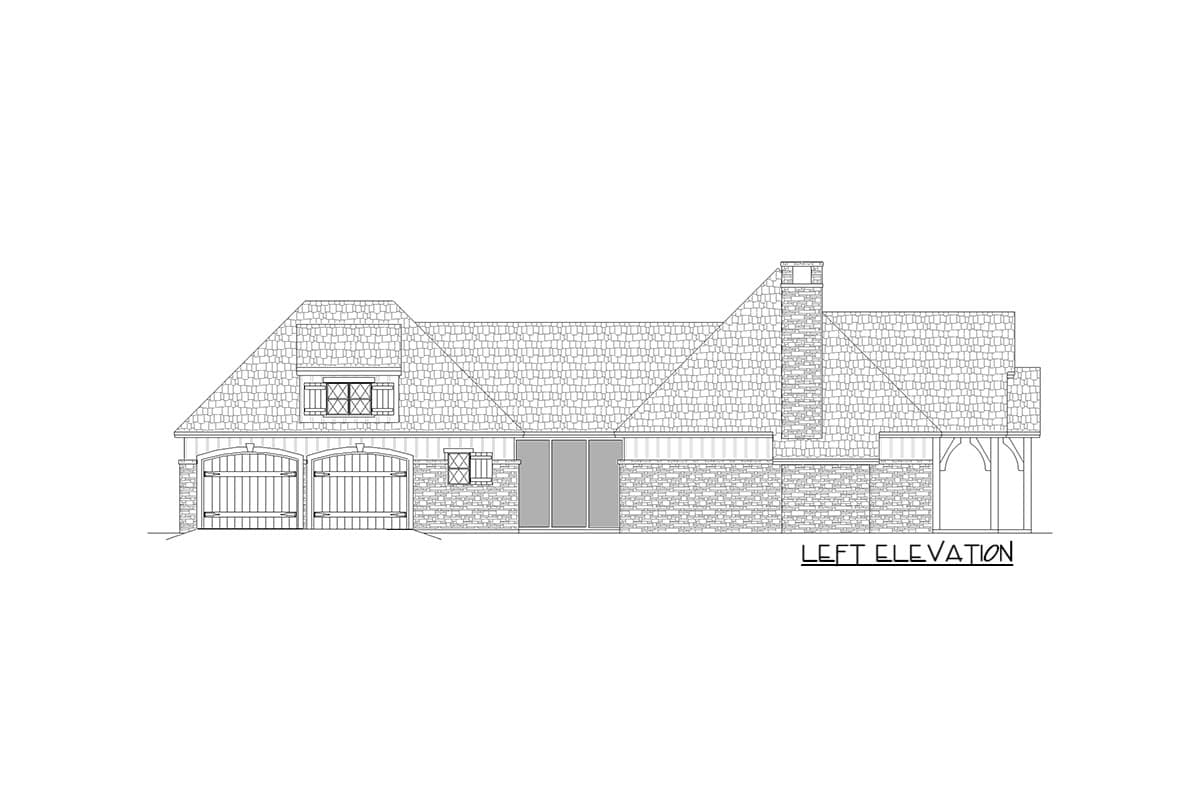

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Cottage With Breezewy and Bonus

  • 1,292

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,292 sq. ft.
  • 1st Floor: 1,292 sq. ft.

Dimensions

  • Width: 51' 6"
  • Depth: 77' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 577 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
