Rustic Craftsman Home Plan with 3-Beds on the Left and Open Concept on the Right

Plan 150007HRP

  • 1,372

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Three bedrooms line the left side of this rustic Craftsman home plan with the master bedroom tucked in back.
  • Step in off the 8'-deep front porch and find yourself in a space open front to back with the living room in front, kitchen in back and dining room in the middle.
  • The kitchen has an island with seating for casual meals and a door on the back wall takes you out to the 7'2"-deep rear porch.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

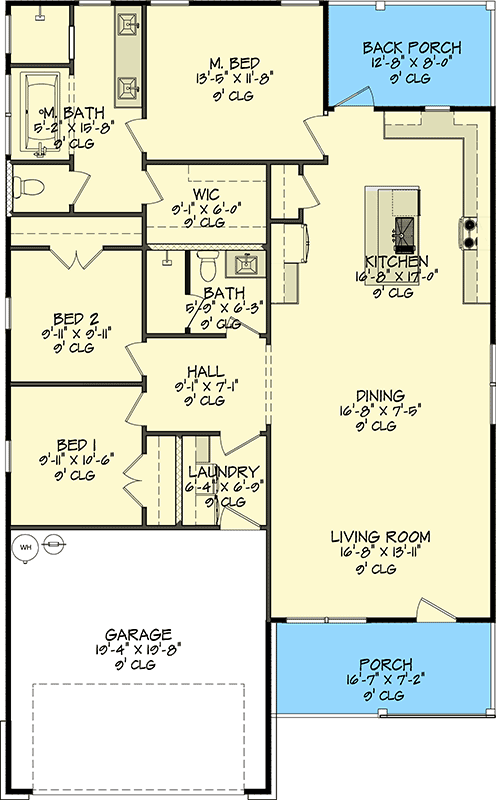

Rustic Craftsman Home Plan with 3-Beds on the Left and Open Concept on the Right - 150007HRP floor plan - Main Level

Main Level 3D

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Craftsman Home Plan with 3-Beds on the Left and Open Concept on the Right - 150007HRP floor plan - Main Level 3D
