Rustic Craftsman Home Plan with Vaulted Covered Patio

Plan 95125RW

  • 2,346

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

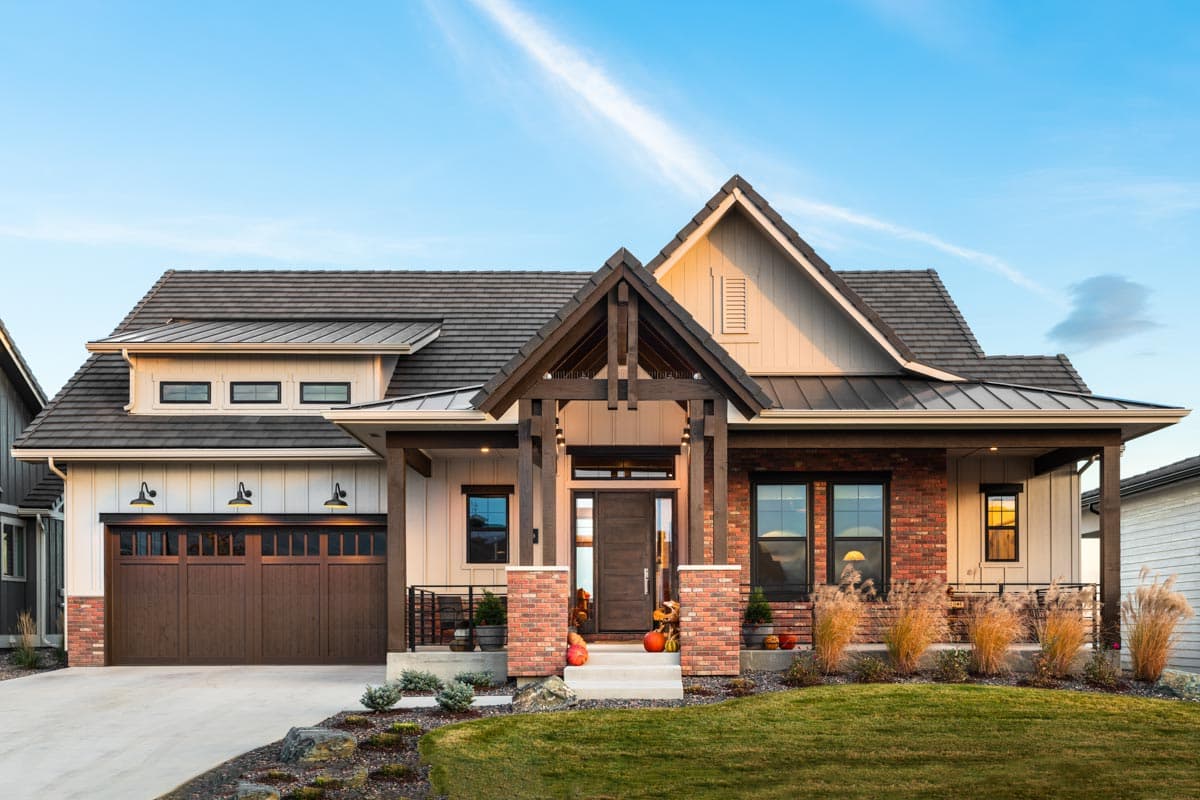

  • This rustic mountain Craftsman home plan delivers loads of curb appeal with its wraparound porch (7' deep in front of the office and 14' deep on each side), metal roof accents, and board and batten siding.

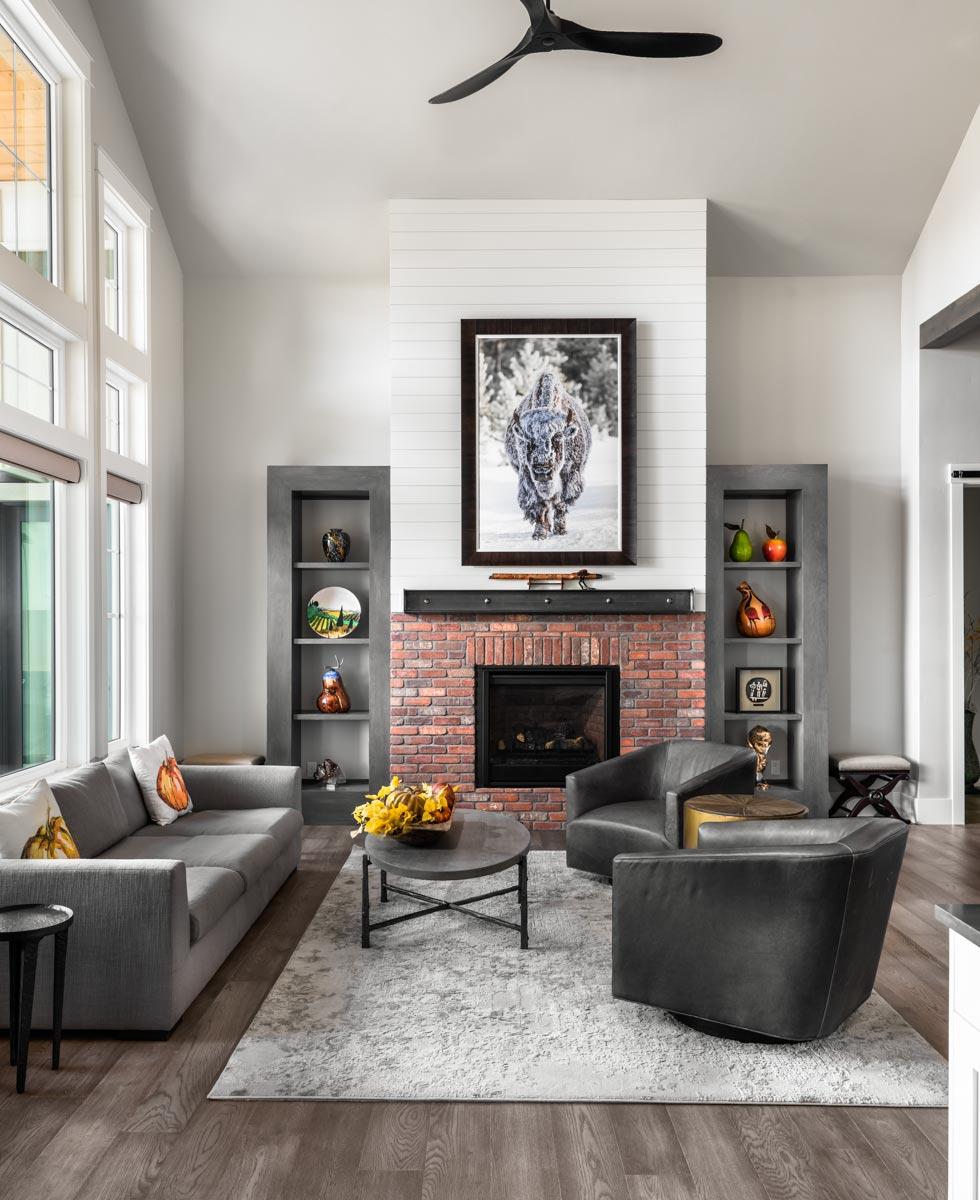

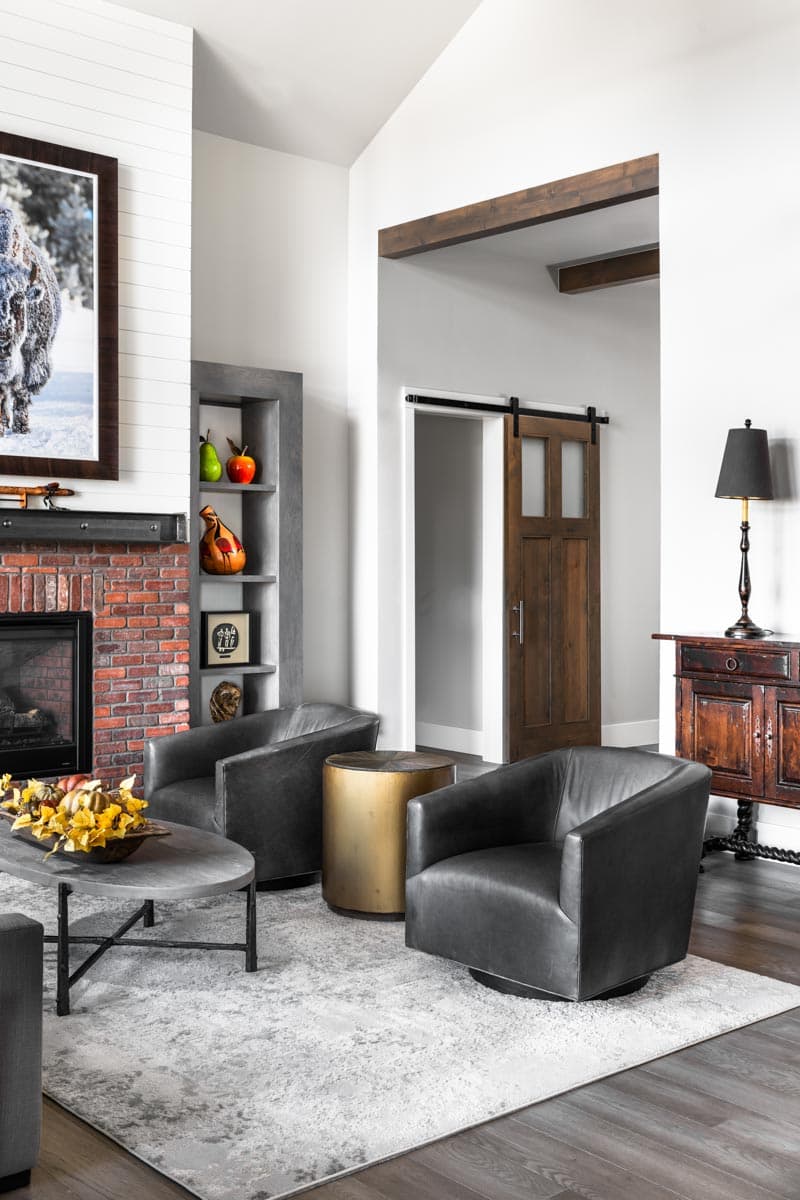

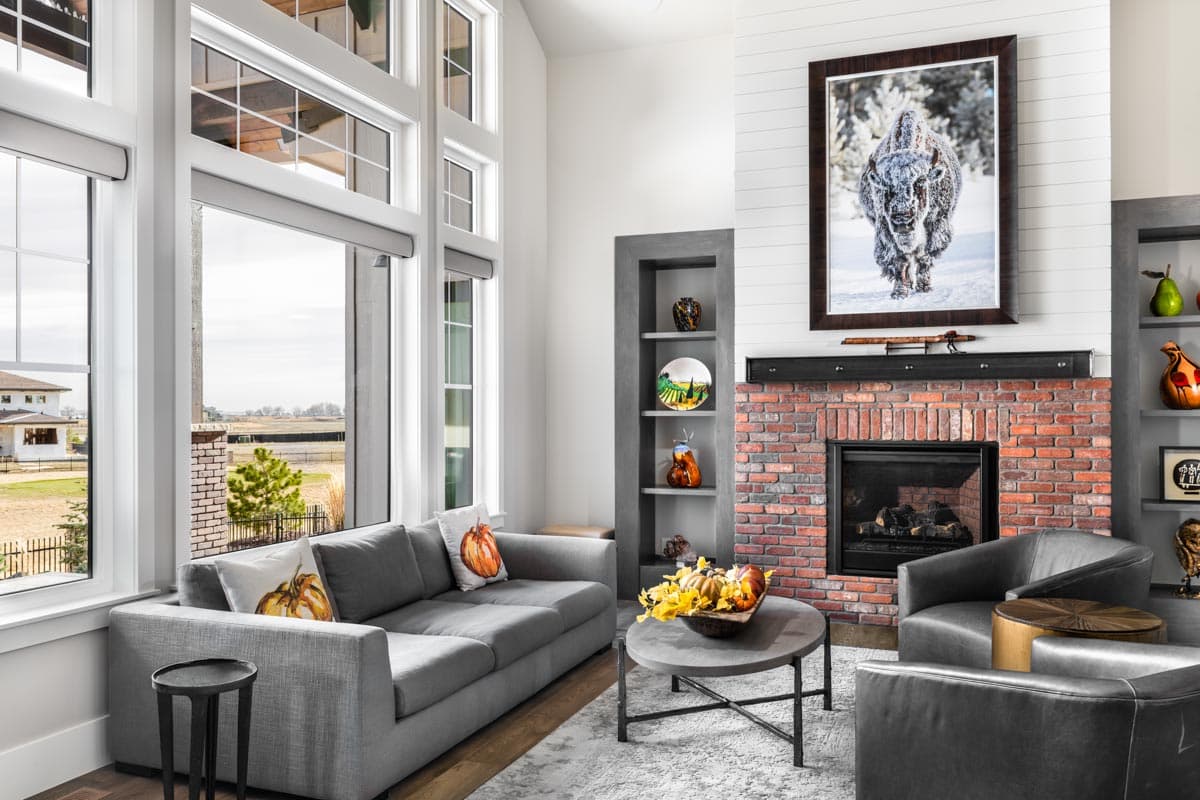

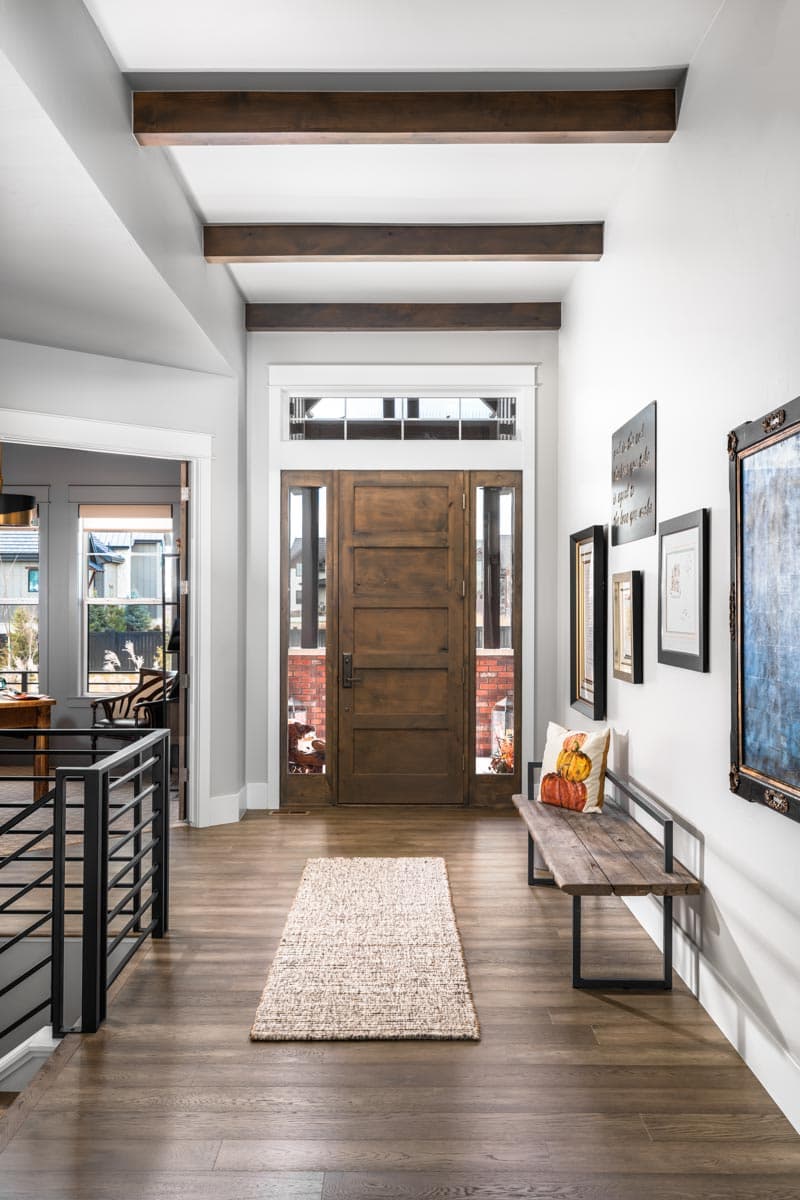

  • All ceilings are 10' except for the 12' entry and the vaulted family room.

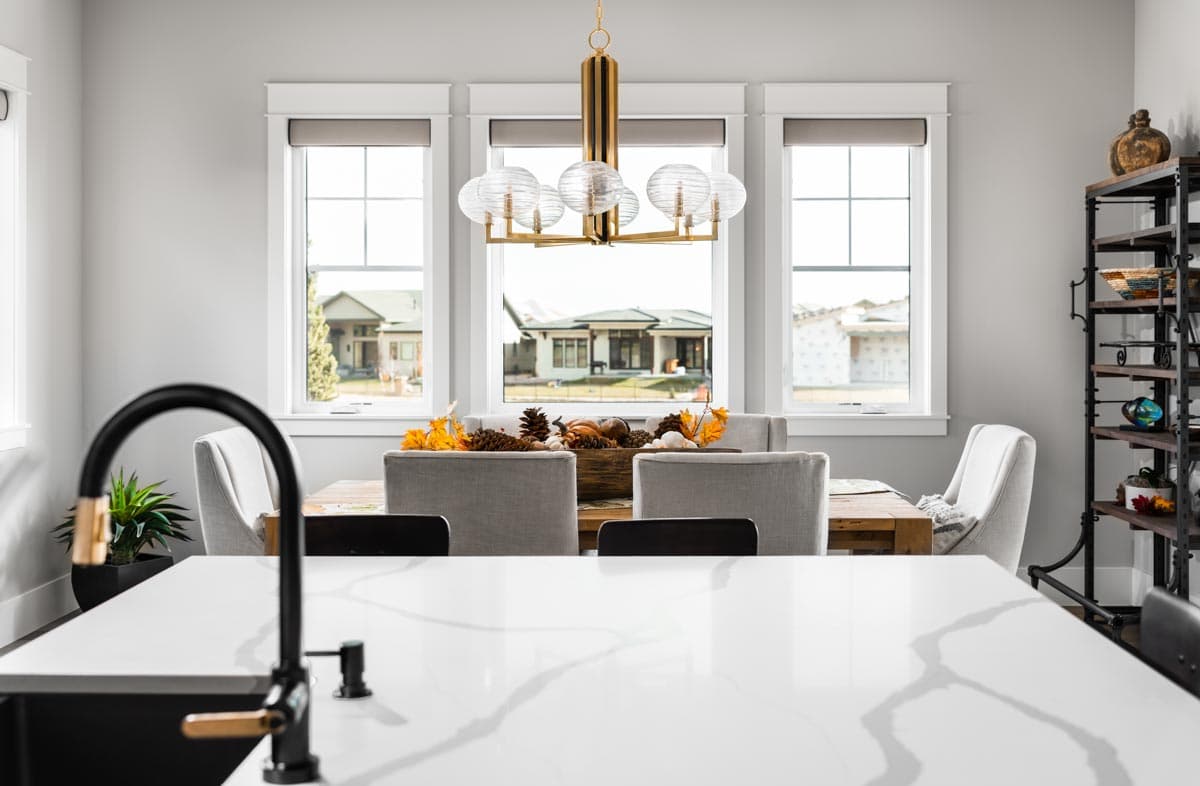

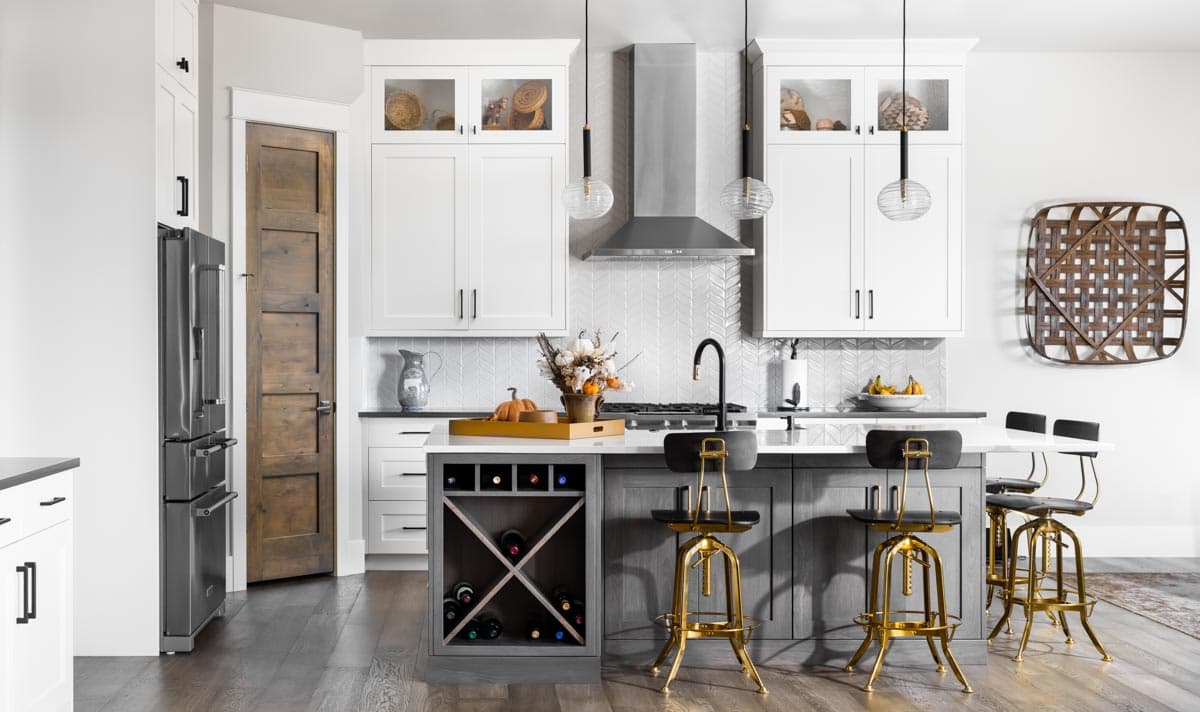

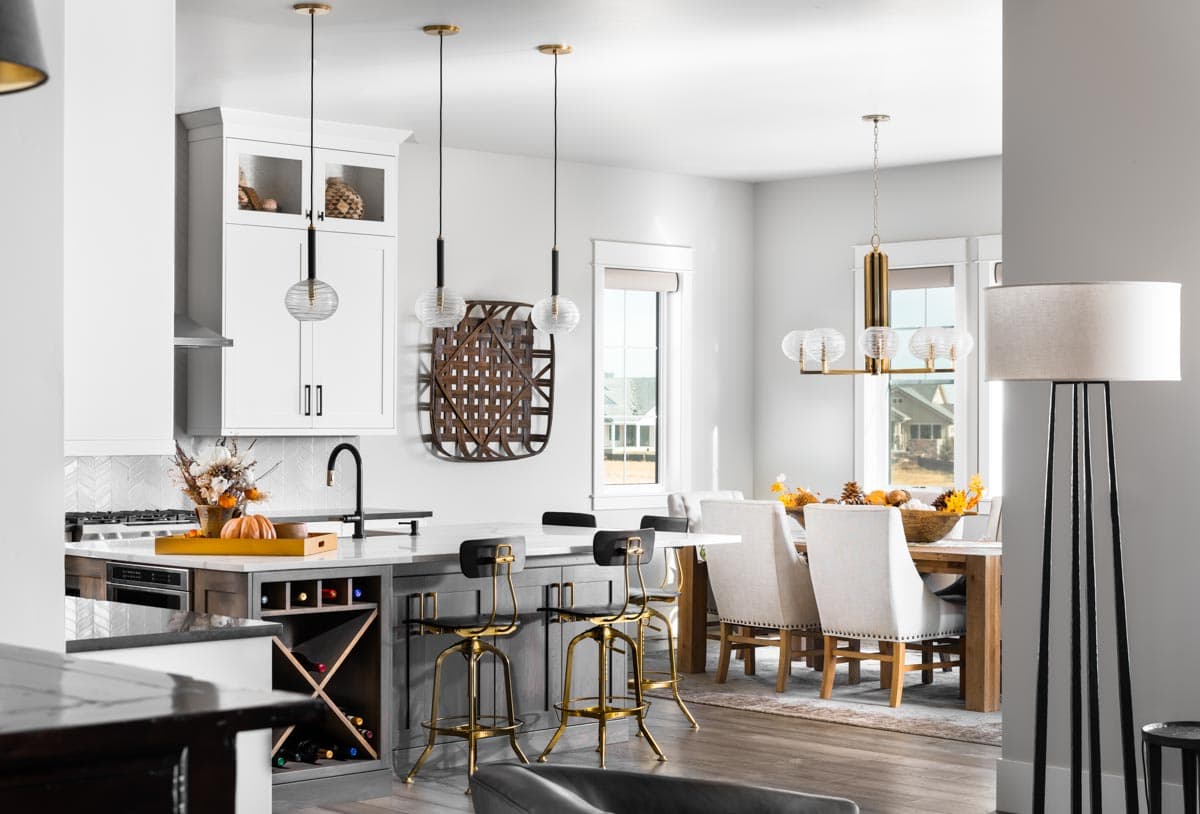

  • The heart of the home sits in between the family room and dining area and hosts an island, corner pantry, and large range.

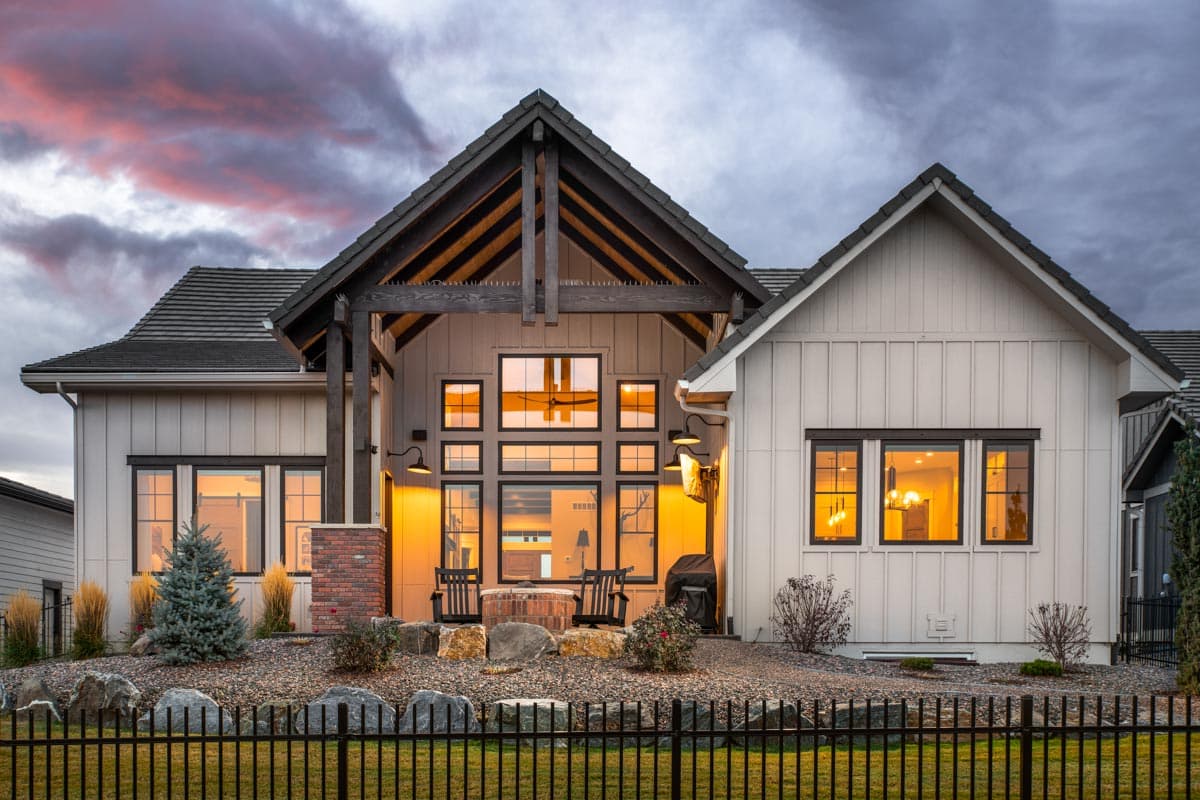

  • Access the covered patio for outdoor enjoyment from both the dining area and master bedroom.
  • The double garage leads into a combined mud / laundry room with a utility sink, coat closet, and drop zone.

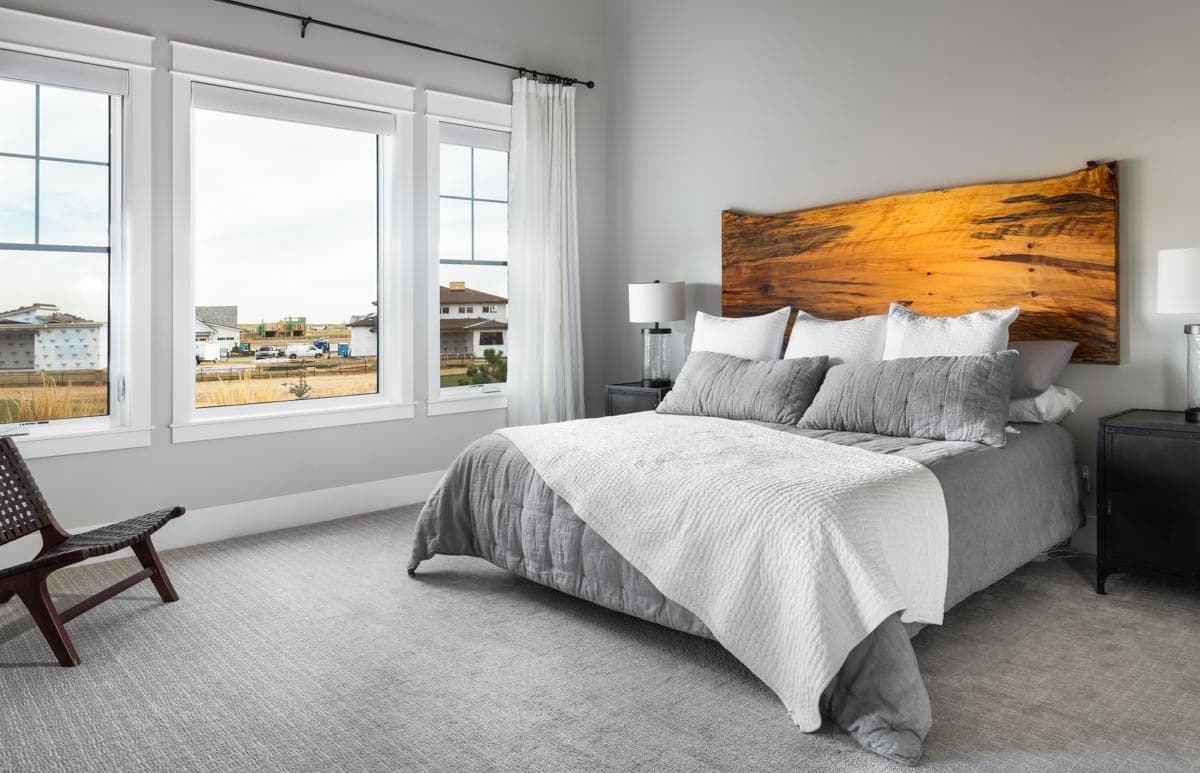

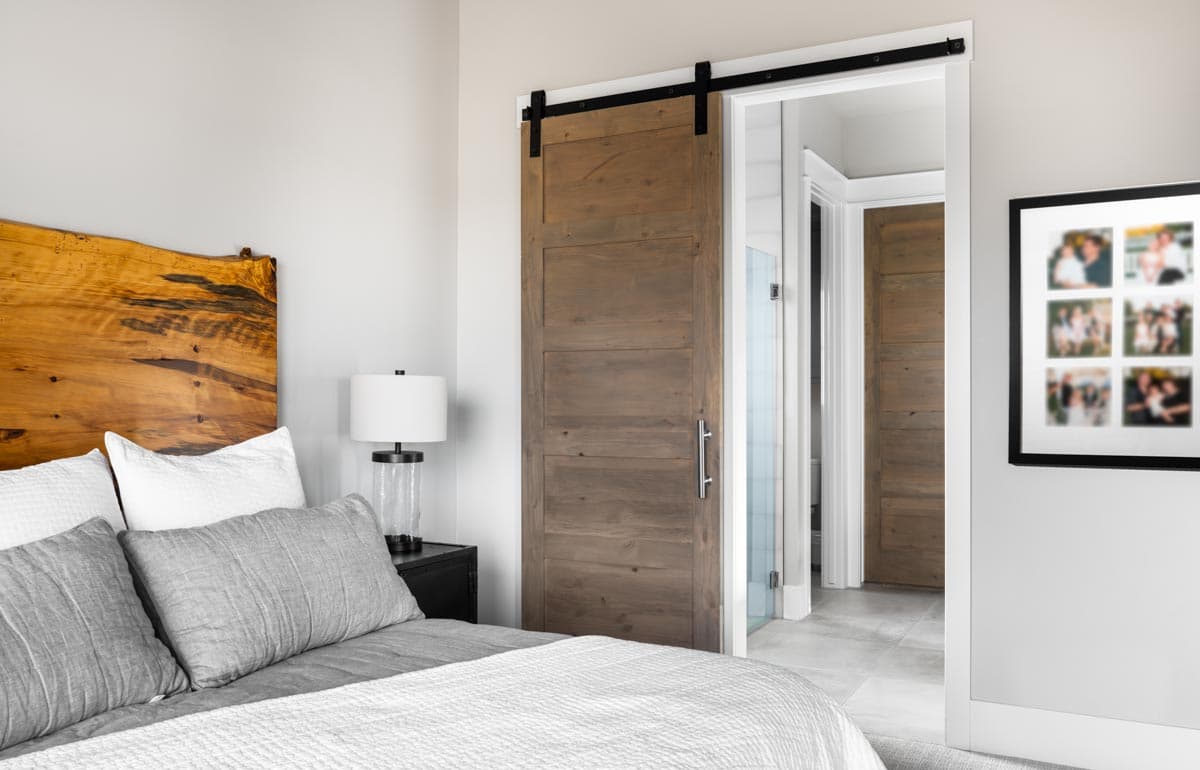

  • The generous master bedroom provides rearward views and a large walk-in closet. Two secondary bedrooms can be found near the entryway, or convert one into a home office or den.

The following details are included with this house plan:
  • Cover Page

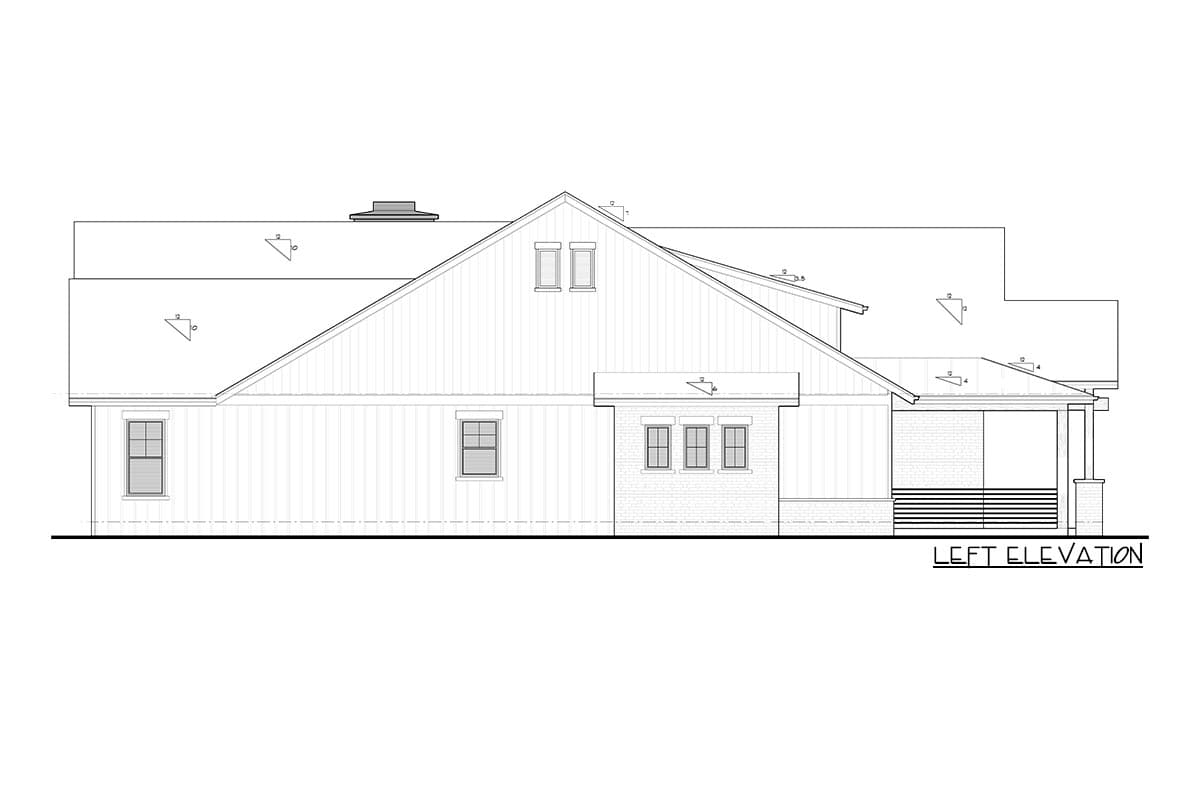

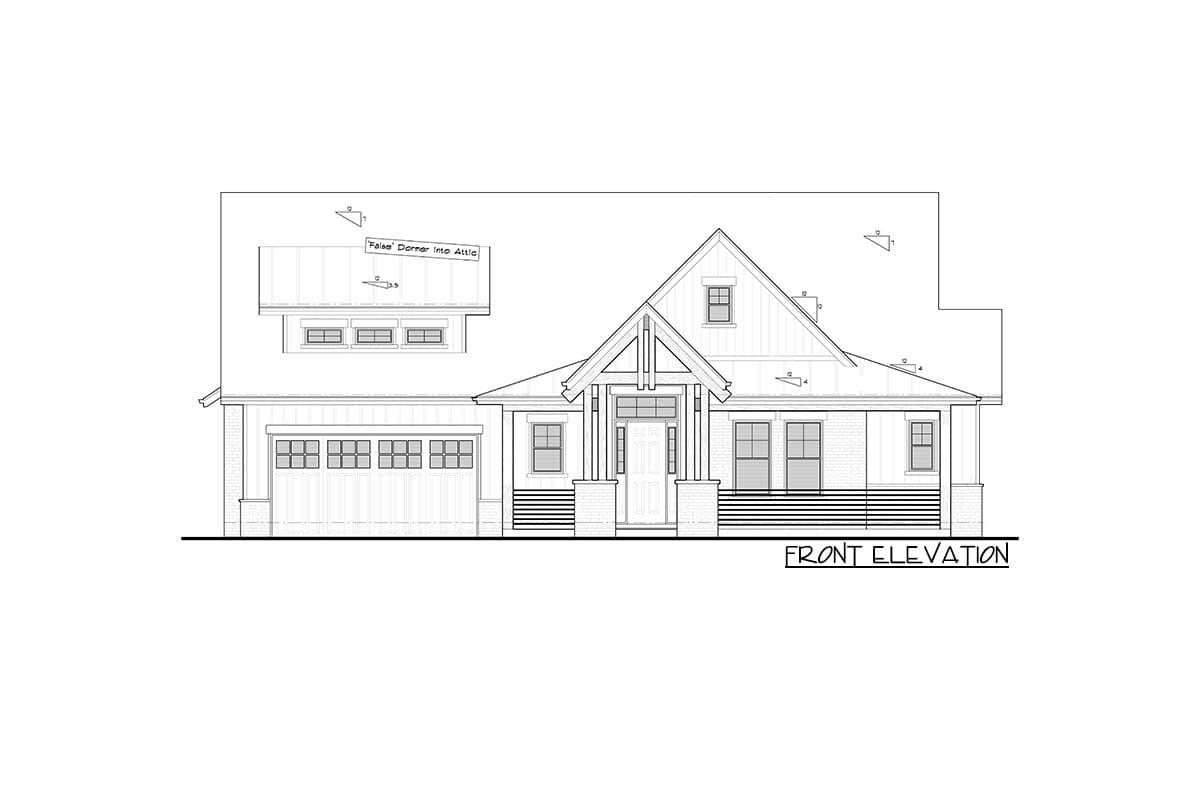

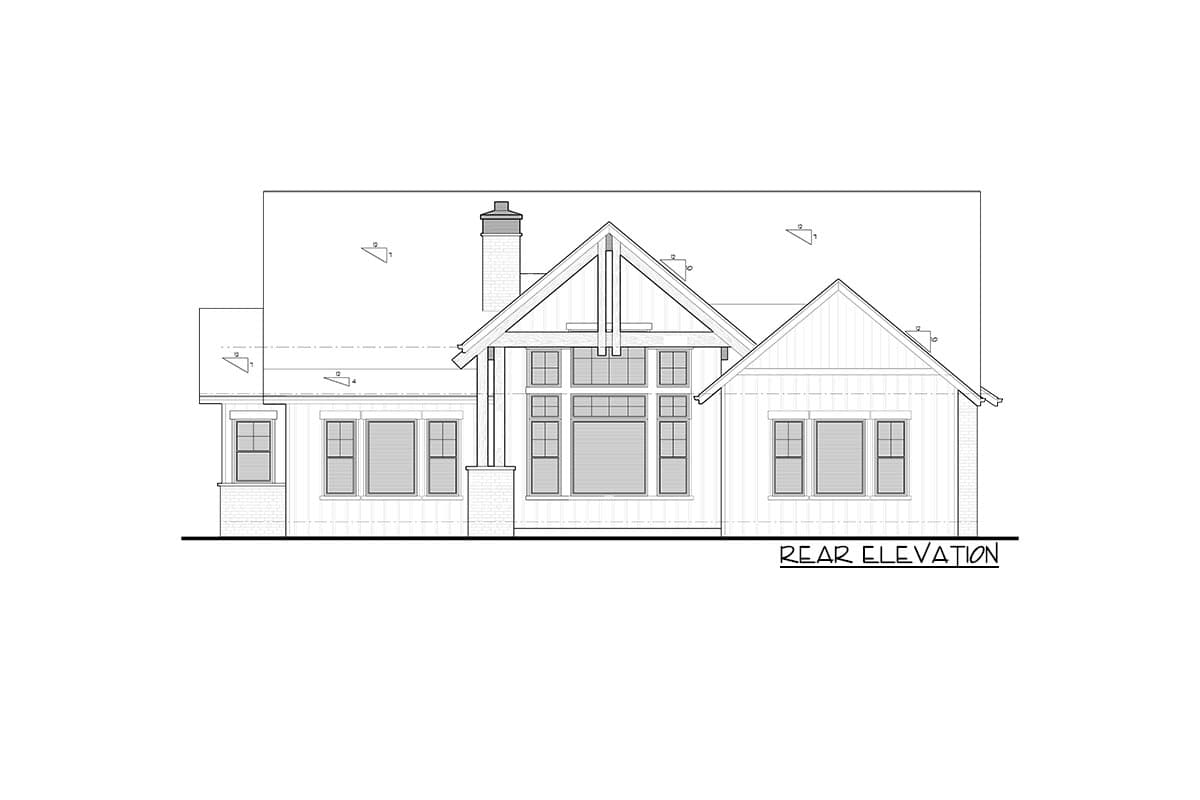

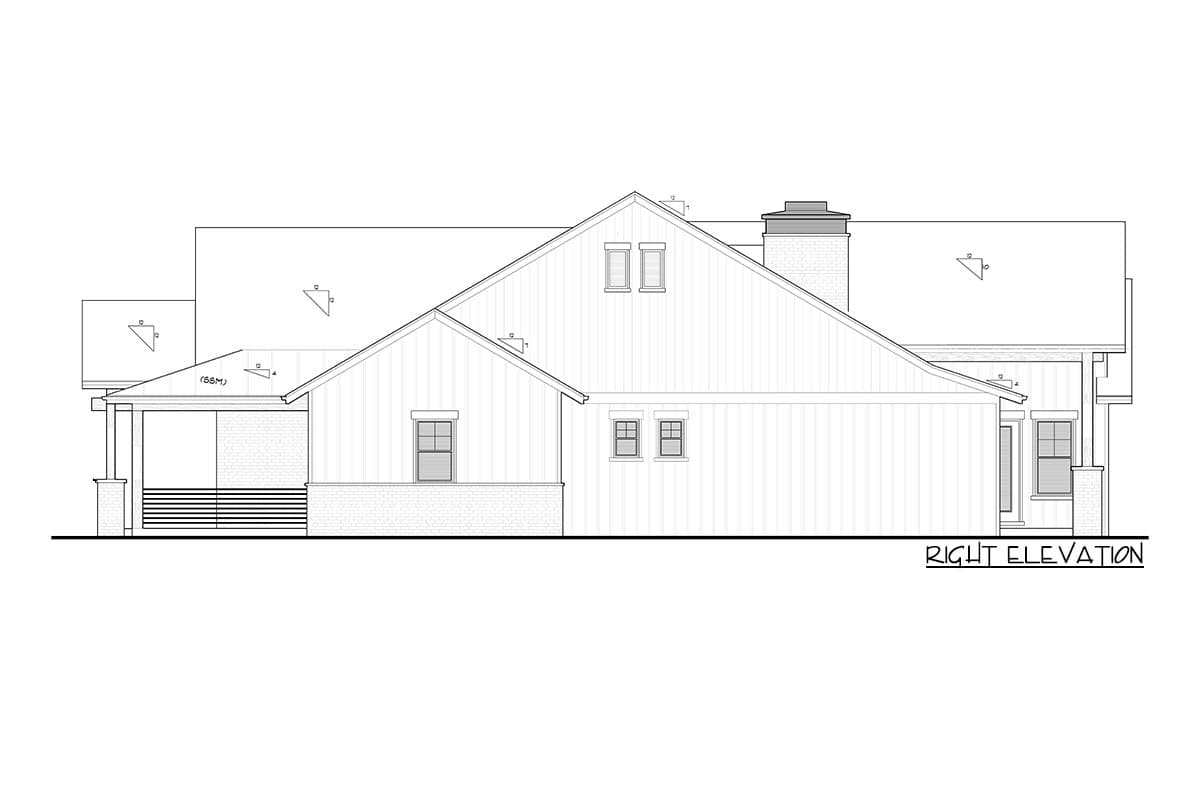

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

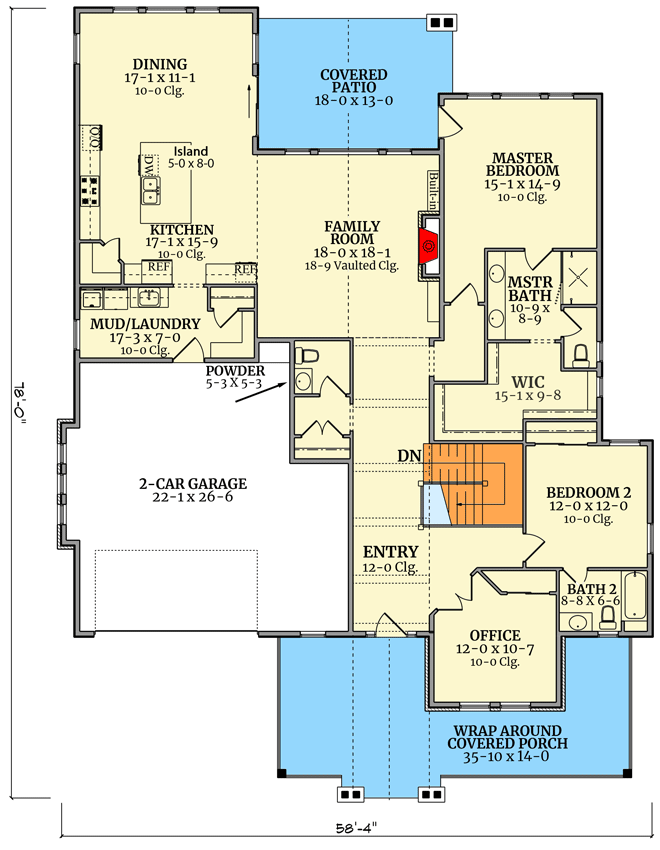

Rustic Craftsman Home Plan with Vaulted Covered Patio - 95125RW floor plan - Main Level

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

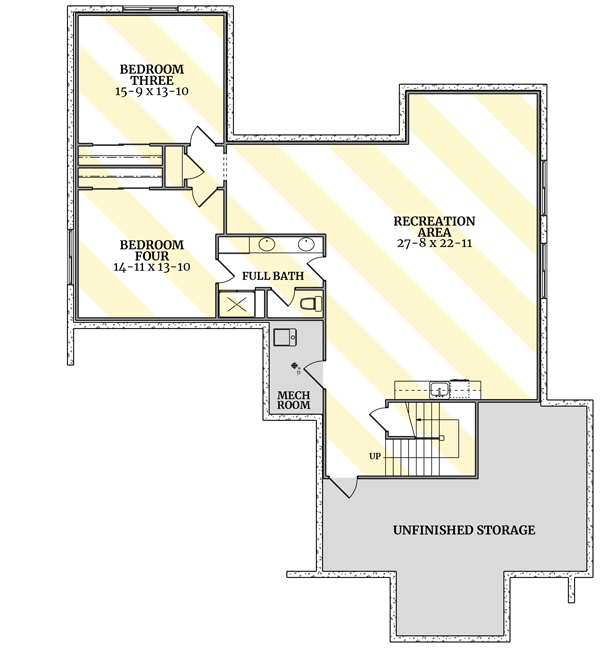

Rustic Craftsman Home Plan with Vaulted Covered Patio - 95125RW floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,346 sq. ft.
  • 1st Floor: 2,346 sq. ft.
  • Porch, Combined: 419 sq. ft.
  • Optional Lower Level: 1,686 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 4"
  • Depth: 78' 0"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 693 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Rustic Craftsman Home Plan with Vaulted Covered Patio

  • 2,346

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • PDF - Unlimited Build $2,175
  • CAD + PDF - Single Build $2,750
  • CAD - Unlimited Build $4,125
  • View all purchase option online

About This Plan

  • This rustic mountain Craftsman home plan delivers loads of curb appeal with its wraparound porch (7' deep in front of the office and 14' deep on each side), metal roof accents, and board and batten siding.
  • All ceilings are 10' except for the 12' entry and the vaulted family room.
  • The heart of the home sits in between the family room and dining area and hosts an island, corner pantry, and large range.
  • Access the covered patio for outdoor enjoyment from both the dining area and master bedroom.
  • The double garage leads into a combined mud / laundry room with a utility sink, coat closet, and drop zone.
  • The generous master bedroom provides rearward views and a large walk-in closet. Two secondary bedrooms can be found near the entryway, or convert one into a home office or den.

Floor Plans

  • Main Level

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,346 sq. ft.
  • 1st Floor: 2,346 sq. ft.
  • Porch, Combined: 419 sq. ft.
  • Optional Lower Level: 1,686 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 4"
  • Depth: 78' 0"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 693 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
