Plan 60546ND
Rustic Craftsman House Plan with Two Flex Rooms - 3345 Sq Ft
Heated S.F.
3,345
Beds
3 - 4
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 60546ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 60546ND

1-800-854-7852

1-262-521-4596

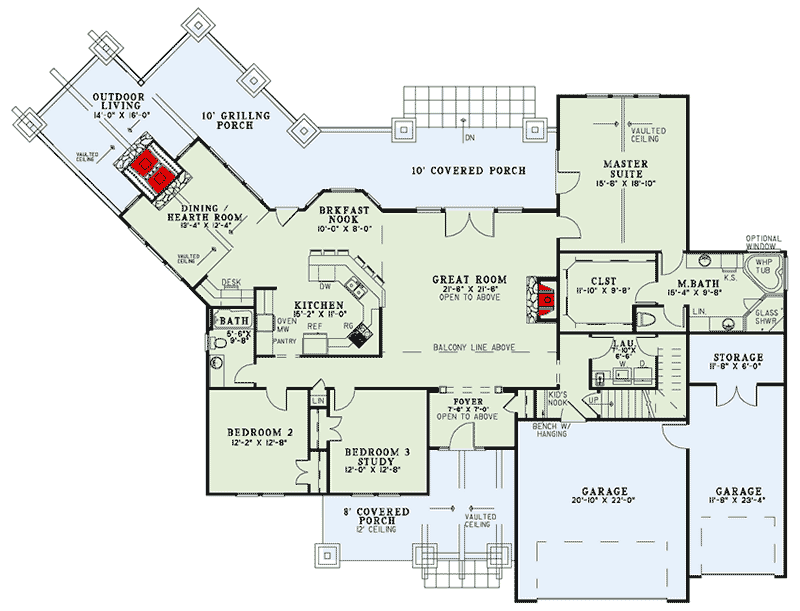

Main Level
floor plan image Main Level

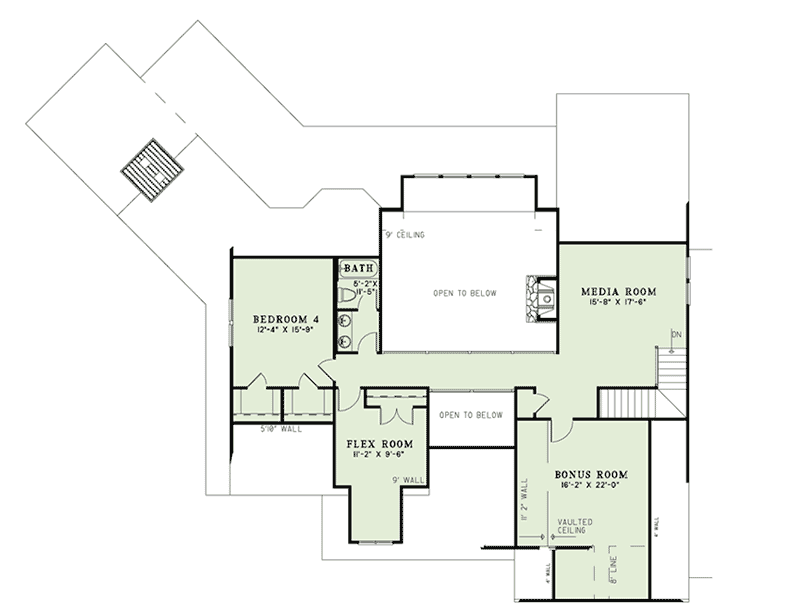

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Whether you use this rustic Craftsman house plan as a vacation retreat or full time home, there is plenty of room for living and entertaining.
  • Outdoor space abounds with a huge expanse of rear covered porches, one with a vaulted ceiling.
  • A double fireplace warms both the porch and the dining room that is flooded with light from windows on all sides.
  • The great room soars up two stories for a dramatic effect.
  • Two bedrooms lie on the first floor including the spacious vaulted master suite.
  • The bonus room, flex room and media room can all be configured by your builder to suit your needs.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,345 sq. ft.

1st Floor

2,366 sq. ft.

2nd Floor

979 sq. ft.

Bonus

334 sq. ft.

Porch, Combined

992 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

93' 8"

Depth

71' 6"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

842 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

3,345 sq. ft.

1st Floor

2,366 sq. ft.

2nd Floor

979 sq. ft.

Bonus

334 sq. ft.

Porch, Combined

992 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

93' 8"

Depth

71' 6"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

842 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style
