Rustic Craftsman Lake House Plan for Rear Sloping Lot
Heated S.F.
4,285
Beds
3
Baths
4
Stories
1
Cars
2
What's Included
Plan Details
  • This Country Craftsman home plan welcomes you with open arms with its angled garage and covered front porch.
  • The centrally located great room hosts a grand fireplace and views onto the wraparound deck attached to the rear and side of the home.
  • The eat-in kitchen includes a breakfast bar at the island and sitting area with glass sliders that open to the deck. The neighboring laundry / mudroom offers easy access to the garage from the kitchen and a pocket door to hide any messes.

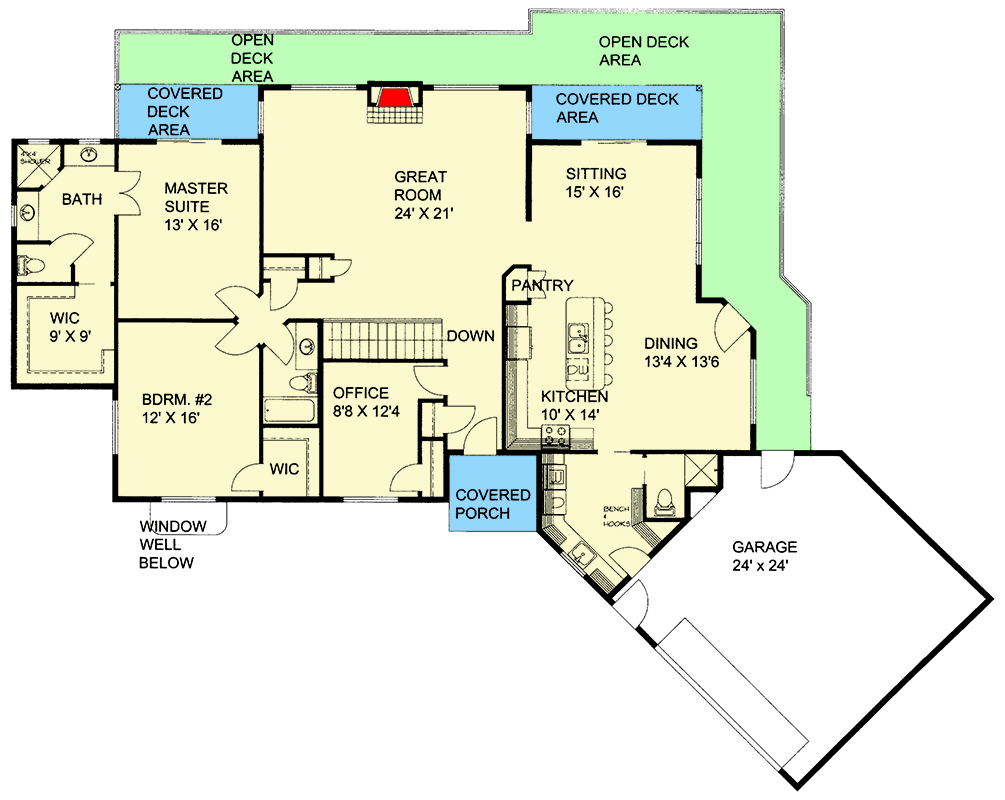

  • Two bedrooms occupy the left side of the main level, including the master suite that is joined by a 4-fixture bathroom and walk-in closet. A home office completes the first floor.

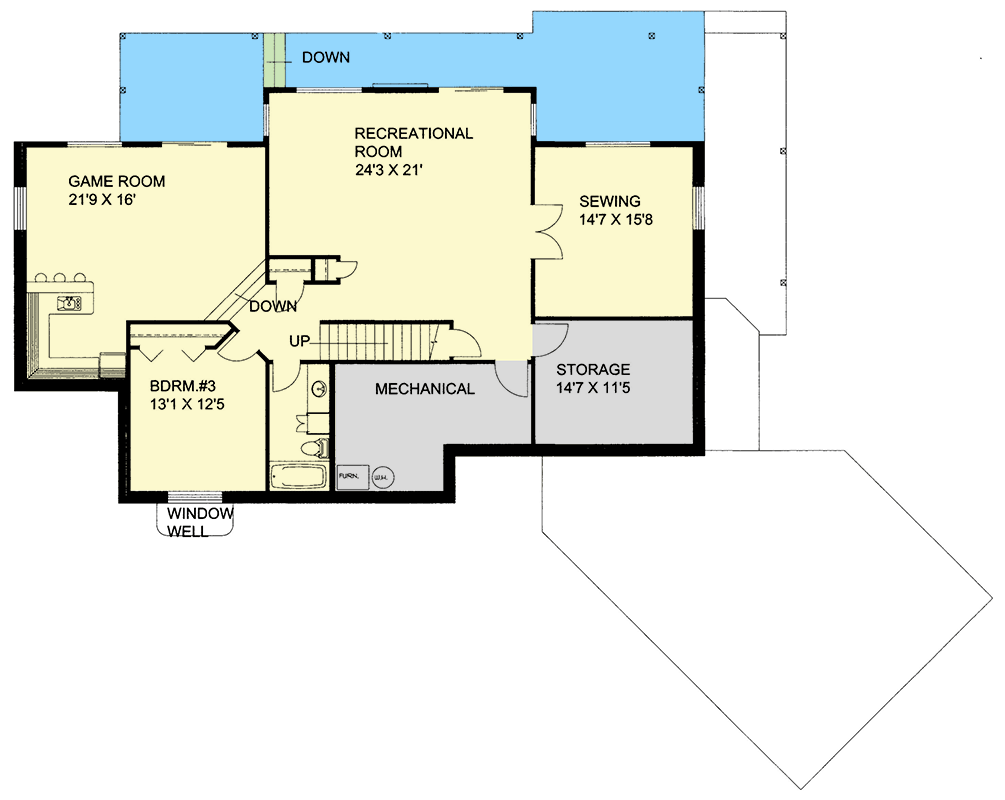

  • Downstairs, the rec and game rooms extend onto the covered patio and a third bedroom resides next door to a full bath. A sewing (hobby) room is located behind french doors and plenty of unfinished space is ideal for storage.
What's Included
  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
