Plan 72501DA

Rustic Detached Carport Garage with Dual Storage Bays

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 72501DA

Main Level
Main Level

Plan 72501DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

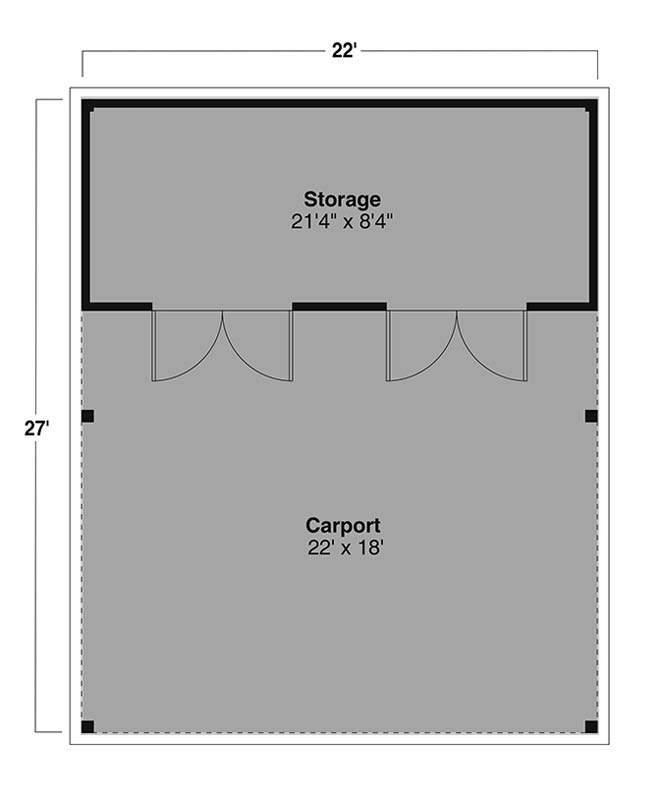

Plan 72501DA: Rustic Detached Carport Garage with Dual Storage Bays - Floor Plan - Main Level - Rustic

Plan Details

  • This one-story detached garage plan includes 198 sq ft of enclosed storage and 396 sq ft  with parking for 2 cars. The structure combines the practicality of a carport-style garage with the visual warmth of vertical board-and-batten siding and wood accents.
  • Arriving at the structure, you’re met with a gable-roofed carport that offers covered vehicle protection and a welcoming rustic profile—perfect for drive-in access from the front.
  • Behind the open carport are twin enclosed bays accessed via double doors, offering ample storage for tools, lawn equipment, or recreational gear.
  • With no finished interior rooms, this plan prioritizes utility and efficiency while adding character and shelter to any lot, especially rural or wooded properties.
  • The combination of carport functionality and enclosed storage makes this plan ideal as a secondary structure for homes, cabins, or farmsteads, blending durability with style.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

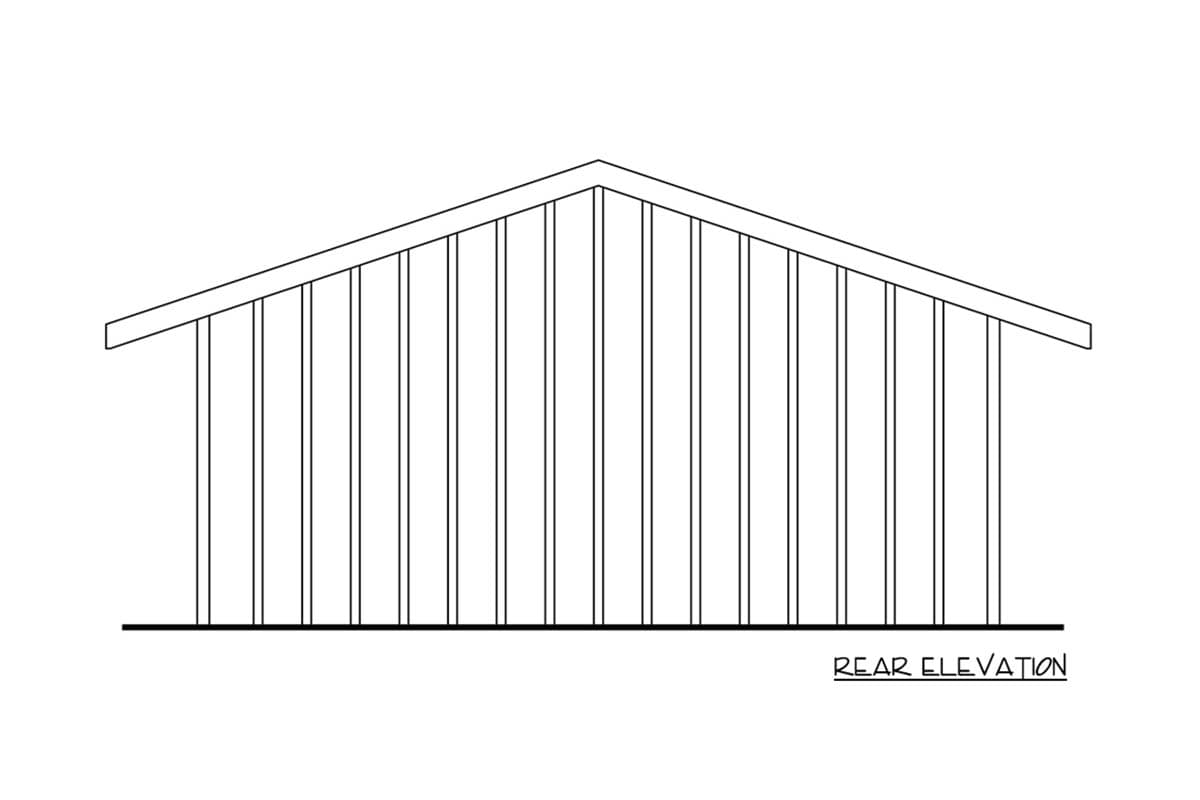

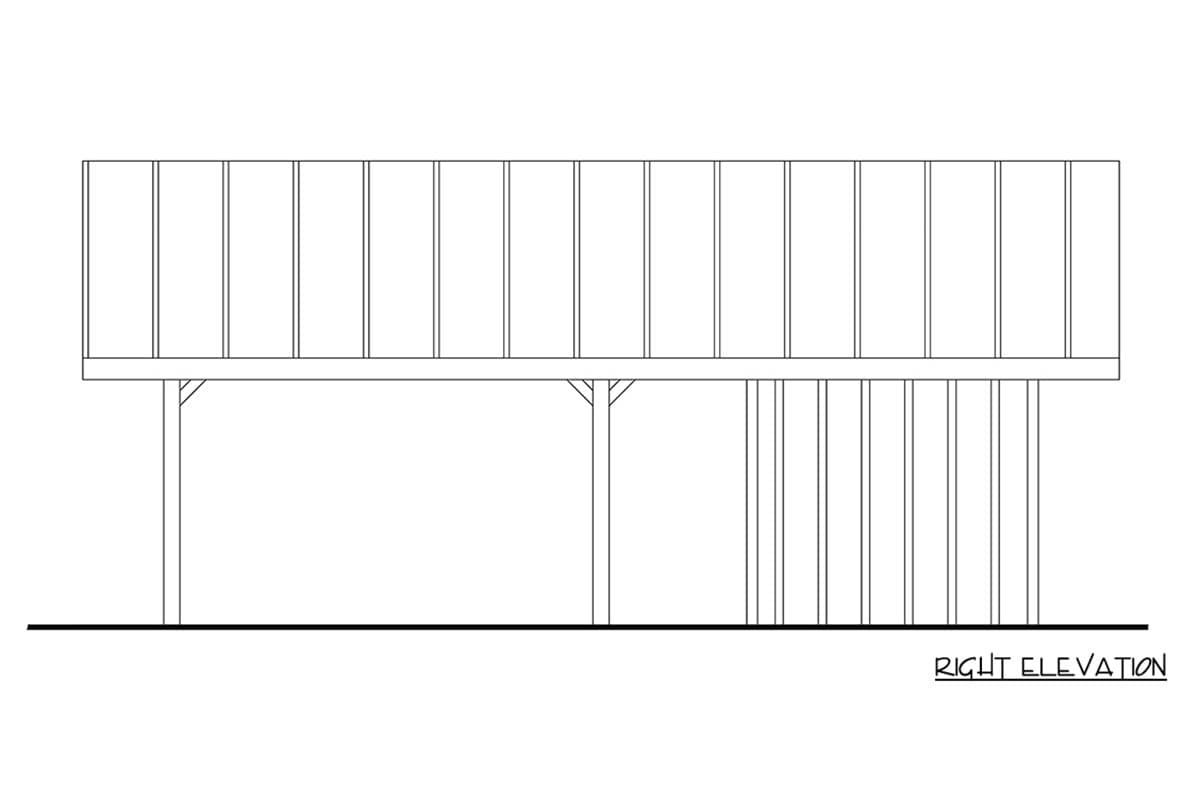

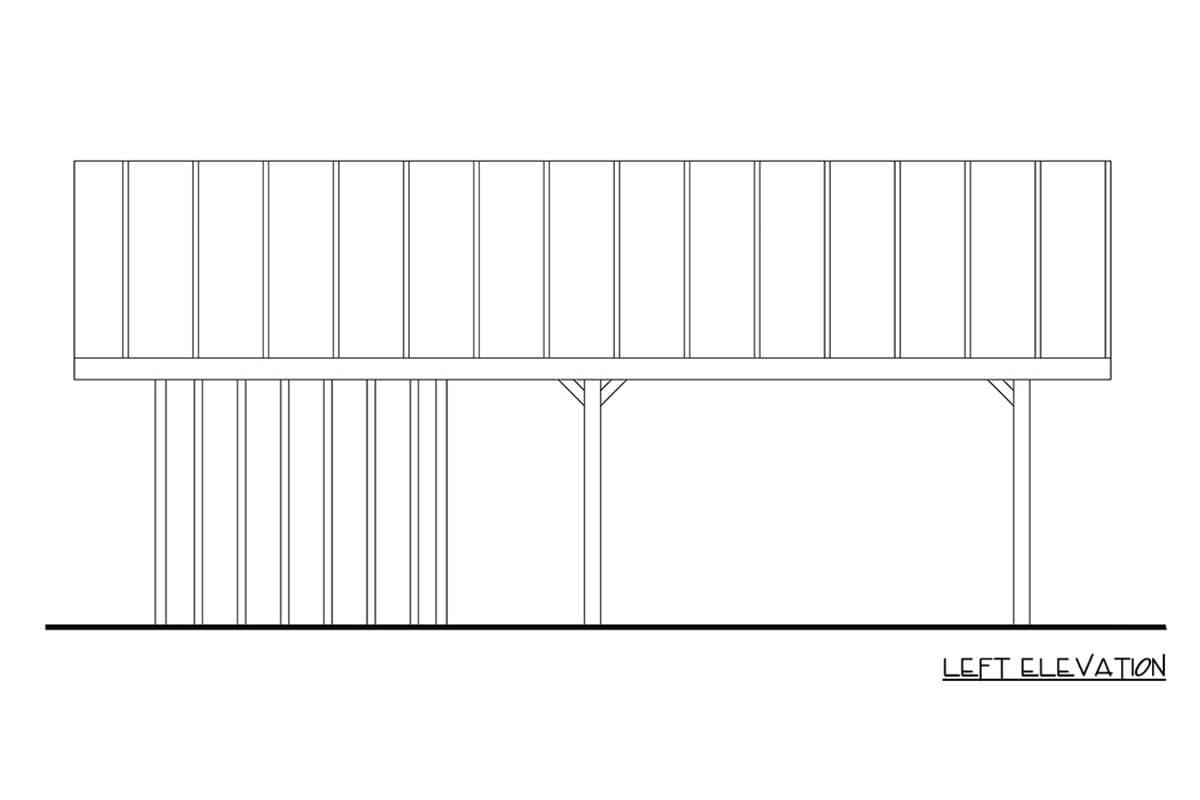

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Loading...

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?
Loading...

Modify this Plan

Receive a free modification quote within 3 business days.

Loading...

Start with a Cost Report

Calculate the cost to build & furnish your home.

Loading...
Loading...

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

198 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

6x6 Posts

Dimensions

Width

22' 0"

Depth

27' 0"

Max Ridge Height

12' 10"

Garage

Type

Carport

Area

396 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Rustic

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

198 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

6x6 Posts

Dimensions

Width

22' 0"

Depth

27' 0"

Max Ridge Height

12' 10"

Garage

Type

Carport

Area

396 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style
