Plan 85106MS Rustic Guest Cottage or Vacation Getaway

640 1 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

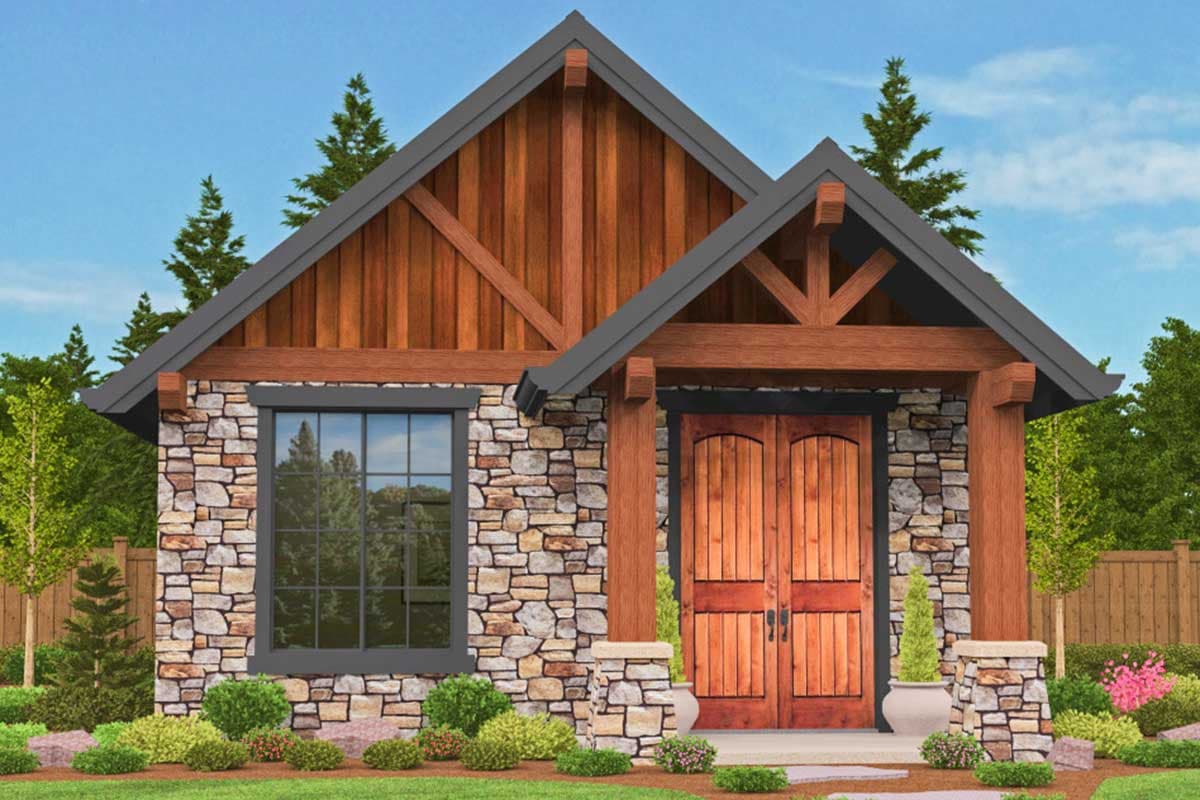

Rustic Guest Cottage or Vacation Getaway

Plan 85106MS

  • 640

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Escape to your vacation retreat in this rustic Cottage house plan.
  • Front and rear porches give you outdoor space and the small size of the home makes it easy to clean and maintain.
  • The home feels larger because of the delightful open layout.
  • This plan also works well as a guest cottage on your property or as a starter home.
  • NOTE: Please allow 10 business days for delivery.
  • Related Plan: Get a different exterior with house plan 85107MS (640 sq. ft.).

Each plan set is drawn to 1/4" scale and includes the following:

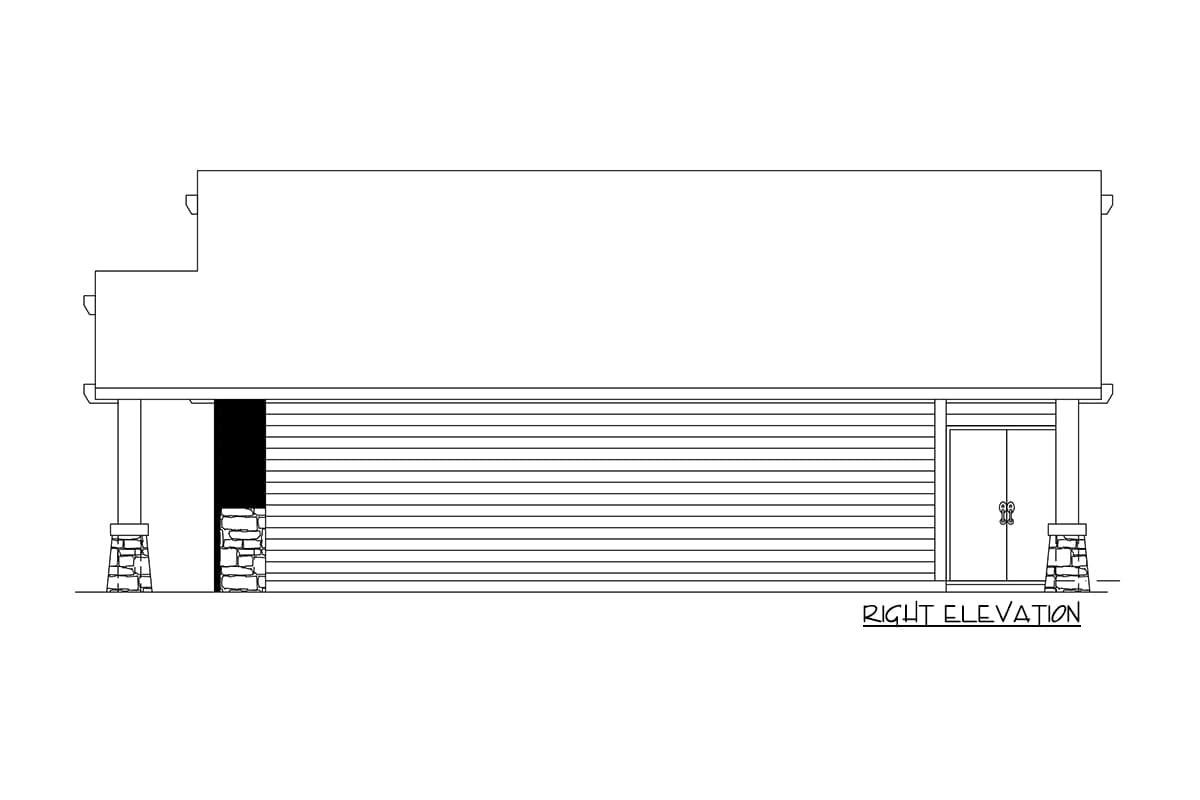

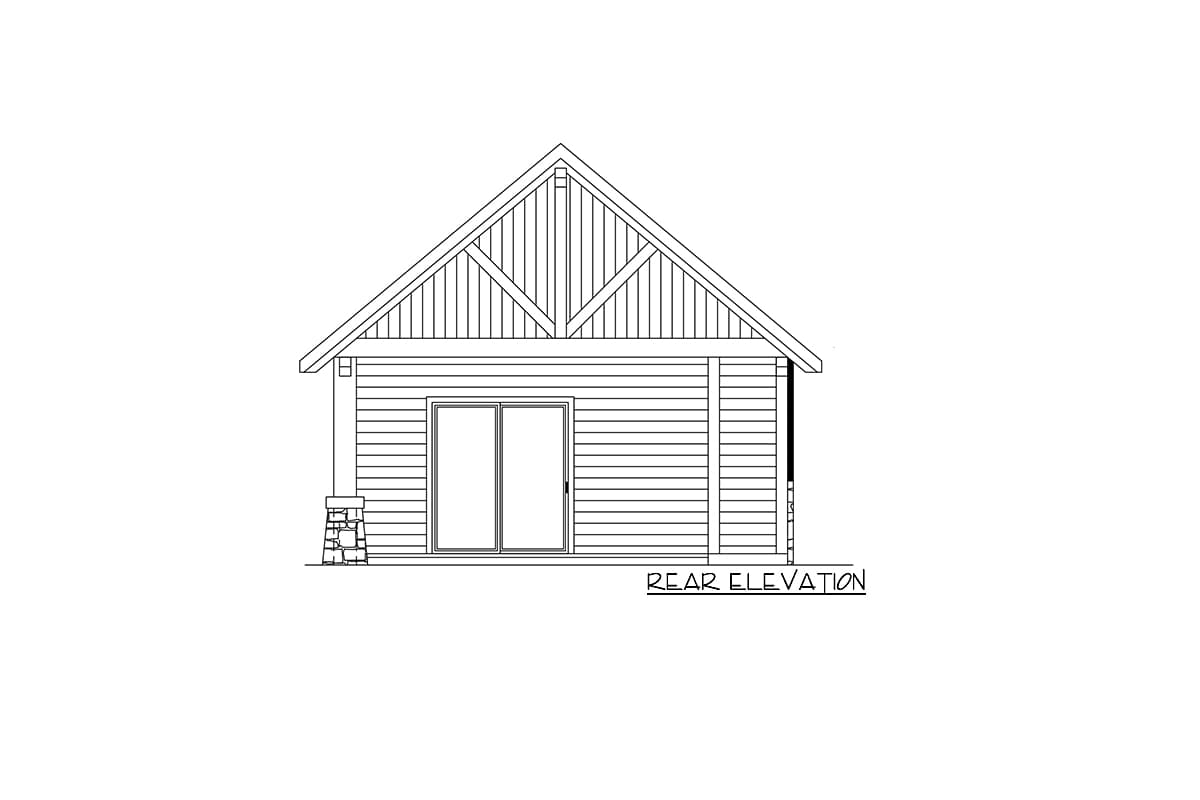

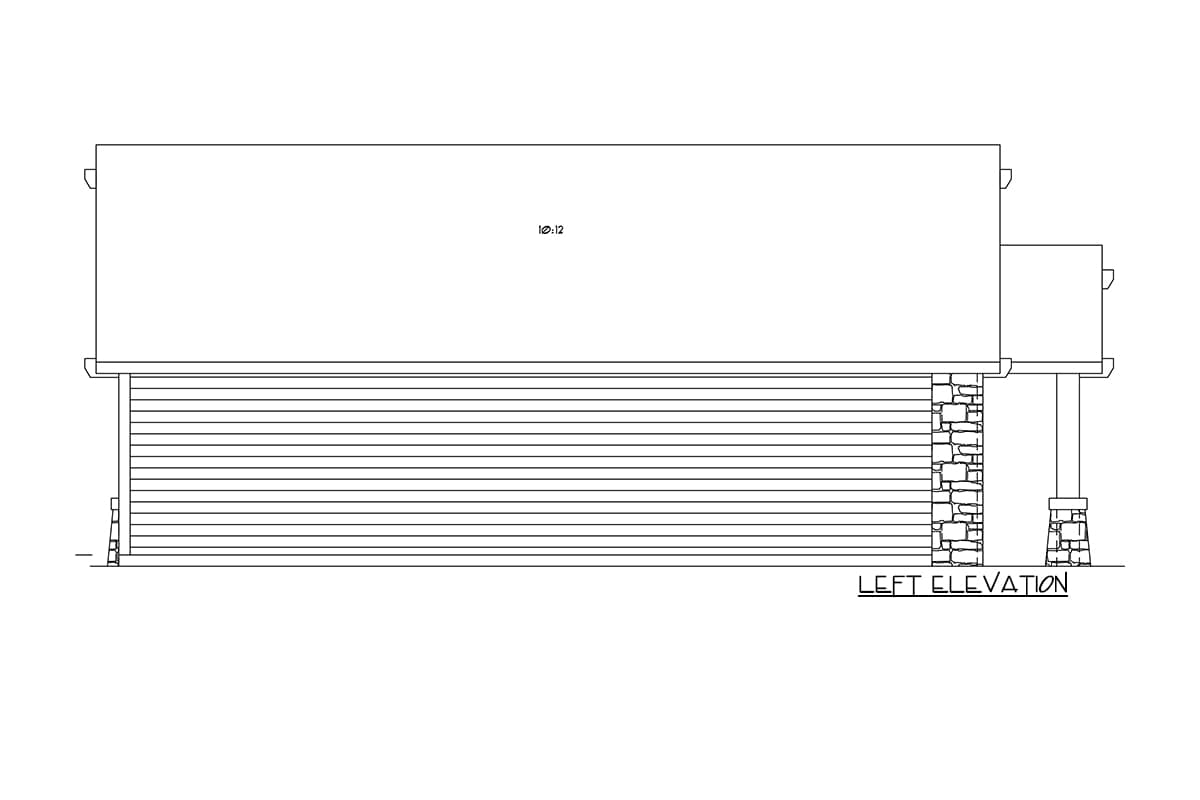

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

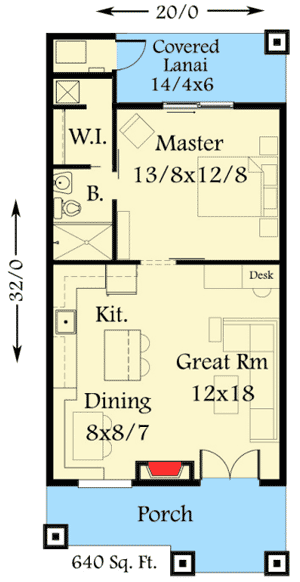

Rustic Guest Cottage or Vacation Getaway - 85106MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.
  • Lanai: 86 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 32' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Rustic Guest Cottage or Vacation Getaway

  • 640

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $800
  • 6 Sets + PDF $1,000
  • CAD + PDF - Single-Build $1,800
  • PDF - Unlimited Build $2,000
  • CAD - Unlimited Build $3,000
  • View all purchase option online

About This Plan

  • Escape to your vacation retreat in this rustic Cottage house plan.
  • Front and rear porches give you outdoor space and the small size of the home makes it easy to clean and maintain.
  • The home feels larger because of the delightful open layout.
  • This plan also works well as a guest cottage on your property or as a starter home.
  • NOTE: Please allow 10 business days for delivery.
  • Related Plan: Get a different exterior with house plan 85107MS (640 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.
  • Lanai: 86 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 32' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
