Plan 57188HA

Rustic Haven

Heated S.F.
1,275
Beds
4
Baths
2
Stories
2

Floor Plan

Plan 57188HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57188HA

M-F 9am-5pm EST |

1-203-761-8500

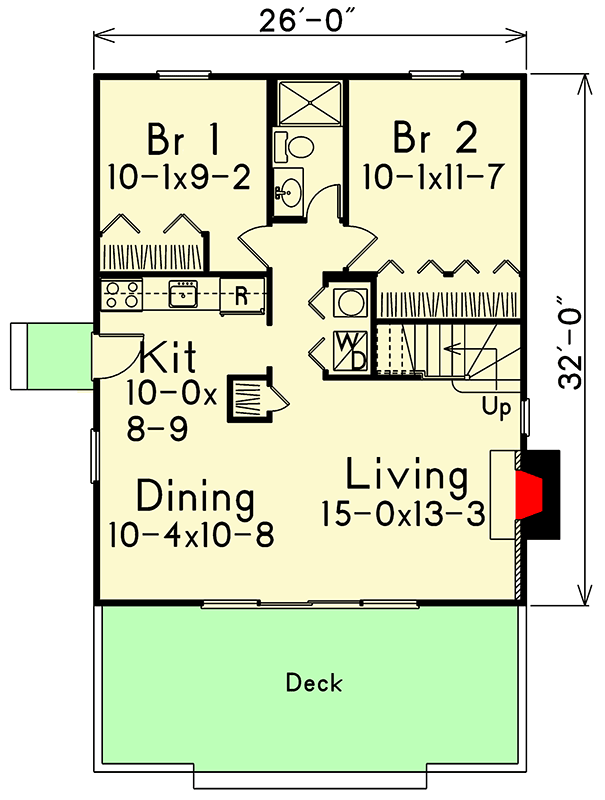

Main Level

Plan 57188HA: Rustic Haven - Floor Plan - Main Level - Cottage, Mountain, Rustic, Vacation

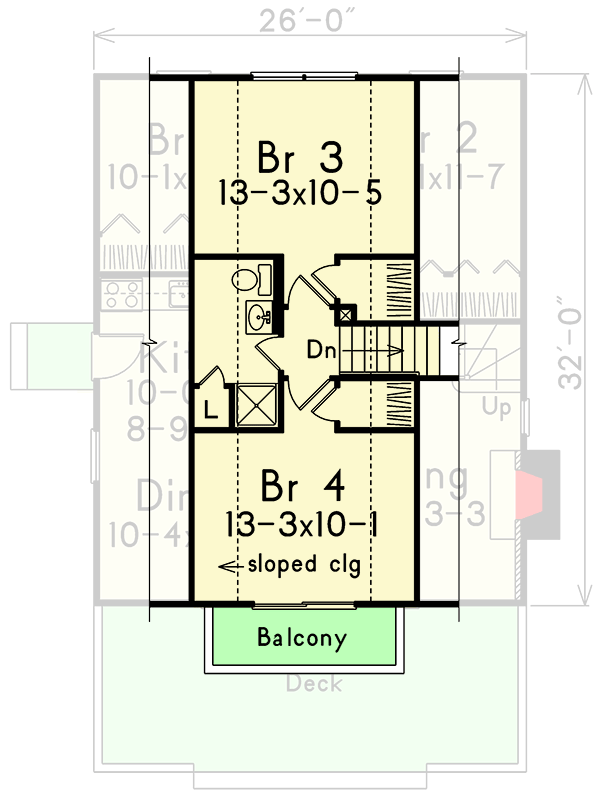

2nd Floor

Plan 57188HA: Rustic Haven - Floor Plan - 2nd Floor - Cottage, Mountain, Rustic, Vacation

Plan Details

  • Wall shingles and stone veneer fireplace all fashion an irresistible rustic appeal.
  • Living area features fireplace and opens to an efficient kitchen.
  • Two bedrooms on second floor.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,275 sq. ft.

1st Floor

832 sq. ft.

2nd Floor

443 sq. ft.

Basement Unfinished

832 sq. ft.

Entry

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

26' 0"

Depth

32' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Mountain

Rustic

Vacation

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
