Plan 95312RW

Rustic Mountain 3-Car Detached Garage House Plan

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 95312RW

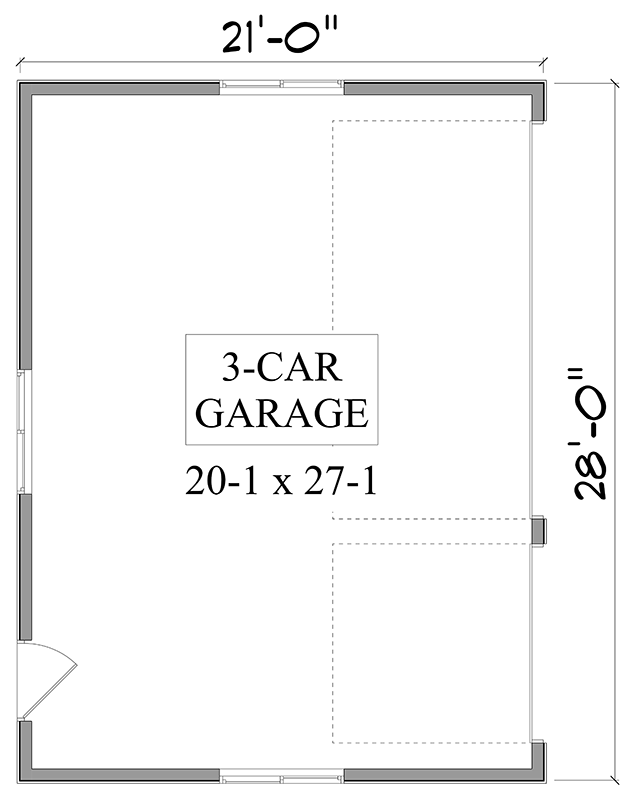

Main Level
Main Level

Plan 95312RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 95312RW: Rustic Mountain 3-Car Detached Garage House Plan - Floor Plan - Main Level - Mountain

Plan Details

  • This charming Mountain style detached garage house plan offers a generous 588 sq. ft. of space, comfortably accommodating up to three vehicles.
  • Accessed through three modern black garage doors on the front facade, the interior boasts an impressive 10-foot ceiling height, providing ample vertical clearance for various storage needs or vehicle types.
  • Designed for practicality, the expansive 28-foot wide by 21-foot deep footprint allows for flexible use, whether as a dedicated parking solution, a robust workshop, or secure storage for outdoor equipment.
  • With its durable slab foundation and robust 2x6 exterior wall construction, this garage offers an ideal environment for a dedicated home workshop or a secure space for hobbies and projects.
  • The rustic exterior, clad in warm horizontal wood siding, features a classic 8 on 12 pitch gable roof, perfectly blending with natural landscapes and complementing a Mountain style home.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

21' 0"

Max Ridge Height

17' 10"

Garage

Type

Detached

Area

588 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Mountain

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

21' 0"

Max Ridge Height

17' 10"

Garage

Type

Detached

Area

588 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Mountain
