Plan: 12932KN

Rustic Mountain Home Plan

1,960 3-4 3 + 1 2
Pageloader

Rustic Mountain Home Plan

Plan 12932KN

  • 1,960

    Heated s.f.

  • 3-4

    Beds

  • 3 +

    Baths

  • 1

    Stories

  • 2

    Cars

  • This house plan matches a rustic Mountain exterior with a marvelous open floor plan lets you see from room to room making everything feel more spacious.
  • The kitchen is U-shaped for extra efficiency with a peninsula eating bar on one side and a big cook top island in the middle.
  • A 2-sided fireplace warms both the family room and the master suite.
  • Two more bedrooms can be found on the lower level along with unfinished space big enough for an additional bedroom and bathroom.
  • A workshop area on the lower level gives you lots of room for your projects.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

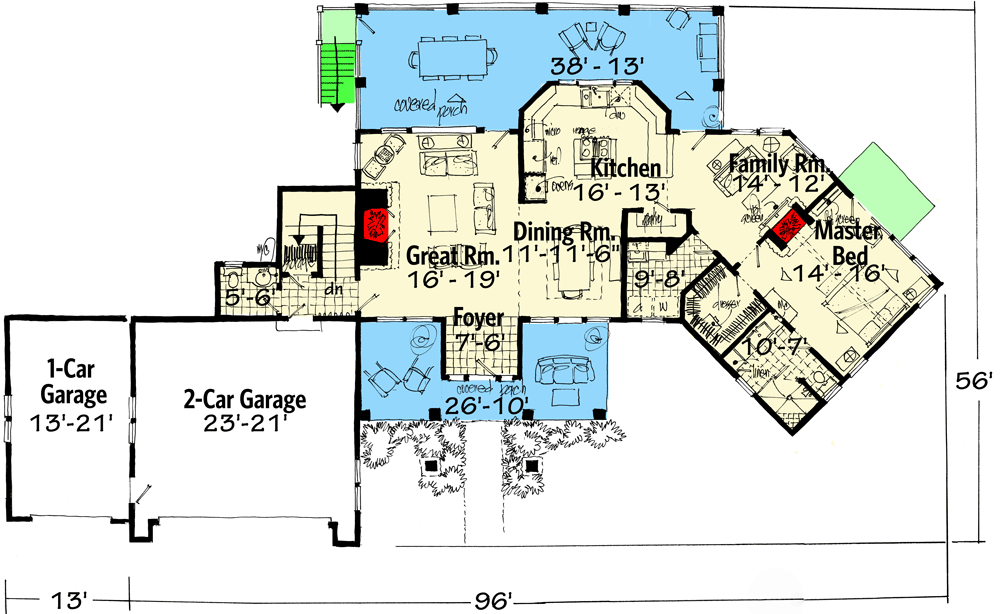

Floor Plan

Plan details



Rustic Mountain Home Plan

  • 1,960

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets $1,900
  • CAD $3,500
  • View all purchase option online

About This Plan

  • This house plan matches a rustic Mountain exterior with a marvelous open floor plan lets you see from room to room making everything feel more spacious.
  • The kitchen is U-shaped for extra efficiency with a peninsula eating bar on one side and a big cook top island in the middle.
  • A 2-sided fireplace warms both the family room and the master suite.
  • Two more bedrooms can be found on the lower level along with unfinished space big enough for an additional bedroom and bathroom.
  • A workshop area on the lower level gives you lots of room for your projects.

Floor Plans

  • Basement

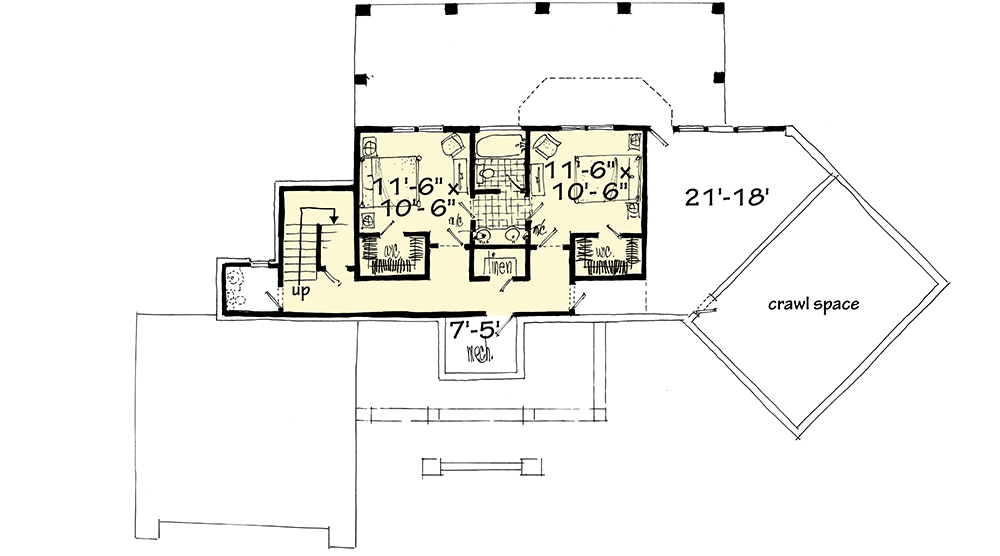

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,960 sq. ft.
  • Lower Level: 560 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • Basement Unfinished: 285 sq. ft.
  • Workshop: 440 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 5"
  • Depth: 56' 6"
  • Max ridge height: 33' 4"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Architectural Style

  • Craftsman
  • Mountain
  • Northwest

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
