Rustic Mountain Home Plan with Large Second Floor Expansion Space
Heated S.F.
2,100
Beds
3
Baths
3.5
Stories
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

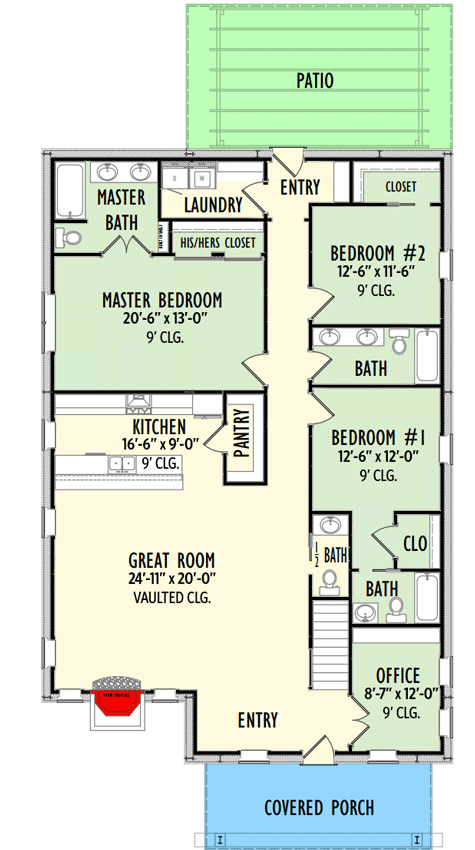

Rustic Mountain Home Plan with Large Second Floor Expansion Space - 777004MTL floor plan - Main Level
Optionally Finished Bonus Room
Reverse Floor Plan

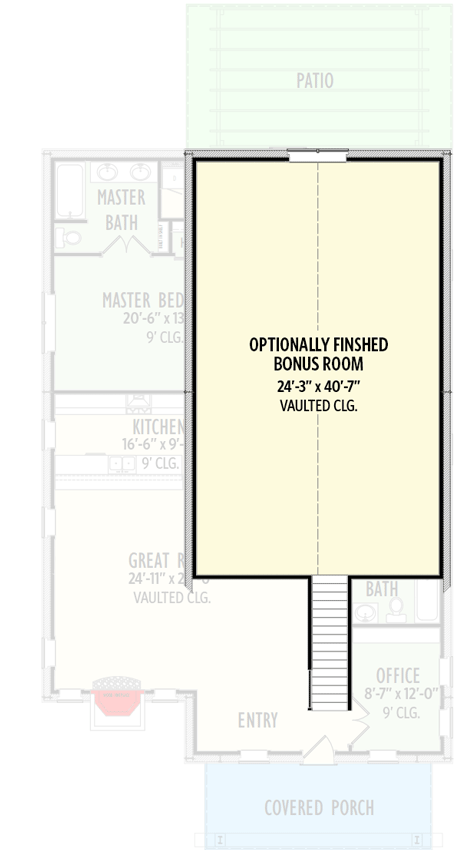

Rustic Mountain Home Plan with Large Second Floor Expansion Space - 777004MTL floor plan - Optionally Finished Bonus Room
Wall Framing Section
Reverse Floor Plan
Rustic Mountain Home Plan with Large Second Floor Expansion Space - 777004MTL floor plan - Wall Framing Section
Plan Details
  • This 3-bed rustic mountain appeal with a covered porch and a stacked stone fireplace. Windows above the porch let light into the optional bonus room.
  • The great room has a vaulted ceiling and is open to the kitchen with counter seating and a roomy pantry. The fireplace is located on the front wall and windows let in light on the side.
  • Just inside the entry, a pair of French doors open to your home office. Further down the hall you'll find two bedrooms, each with their own bath.
  • The master bedroom is located in the back of the home and has a 4-fixture bath.
  • Expand upstairs and get 1,400 square feet of expansion space that can be put to many uses.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
