Rustic One-Level Mountain House Plan with Optional Lower Level

Plan 95056RW

  • 2,548

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

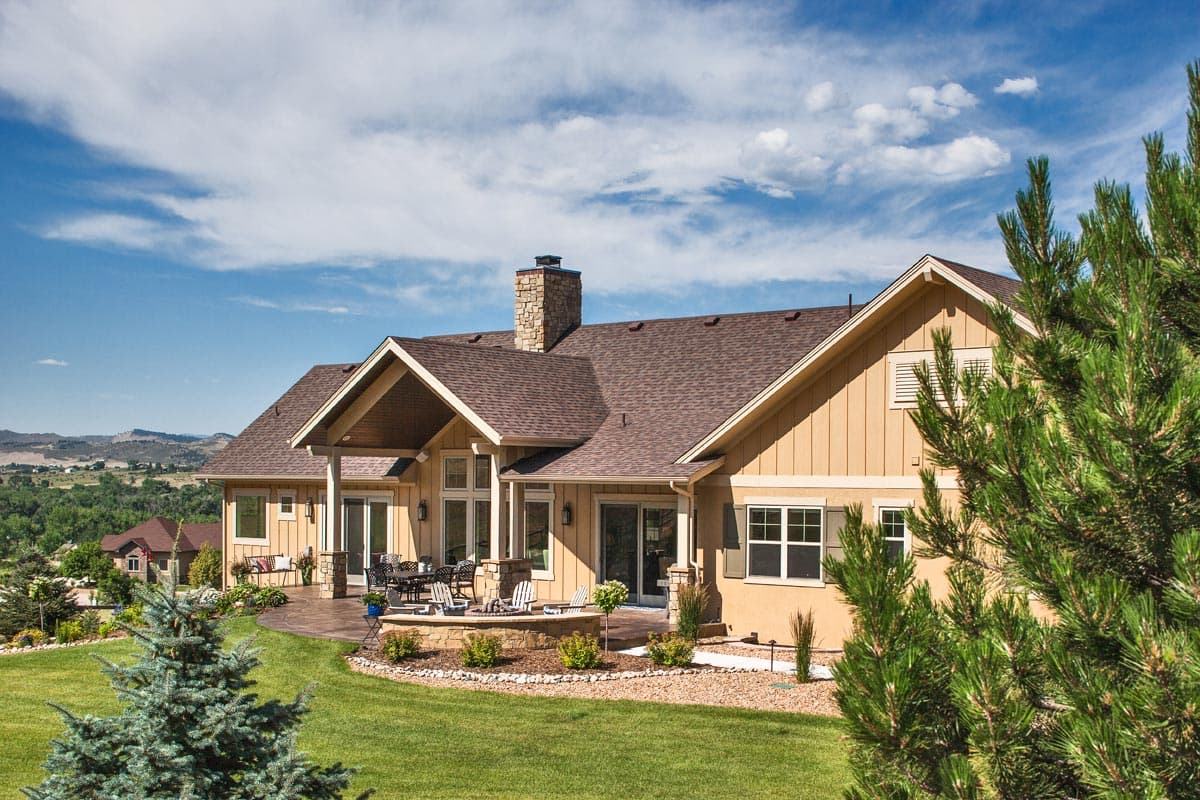

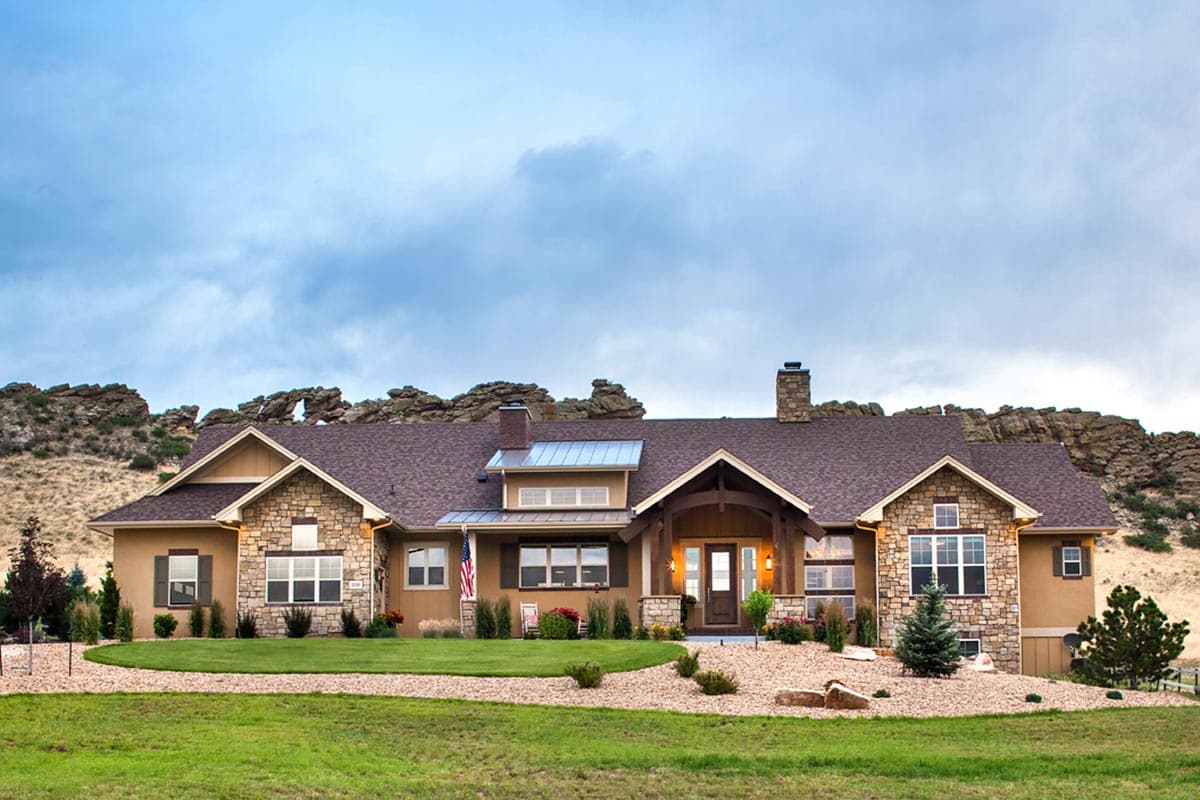

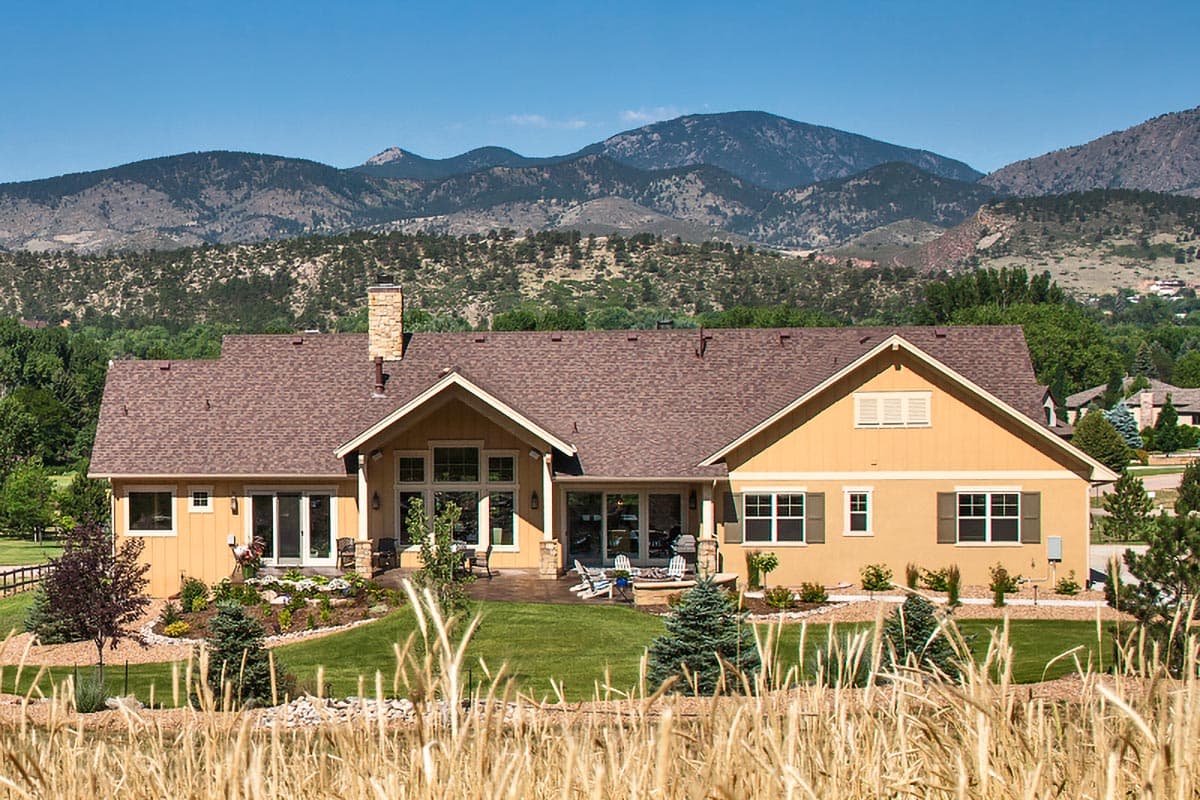

  • This rustic, mountain house plan features a grand front porch with a timber-frame gable roof, stone accents, and a single shed dormer. A matching open gable roof extends from the back of the home, forming a large covered patio.

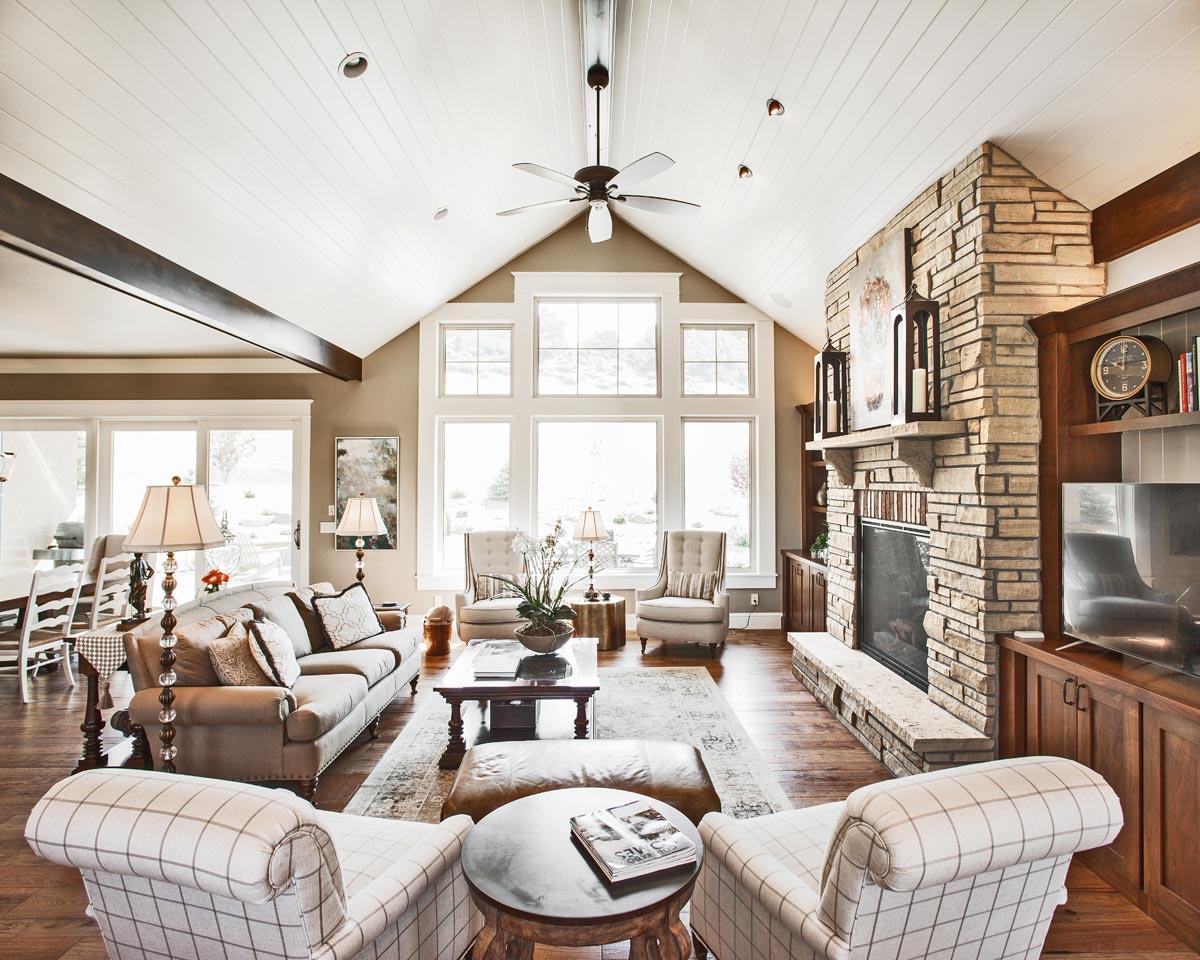

  • A spacious, open layout greets you upon entering, providing sight lines all the way to the backyard. Cozy up next to the warm fireplace with surrounding built-ins, or gather around the kitchen island with friends and family.

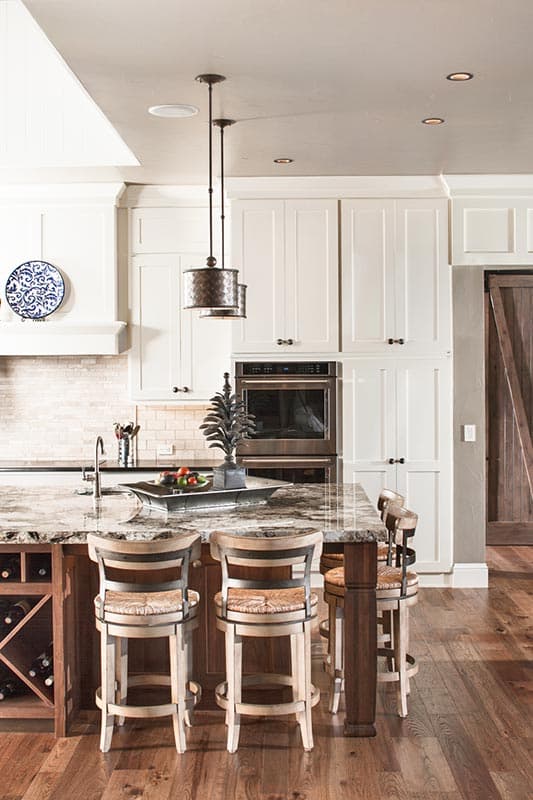

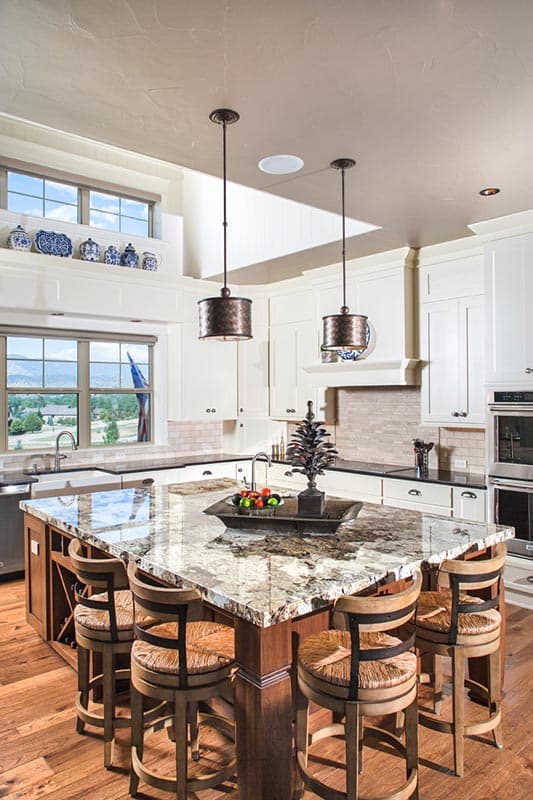

  • The U-shaped kitchen provides plenty of counter space and a large walk-in pantry is just around the corner, near the mudroom. Sliding doors off the dining area lead to the covered patio.

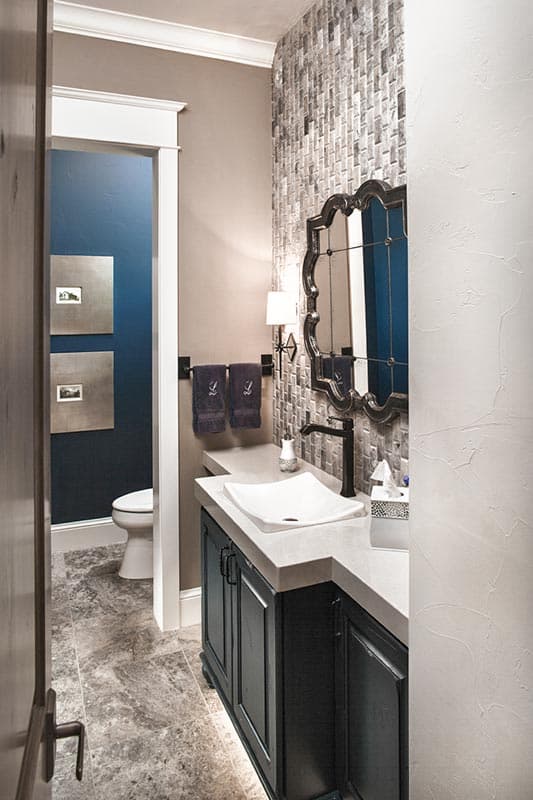

  • The right wing of the home boasts a quiet study, powder bath, and the master bedroom. The master features a private patio and an ensuite with a freestanding tub, toilet room, dual sinks, and a roomy walk-in closet.
  • On the opposite side of the home, discover a guest suite, complete with a 4-fixture bathroom, and the 3-car garage with an attached storage bay.
  • The optional lower level provides flexibility and room to expand if needed, and includes a large recreation room with a wet bar, a study, and a large bedroom with access to a full bathroom.

The following details are included with this house plan:
  • Cover Page

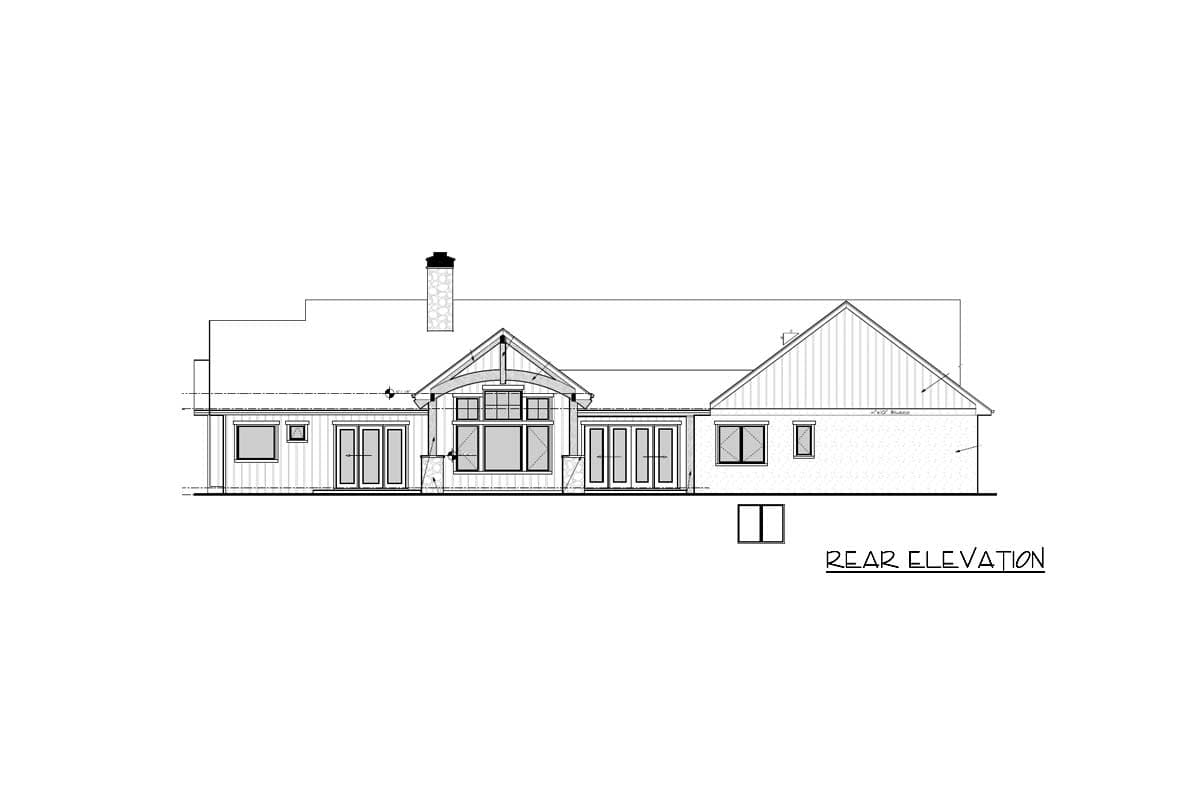

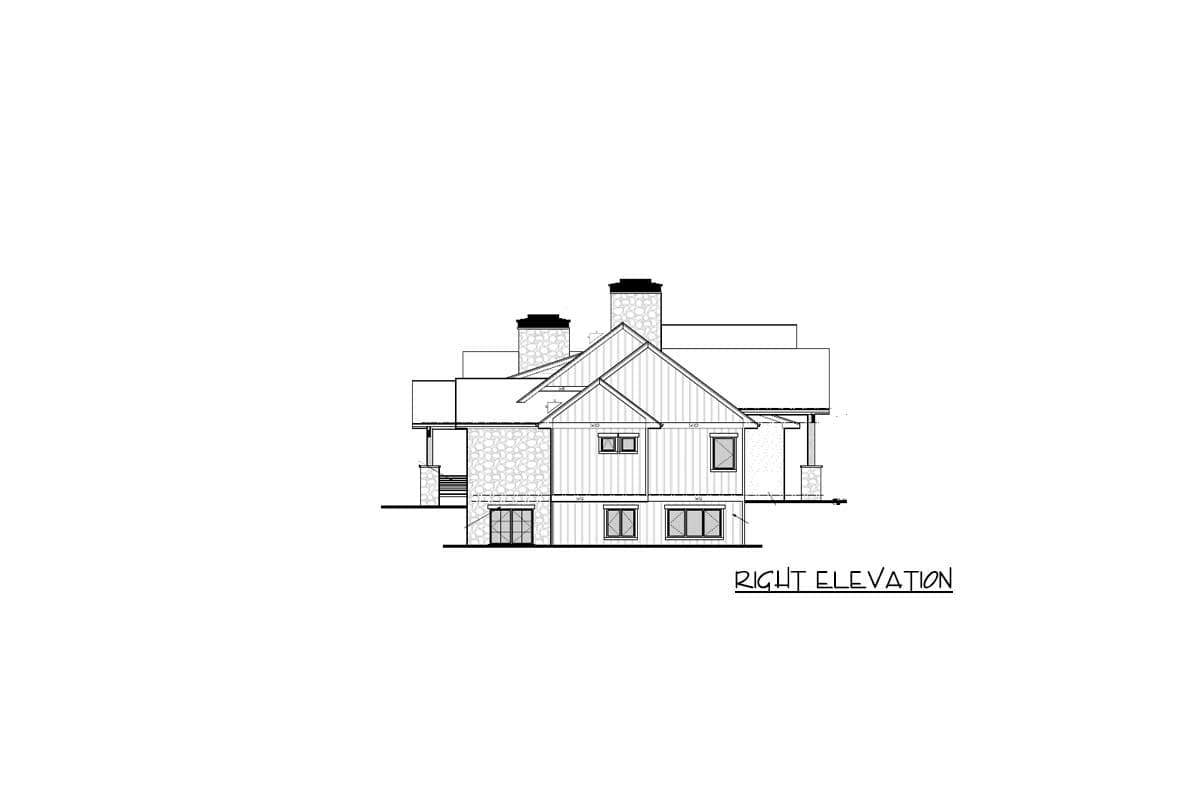

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic One-Level Mountain House Plan with Optional Lower Level - 95056RW floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic One-Level Mountain House Plan with Optional Lower Level - 95056RW floor plan - Optional Lower Level

Rustic One-Level Mountain House Plan with Optional Lower Level

  • 2,548

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,548 sq. ft.
  • 1st Floor: 2,548 sq. ft.

Dimensions

  • Width: 98' 0"
  • Depth: 54' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1111 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
