Plan 720094DA

Rustic Timber-Framed Carport with Gable Roof for Two Vehicles

Name: Plan 720094DA: Rustic Timber-Framed Carport with Gable Roof for Two Vehicles
Brand: Architectural Designs
SKU: 720094DA
Price: 195.07 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

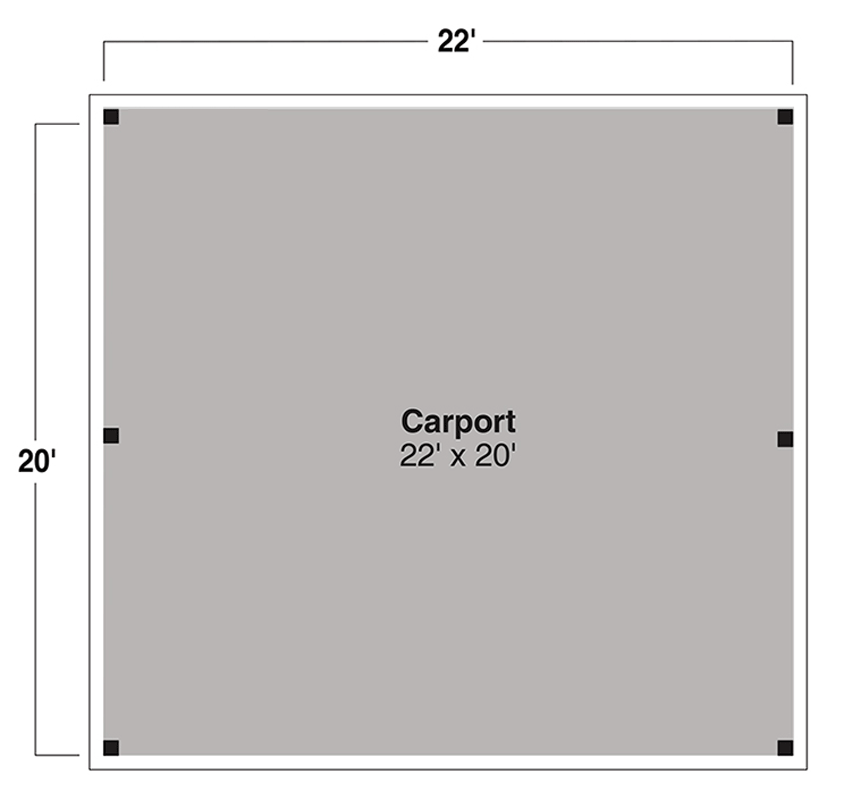

Floor Plan

Main Level

Plan Details

This 440-square-foot open carport comfortably fits two vehicles under a classic gable roof. The structure features sturdy timber framing, ideal for complementing rustic, woodland, or farmhouse settings.
The open-sided layout allows for effortless entry from any direction, enhancing functionality for drive-through or side-entry use.
Crafted with exposed beams and detailed cross-bracing, the design evokes traditional craftsmanship while providing reliable weather protection.
Its airy structure makes it equally suited for use as a shaded workspace or a seasonal gathering shelter when not in use for parking.
The steep gabled roof not only adds architectural appeal but also ensures efficient water runoff, making it resilient in all seasons.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

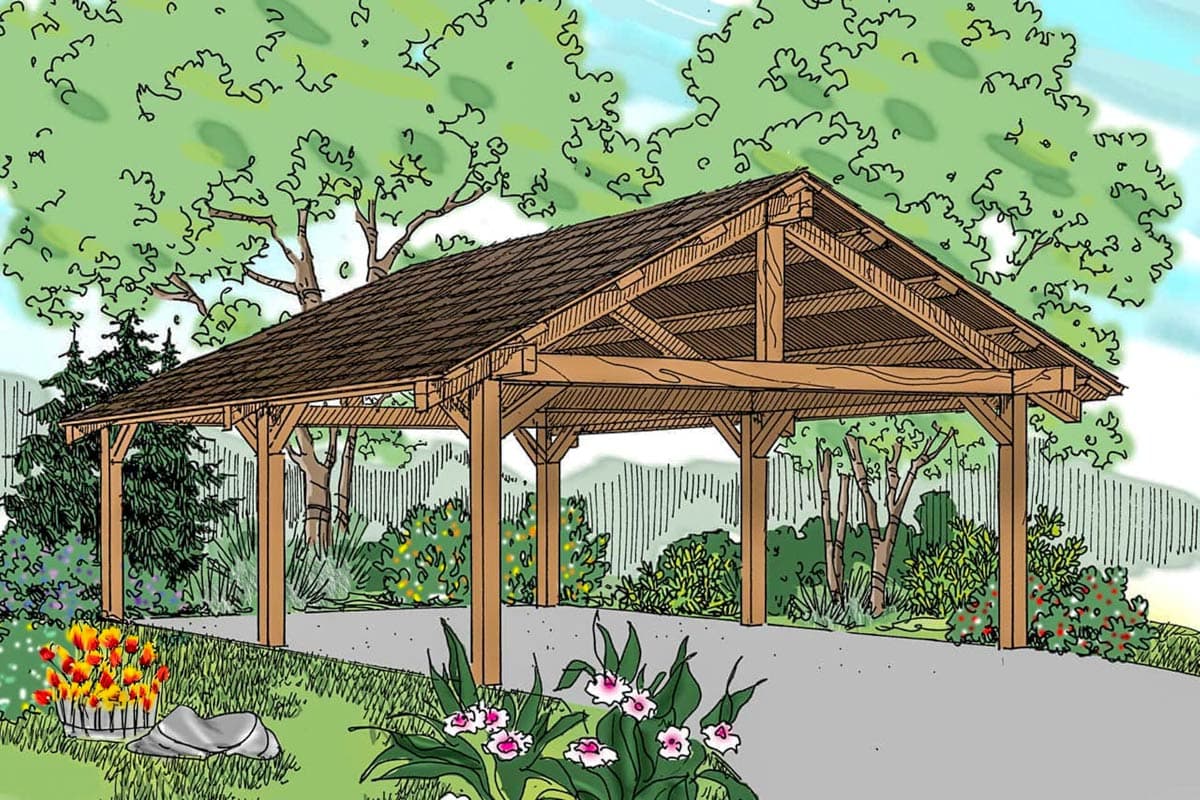

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

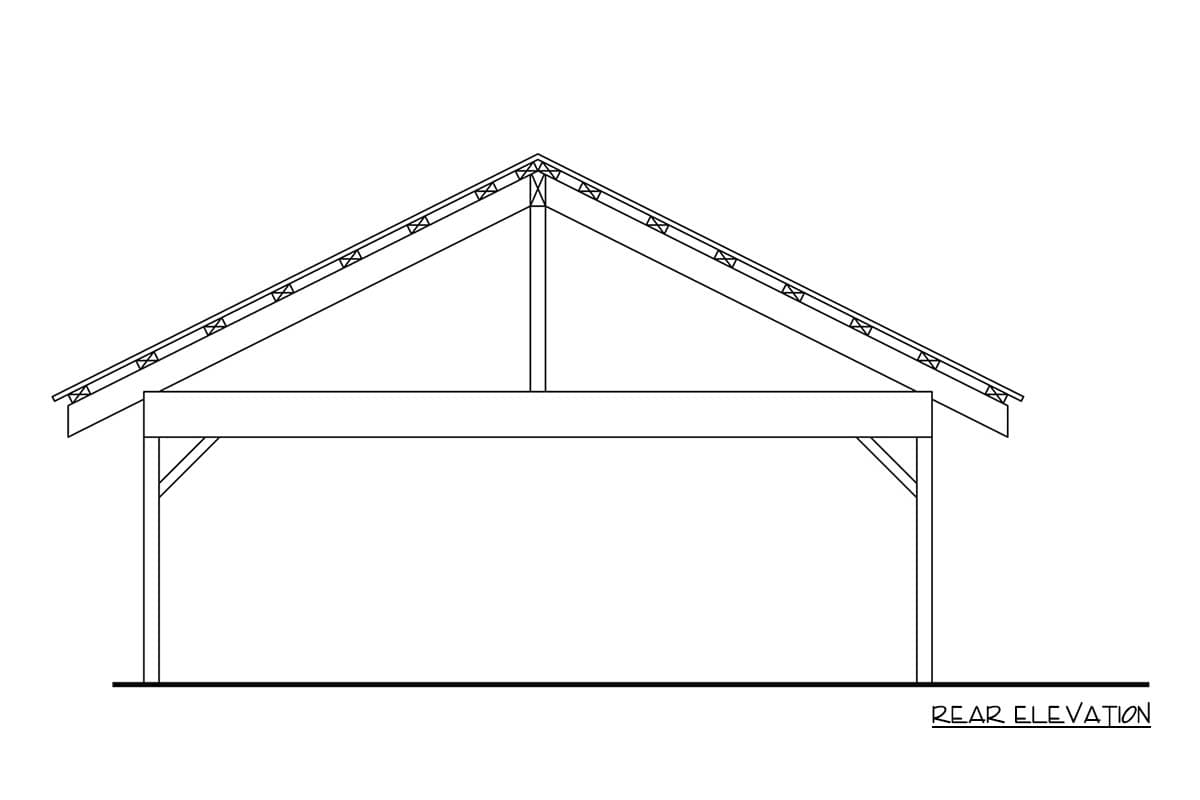

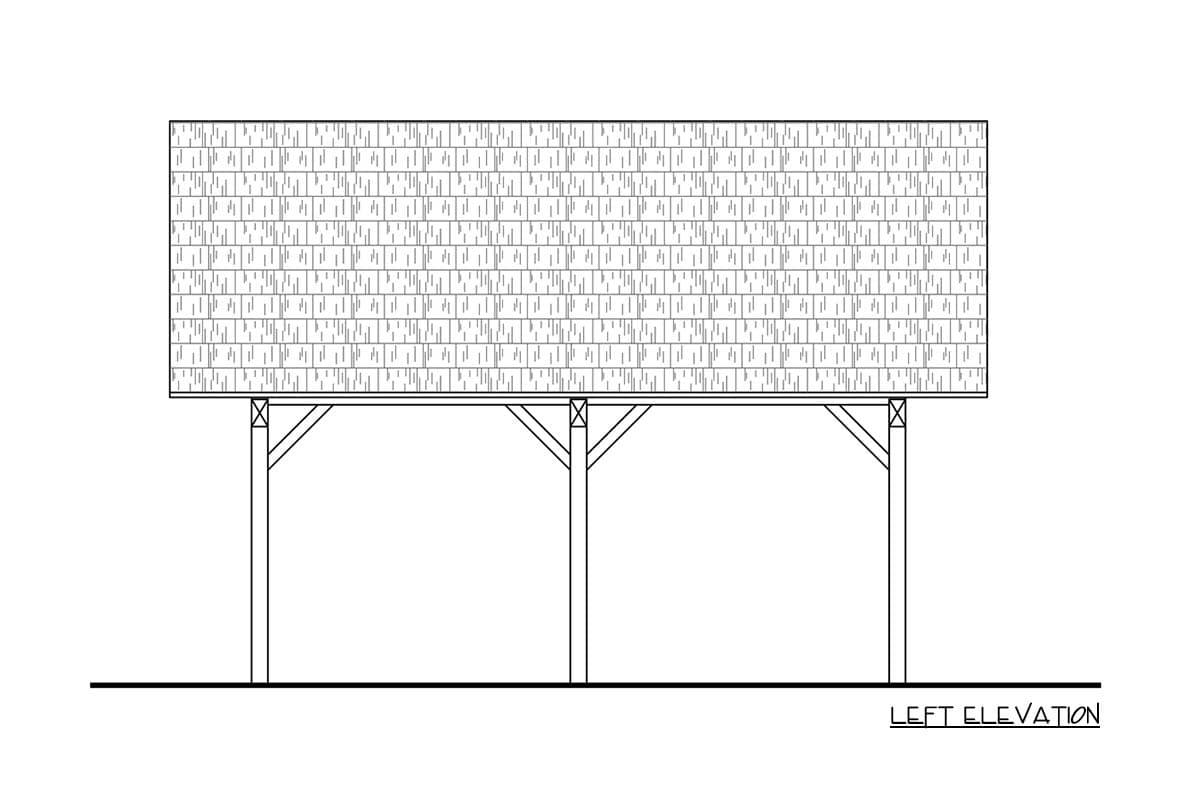

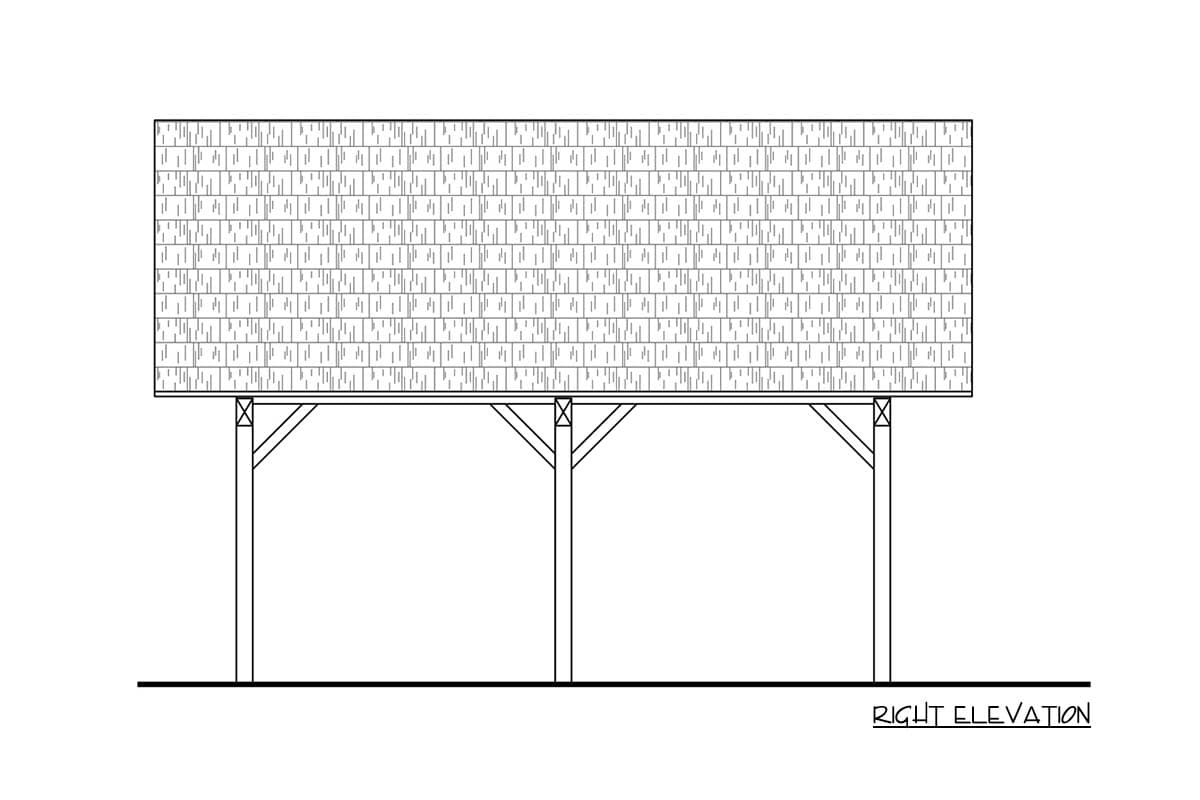

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

6x6

Dimensions

Width

22' 0"

Depth

20' 0"

Max Ridge Height

15' 11"

Garage

Type

Carport

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Rustic
