Plan 62940DJ

RV-Friendly Pole Barn Garage Plan - 2464 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3- 5

Floor Plan

Plan 62940DJ

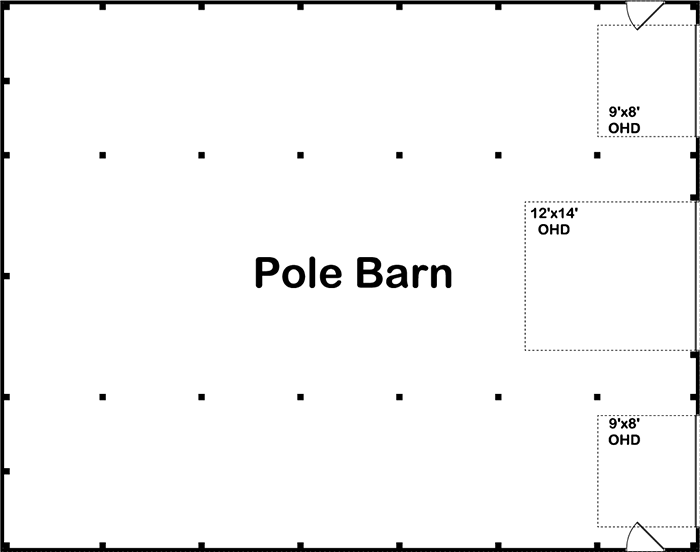

Main Level
Main Level

Plan 62940DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62940DJ: RV-Friendly Pole Barn Garage Plan - 2464 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Farmhouse

Plan Details

  • This barn-like pole barn plan gives you standard garage bays with 9' by 8' overhead doors flanking an RV-compatible central bay with a 12' by 14' overhead door.
  • This garage uses post-frame construction, lowering your construction costs and placing the loads on the post/poles rather than on the exterior walls.
  • A man-door is located on the right side of the garage.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

44' 0"

Max Ridge Height

26' 0"

Garage

Type

Detached, RV Garage

Area

2464 sq. ft.

Count

3, 4, or 5 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Farmhouse

Special Features

Workshop

Plan Collections

Post-Frame

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

44' 0"

Max Ridge Height

26' 0"

Garage

Type

Detached, RV Garage

Area

2464 sq. ft.

Count

3, 4, or 5 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Farmhouse

Special Features

Workshop

Plan Collections

Post-Frame
