Plan: 68479VR

RV Garage Plan with Options

0 0 0 1 3
Pageloader

RV Garage Plan with Options

Plan 68479VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Stories

  • 3

    Cars

  • Get a two car garage with a big RV bay on the side with this handsome garage plan.
  • The metal roofing creates a nice accent.
  • In the double bay, ceilings rise to 10'2" while the RV bay rises to 13'2".
  • The stoop on the side holds the man door.
  • Related Plan: Get an alternate exterior with garage plan 68449VR.

Cover Page

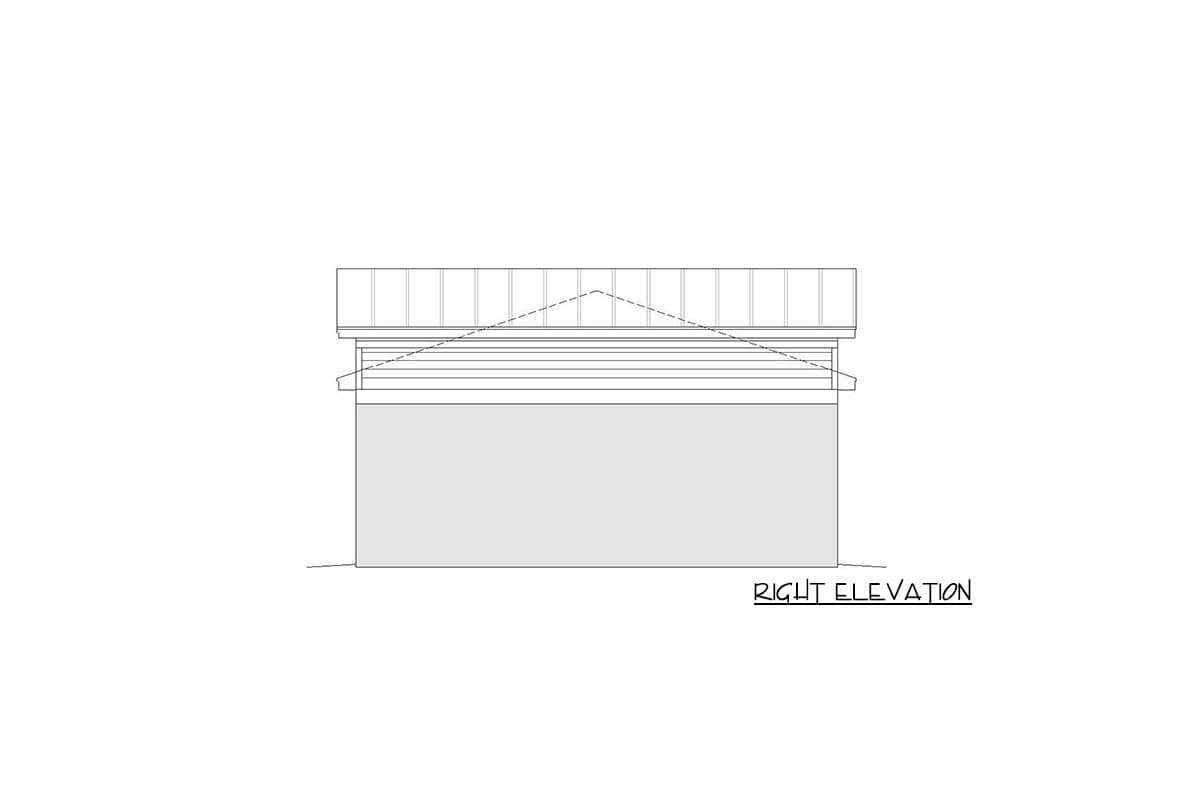

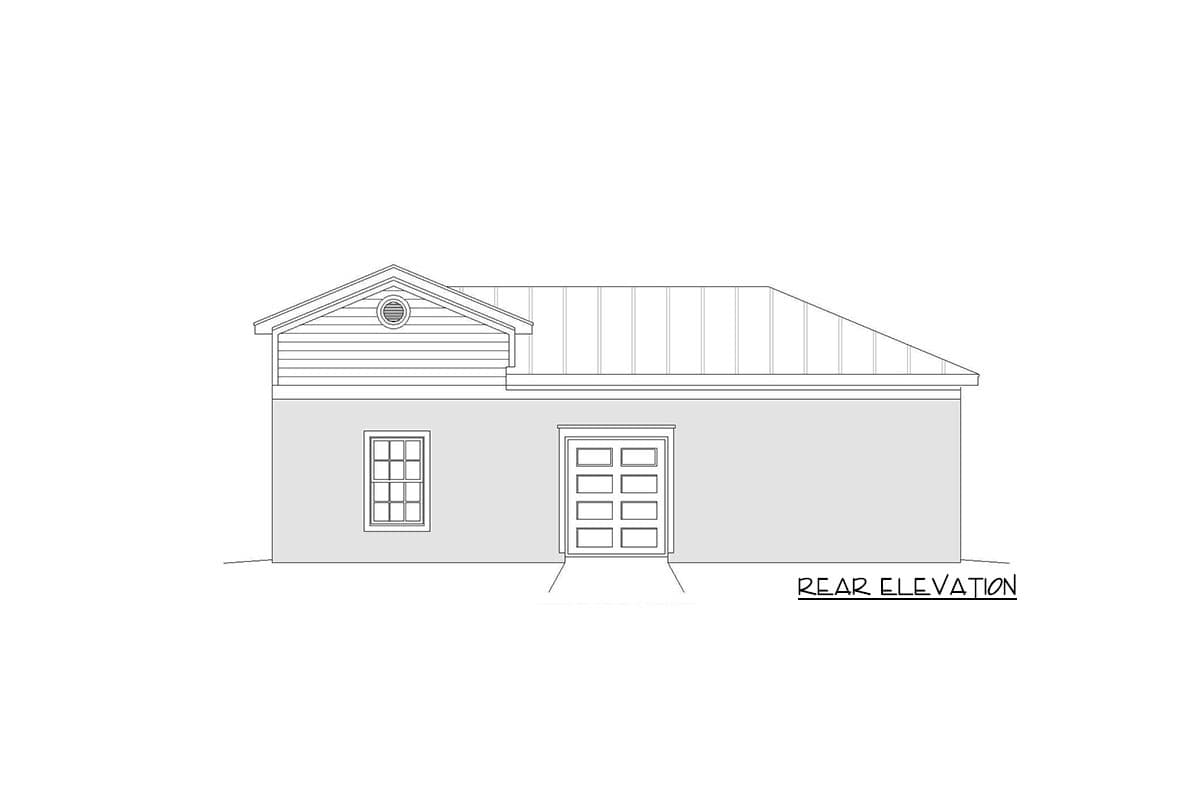

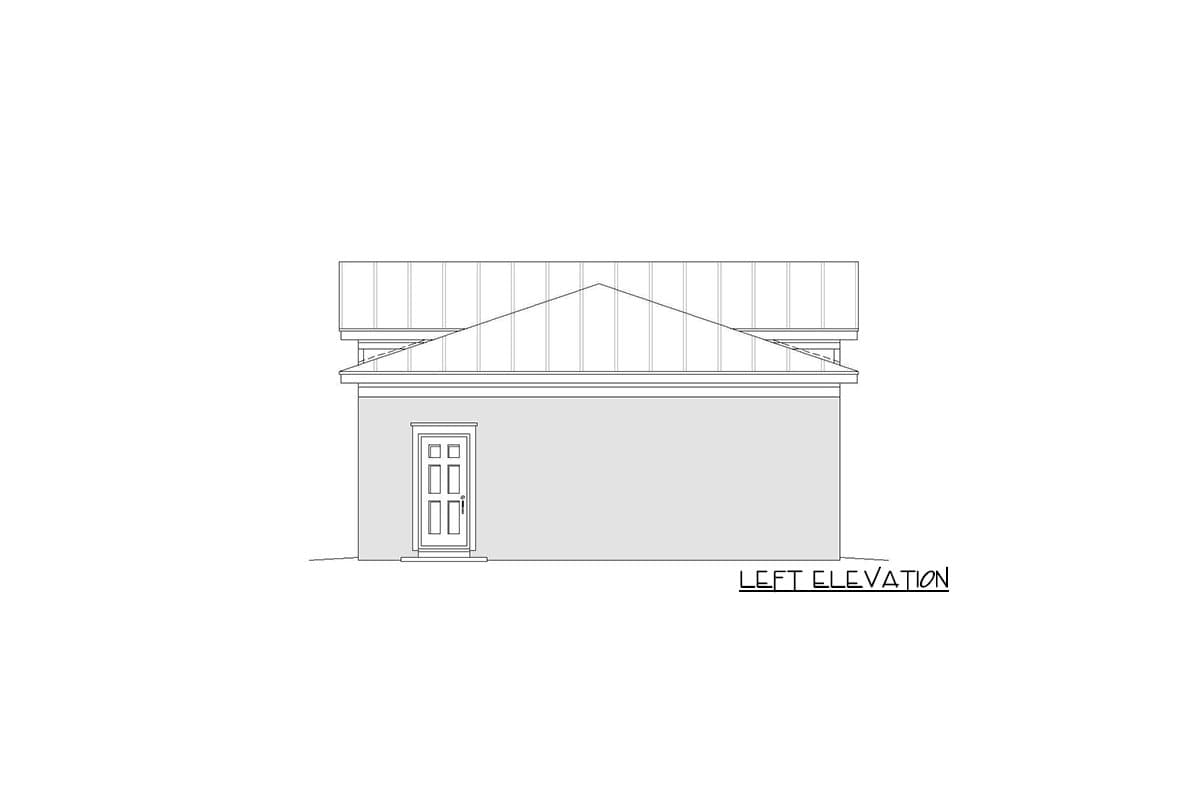

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

·         Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

         Cross Sections

·         ‘Some’ interior details/ elevations, such as cabinet elevations

Floor Plan

Plan details

Special features



RV Garage Plan with Options

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $475
  • PDF - single-use $685
  • 5 Sets $710
  • CAD $985
  • View all purchase option online

About This Plan

  • Get a two car garage with a big RV bay on the side with this handsome garage plan.
  • The metal roofing creates a nice accent.
  • In the double bay, ceilings rise to 10'2" while the RV bay rises to 13'2".
  • The stoop on the side holds the man door.
  • Related Plan: Get an alternate exterior with garage plan 68449VR.

Floor Plans

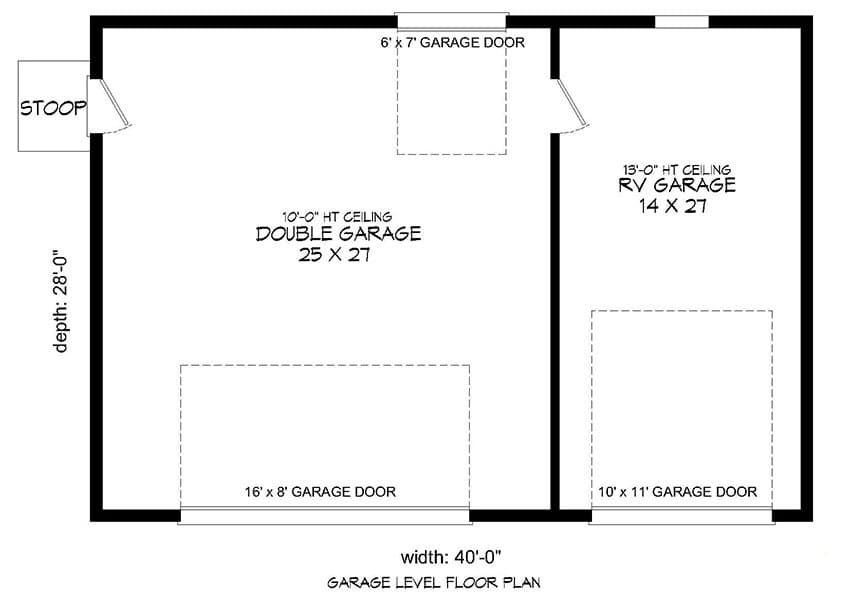

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Basement Unfinished: 210 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 18' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 1120 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Garage 13' 2" RV Garage 13' 2"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick

Special features

  • CAD Available
  • PDF
