Plan 68423VR

RV Garage with Second Floor Storage

0 0 0 1-2 2
Pageloader

RV Garage with Second Floor Storage

Plan 68423VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Board and battan and siding combine to give this garage plan an attractive exterior.
  • The 18' by 50' bay will nicely hold your RV and there's a second bay almost as large with a side drive in door and a man door.
  • There's a huge storage area on the second floor too with 803 square feet of unfinished space.
  • All together you get 2,600 square feet of unfinished space.
  • Related Plans: Remove the second level with garage plans 68506VR (37' by 51') and 68564VR (51' by 40').

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

·         Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

         Cross Sections

·         ‘Some’ interior details/ elevations, such as cabinet elevations

Floor Plan

Plan details

Special features



RV Garage with Second Floor Storage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $600
  • PDF - single-use $900
  • 5 Sets $950
  • CAD $1,200
  • View all purchase option online

About This Plan

  • Board and battan and siding combine to give this garage plan an attractive exterior.
  • The 18' by 50' bay will nicely hold your RV and there's a second bay almost as large with a side drive in door and a man door.
  • There's a huge storage area on the second floor too with 803 square feet of unfinished space.
  • All together you get 2,600 square feet of unfinished space.
  • Related Plans: Remove the second level with garage plans 68506VR (37' by 51') and 68564VR (51' by 40').

Floor Plans

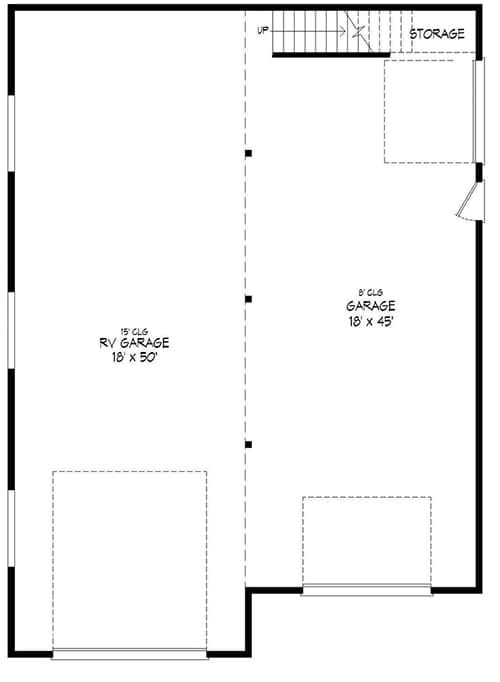

  • Main Level

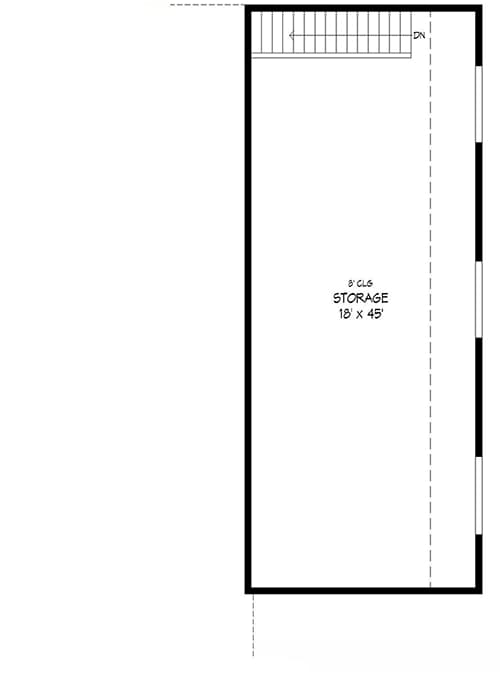

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 803 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Detached, RV Garage
  • Area: 1797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss
