Plan 68428VR RV Garage with Workshop

0 0 1 5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

RV Garage with Workshop

Plan 68428VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 5

    Cars

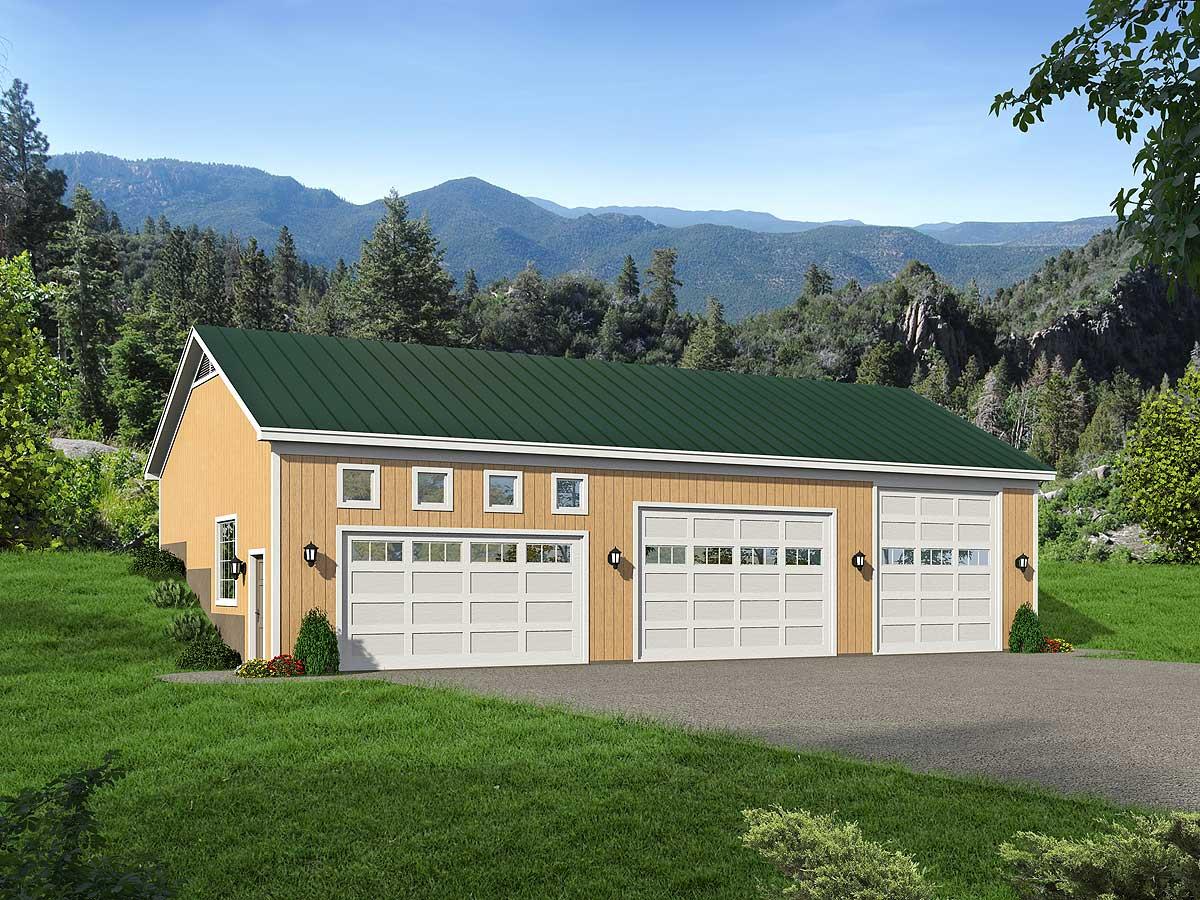

  • Store your RV in style with this handsome garage plan.
  • Three different door heights give you flexibility.
  • There are two man doors, one on each side and an attractive metal roof to top it all off.
  • The workshop space is in back and you can customize it to suit your projects.
  • The RV garage is 576 square feet and the workshop/garage is 1,344 square feet.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

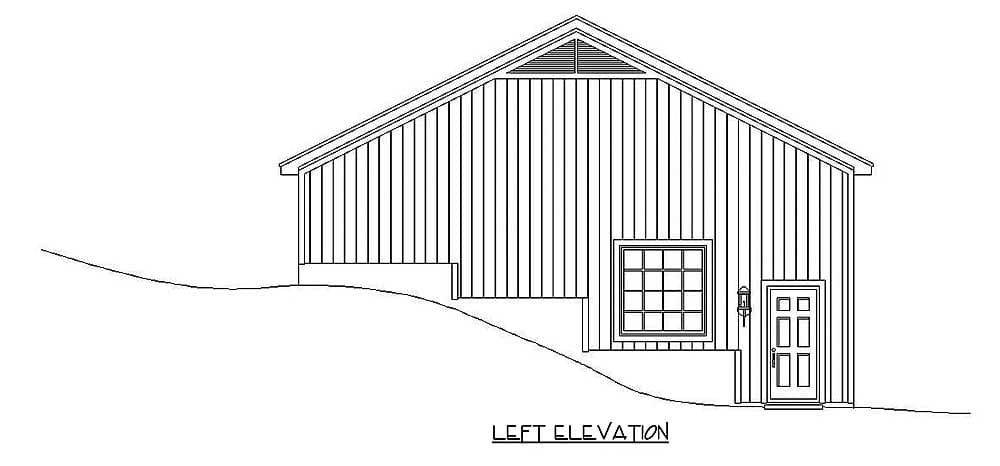

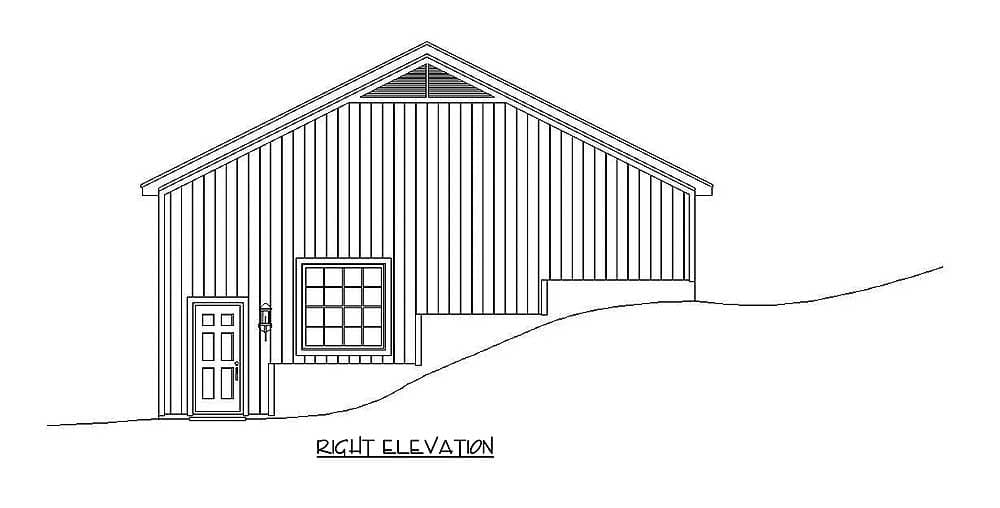

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

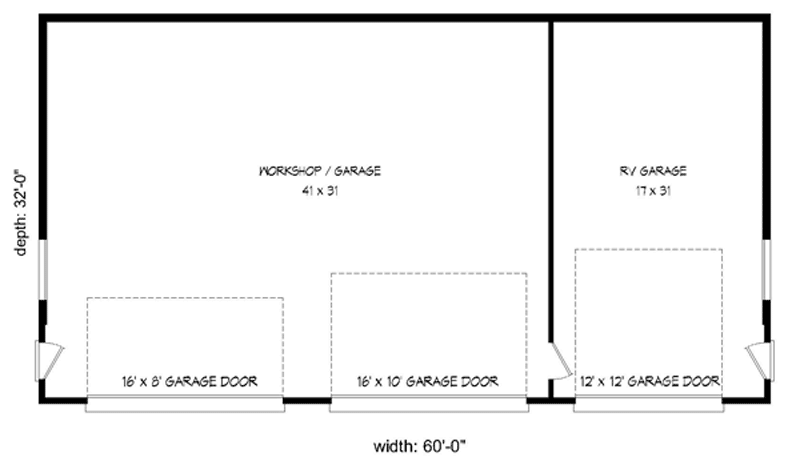

RV Garage with Workshop - 68428VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 32' 0"
  • Max ridge height: 22' 3"

Garage

  • Type: Detached, RV Garage
  • Area: 1920 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 6"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick

Plan Collections

RV Garage with Workshop

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,175
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • Store your RV in style with this handsome garage plan.
  • Three different door heights give you flexibility.
  • There are two man doors, one on each side and an attractive metal roof to top it all off.
  • The workshop space is in back and you can customize it to suit your projects.
  • The RV garage is 576 square feet and the workshop/garage is 1,344 square feet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 32' 0"
  • Max ridge height: 22' 3"

Garage

  • Type: Detached, RV Garage
  • Area: 1920 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 15' 6"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
