Secluded Master Suite

Plan 32515WP

This plan plants 10 trees

2,649
Heated s.f.
3
Beds
2.5
Baths
2
Stories
2
Cars

The spacious master suite in this Cape Cod home plan is tucked away in the rear for privacy.
Both the foyer and great room with fireplace are vaulted.
Two sets of doors lead out to the rear terrace.
A center island in the kitchen gives you extra counter space and the walk-in pantry is a welcome addition.
The second floor holds two more bedrooms and a shared hall bath with two sinks.
The hall leads to a step-down future rec space over the garage.

All plans are detailed at 1/4" scale and include:

Front elevation rendering
Foundation
Dimensioned floor plans
Electrical plans
Cross section through house
All exterior elevations
Selected interior elevations
Door and window sizes
Fireplace, stair, molding and cabinet details
Roof plan
Exterior details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

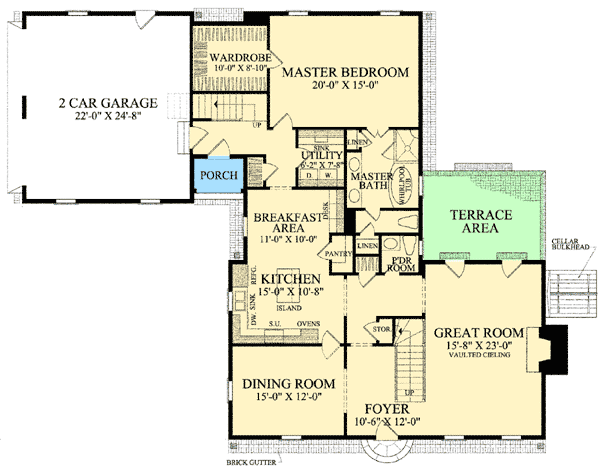

Secluded Master Suite - 32515WP floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

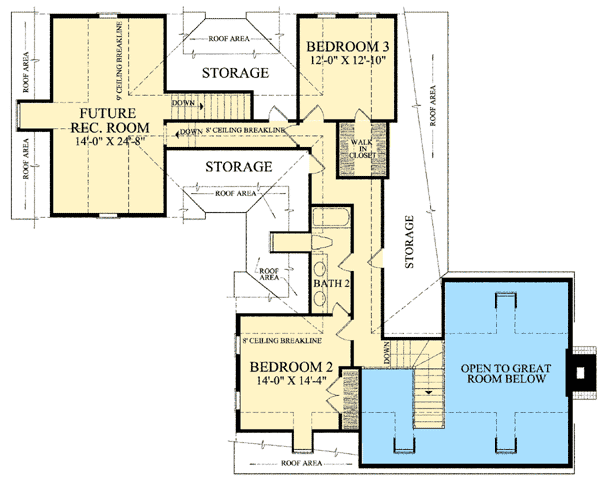

Secluded Master Suite - 32515WP floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,649 sq. ft.
1st Floor: 1,950 sq. ft.
2nd Floor: 699 sq. ft.

Bonus: 432 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl, Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 70' 2"
Depth: 57' 4"
Max ridge height: 27' 0"

Garage

Type: Attached
Area: 545 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Framing Type: Stick

Architectural Style

Special features
