Plan 93016EL

Exclusive

Second Floor Game Room
Heated S.F.
4,300
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 93016EL

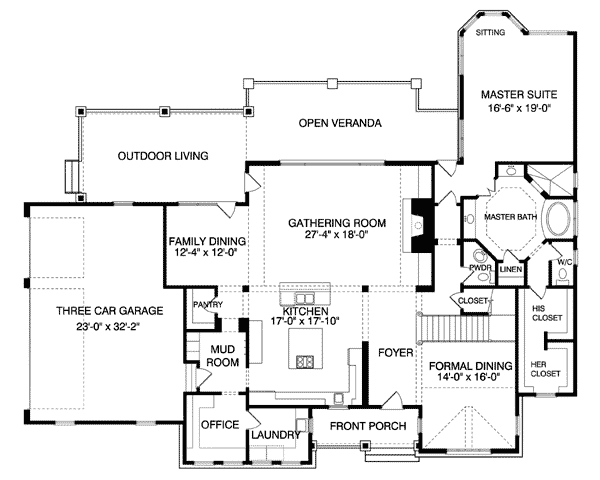

Main Level
slide image 0

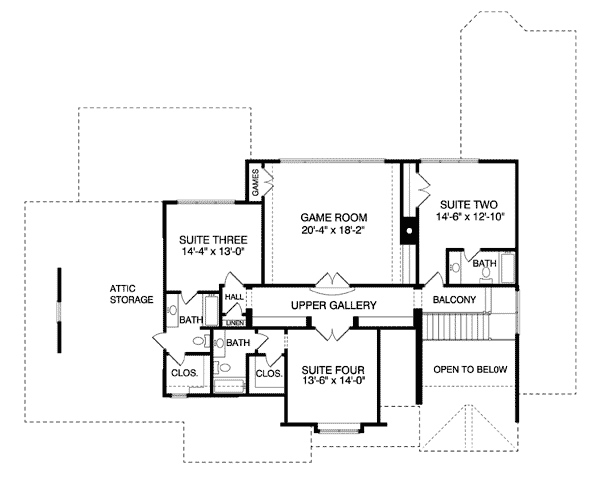

2nd Floor
slide image 1

Plan 93016EL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

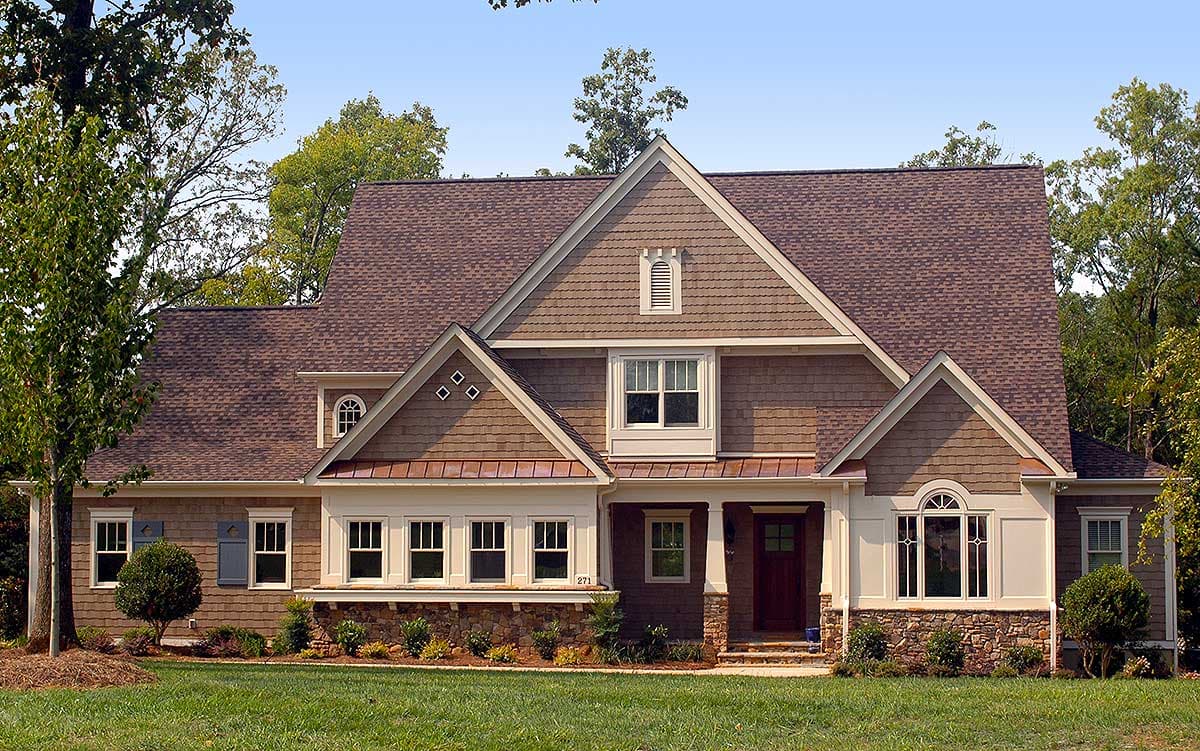

  • Three big gables nicely balance the front of this Shingle style house plan.
  • Metal roofing over the porches provide a nice accent.
  • A grand open floor plan is what today's families want and this house delivers.
  • Choose from informal dining in the family dining area off the kitchen or the large formal dining room by the foyer.
  • A wall of windows in the gathering room overlooks the rear uncovered veranda.
  • The master suite is on the main floor and offers a sitting area and a magnificent master bathroom with a tray ceiling.
  • Each bedroom on the second floor has a private bathroom and there's a huge game room for the whole family to enjoy.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,300 sq. ft.

1st Floor

2,708 sq. ft.

2nd Floor

1,592 sq. ft.

Entry

98 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

82' 4"

Depth

68' 3"

Max Ridge Height

36' 5"

Garage

Type

Attached

Area

748 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Shingle

Traditional

Special Features

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Exclusive

Luxury

Photo Gallery
