Plan: 4092DB

See-Through Fireplace

2,393 3-4 3 1-2 3
Pageloader

See-Through Fireplace

Plan 4092DB

  • 2,393

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The covered front porch of this serene design grants access to the entry and the dining room, both of which enjoy a view of the central see-through fireplace across the gallery. The fireplace is also visible from the family room, has views to the rear.
  • Ceiling heights range from nine to 11 feet, adding volume and light. In the kitchen, the cooktop island has a long eating bar, large big enough for an entire family. The kitchen includes a pantry closet and is handy to the breakfast room, utility room, three-car garage and stairway to the bonus space above.
  • The front-facing study or fourth bedroom opens to a compartmented bath that can also be accessed from the gallery.
  • In the master suite, the spectacular bath includes his and her vanities and walk-in closets, a garden tub and separate shower. On the opposite side of the house, the remaining bath can be entered from either bedroom two or bedroom three.
  • Foundation: slab.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

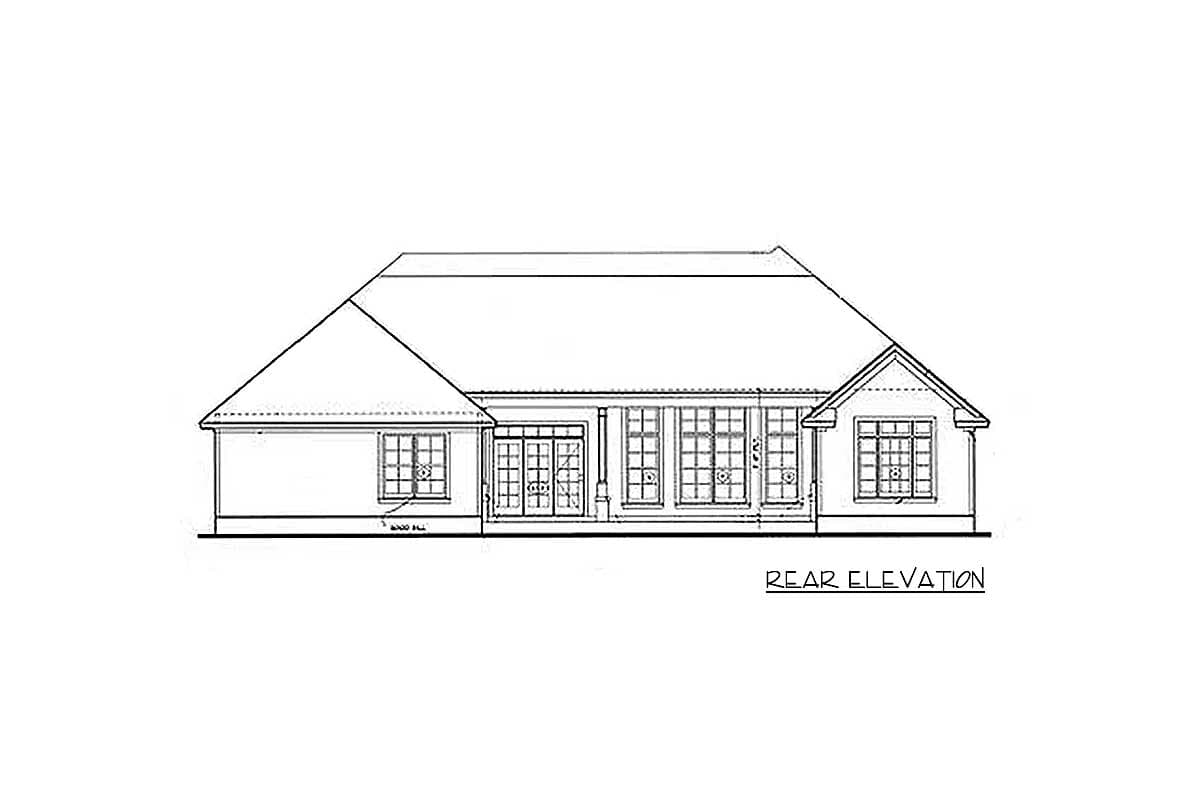

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



See-Through Fireplace

  • 2,393

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • The covered front porch of this serene design grants access to the entry and the dining room, both of which enjoy a view of the central see-through fireplace across the gallery. The fireplace is also visible from the family room, has views to the rear.
  • Ceiling heights range from nine to 11 feet, adding volume and light. In the kitchen, the cooktop island has a long eating bar, large big enough for an entire family. The kitchen includes a pantry closet and is handy to the breakfast room, utility room, three-car garage and stairway to the bonus space above.
  • The front-facing study or fourth bedroom opens to a compartmented bath that can also be accessed from the gallery.
  • In the master suite, the spectacular bath includes his and her vanities and walk-in closets, a garden tub and separate shower. On the opposite side of the house, the remaining bath can be entered from either bedroom two or bedroom three.
  • Foundation: slab.

Floor Plans

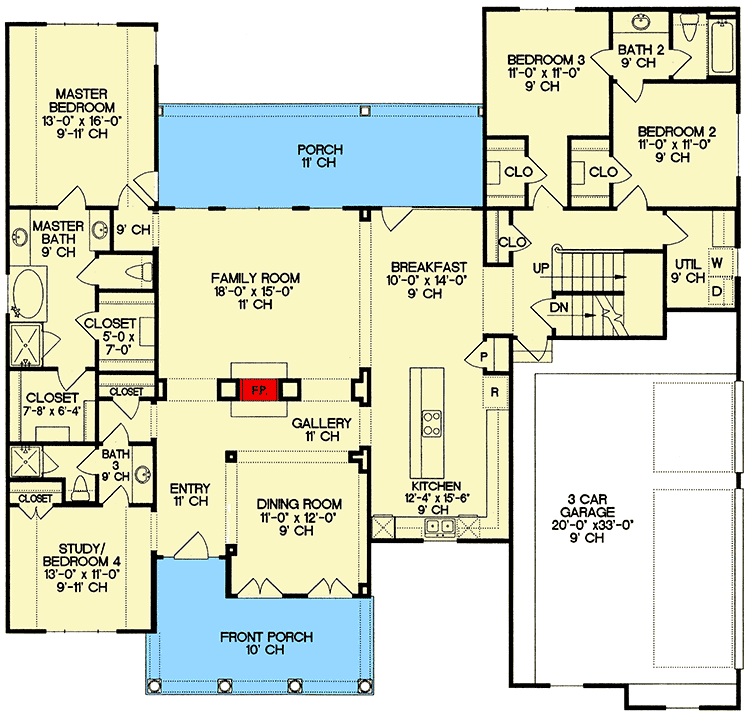

  • Main Level

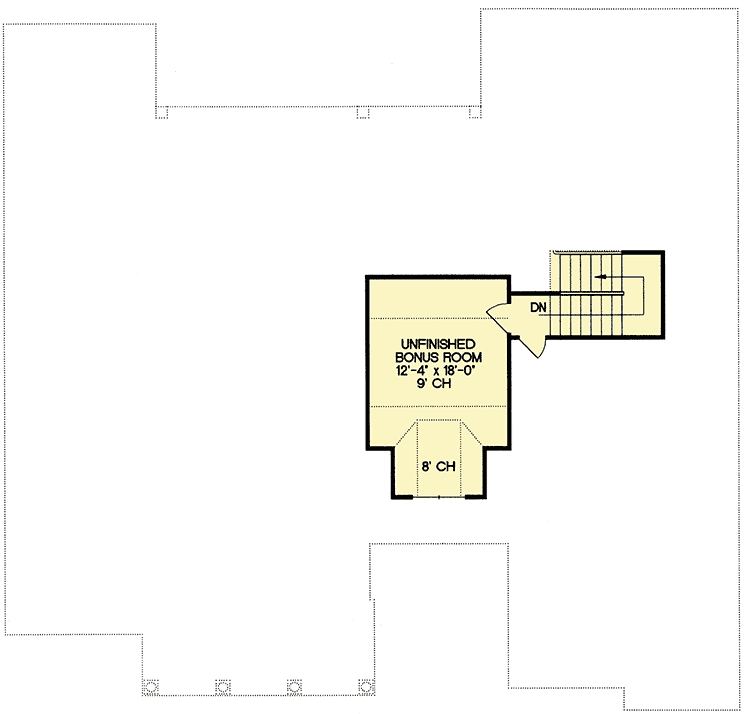

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,393 sq. ft.
  • 1st Floor: 2,393 sq. ft.
  • Porch, Rear: 261 sq. ft.
  • Porch, Front: 196 sq. ft.
  • Bonus: 222 sq. ft.
  • Basement Unfinished: 2,393 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 8"
  • Depth: 62' 10"
  • Max ridge height: 22' 11"

Garage

  • Type: Attached
  • Area: 692 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms

Plan Collections
