Serene Split-Bedroom Design

Plan 4093DB

  • 2,203

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Inside the covered entry of this one-story design, the open common area separates the master suite from the family bedrooms, allowing privacy for all.
  • Arches frame the entries to the study and the spacious kitchen, while a diagonal opening leads to the formal dining room. The kitchen includes a central food-preparation island and a walk-in pantry.
  • The study can serve as an optional fourth bedroom with a bath. A corner fireplace warms the family room and nearby breakfast area. By opening four sets of French doors, the rear covered porch becomes an integrated part of the main living area.
  • A sloped ceiling to 9 feet is found in the master bedroom, which opens to a spacious bath with a walk-in closet. On the other side of the house, bedrooms two and three each have walk-in closets and direct access to another bath.
  • Foundation options: basement or slab. When ordering, please specify.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

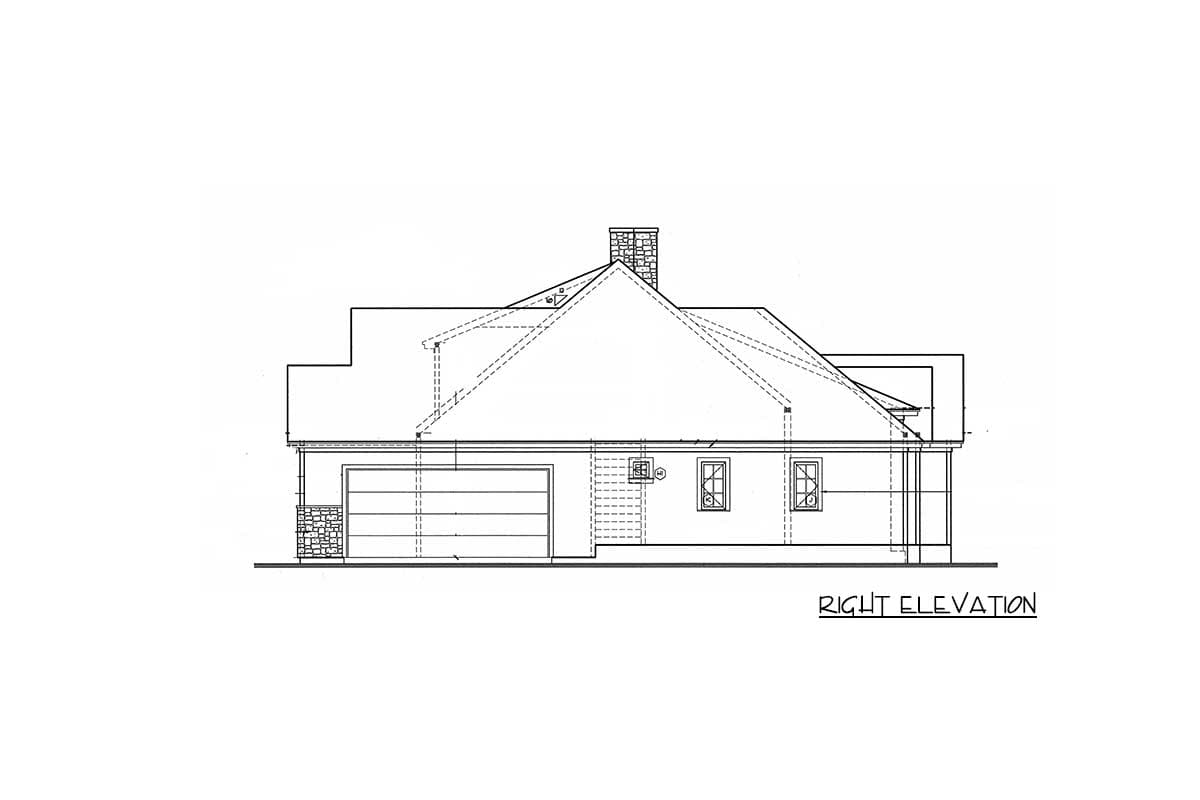

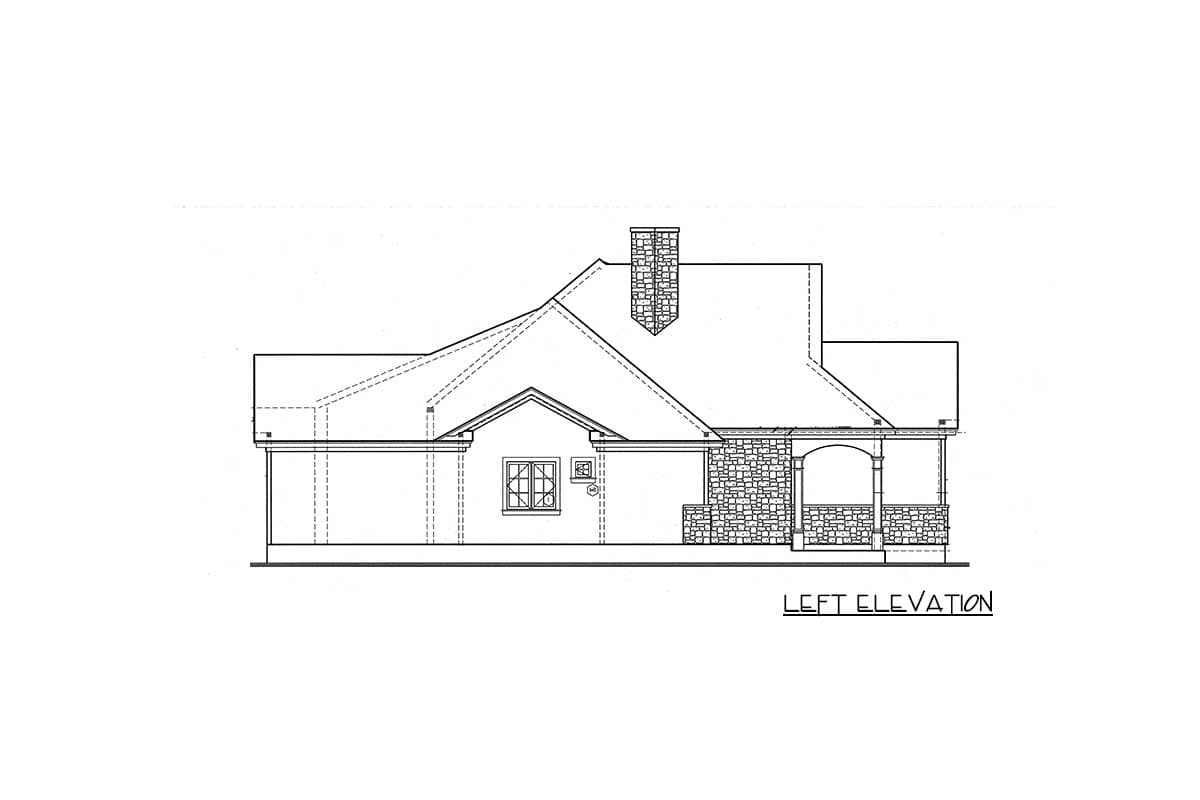

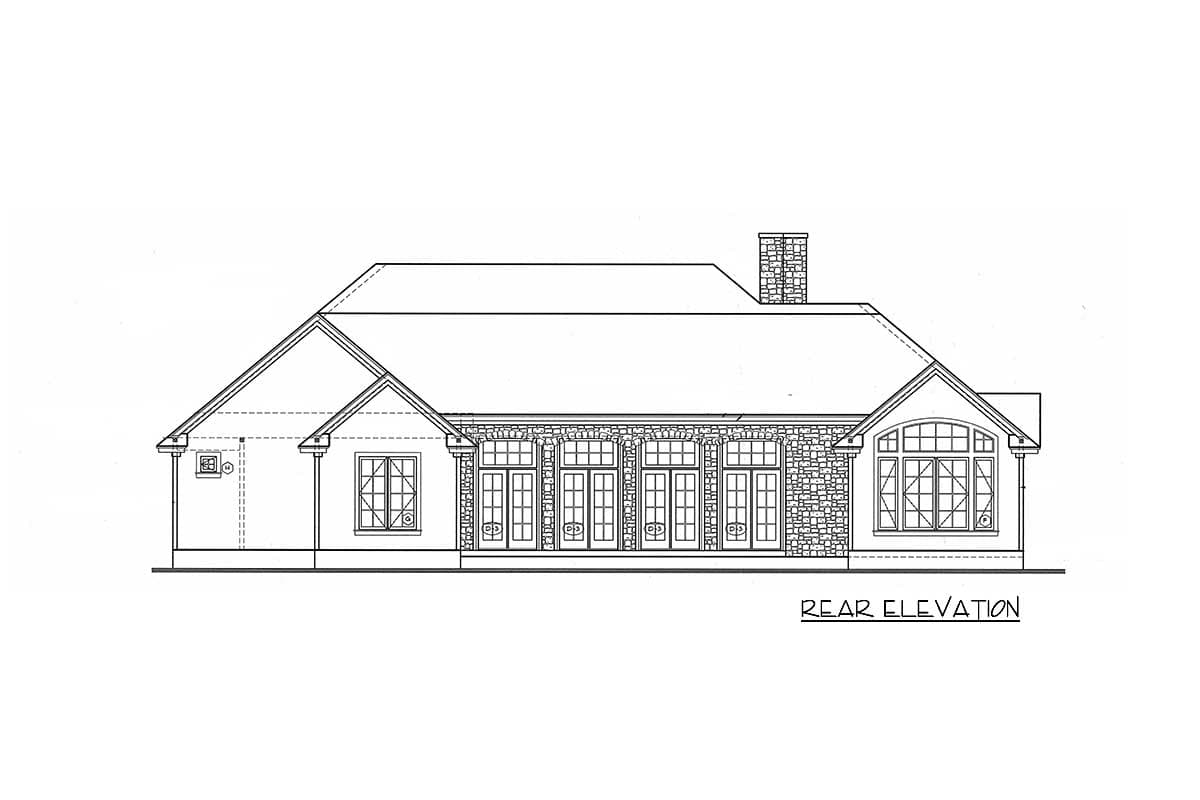

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

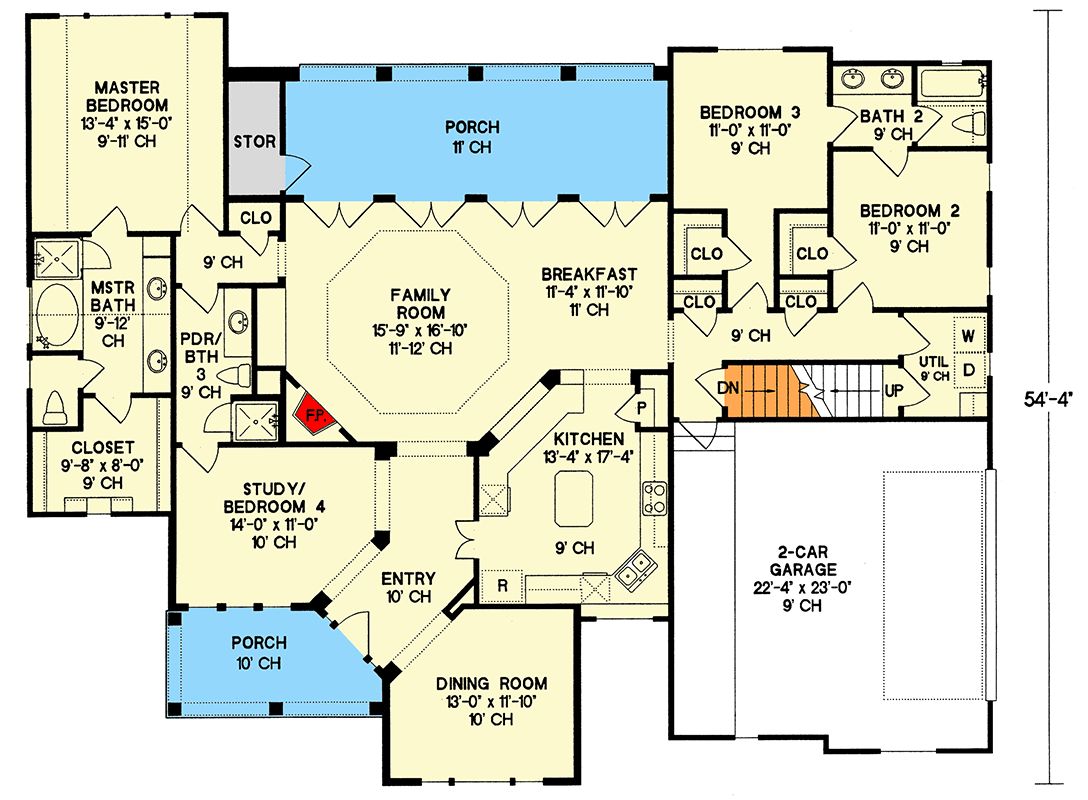

Serene Split-Bedroom Design - 4093DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

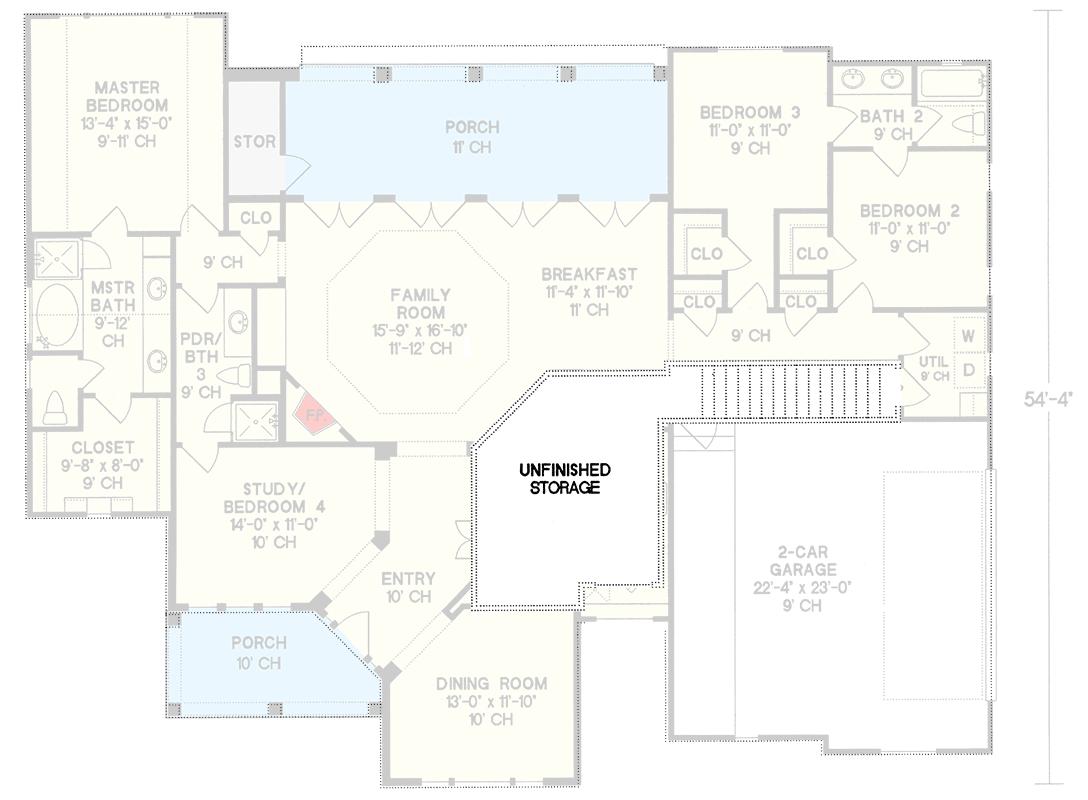

Serene Split-Bedroom Design - 4093DB floor plan - Storage

Plan details

Architectural Style

Plan Collections

Serene Split-Bedroom Design

  • 2,203

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • Inside the covered entry of this one-story design, the open common area separates the master suite from the family bedrooms, allowing privacy for all.
  • Arches frame the entries to the study and the spacious kitchen, while a diagonal opening leads to the formal dining room. The kitchen includes a central food-preparation island and a walk-in pantry.
  • The study can serve as an optional fourth bedroom with a bath. A corner fireplace warms the family room and nearby breakfast area. By opening four sets of French doors, the rear covered porch becomes an integrated part of the main living area.
  • A sloped ceiling to 9 feet is found in the master bedroom, which opens to a spacious bath with a walk-in closet. On the other side of the house, bedrooms two and three each have walk-in closets and direct access to another bath.
  • Foundation options: basement or slab. When ordering, please specify.

Floor Plans

  • Main Level

  • Storage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,203 sq. ft.
  • 1st Floor: 2,203 sq. ft.
  • Storage: 283 sq. ft.
  • Porch, Front: 102 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 54' 4"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 533 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 11"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick and Truss
