Plan 72737DA

Shed Dormered Country Cottage

Heated S.F.
1,763
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 72737DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72737DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

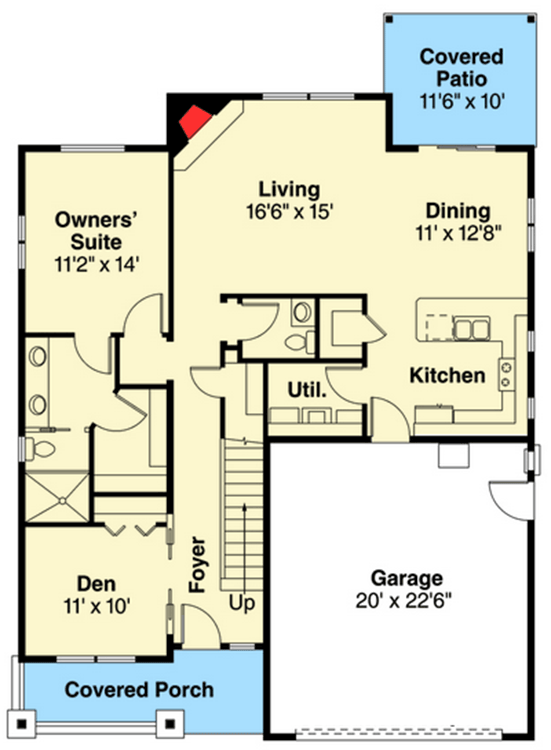

Plan 72737DA: Shed Dormered Country Cottage - Floor Plan - Main Level - Cottage, Country

2nd Floor

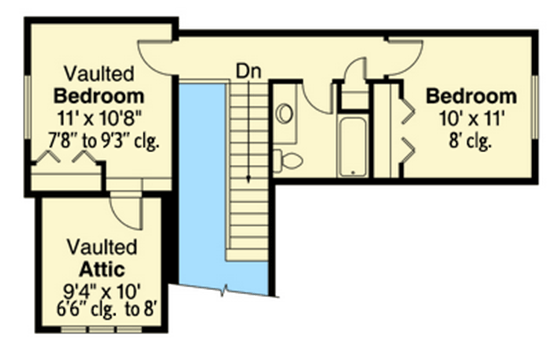

Plan 72737DA: Shed Dormered Country Cottage - Floor Plan - 2nd Floor - Cottage, Country

Plan Details

  • In this country cottage, the living room is completely open to a dining room that is windowed on two sides, and open to the kitchen on its fourth side.
  • The owners' suite and a den/home office fill out the left side of the ground floor with two more bedrooms and vaulted attic storage (119 square feet) located upstairs.
  • Laundry facilities are mere steps away in a good-sized utility room with built-in cabinets.
  • The roof has a 6:12 pitch.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,763 sq. ft.

1st Floor

1,314 sq. ft.

2nd Floor

449 sq. ft.

Attic

109 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

56' 0"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Cottage

Country

Special Features

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,763 sq. ft.

1st Floor

1,314 sq. ft.

2nd Floor

449 sq. ft.

Attic

109 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

56' 0"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Cottage

Country

Special Features

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery
