Name: Plan 623006DJ: Shed Plan with Clerestory Windows
SKU: 623006DJ
Price: 300.0 USD
Availability: InStock

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Shed Plan with Clerestory Windows

This shed plan has a pair of doors swing open allowing you to wheel in equipment with ease and clerestory windows that give it a touch of country elegance and flair.
Windows on each side allow you to putter inside with views. A workbench in back is a nice touch.
This makes for a practical garden shed, a storage shed or a place to do your hobbies outside of the house.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Scroll

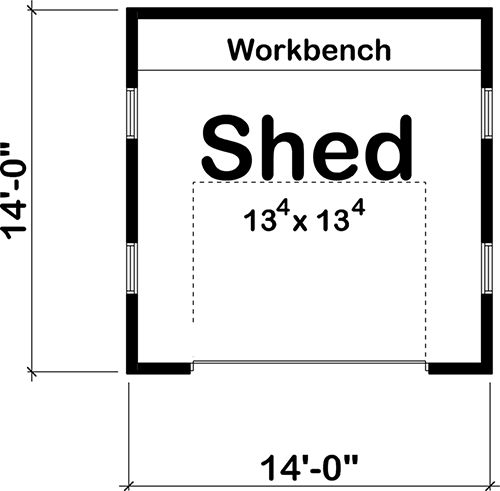

Shed Plan with Clerestory Windows 0 Heated s.f. Beds 0 Baths 1 Floors Buy This Plan PDF - Single-Build $300 5 Sets + PDF $550 PDF - Unlimited Build $800 CAD + PDF - Single-Build $800 CAD - Unlimited Build $1,300 View all purchase option online About This Plan This shed plan has a pair of doors swing open allowing you to wheel in equipment with ease and clerestory windows that give it a touch of country elegance and flair. Windows on each side allow you to putter inside with views. A workbench in back is a nice touch. This makes for a practical garden shed, a storage shed or a place to do your hobbies outside of the house. Floor Plans Main Level Plan Details Square Footage Breakdown Total Heated Area: 0 sq. ft. Storage: 196 sq. ft. Beds/Baths Bedrooms: Full bathrooms: Foundation Type Standard Foundations: Slab Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Dimensions Width: 14' 0" Depth: 14' 0"
