Plan 444047GDN Shingle Home Plan with Walk-out Basement and Bonus Room

3,478 3-4 4 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Shingle Home Plan with Walk-out Basement and Bonus Room

Plan 444047GDN

  • 3,478

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Shingle home plan features a stone and shake exterior adorned with arches, tapered columns, and decorative wooden brackets.
  • Designed for sloping lots, this hillside-walkout enjoys entertainment and leisure spaces on two levels.
  • The master bedroom shares the left side of the main level with a study, and includes a sitting nook, tray ceiling, two walk-in closets, and a deluxe ensuite.
  • Open living spaces, a luxury screened porch with skylights and a fireplace, a walk-in pantry, and a spacious utility room reflect a modern lifestyle.
  • A sizable bonus room sits atop the 3-car garage and offers a range of possibilities.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

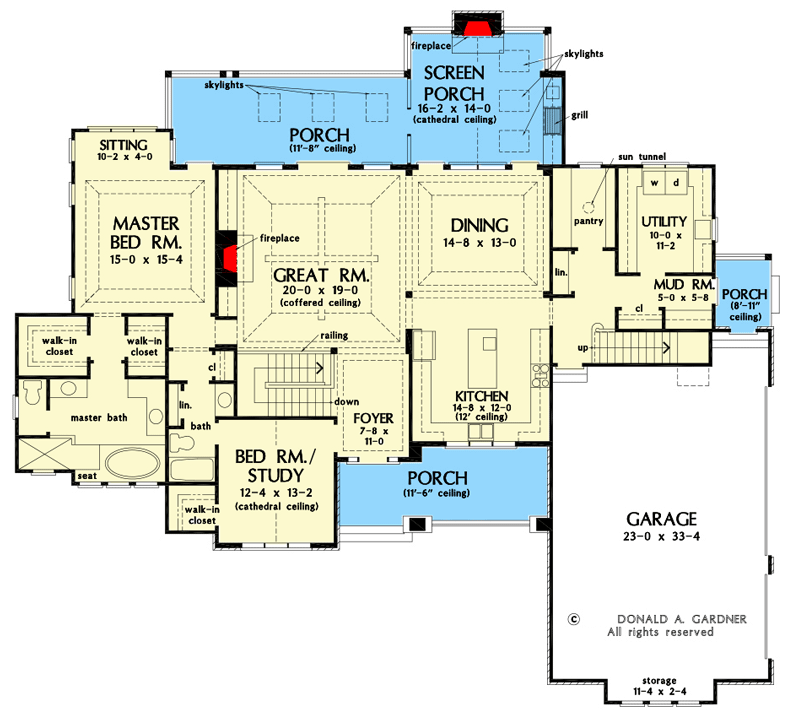

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Shingle Home Plan with Walk-out Basement and Bonus Room - 444047GDN floor plan - Main Level

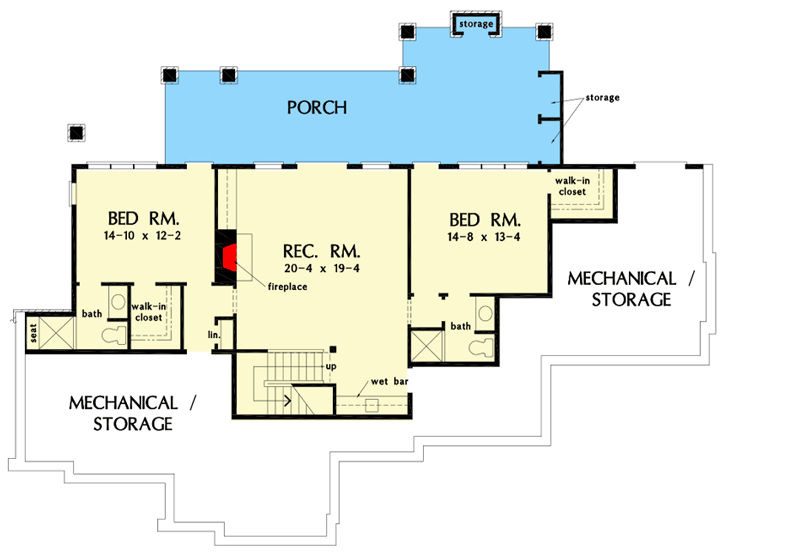

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Shingle Home Plan with Walk-out Basement and Bonus Room - 444047GDN floor plan - Basement

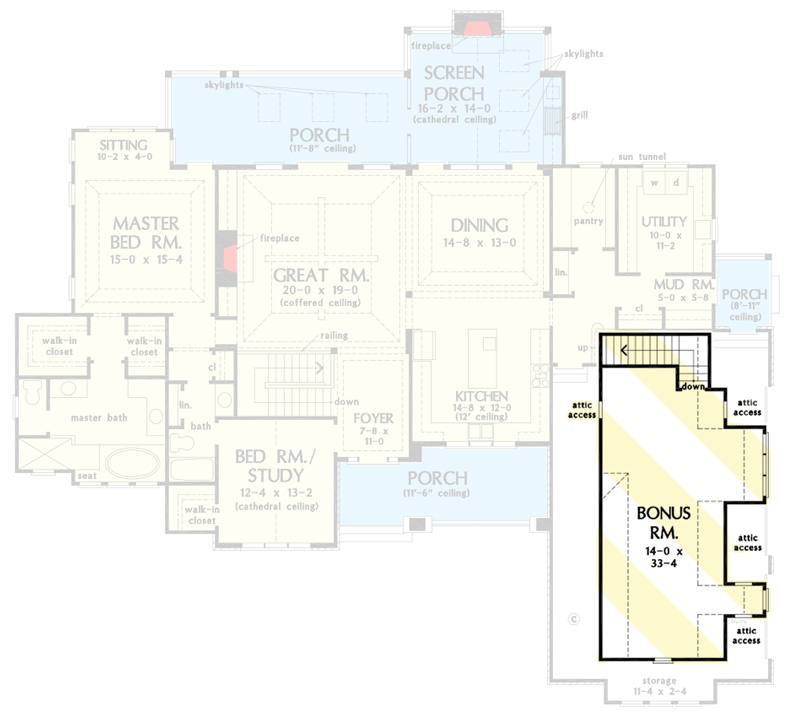

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Shingle Home Plan with Walk-out Basement and Bonus Room - 444047GDN floor plan - Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,478 sq. ft.
  • Lower Level: 1,232 sq. ft.
  • 1st Floor: 2,246 sq. ft.
  • Storage: 1,041 sq. ft.
  • Covered Patio: 509 sq. ft.
  • Screened Porch: 251 sq. ft.
  • Porch, Rear: 253 sq. ft.
  • Porch, Front: 180 sq. ft.
  • Bonus: 537 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 6"
  • Depth: 73' 8"
  • Max ridge height: 42' 2"

Garage

  • Type: Attached
  • Area: 847 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Foyer Cathedral 12' 9"
Dining Room Cathedral 12' 0"
Great Room Cathedral 15' 0"
Study Cathedral 16' 2"
Kitchen Flat 12' 0"
Screened Porch Cathedral 13' 11"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Shingle Home Plan with Walk-out Basement and Bonus Room

  • 3,478

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $2,050
  • PDF - Single-Build $2,250
  • CAD Unlimited + PDF $3,950
  • View all purchase option online

About This Plan

  • This Shingle home plan features a stone and shake exterior adorned with arches, tapered columns, and decorative wooden brackets.
  • Designed for sloping lots, this hillside-walkout enjoys entertainment and leisure spaces on two levels.
  • The master bedroom shares the left side of the main level with a study, and includes a sitting nook, tray ceiling, two walk-in closets, and a deluxe ensuite.
  • Open living spaces, a luxury screened porch with skylights and a fireplace, a walk-in pantry, and a spacious utility room reflect a modern lifestyle.
  • A sizable bonus room sits atop the 3-car garage and offers a range of possibilities.

Floor Plans

  • Main Level

  • Basement

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,478 sq. ft.
  • Lower Level: 1,232 sq. ft.
  • 1st Floor: 2,246 sq. ft.
  • Storage: 1,041 sq. ft.
  • Covered Patio: 509 sq. ft.
  • Screened Porch: 251 sq. ft.
  • Porch, Rear: 253 sq. ft.
  • Porch, Front: 180 sq. ft.
  • Bonus: 537 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 6"
  • Depth: 73' 8"
  • Max ridge height: 42' 2"

Garage

  • Type: Attached
  • Area: 847 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
