Plan 17781LV
Shingle Style House Plan with Lower Level
Heated S.F.
3,531
Beds
3
Baths
4
Stories
1
Cars
2
What's Included
Plan Details
  • A stunning open floor plan is visible from the moment you step into the foyer of this Shingle style house plan.

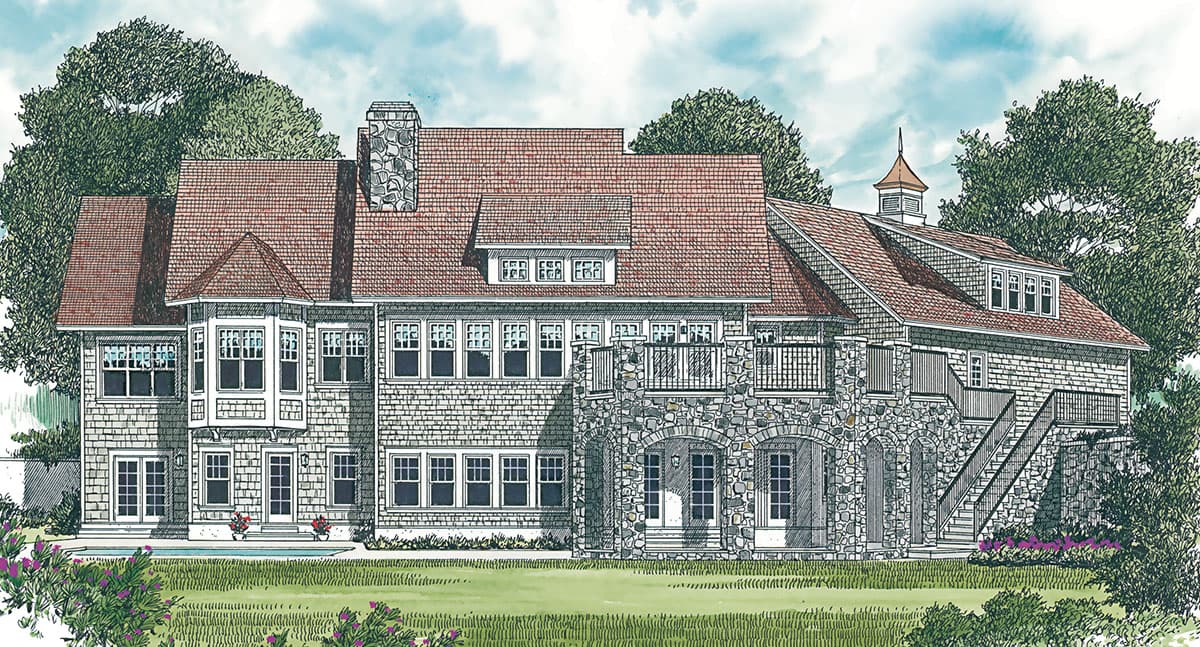

  • The entire back wall is filled with windows to give you sweeping views.
  • A door in the dining area leads you outside to the rear terrace.

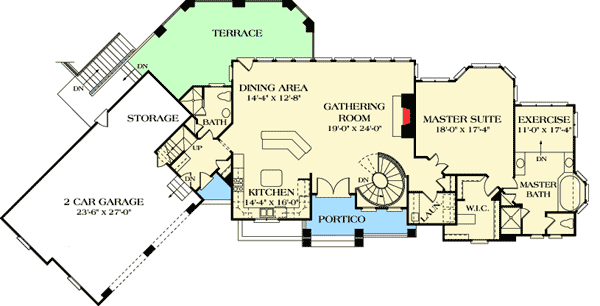

  • The superb master suite deserves special mention with its bayed sitting area, dedicated sunken exercise room and an enormous walk-in closet divided into compartments.

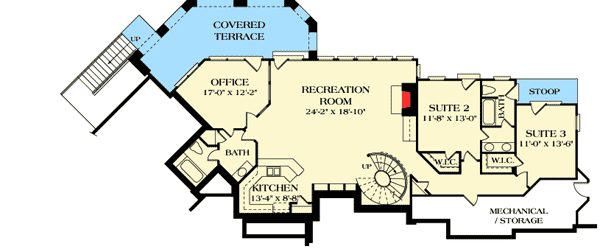

  • Head down the beautiful curved staircase to reach the gigantic recreation room that comes with a full kitchen and a big fireplace.
  • There's a home office and two bedroom suites, each with a walk-in closet for family and friends.
  • The lower level is easily adaptable for in-law accommodations.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Shingle Style House Plan with Lower Level

  • 3,531

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Basement

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 3,531 sq. ft.
  • Lower Level: 1,668 sq. ft.
  • 1st Floor: 1,977 sq. ft.

Dimensions

  • Width: 108' 6"
  • Depth: 56' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 789 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
