Plan 1778LV

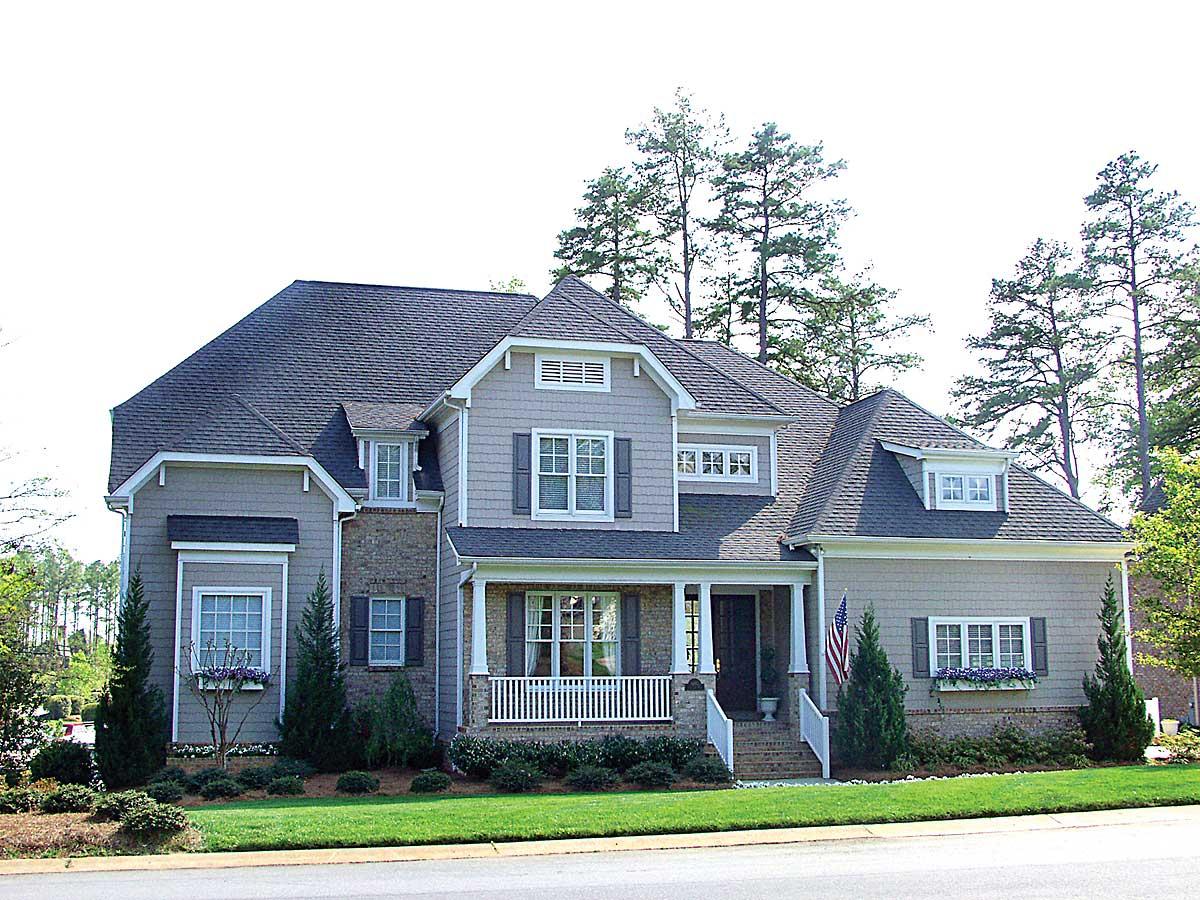

Shingle Style House Plan with Optional Lower Level

Heated S.F.
3,274
Beds
5 - 6
Baths
3.5 - 4.5
Stories
2
Cars
2

Floor Plan

Plan 1778LV

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 1778LV

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 1778LV: Shingle Style House Plan with Optional Lower Level - Floor Plan - Basement - Craftsman, Shingle

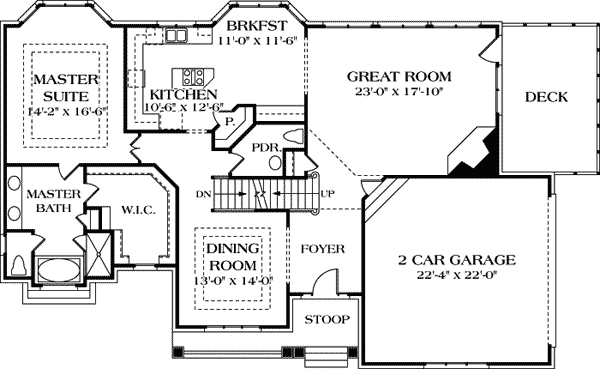

Main Level

Plan 1778LV: Shingle Style House Plan with Optional Lower Level - Floor Plan - Main Level - Craftsman, Shingle

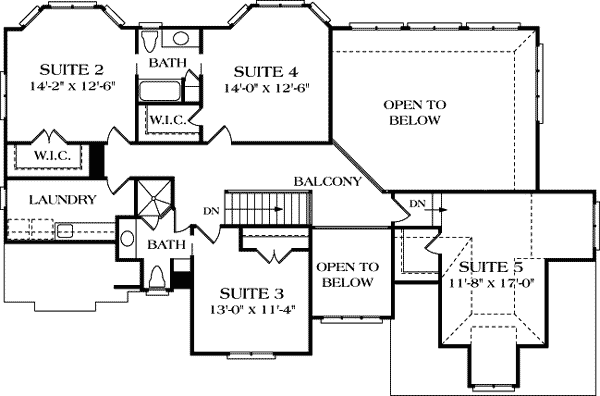

2nd Floor

Plan 1778LV: Shingle Style House Plan with Optional Lower Level - Floor Plan - 2nd Floor - Craftsman, Shingle

Plan Details

  • Expand this handsome Shingle style house plan by finishing off the lower level.
  • There's room for a theater room, huge rec room with wet bar and a big guest suite that works well as in-law accommodations.
  • On the main floor, a double tray ceiling in the dining room catches your eye as you enter the foyer.
  • Heading straight back brings you to the giant family room with its corner fireplace.
  • A deck off the side gives you outdoor space.
  • The master suite also has an elegant double tray ceiling and a bay window for a sitting area.
  • Four spacious bedroom suites on the second floor share the convenient laundry room and an open rail balcony lets you look down into the great room below.

What's Included

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,274 sq. ft.

1st Floor

1,790 sq. ft.

2nd Floor

1,484 sq. ft.

Deck

209 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

67' 0"

Depth

44' 8"

Max Ridge Height

47' 0"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Shingle

Special Features

Game/Rec Room

In-Law Suite

Jack & Jill Bath

Master Suite - 1st Floor

Walk-in Pantry

Wet Bar
