Shingle Style With Breakfast Bay

Plan 9303EL

  • 3,233

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A combination of stone, siding and wood shakes adorns the exterior of this Craftsman style home with a covered veranda that opens to both the master suite and the family room.
  • The formal dining room off the foyer is nicely sized to accommodate those special occasions.
  • Set in a bay, the breakfast nook shares space with the kitchen and family room and provides a bright place for informal meals.
  • Ceilings start at 10' in the first floor master bedroom and then vault up to 21'8" flat in the middle of the room. An extra large walk-in closet and spa bath enhance the master suite.
  • Three large bedrooms, two baths and bonus space occupy the second floor.
  • Related Plans: Downsize with house plans 9338EL, 93008EL and 93009EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

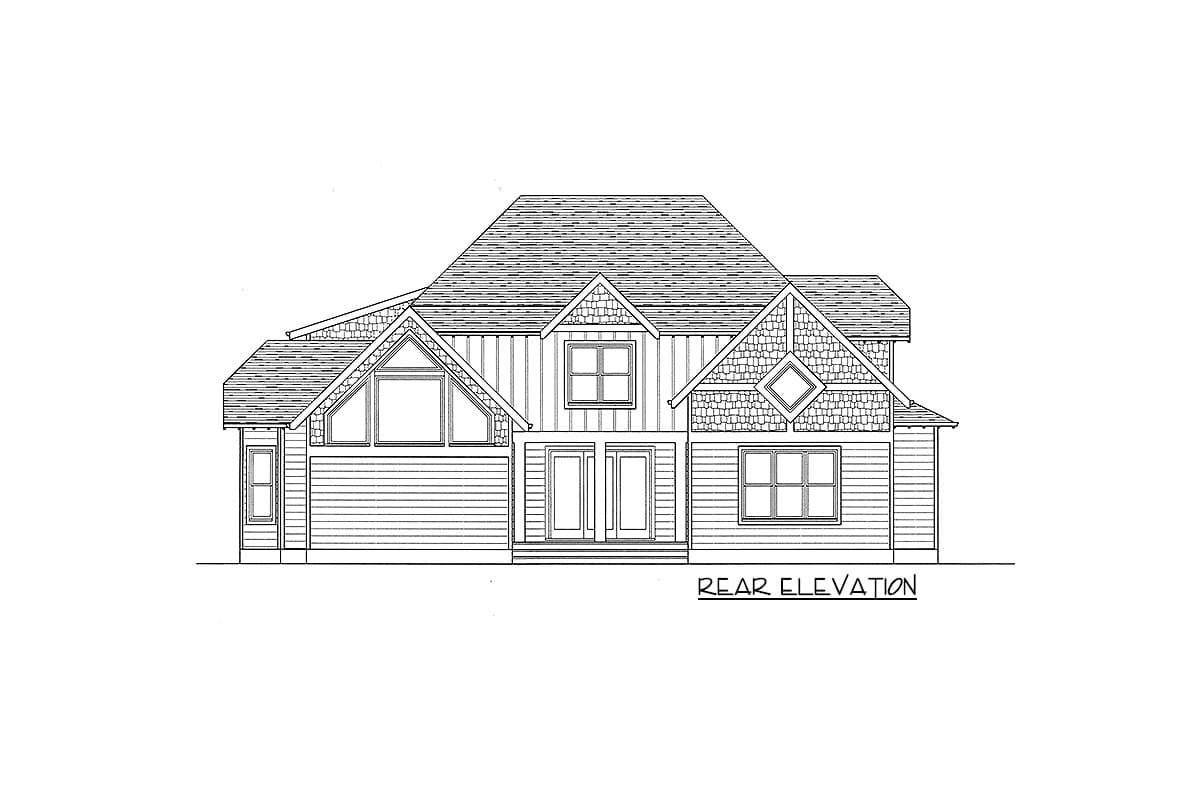

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

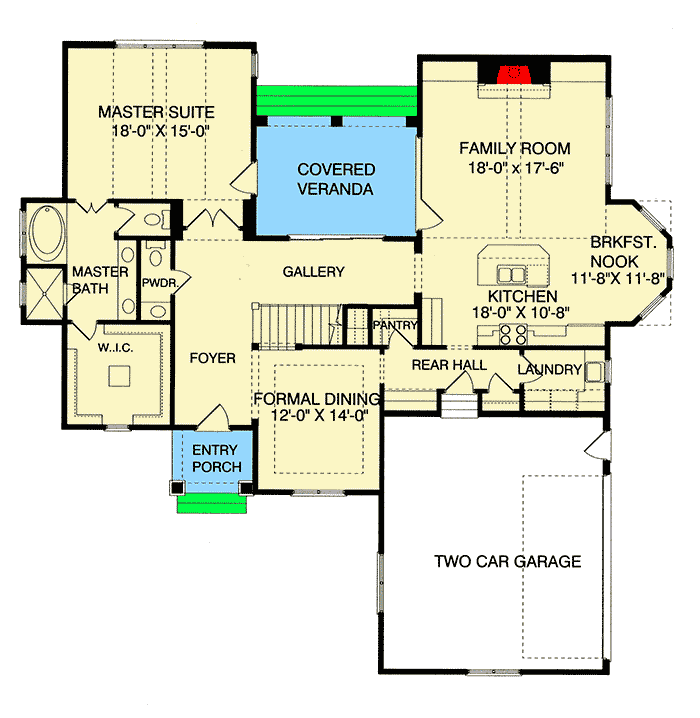

Shingle Style With Breakfast Bay - 9303EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

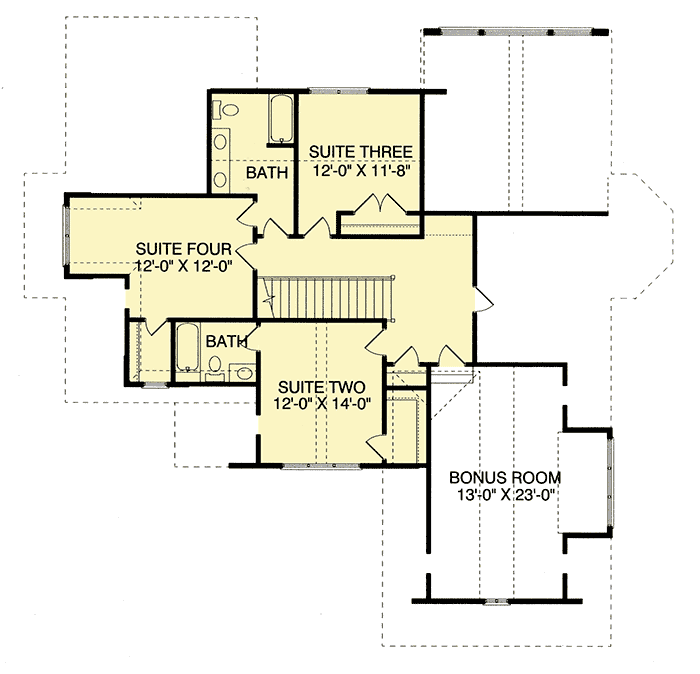

Shingle Style With Breakfast Bay - 9303EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,233 sq. ft.
  • 1st Floor: 1,875 sq. ft.
  • 2nd Floor: 1,358 sq. ft.
  • Bonus: 299 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 4"
  • Depth: 62' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 577 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Shingle Style With Breakfast Bay

  • 3,233

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • PDF - Unlimited Build $2,745
  • CAD - Unlimited Build $3,245
  • View all purchase option online

About This Plan

  • A combination of stone, siding and wood shakes adorns the exterior of this Craftsman style home with a covered veranda that opens to both the master suite and the family room.
  • The formal dining room off the foyer is nicely sized to accommodate those special occasions.
  • Set in a bay, the breakfast nook shares space with the kitchen and family room and provides a bright place for informal meals.
  • Ceilings start at 10' in the first floor master bedroom and then vault up to 21'8" flat in the middle of the room. An extra large walk-in closet and spa bath enhance the master suite.
  • Three large bedrooms, two baths and bonus space occupy the second floor.
  • Related Plans: Downsize with house plans 9338EL, 93008EL and 93009EL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,233 sq. ft.
  • 1st Floor: 1,875 sq. ft.
  • 2nd Floor: 1,358 sq. ft.
  • Bonus: 299 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 63' 4"
  • Depth: 62' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 577 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 9303EL
