Plan 17530LV

Shingle Style with Welcoming Porch

5,305 5 5.5 3 3
Pageloader

Shingle Style with Welcoming Porch

Plan 17530LV

  • 5,305

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 3

    Stories

  • 3

    Cars

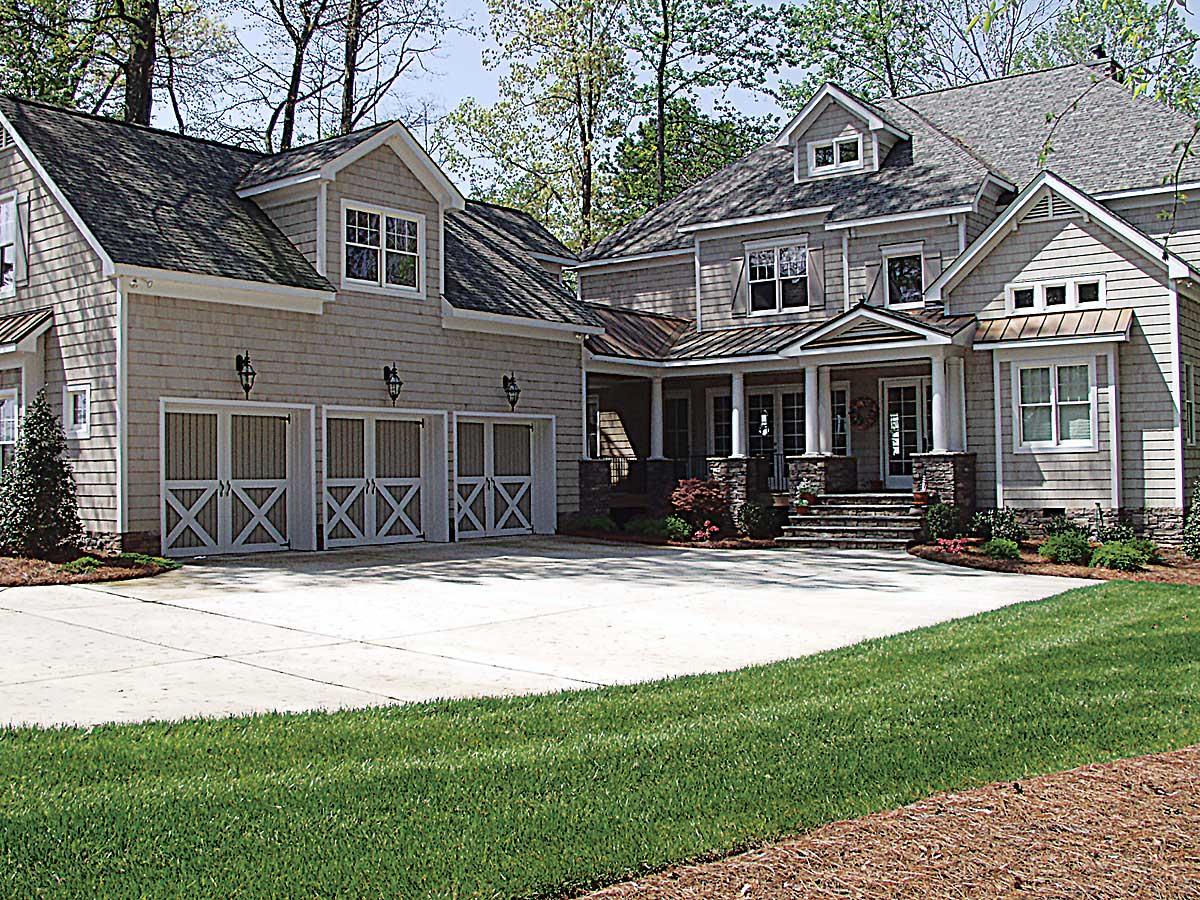

  • Shingle styling and a welcoming porch create marvelous curb appeal.
  • The two-story foyer flows into the spacious dining room and grand room.
  • The master retreat features a second fireplace with a private entry to the veranda.
  • Upstairs holds two bedrooms, an office and recreation room along with another staircase that leads to a secluded studio with private deck.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

Plan details



Shingle Style with Welcoming Porch

  • 5,305

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 3

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $2,250
  • PDF - single-use $2,250
  • CAD $4,499
  • View all purchase option online

About This Plan

  • Shingle styling and a welcoming porch create marvelous curb appeal.
  • The two-story foyer flows into the spacious dining room and grand room.
  • The master retreat features a second fireplace with a private entry to the veranda.
  • Upstairs holds two bedrooms, an office and recreation room along with another staircase that leads to a secluded studio with private deck.

Floor Plans

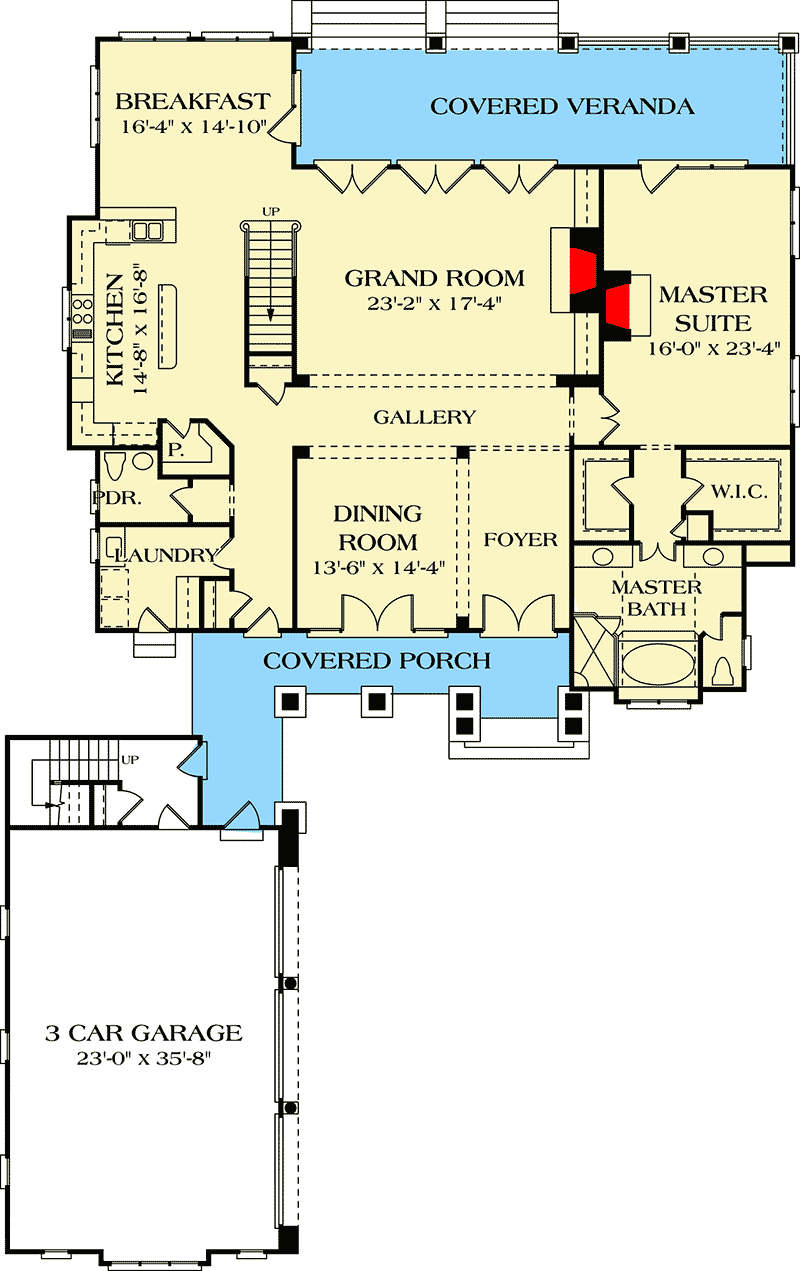

  • Main Level

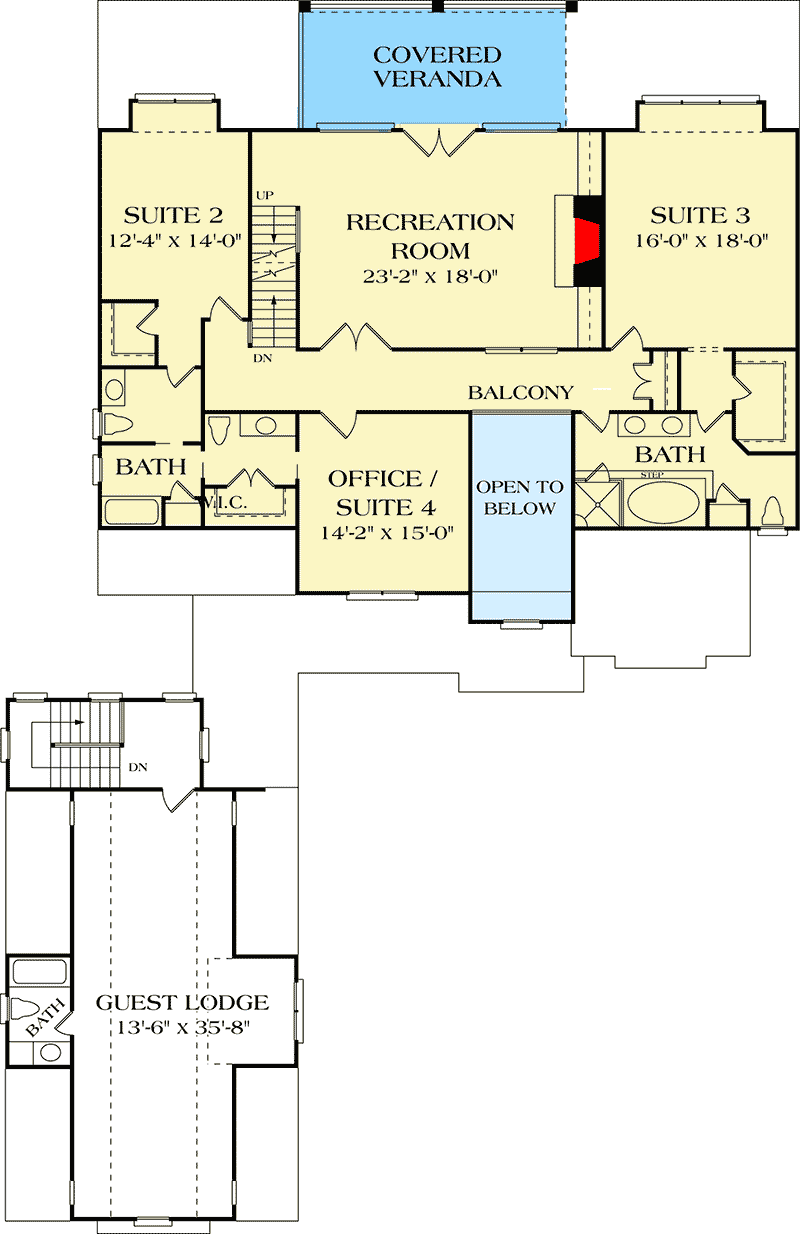

  • 2nd Floor

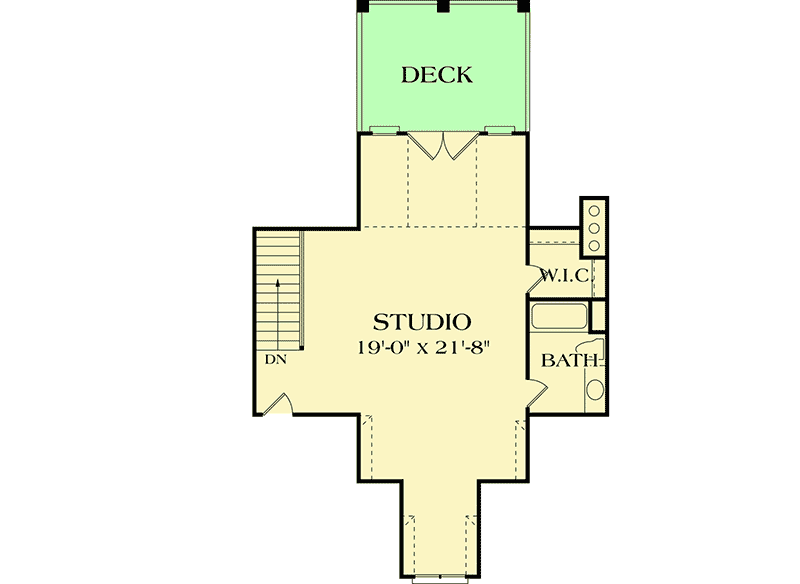

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,305 sq. ft.
  • 1st Floor: 2,620 sq. ft.
  • 2nd Floor: 2,001 sq. ft.
  • 3rd Floor: 684 sq. ft.
  • Bonus: 673 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 0"
  • Depth: 103' 8"

Garage

  • Type: Attached
  • Area: 830 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
