Plan: 36508TX

Showcase Foyer and Alternate Exteriors

3,409 3 4 2 3
Pageloader

Showcase Foyer and Alternate Exteriors

Plan 36508TX

  • 3,409

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-story house plan is perfect for a lot with zero setbacks and narrow lots. You'll love coming home and entering the showcase foyer with curved stairs. The quiet study off the foyer has an octagon trey ceiling.
  • A utility room, kitchen and pantry sit adjacent to the dining room for ease in serving. The gourmet kitchen offers a built-in hutch, utility room, pantry and plenty of counter space. The free-standing center island holds the dishwasher and double sink and delivers extra counter space.
  • The breakfast room has a built-in window seat overlooking your lush yard while formal meals can be enjoyed in the elegant dining room with large decorative pillars that define the perimeter.
  • The breakfast room shares a coffered ceiling and warming fireplace with the family room. A door from the family room leads to the patio outside.
  • The master suite boasts a private entrance to the patio, trey ceiling and a lavish master bath with his and hers vanities, separate shower and tub and large wardrobe.
  • Upstairs, there are two family bedrooms with walk-in closets and full baths. One of the bedrooms has a private sitting area. A game room with bar and two bonus rooms complete this floor.
  • Related Plans: Get alternate exteriors with house plans 36406TX and 36472TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

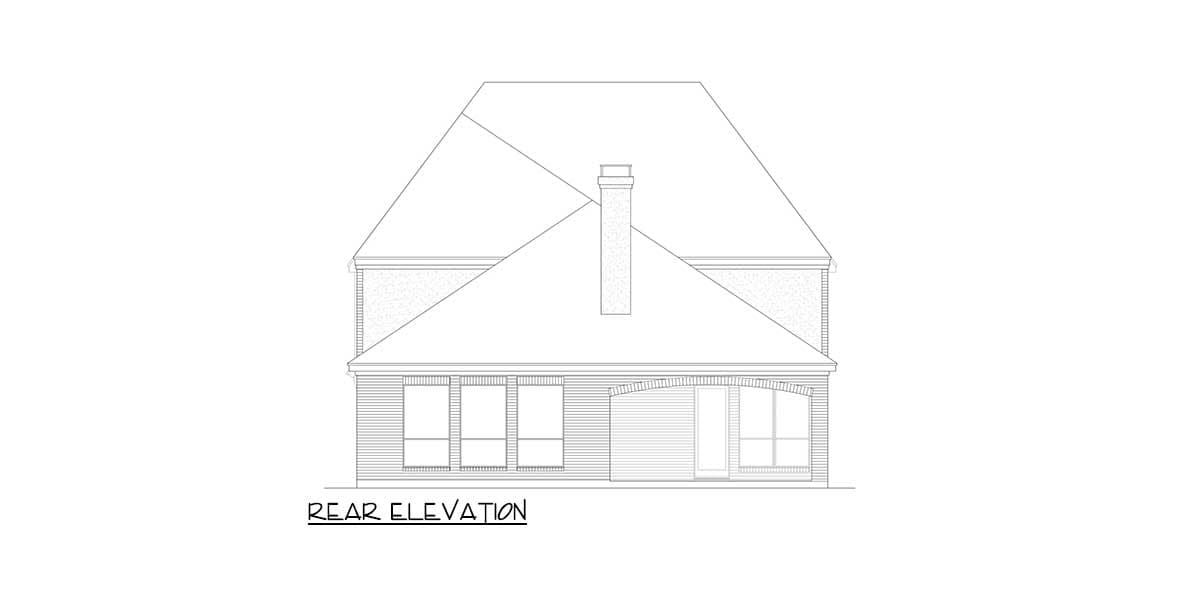

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

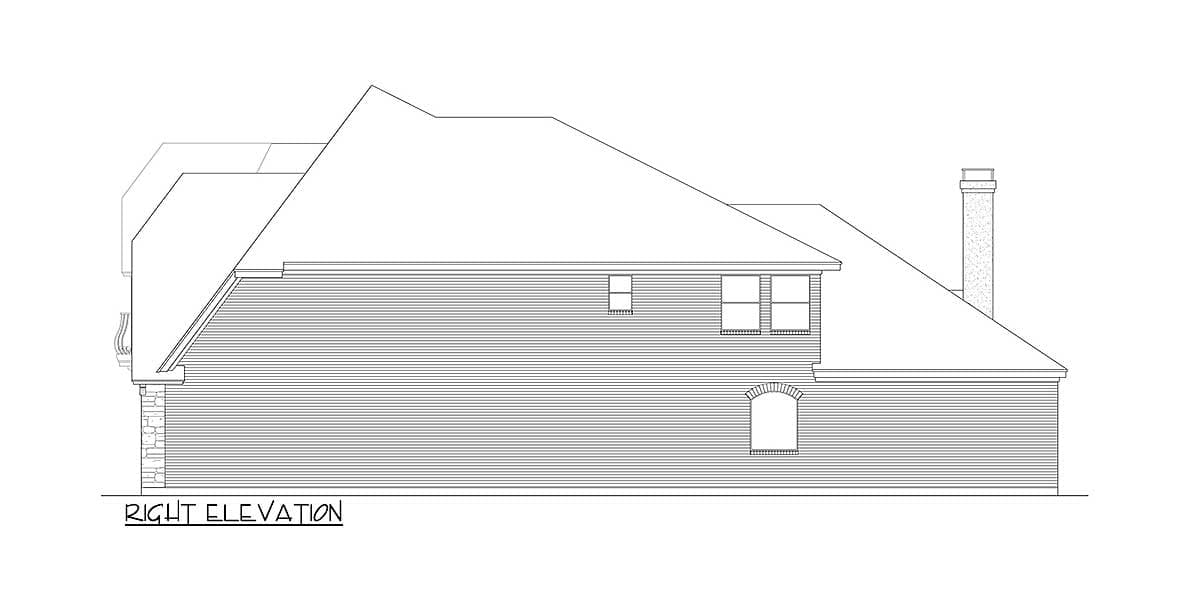

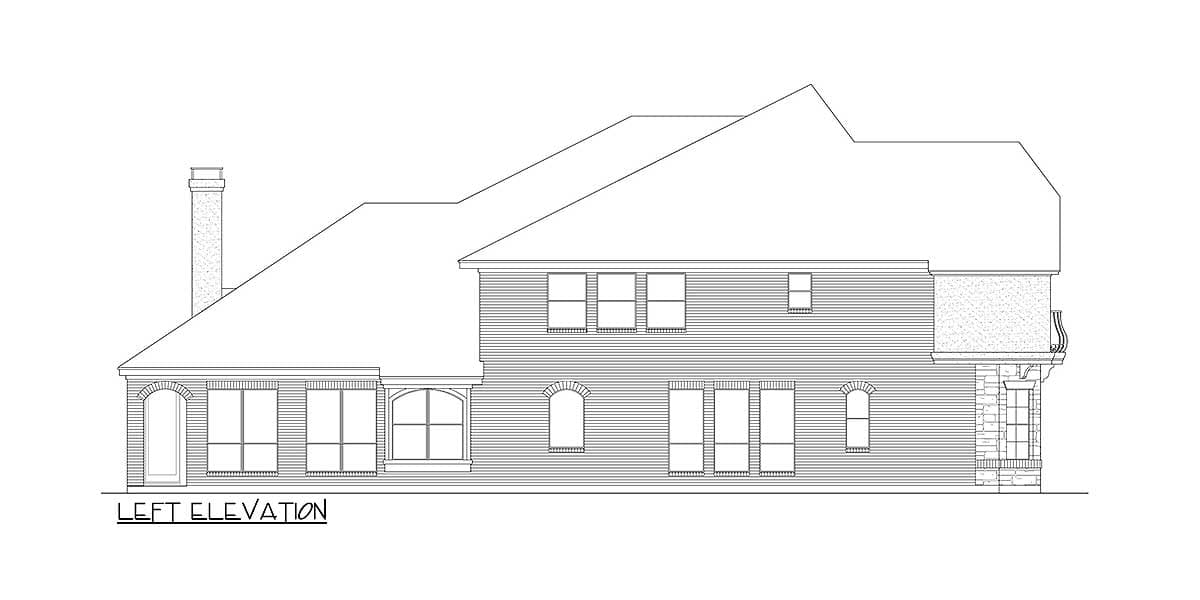

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Showcase Foyer and Alternate Exteriors

  • 3,409

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,160
  • 5 Sets $1,360
  • CAD $1,745
  • View all purchase option online

About This Plan

  • This 2-story house plan is perfect for a lot with zero setbacks and narrow lots. You'll love coming home and entering the showcase foyer with curved stairs. The quiet study off the foyer has an octagon trey ceiling.
  • A utility room, kitchen and pantry sit adjacent to the dining room for ease in serving. The gourmet kitchen offers a built-in hutch, utility room, pantry and plenty of counter space. The free-standing center island holds the dishwasher and double sink and delivers extra counter space.
  • The breakfast room has a built-in window seat overlooking your lush yard while formal meals can be enjoyed in the elegant dining room with large decorative pillars that define the perimeter.
  • The breakfast room shares a coffered ceiling and warming fireplace with the family room. A door from the family room leads to the patio outside.
  • The master suite boasts a private entrance to the patio, trey ceiling and a lavish master bath with his and hers vanities, separate shower and tub and large wardrobe.
  • Upstairs, there are two family bedrooms with walk-in closets and full baths. One of the bedrooms has a private sitting area. A game room with bar and two bonus rooms complete this floor.
  • Related Plans: Get alternate exteriors with house plans 36406TX and 36472TX.

Floor Plans

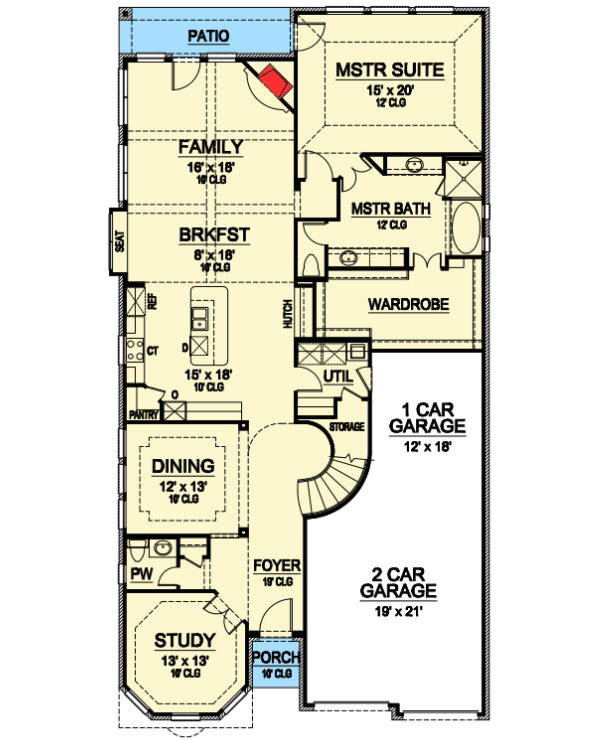

  • Main Level

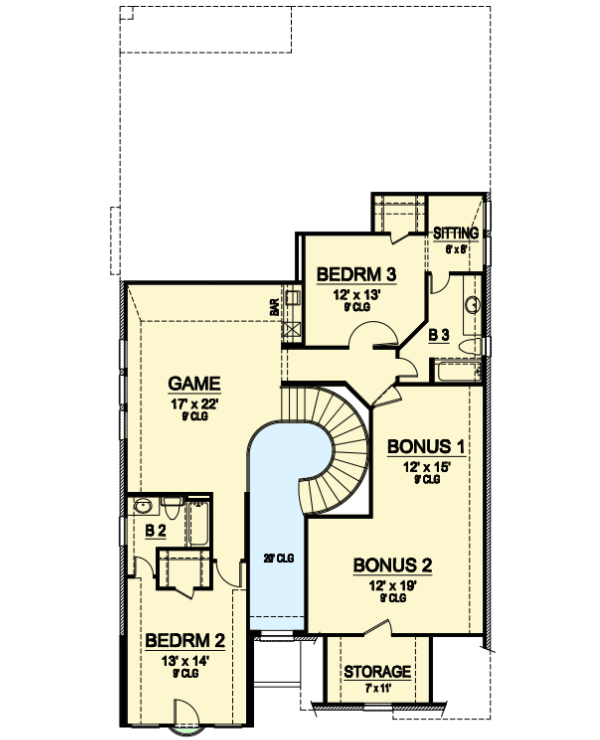

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,409 sq. ft.
  • 1st Floor: 2,257 sq. ft.
  • 2nd Floor: 1,152 sq. ft.
  • Bonus: 542 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 78' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 667 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

  • European
  • Tudor

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • PDF
