Plan 8152LB

Side-By-Side Duplex House Plan with 2 Bed 2 Bath Units - 1172 Sq Ft Each

Heated S.F.
2,344
Units
2
Width
Depth

Floor Plan

Plan 8152LB

Main Level
Main Level

Plan 8152LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

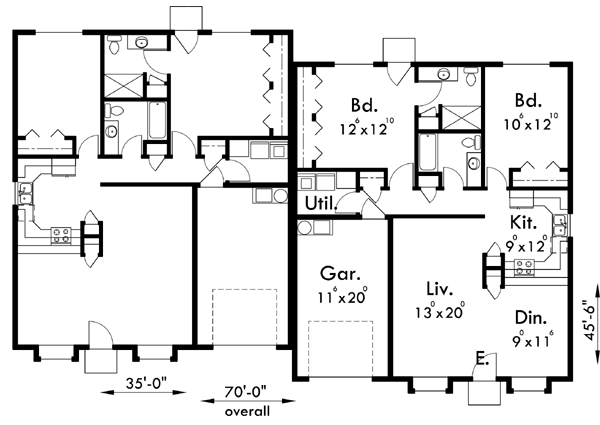

Plan 8152LB: Side-By-Side Duplex House Plan with 2 Bed 2 Bath Units - 1172 Sq Ft Each - Floor Plan - Main Level

Plan Details

  • This side-by-side duplex house plan gives you 2 bed, 2 bath units each with 1,172 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,172Sq. Ft.
1172 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
244 Sq. Ft.
Dimensions
35'width
45' 6"depth
16' 10"height
Unfinished Areas
244 Sq. Ft. Garage
Unit B
Heated Area
1,172Sq. Ft.
1172 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
244 Sq. Ft.
Dimensions
35'width
45' 6"depth
16' 10"height
Unfinished Areas
244 Sq. Ft. Garage

What's Included

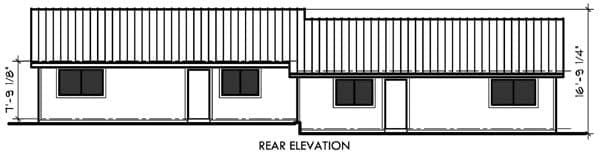

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,344 sq. ft.

1st Floor

2,344 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

45' 6"

Max Ridge Height

16' 10"

Garage

Type

Attached

Area

488 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,344 sq. ft.

1st Floor

2,344 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

45' 6"

Max Ridge Height

16' 10"

Garage

Type

Attached

Area

488 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
