Plan 39181ST

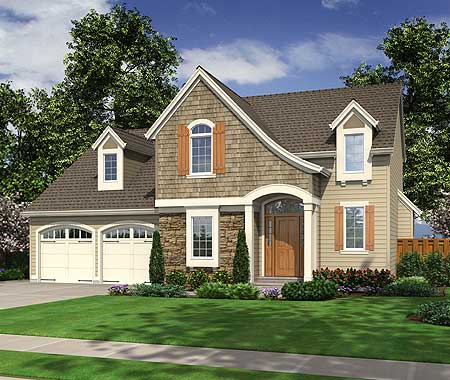

Signature Swooping Roof

Heated S.F.
1,789
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39181ST

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 39181ST

M-F 9am-5pm EST |

1-203-761-8500

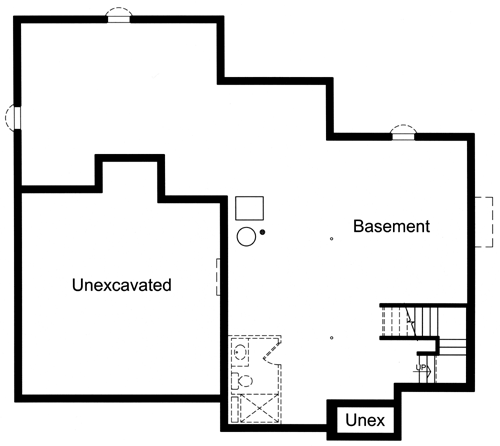

Basement

Plan 39181ST: Signature Swooping Roof - Floor Plan - Basement - Northwest, Shingle, Traditional

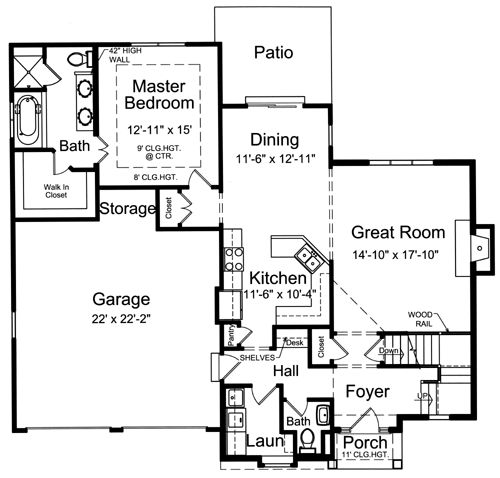

Main Level

Plan 39181ST: Signature Swooping Roof - Floor Plan - Main Level - Northwest, Shingle, Traditional

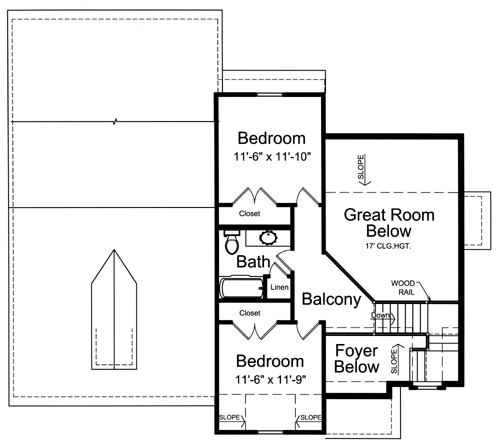

2nd Floor

Plan 39181ST: Signature Swooping Roof - Floor Plan - 2nd Floor - Northwest, Shingle, Traditional

Plan Details

  • A swoop roof adds interest to the exterior of this delightful home plan. A two-story foyer greets you upon entering the home and leads you back to the large great room that is also two-story.
  • The kitchen has a breakfast bar with seating and opens to a service hall with desk area for dropped mail near the laundry room.
  • Tucked away in the rear of the first floor, the master suite is a quiet oasis with a 9' tray ceiling.
  • On the second floor a balcony overlooks both the foyer and the great room below.
  • Two bedrooms on this level share a hall bath.
  • Related Plan: For a 4 bedroom version, see house plan 39157ST.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,789 sq. ft.

1st Floor

1,297 sq. ft.

2nd Floor

492 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 10"

Depth

45' 7"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

498 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Shingle

Traditional

Special Features

Master Suite - 1st Floor
