Plan 52288WM
Simple 3-Bed House Plan with a Narrow Footprint
Heated S.F.
1,284
Beds
3
Baths
2
Stories
1
Cars
1
What's Included
Plan Details
  • Only 31' wide, this simple 3-bed house plan is great for your narrow lot. The garage gives you parking for one car and helps give privacy to the front door and porch from the left side.
  • The bedrooms line the left side of the home leaving the right side open front-to-back.
  • The kitchen eating bar provides separation - and gives you casual eating at the counter - between the living room and the dining room.
  • A door off the dining room takes you outside to your patio.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Simple 3-Bed House Plan with a Narrow Footprint

  • 1,284

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

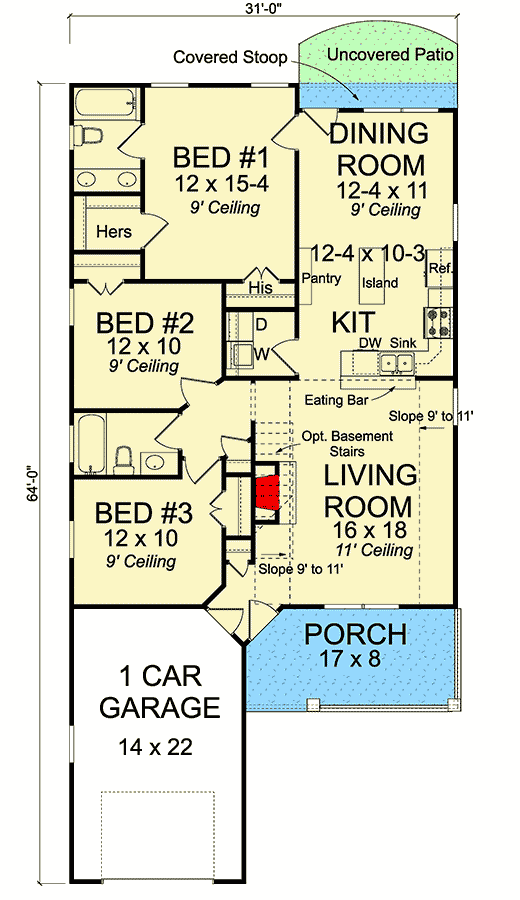

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,284 sq. ft.
  • 1st Floor: 1,284 sq. ft.

Dimensions

  • Width: 31' 0"
  • Depth: 64' 0"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 305 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
