Plan 28140J

Simple 3-Bed House Plan withL-Shaped Kitchen - 1363 Sq Ft

Heated S.F.
1,363
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

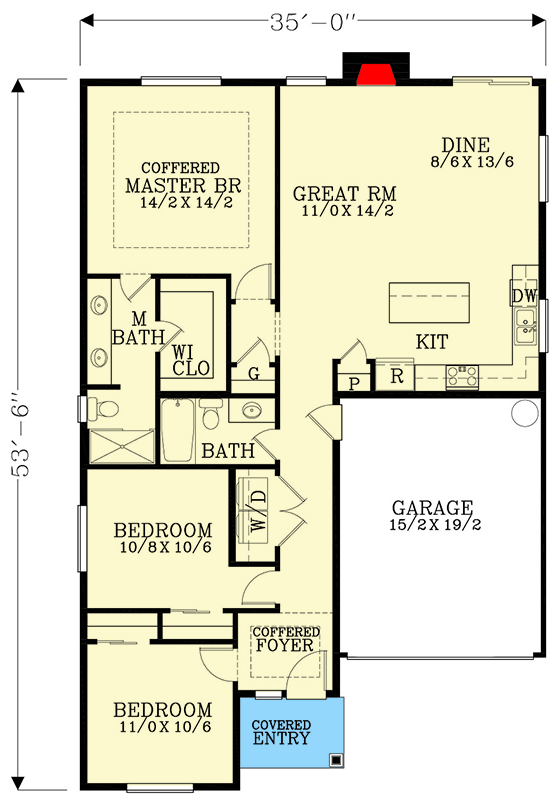

Plan 28140J

Main Level
Main Level

Plan 28140J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28140J: Simple 3-Bed House Plan withL-Shaped Kitchen - 1363 Sq Ft - Floor Plan - Main Level - Traditional

Plan Details

  • This 3 bed, 2 bath house plan gives you 1,363 square feet of heated living space.
  • Bedrooms line the left side of the home with the master suite in back. Laundry is tucked away in a closet off the entry hall and convenient to all.
  • Sliding doors on the back wall take you to the back yard.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
