Simple Craftsman Cottage with Options

Plan 23259JD

  • 1,488

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • This simple Craftsman cottage house plan comes in two exterior versions both wrapping the same smartly-designed floor plan.
  • A foyer with clutter-minimizing closet leads to a vaulted great room (to 11'6") with matching doors leading to the rear vaulted covered patio. A fireplace flanked by built-ins is a nice touch. The vault extends across to the kitchen.
  • The dining room has an attractive bumpout and is conveniently located by the kitchen which is open to the great room.
  • The master bedroom is vaulted to 10'7" and has a walk-in closet and twin vanities. Two bedrooms share a bath.
  • The dormer is a true dormer and lets natural light cascade into Bedroom 3 with a ceiling peaking at 14'2".
  • A utility room is just off the garage entrance.
  • Related Plan: Get an alternate exterior with see house plan 23260JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

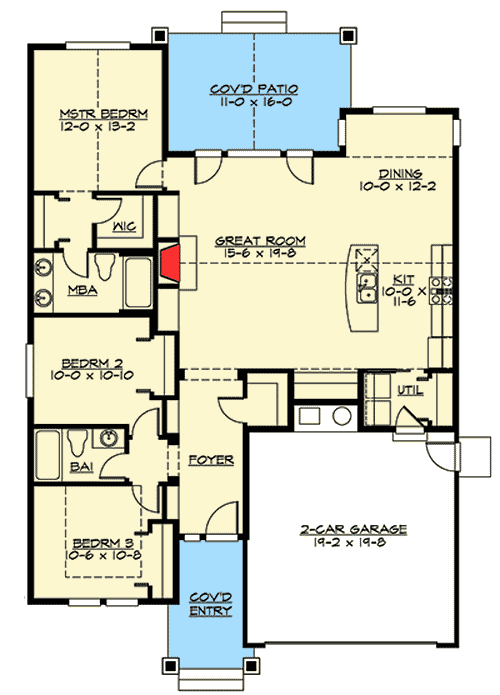

Floor Plan

Plan details

Total Heated Area

  • Total Heated Area: 1,488 sq. ft.
  • 1st Floor: 1,488 sq. ft.
  • Covered Patio: 176 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Dimensions

  • Width: 40' 0"
  • Depth: 60' 0"
  • Max ridge height: 21' 0"

Garage

  • Type: Attached
  • Details: 2 Cars
  •
    410 sq. ft.

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
